Powder coating & spraying machine consists primarily of specialized equipments used to apply protective or decorative coatings to metal or wood surfaces. Powder coating line systems typically comprises pre-treatment equipment, coating equipment, heat (or cold) source systems, conveying systems, electrical control systems, and auxiliary facilities.

• Pre-treatment equipment includes sandblasting machines, pickling equipment, phosphating equipment, and electrophoresis equipment.
• Coating machine ranges from manual to semi-automatic and fully automatic systems—including air spray guns, high-pressure airless spray guns, electrostatic liquid/powder coating equipment, and spraying robots—with electrostatic spraying equipment notably enhancing coating utilization rates.

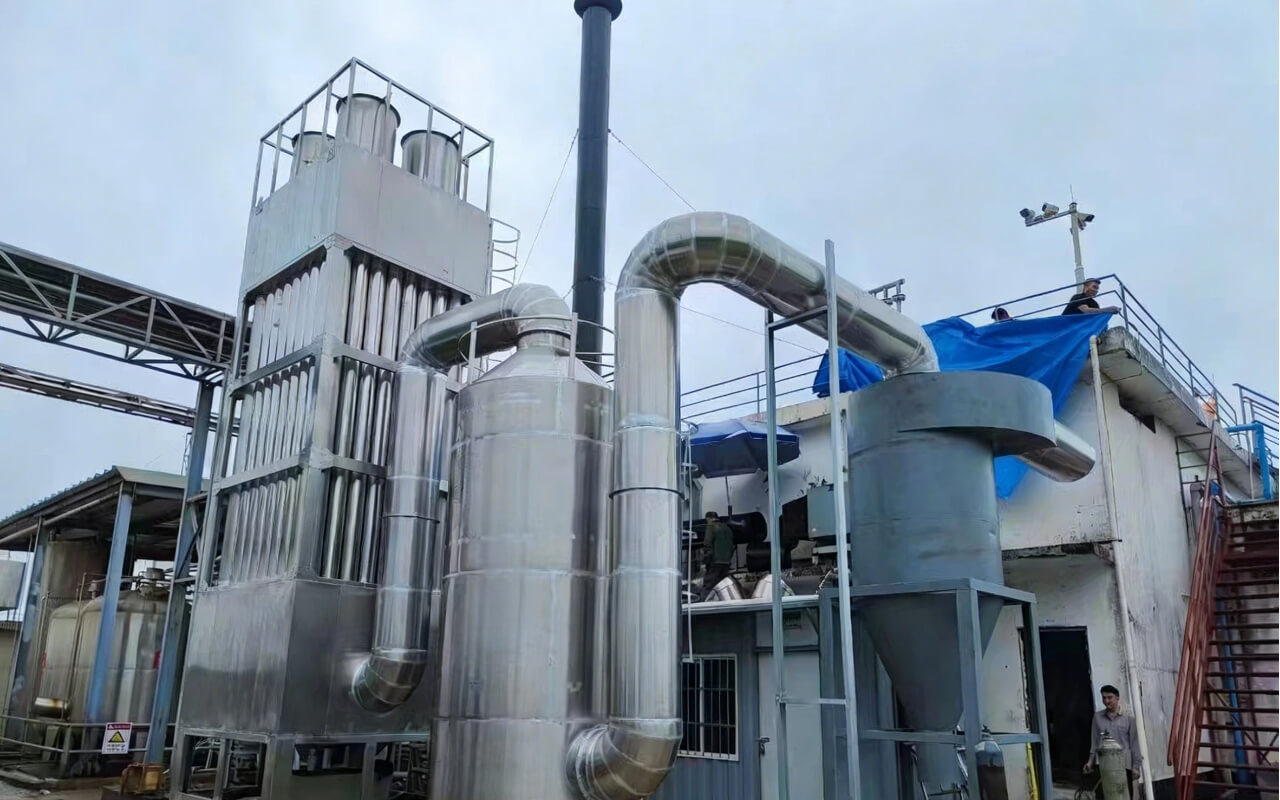

• Coating booths come in various types, such as water-wash (water-curtain) and dry-type booths; their primary function is the timely exhaust of spraying fumes to prevent secondary pollution, while associated exhaust treatment units (such as zeolite rotor concentration combined with combustion technology) effectively handle volatile organic compounds (VOCs).
• Coating curing oven and drying equipment includes not only hot-air drying ovens but also infrared and ultraviolet curing units to meet the specific curing requirements of different coatings.

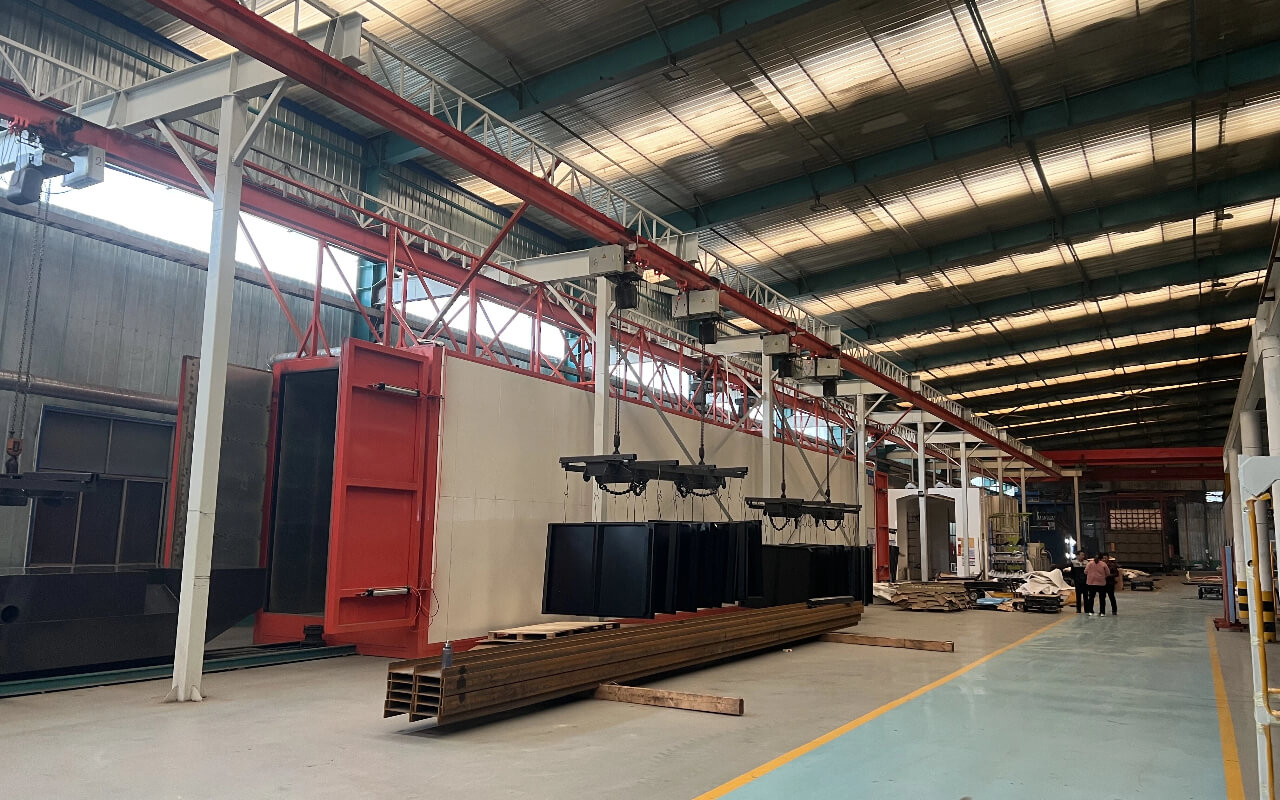

• Conveying systems, such as self-propelled electric hoist systems, transport workpieces continuously or in a step-wise manner according to preset programs.

What is powder coating? Surface finishes for Metal & Wood

Powder coating is a dry finishing process, It is used on a wide array of products. Used as functional (protective) and decorative finishes, powder coatings are available in an almost limitless range of colors and textures, and technological advancements have resulted in excellent performance properties.
Powder coating is mainly used for coating of metal objects, particularly those subject to rough use. Advancements in powder coating technology like UV-curable powder coatings allow for other materials such as plastics, composites, carbon fiber, medium-density fibreboard (MDF), and solid wood to be powder coated, as little heat or oven dwell time is required to process them.
Therefore, powder coating is widely used in various industries, such as: Automotive Industry, Consumer Electronics, Furniture & Wood, Heavy Equipment, Protective Coating.

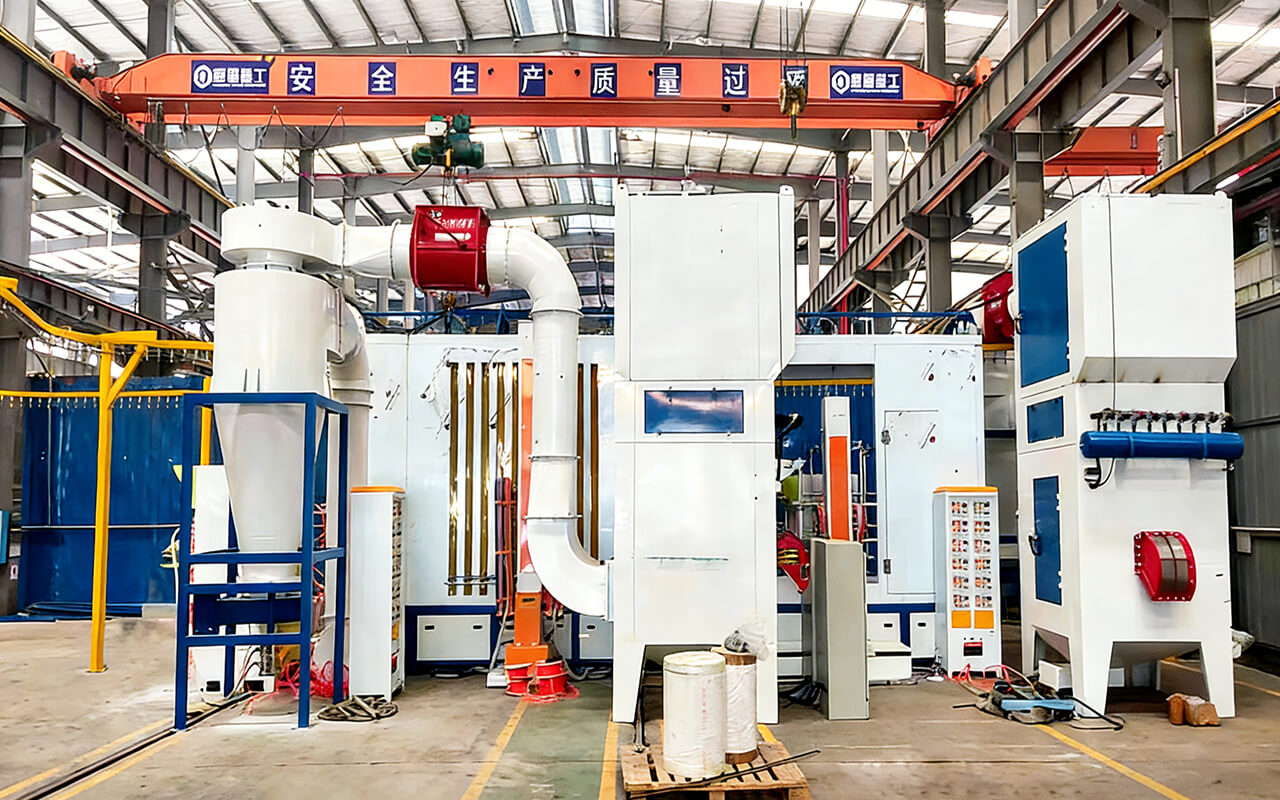

Powder Coating Machine & Systems

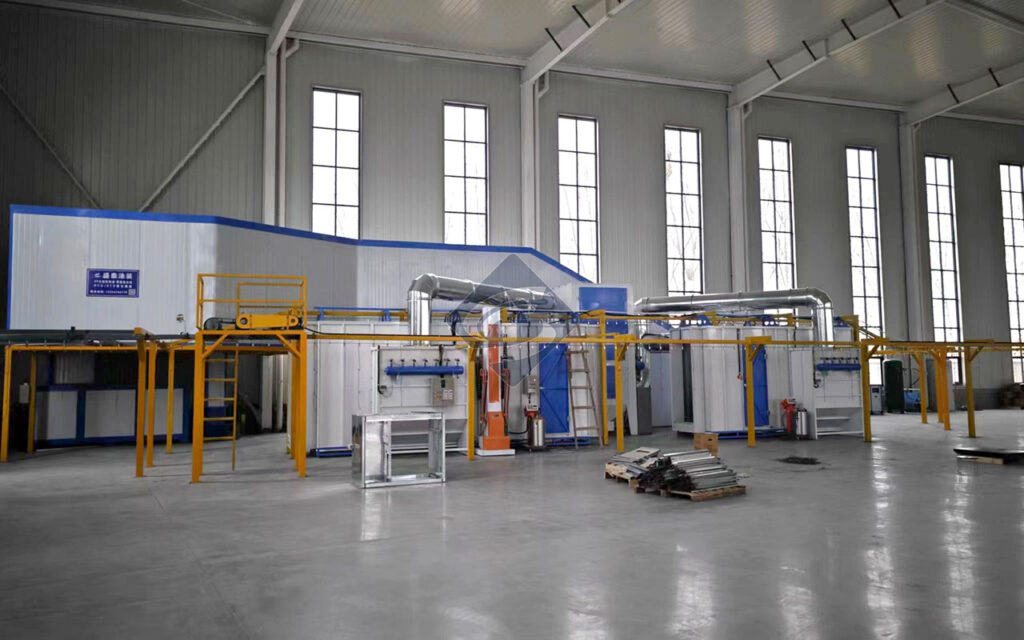

A powder coating line utilizes powder coating equipment to deliver premium-quality finishes for an extensive variety of substrates. Crucial performance determinants for a powder coating line are a superior visual appearance and texture of the finish, extended longevity, outstanding cost-effectiveness of the operation, and environmentally responsible utilization of materials. Modern powder coating equipment provides a broad spectrum of hues and textural outcomes.

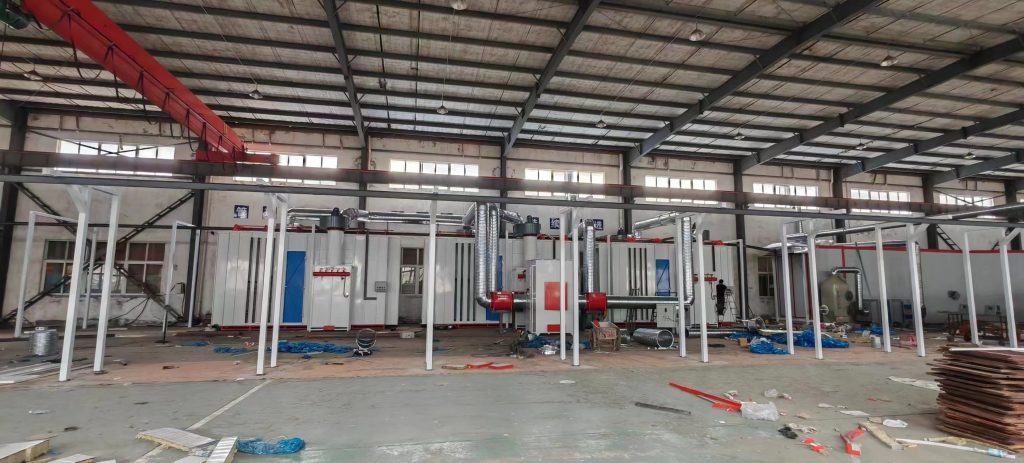

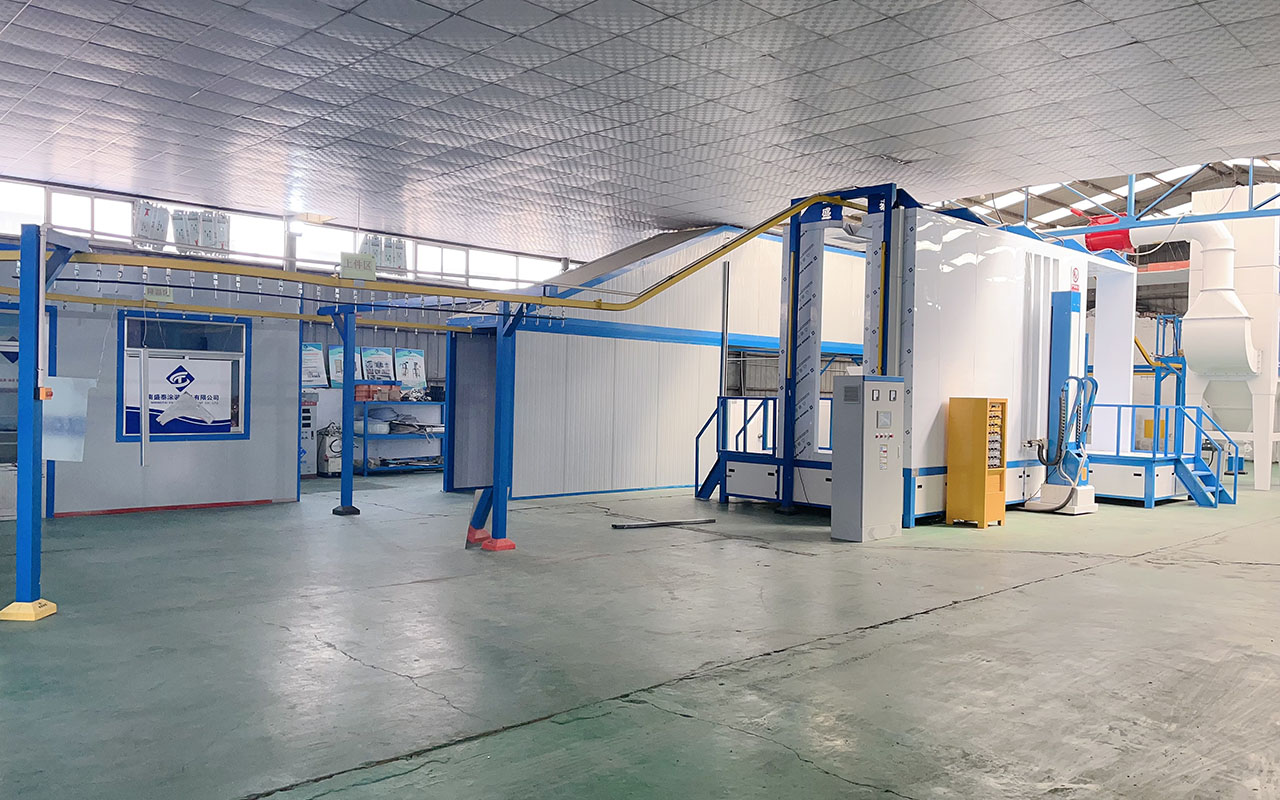

Electrostatic Powder Coating Line & Equipments

Electrostatic powder coating line constitutes a systematic industrial apparatus designed for the electrostatic powder coating process. Primarily utilized in the surface finishing of metal workpieces, it employs the principle of high-voltage electrostatic adsorption to ensure the uniform adhesion and efficient recovery of powder coatings, distinguished by its strong environmental friendliness and high powder utilization rate.

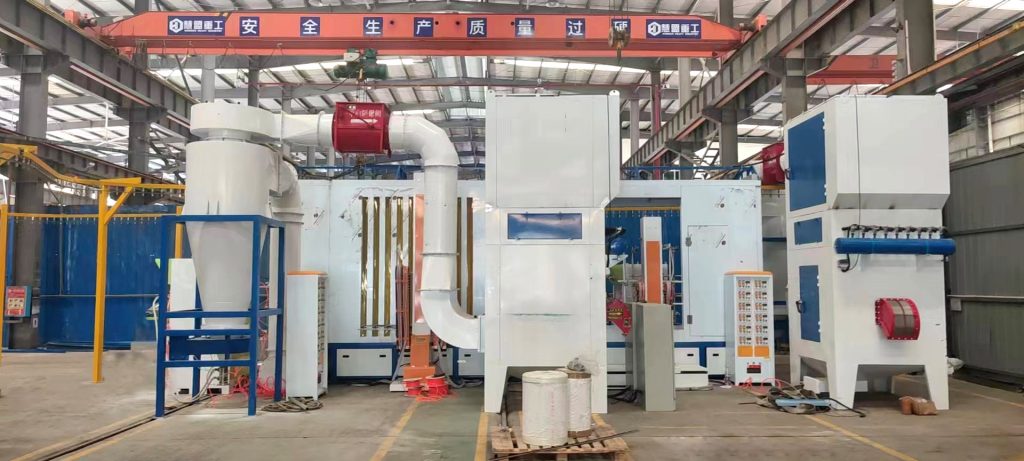

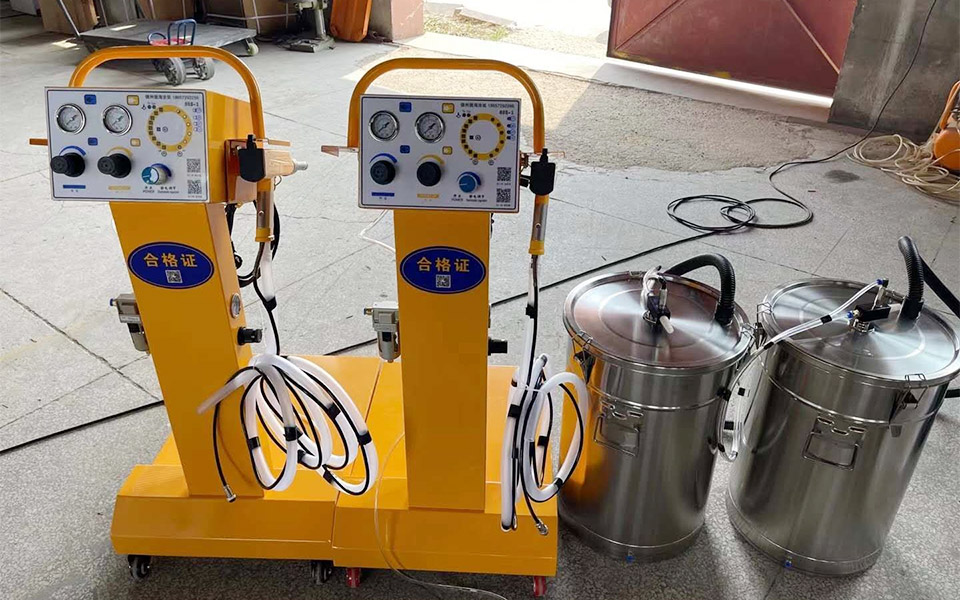

Powder coating production line comprises a closed-loop system consisting of an electrostatic spray gun, a recovery unit, a powder booth, and a powder supply system. The spray gun incorporates either a built-in high-voltage generator or corona ring technology; by electrically charging the powder particles, it facilitates their electrostatic adhesion to the workpiece surface, thereby effectively mitigating the Faraday cage effect. The recovery system is categorized into two types—cartridge-filter (for single-color applications) and cyclone (for multi-color scenarios)—and is paired with a powder booth constructed from PP or PVC materials to prevent environmental contamination. The powder supply unit integrates automatic sieving and fluidization functions, enabling the mixed conveyance of both virgin and recovered powder, with an overall utilization rate reaching between 90% and 98% [2]. Certain models feature lifting mechanisms and clamping devices to enhance the stability of multi-angle spraying operations, while intelligent versions are equipped with digital control modules that enable precise parameter adjustment and the storage of multiple coating programs.

Powder Coating Spraying Gun & Robots

Spray gun functions by utilizing the pressure of compressed air to atomize the liquid, forming a mist that projects onto the surface of the vehicle, creating a glossy and uniform film. The spray gun is a key piece of equipment for coating applications, as it uniformly applies paint (coating) to the vehicle’s surface, resulting in excellent corrosion resistance and coating finish. Utilizing compressed air to atomize the coating entering the spray gun and applying it to the vehicle’s surface (referred to as air injection) is one of the most important processes for surface decoration.

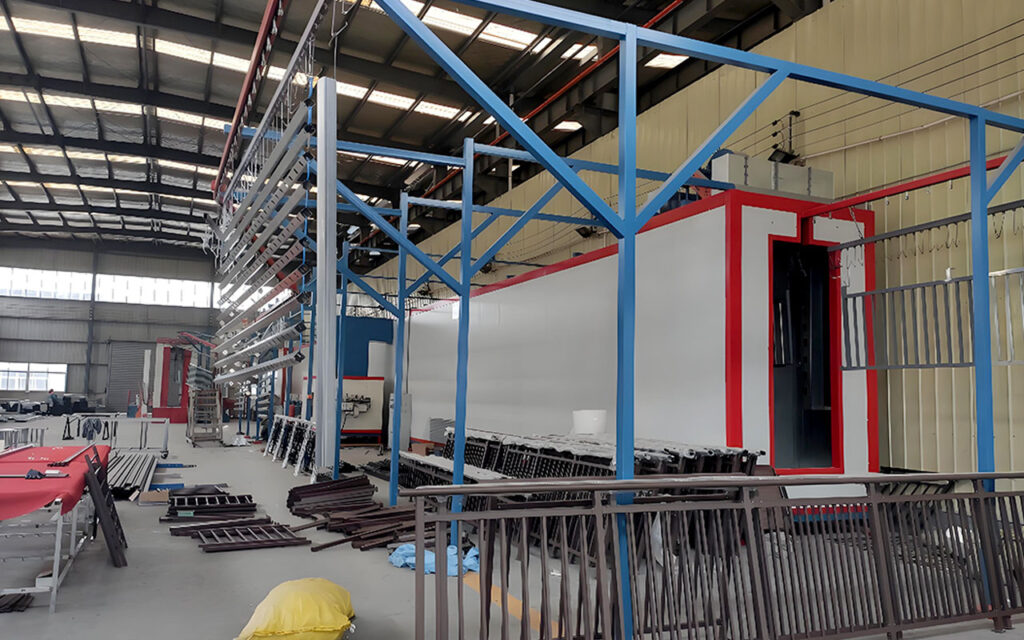

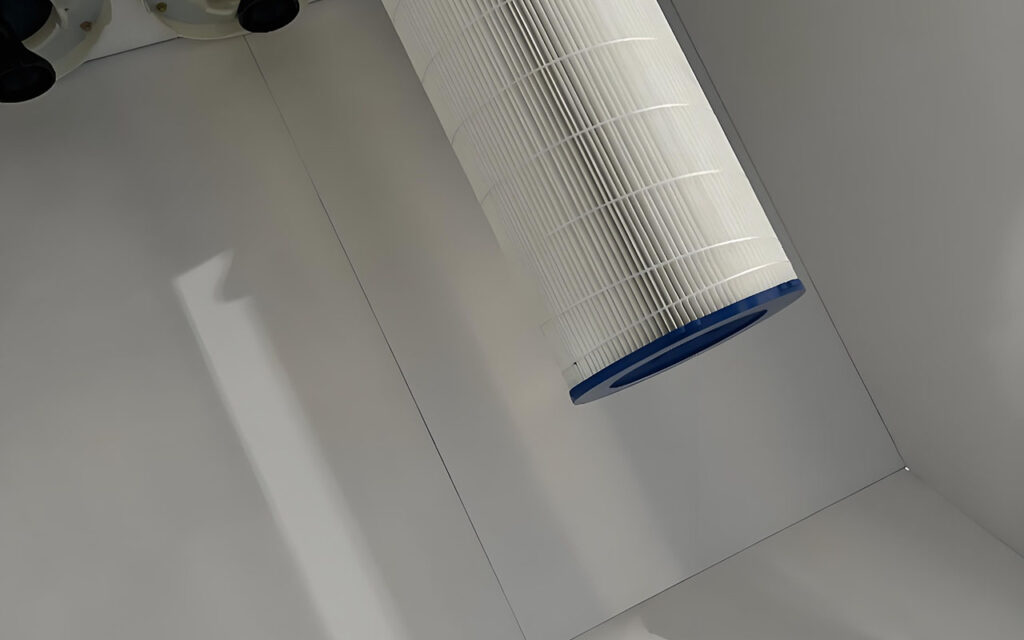

Powder Coating Booth

Powder coating booth, also known as a powder coating room or large cyclone powder coating room.
Function: It serves as the core system within powder coating equipment.
Structural Features:
• Constructed using a combination of metal and plastic panels.
• Cost-effective, durable, and user-friendly.
• Particularly suitable for automated powder coating lines, facilitating easy cleaning, quick color changes, and enhanced production efficiency.

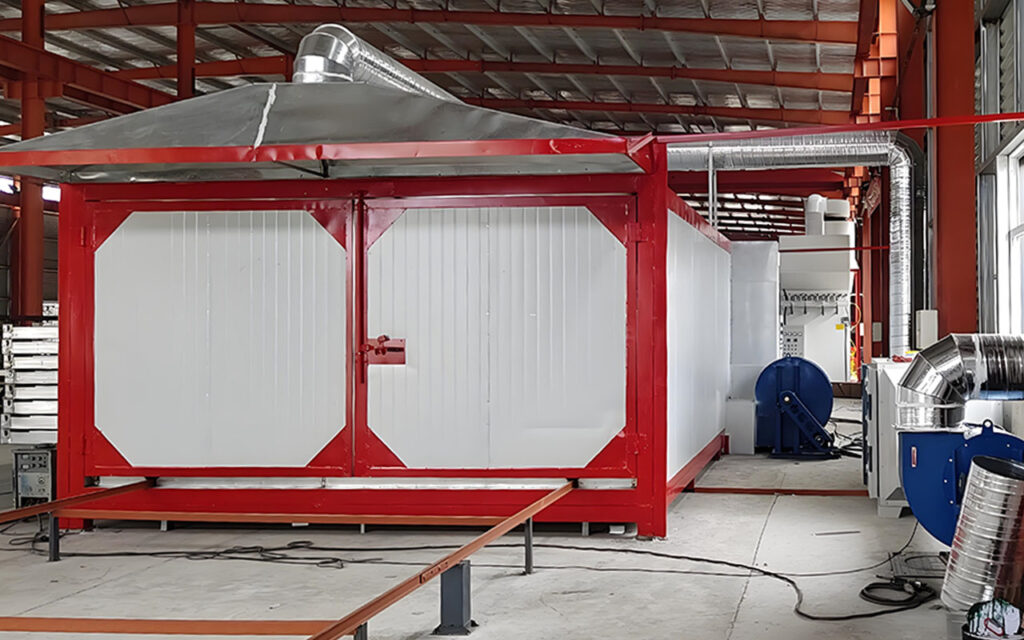

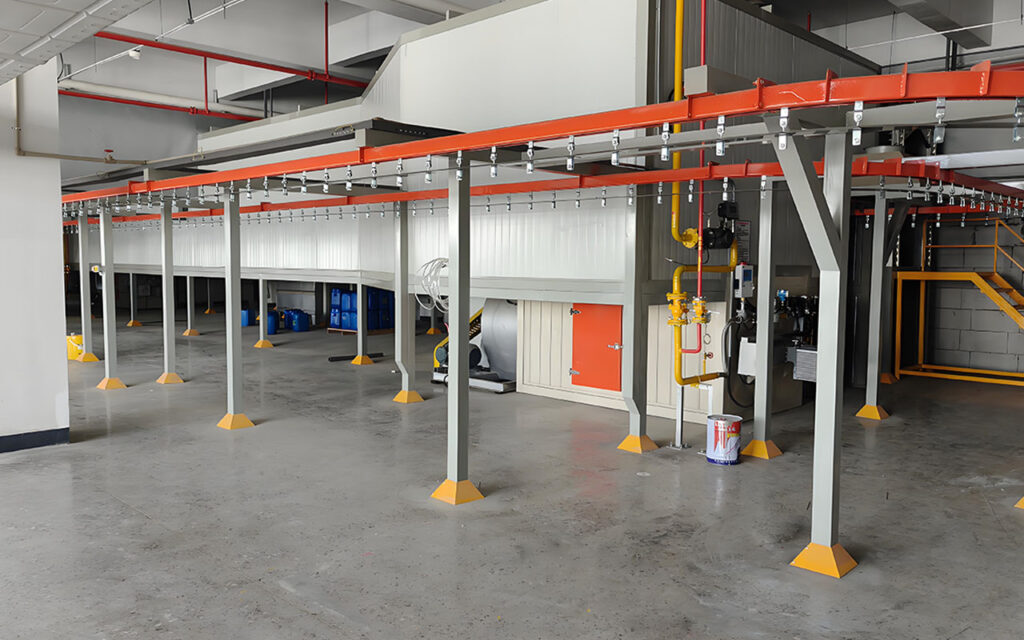

Powder Coating Curing Oven

The working principle of the powder coating curing oven is to heat the powder coating on the workpiece surface to a specified temperature using a heating system and maintain it for a corresponding time. This process causes the powder to melt, flow, level, and cure, forming a dense, hard protective coating that firmly adheres to the workpiece surface.

Powder Coating Recovery System

The electrostatic powder coating recovery system originated from dust collection equipment in environmental protection machinery. Its core function is to achieve the separation of the two-phase mixture (gas and solid). The key difference is that the solid phase collected in dust removal is waste, whereas the solid phase recovered here is valuable material for reuse. Various structural filters, such as filter bags and filter cartridges, serve as the primary separation devices. Their working principle relies on filter materials, which act like screens, to capture and retain the powder. Learn more >>

Powder Coating Pretreatment System

The pretreatment stage is critical for effective powder coating, involving thorough cleaning, surface conversion (e.g., phosphating), strict drying, and a systematic multi-step process. It ensures strong adhesion, corrosion resistance, and quality results, while integrating green technologies and adapting to complex part geometries. Learn more >>

---
