One of the most significant advantages of powder coating is that over-sprayed powder can be recovered and reused. This process is handled by specialized recovery equipment. There are various types of systems available, including cyclone separators, bag filters, cartridge filters, belt types, and thin-film systems.

In modern coating lines, a single device is rarely used alone. Instead, manufacturers typically use composite systems—combining two or more types of equipment to offset individual weaknesses and achieve maximum efficiency.

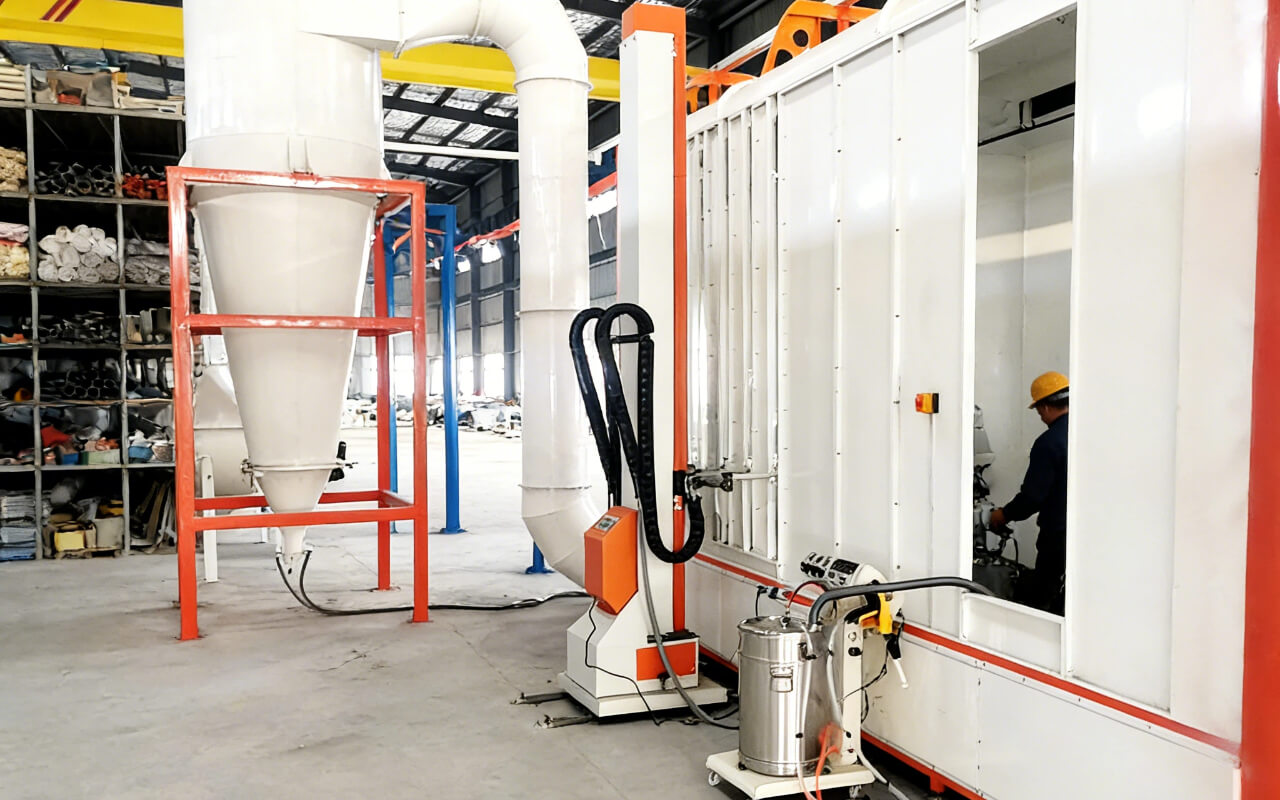

On automated production lines, the most common combination is the Cyclone Separator paired with a Bag Filter. The cyclone recovers the bulk of the powder, while the bag filter captures the ultra-fine particles.

1.Cyclone Separator Recovery Systems

Schematic of Airflow and Operating Principle of the Improved Secondary Cyclone Separator

1.Clean Air Outlet 2. Secondary Air Chamber 3. Secondary Air Nozzle 4. Secondary Air Inlet 5. Uncoated Powder and Air Mixture 6. Secondary Cyclone Separation Chamber 7. Primary Cyclone Separation Chamber 8. Baffle Plate 9. Powder Recovery Chamber • Section A-A: Flow Diagram of Powder-Laden Airflow

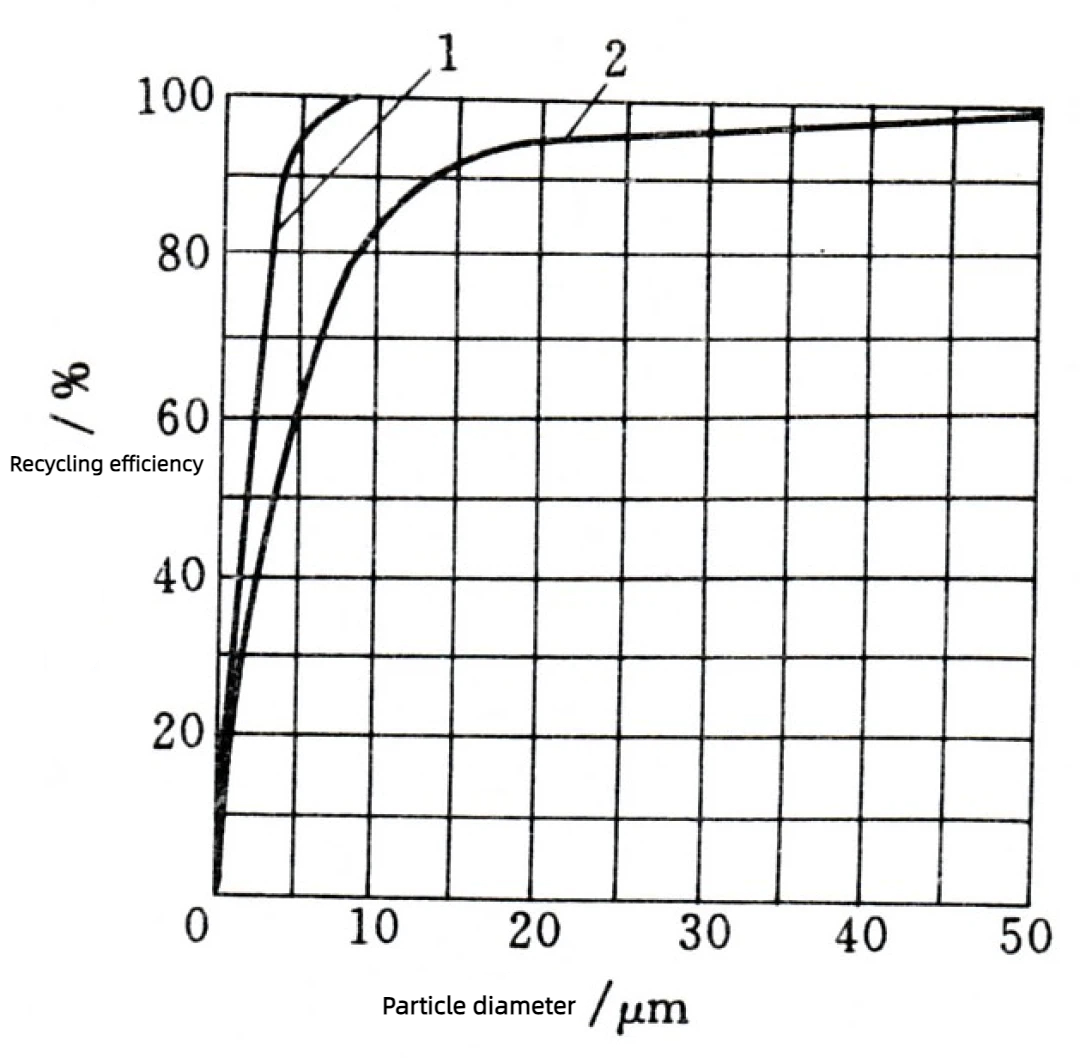

The impact of high-performance cyclone separators and high-performance secondary cyclone separators on the recovery efficiency of different powder particle sizes

A cyclone recovery system consists of a cyclone separator, a blower, and a vibrating screen. It operates on the "tornado" principle: high-speed air enters a conical chamber, creating centrifugal force that spins heavier powder particles toward the walls and down into a collection hopper.

• Efficiency: Standard cyclones achieve a recovery rate of 93%–94% for particles larger than .

• Advanced Models: Improved "Secondary Air" cyclones can reach a 99.9% recovery rate, significantly improving the capture of fine dust under .

• Advantages: High recovery rates, flexible installation positioning, and adaptable air intake locations.

• Disadvantages: Requires significant floor space and height, generates higher noise levels, and may still release some micro-dust into the atmosphere if used alone.

2. Bag Filter Recovery Systems

Bag filter powder coating recovery equipment: 1-Motor; 2-Exhaust fan; 3-Clean air outlet; 4-Filter cloth; 5-Powder remaining outside the filter cloth; 6-Oscillator; 7-Powder coating; 8-Recovery; 9-Uncoated powder coating

Bag filter systems consist of filters, an oscillator (or pulse jet), an exhaust fan, and a vibrating screen. The air passes through a filter cloth (felt, canvas, nylon, or polyester) while the powder particles are trapped.

• Efficiency: These systems boast an impressive recovery rate of 99.9%, depending on the filter material and pore size.

• Cleaning Methods: To prevent clogging, filters are cleaned using either mechanical vibration or compressed air back-pulsing (typically at speeds of 5–10 m/s).

• Advantages: Extremely clean exhaust air, quieter operation compared to cyclones, and a smaller equipment footprint.

• Disadvantages: Difficult to clean and time-consuming for color changes.

To be continued...
