Conveyor equipment is an indispensable part of various coating production lines. However, for those outside the industry, distinguishing between the different types can be confusing. Below is an introduction to the various categories of conveyor equipment.

A conveyor is an automated handling machine that continuously transports materials along a fixed path. It can move horizontally, on an incline, or vertically, forming complex spatial transport circuits. Conveyors are highly efficient, cover long distances, and allow for various process operations to be completed during transport, making them essential for modern automated factories and logistics centers. Their defining characteristic is pure point-to-point transport (A to B) without intermediate exits or entries

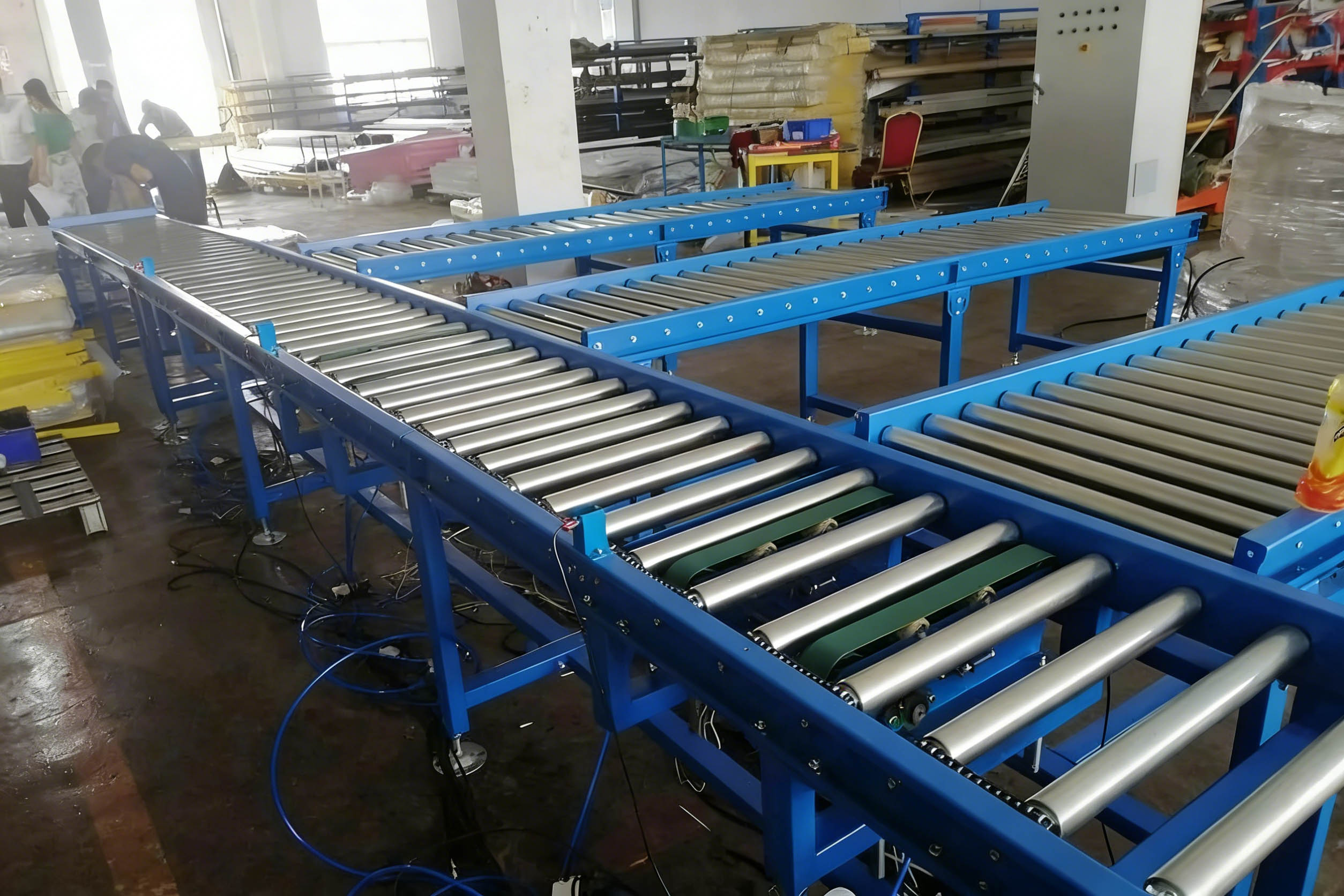

1. Roller Conveyor



Roller conveyors are ideal for items with a hard, flat bottom. They consist of rollers, support legs, driving motors (or motorized rollers), frame rails, and sensors.

• Types: Available in power-driven or non-powered (gravity) versions; layouts include horizontal, sloped (small angles only), and curved.

• Transmission: Chains, multi-ribbon belts, synchronous belts, O-rings, or gears.

Features:

• Suitable for boxes, bags, and pallets; not for bulk materials or irregular small items.

• High load capacity; can handle heavy single items or impact loads.

• Easy to connect multiple units to form complex logistics systems.

• Accumulation rollers allow for stacking items of consistent size/weight.

• Simple structure and high reliability; a single damaged roller doesn't stop the whole line.

Applications: Electronics, beverages, food, tobacco, chemicals, pharmaceuticals, packaging, machinery, automotive, and logistics.

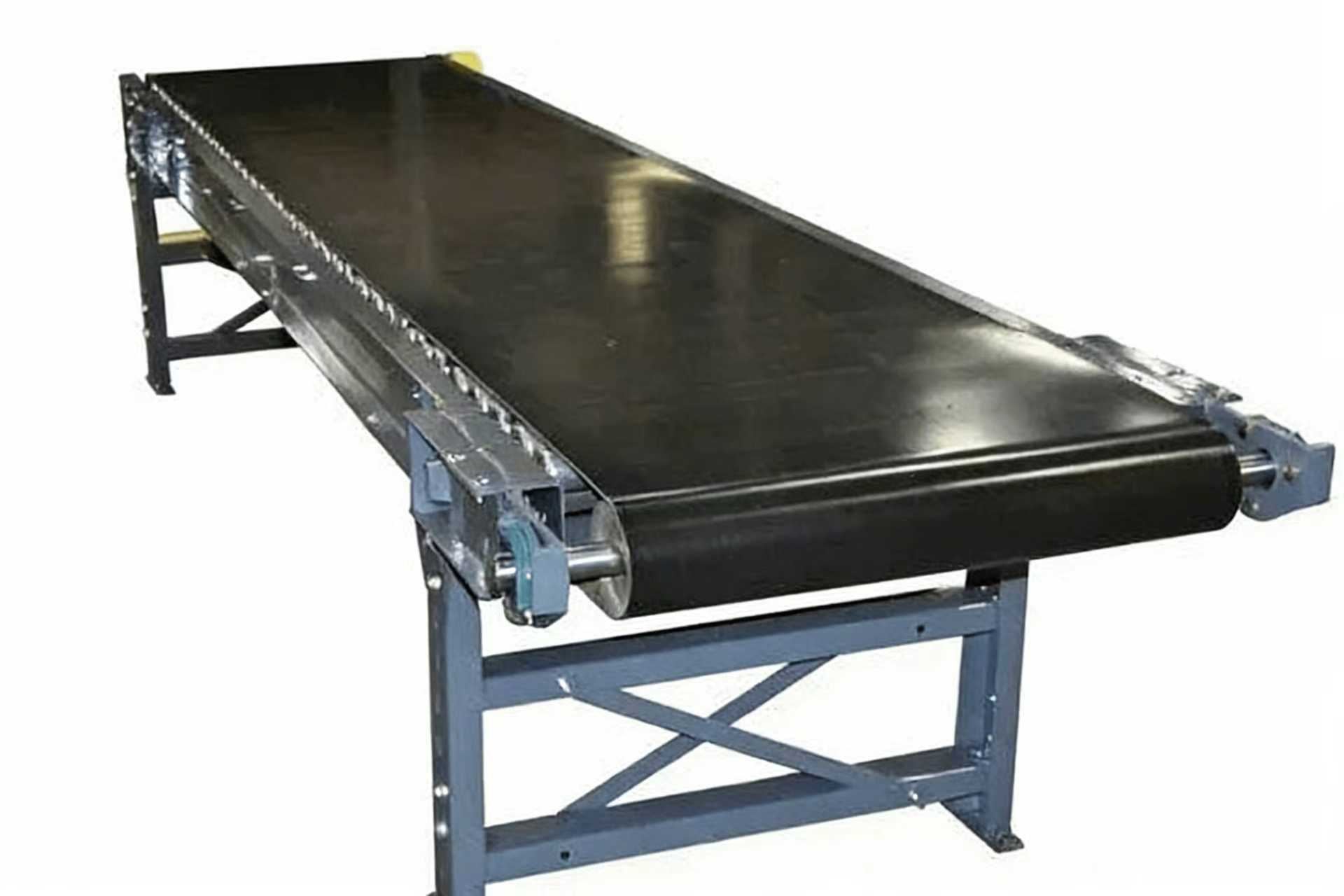

2. Belt Conveyor

A high-volume, simple, and versatile facility. Common belt materials include rubber and synthetic fabrics.

• Drive Modes: Roller type, rollerless, or linear drive.

• Power Sources: Gear motors, motorized pulleys, or servo motors.

Features:

• Handles a wide range of materials, including small parts and bulk goods (sand, coal).

• Supports steep inclines (up to 18° for flat belts; higher with transverse cleats).

• Long-distance capabilities (from meters to over 10km).

• Low operating costs and high energy efficiency.

Applications: Mining, food processing (fruits/vegetables), electronic assembly lines, and express delivery sorting centers.

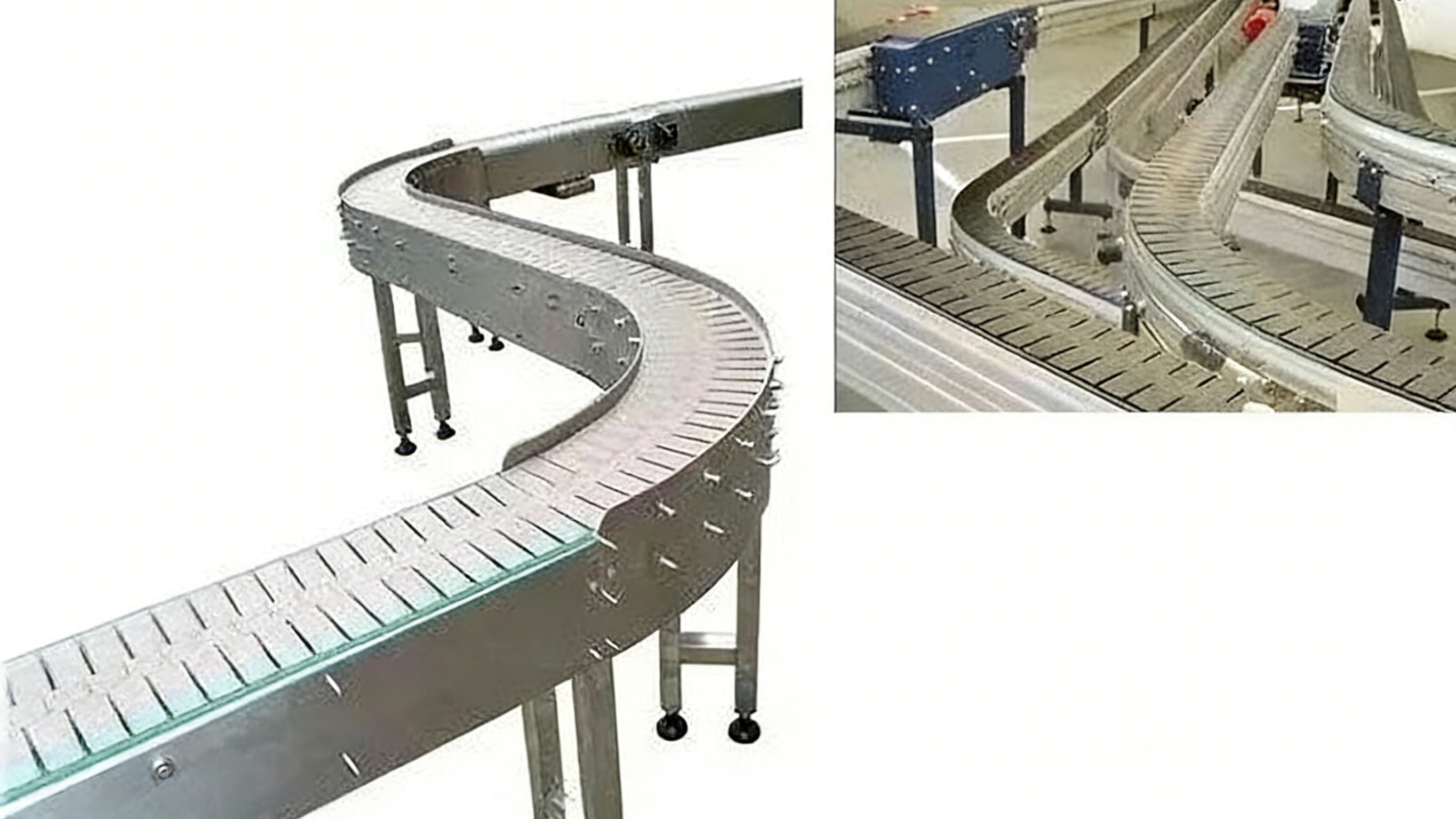

3. Slat/Chain Plate Conveyor

Uses a circulating chain as the traction power and plates as the carrier.

Features:

• Smooth, flat surface with low friction; ideal for glass bottles, PET bottles, and cans.

• Materials include stainless steel or engineering plastics.

• High load capacity; used for heavy items like electric vehicles and motorcycles.

• Stable and accurate speeds for synchronized conveying.

• Easy to clean and can be washed or soaked (hygienic for food/beverage).

Applications: Irregularly shaped heavy loads, food packaging, electronics, airports, and automotive production.

4. Screw Conveyor

Classified into horizontal and vertical types. Variations include flexible and tube-type screw conveyors.

Features:

• Simple structure, small cross-section, and excellent sealing.

• Allows multi-point loading and unloading.

• Downsides: Higher component wear, lower volume capacity, higher power consumption, and potential for material breakage.

Applications: Building materials, chemicals, power plants, metallurgy, coal mining, and grain.

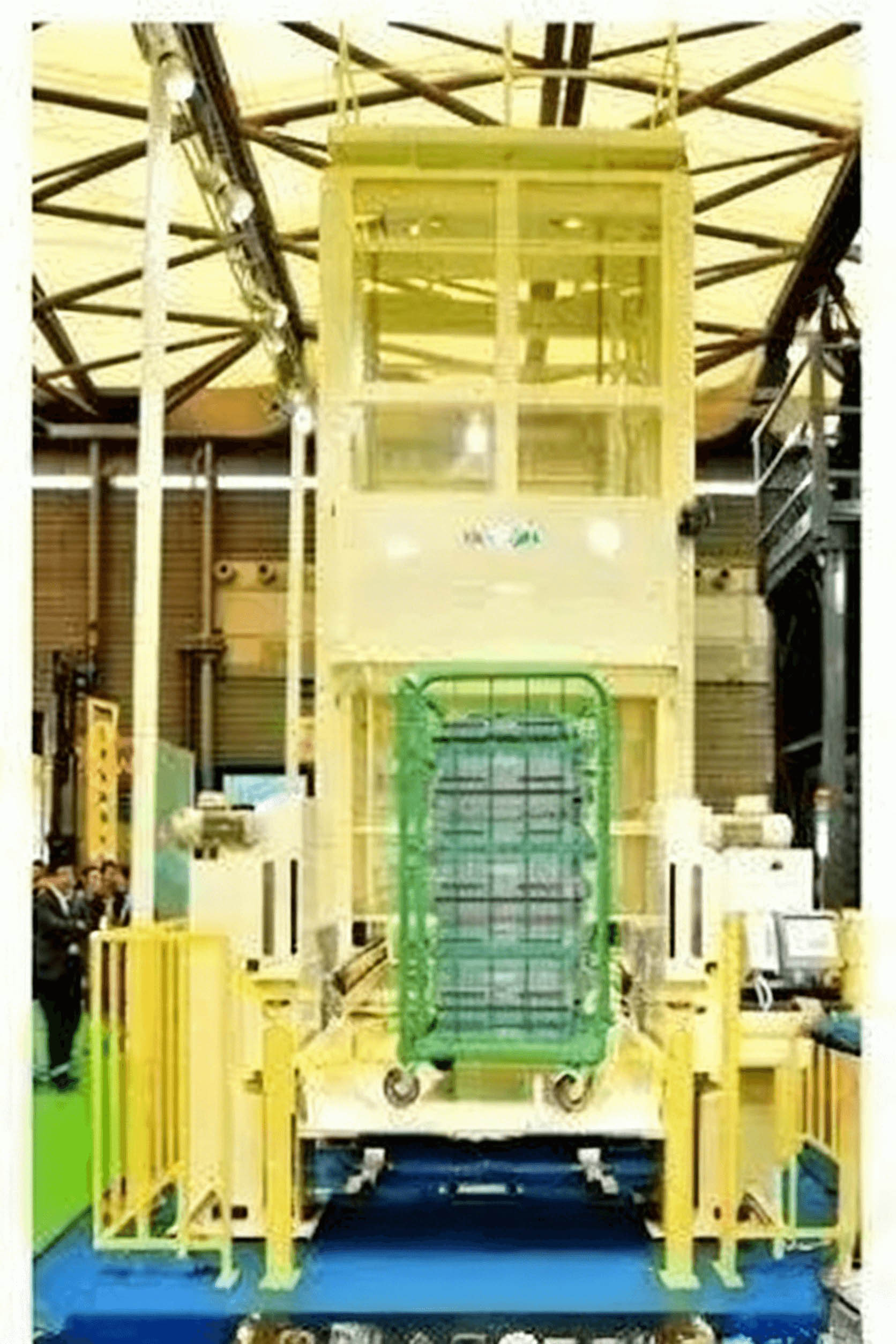

5. Vertical Conveyor (Elevator)

Commonly known as a "hoist," these come in continuous, reciprocating, or stepping forms. They connect horizontal conveyors at different heights or floors into a single large system.

Features:

• Small footprint; saves space.

• Low noise and low energy consumption.

• Safety Note: Restricted by law to material transport only; strictly no passengers.

Applications: Machinery, medicine, food, and multi-story logistics centers.

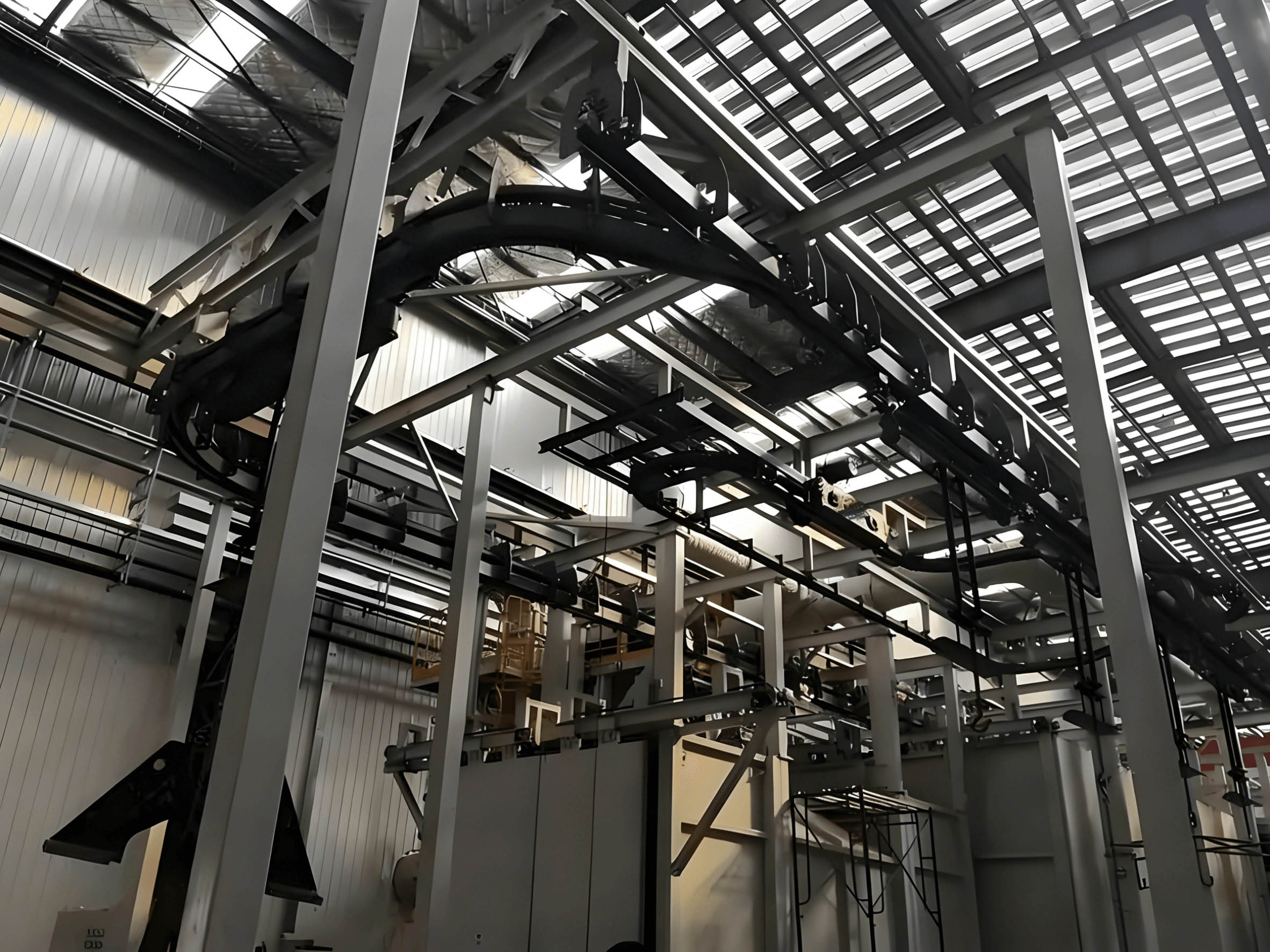

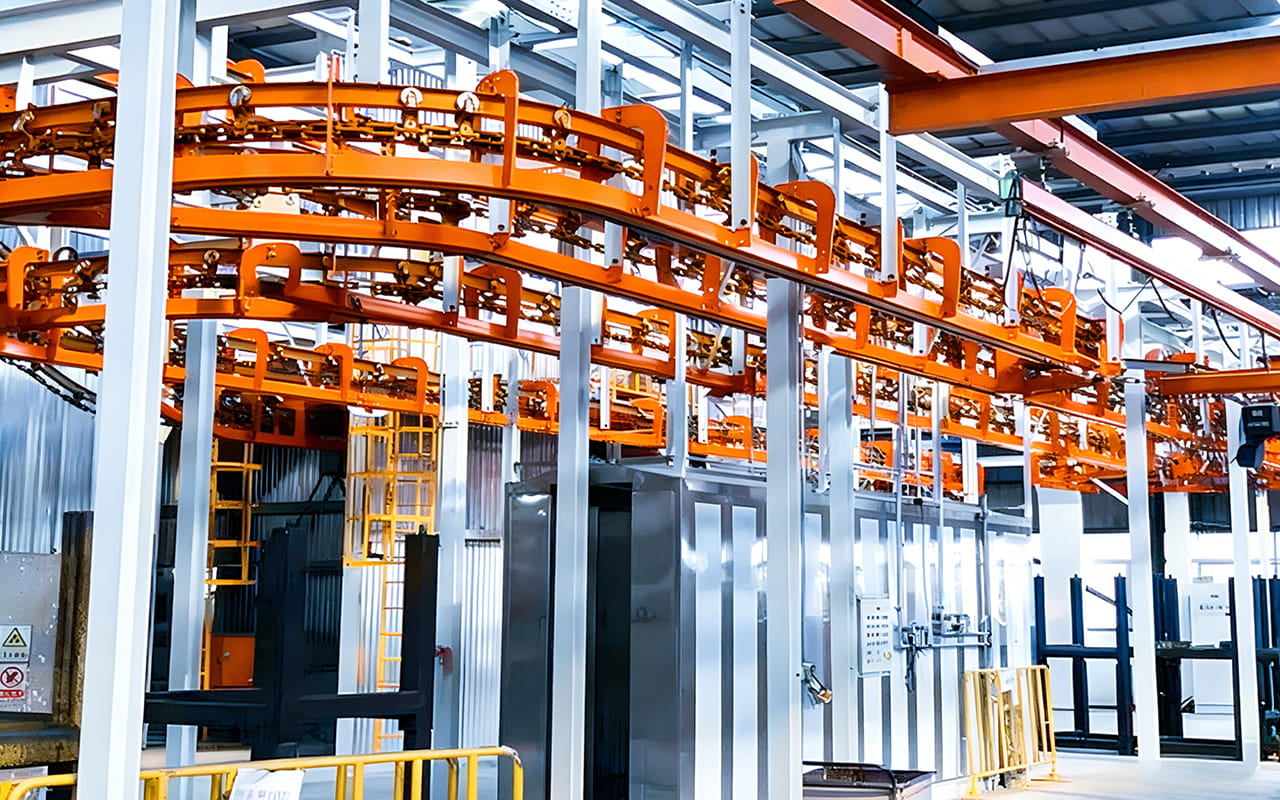

6. Overhead/Suspended Conveyor

Effectively utilizes ceiling space and saves manpower. Components include chains, tracks, hangers, brackets, and drive units.

• Types: Lifting, pushing, and towing types.

Features:

• Large single-machine capacity; can span floors, workshops, or entire industrial parks.

• Operates well in harsh environments.

• Low cost and low maintenance.

Applications: Long-distance workpiece transport, aerial storage, and coating/spraying lines. (Note: Usage in modern automotive final assembly is decreasing as floor-based automation improves).

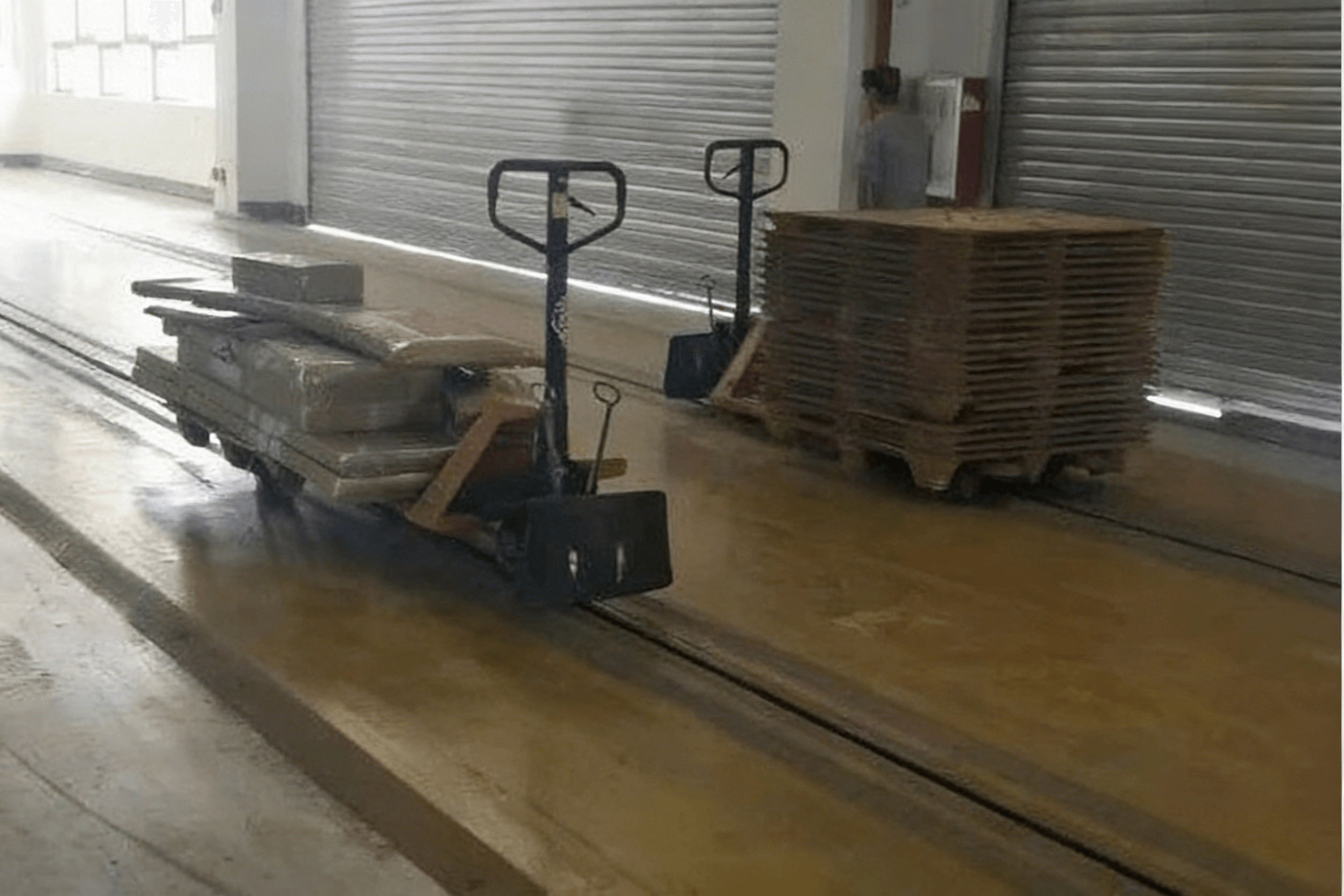

7. Floor Chain Conveyor

Similar to overhead conveyors but with chains and tracks embedded in the floor. It uses specific towing "dogs" to move carriers.

Features:

• Supports merging and diverting functions to optimize space.

• Highly reliable in harsh conditions.

• Challenges: Complex construction (must sync with civil engineering); debris easily enters the track, making cleaning difficult.
