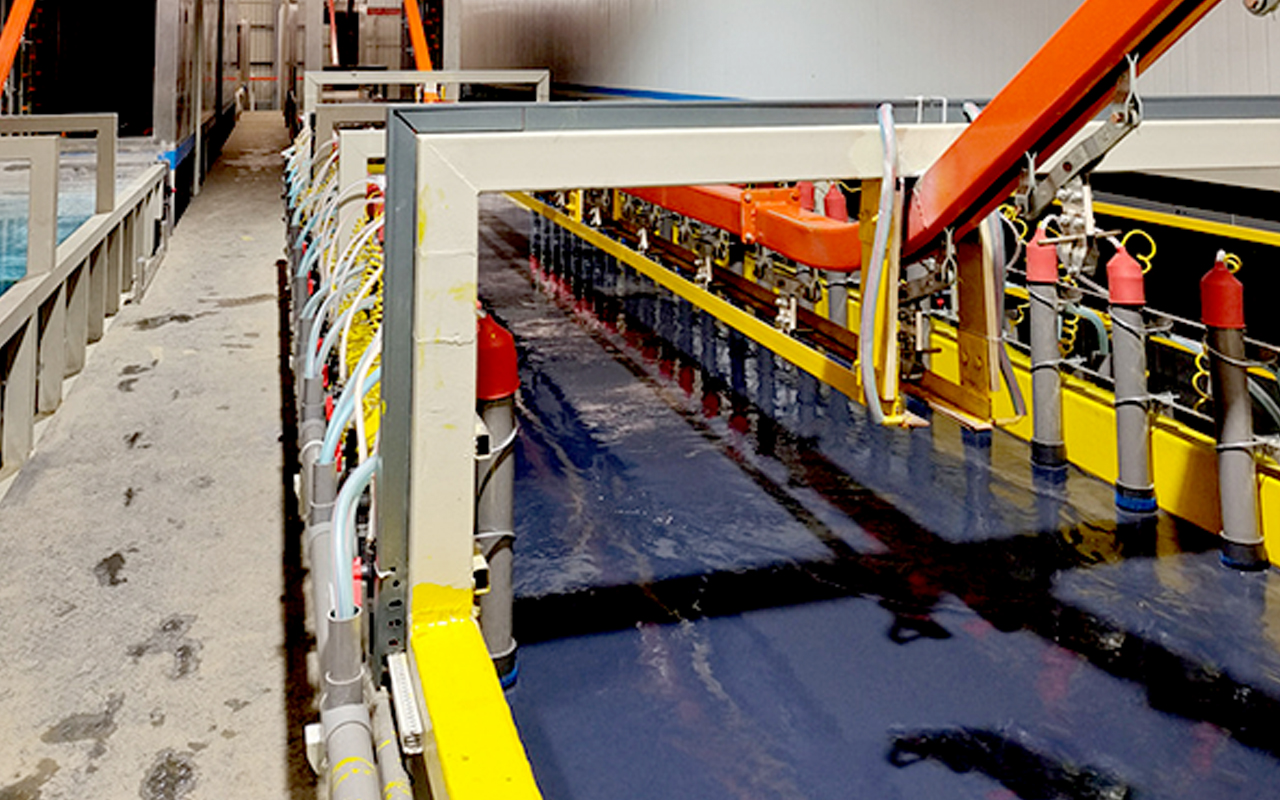

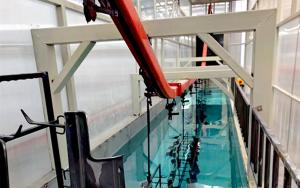

Automated Electrocoating Line with Inclined Chain Conveyor Track

Workpieces are hung and transported overhead, which maximizes valuable floor space and reduces energy consumption. This design allows for multiple pretreatment and curing processes to be carried out seamlessly during conveying within the electrocoating line. Operating continuously, workpieces are delivered sequentially, undergo the required process treatments—including the critical electrophoresis coating stage—and exit in a steady flow. This enables rhythmic, continuous production. Therefore, such suspended conveyor systems are foundational equipment for achieving fully automated and efficient electrophoresis line operations in modern manufacturing.

Advantages

1. Simple, reliable structure capable of operating in the harsh, humid environments typical of an electrocoating line.

2. High automation reduces labor and improves efficiency throughout the electrophoresis line.

3. Low initial investment, energy consumption, and maintenance costs, reducing overall operating expenses for the electrocoating line.

4. Variable-frequency speed control and chain-driven transmission allow for high capacity and extra-long lines, enabling cross-workshop transportation.

5. Fixed process time at each station, which is critical for ensuring stable coating quality and consistent color performance in the electrophoresis line.

Disadvantages

1．Requires significant overhead space, with relatively high demands on workshop layout and building structure to accommodate the electrocoating line.

2．Long workpiece residence time and increased incline length extend the required tank dimensions, raising fabrication costs for the electrophoresis line tanks.

3．Best suited for high-volume production of similar product types.

A single electrocoating line is generally limited to processing workpieces in one color per cycle.
