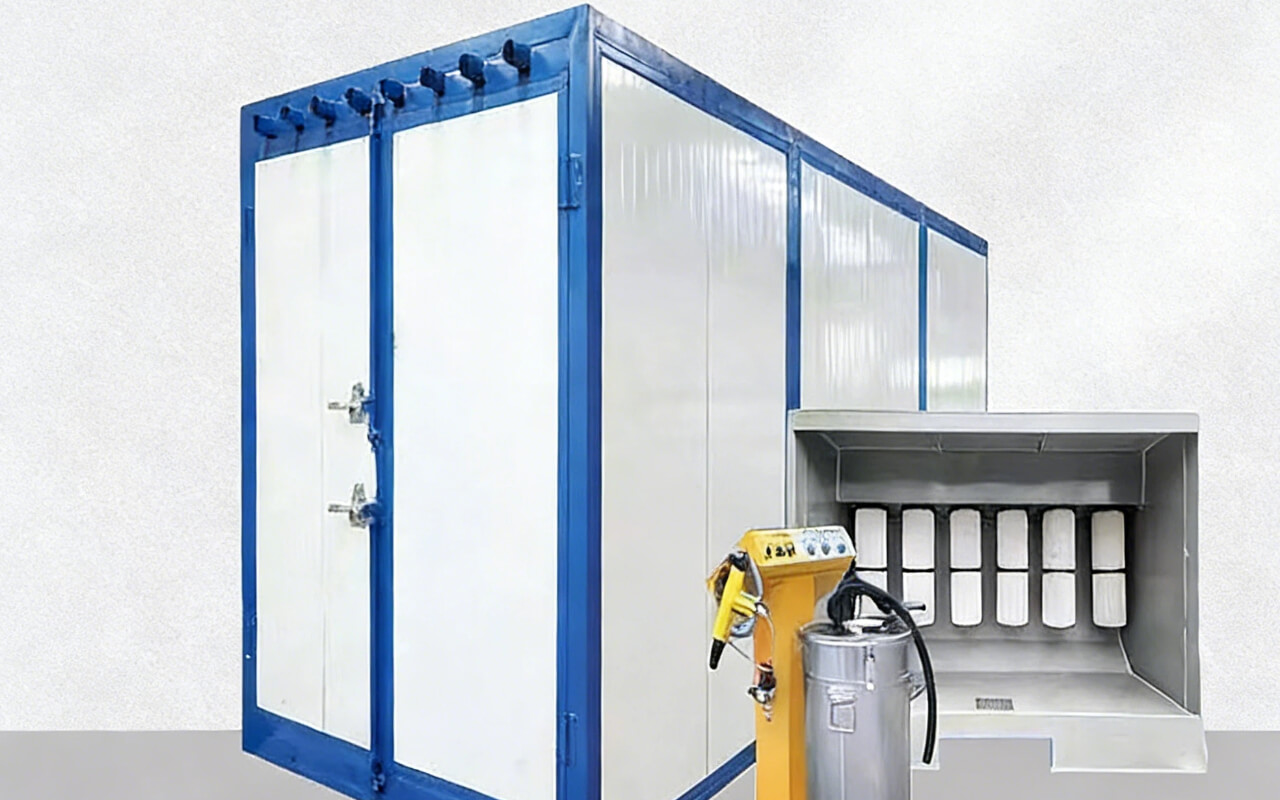

Manual Powder Spraying Oven

ST-MPC-B6822

Price: USD1000~3000

Controllable Quality: Operators can adjust spraying parameters—such as distance, angle, and pressure
Insulation Aluminum Silicate：Block splicing insulation
Hot Air Circulation Duct：δ1.0mm galvanized sheet
Oven Door Opening Method & Material：Double-head double-opening doors, insulation thickness 120mm

The powder recovery efficiency reaches as high as 98%. Designed based on aerodynamic principles, the mainstream powder recovery unit employs an external exhaust system to draw scattered powder into the filter cartridges, offering a straightforward and practical solution. It not only enhances work efficiency but also positively impacts both physical and mental well-being.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Product Features

1.Exceptionally high recovery efficiency.

2.Ultra-fine dust is filtered through cartridges and an automatic backwash system, meeting stricter environmental standards.

3.Multi small cyclone separators enable faster and more convenient color changes.

4.Sleek and impressive design.

Key Attributes

1	High Temperature Curing Oven	L6800×W2000×H2620（mm）	1 set
2	Curing Oven Chamber Body	Inner panel: δ0.6mm galvanized sheet Outer panel: δ0.5mm color-coated sheet (white) Insulation thickness: δ120mm, density: 100kg/m³ Inner corner cover: δ1.0mm galvanized sheet Outer corner cover: δ1.2mm cold-rolled sheet Joint insulation: 20mm aluminum silicate	1 set
3	Inner Corner Cover	δ1.0mm galvanized sheet	1set
4	Outer Corner Cover	δ1.2mm cold-rolled sheet
5	Door Corner Cover	δ2.0mm cold-rolled sheet
6	Hot Air Circulation Duct	δ1.0mm galvanized sheet
7	Insulation Aluminum Silicate	Block splicing insulation	1bag
8	Oven Door Opening Method & Material	Double-head double-opening doors, insulation thickness 120mm	1set
9	Door Handle	6-point zinc pipe and handle	1set
10	Type-9 Silicone Seal Strip	Insulation for door gaps	1set
11	Air Supply Duct	1.0mm galvanized, with "I"-shaped heat dissipation outlets, adjustable horizontal air supply direction, adjustable air volume	As per configuration
12	Return air duct	1.0mm galvanized steel, I-shaped return air inlet, adjustable horizontal air supply direction, adjustable return air volume.
