Operation Process

1. Power-on Display → [Switch] → [Function] → Select A/B/C/F for cycle setting2. Press [Increase] or [Decrease] to input the target value → Press [Switch] to automatically save and start operation

Display Rule

The first 2 digits: Valve action status; The last 2 digits: Countdown interval time

Parameter Setting

Parameter Description

Suggested Setting Range

A

Pulse valve action time (milliseconds, ms)

10-100 (0.01-0.1 seconds)

B

Interval time between pulse valve actions (seconds, s)

20-60 seconds

C

Pulse valve cycle interval time (seconds, s)

0 or less than B value

F

Number of output channels for controlling pulse valves (units)

Input the actual number of pulse valves to be controlled

Centrifugal Fan

① No vibration, abnormal noise or motor heating during operation;② Fan casing free of deformation; fan impeller free of scaling, deformation, etc.;③ Ensure no impurities or other foreign matter inside the fan casing, and no loose parts

At least once a week

Ash Removal or Unloader

① Clean up dust residues in the dust collection box (bag) in a timely manner;② All maintenance hatches and ash removal doors are tightly closed without air leakage;③ Equipped with unloader devices: no dust accumulation on brackets, etc.

At least once a week

Dust Removal Filter

① No special configuration required; filter used at normal temperature;② Filter sealing rubber ring free of shedding, damage or deformation; filter surface free of scaling;③ Do not strike the filter with sharp tools during cleaning to avoid shortening its service life

At least once a week

Pulse Ash Removal Device

① PLC pulse jet setting, see PLC User Manual for details;② Regularly remove dust accumulation on the surface; all wiring terminals shall be firmly connected without loosening;③ All pulse valves free of air leakage; pulse jet ash removal action is normal

At least once a week

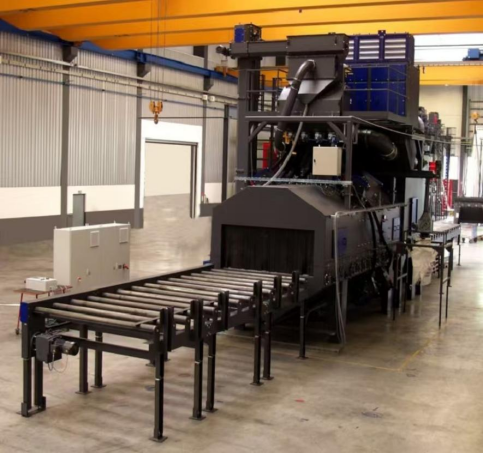

I Shot Blasting Machine Assembly

1

Shot Blasting Machine

Q034 Direct-Coupled (120Kg/min)

Set

6

Inverter Speed Control

Main configuration per set as follows

1

Motor

7.5kW, Direct-Coupled Motor, ￠250mm Impeller, 2900 rpm

Unit

1

Per assembly

2

Housing

Welded Steel Plate

Set

1

Per assembly

3

Wear Parts

Service life: Blades 300h; Distributor and Control Cage 4000h; Side, Top, and End Guard Liners 5000h.

Set

1

High-durability alloy

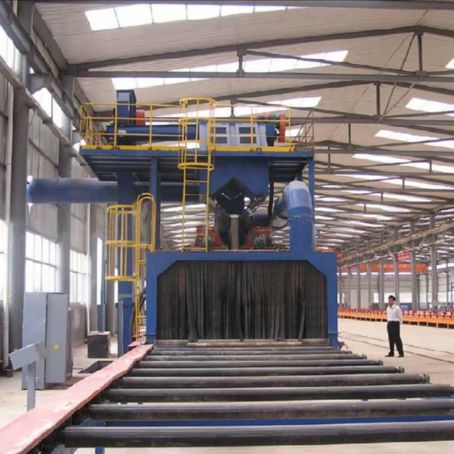

II Blast Cabinet Opening: 400mm (H) * 2000mm (W)

1

1

Main Chamber

Constructed from welded steel plates. The wear-resistant liners are made of Mn13 (Manganese 13) steel, precision laser-cut for accuracy. All joints are fully seam-welded using stainless steel electrodes after assembly. The liners are secured to the shell via through-bolt connections with wear-resistant pressure nuts.

Set

1

L=1.5m

2

Front Seal Chambers

Made of welded steel plates, equipped with sealing curtains, and the first compartment is lined with alloy and manganese steel plates.

Set

1

L=3m

3

Rear Seal Chamber

Made of welded steel plates, equipped with sealing curtains, and the first compartment is lined with alloy and manganese steel plates.

Set

1

L=3m

4

Recovery Hopper

Set

1

L=3m

III Roller Conveyor

1

1

Inlet Roller Conveyor

Length: 4m; Roller frame: 12# channel steel; Rollers: ￠73*5mm; Roller pitch: 0.8m; Load capacity: ≥0.3T/m; 12A chain drive; 3kW motor

Set

1

Including anti-collision facilities

2

Outlet  Roller Conveyor

Length: 4m; Roller frame: 12# channel steel; Rollers: ￠73*5mm; Roller pitch: 0.8m; Load capacity: ≥0.3T/m; 12A chain drive; 3kW motor.

Set

1

3

Internal Roller Conveyor

7.5m; 12A chain drive

Set

1

including wear-resistant rollers for the main chamber, with a service life of 5,000 hours.

IV Cleaning Device

1

Reverse Pulse-jet System

SFC-219

Set

1

Main configuration per set as follows

1

Reverse Pulse Pipe

￠219mm Round Pipe,￠32 Duckbill Nozzle

Set

2

2

Sealing Device

Bristle Brush, Wear-resistant Rubber Sheet

Set

2

3

Reverse Pulse Fan

9-26-18.5kw

Set

1

V Abrasive Recovery System

1

Longitudinal Screw Conveyor

XJL-250

Set

1

Anti-clogging Alarm

Main configuration per set as follows

1

Geared Motor

BWD3-23-4KW

Unit

1

2

Screw Conveyor

Blade δ5 ; UCP210 Bearing

Piece

1

3

Detection Device

Set

1

2

Transverse Screw Conveyor

XJL-250

Set

1

Anti-clogging Alarm

Main configuration per set as follows

1

Geared Motor

BWD3-23-4KW

Unit

1

2

Screw Conveyor

Blade δ5 ; UCP210 Bearing

Piece

1

3

Detection Device

Set

1

3

Bucket Elevator

XTS-45T

Set

1

Anti-clogging and belt-slip detection alarm system; high-strength elevator belt.

Main configuration per set as follows

1

Geared Motor

BWD3-17-5.5KW

Unit

1

2

Elevator Belt

EP with thickness 10mm

Piece

1

3

Elevator Housing

270*700mm

Set

1

4

Elevator Roller

Diameter 280mm

Set

1

5

Detection Device

Set

1

4

Abrasive Separator

XFL-45T, Secondary Air-Wash

Set

1

Anti-clogging Alarm

Main configuration per set as follows

1

Separator Chamber

Secondary Air-Wash

Unit

1

2

Abrasive Storage Hopper

Set

1

3

Geared Motor

BWD3-23-4KW

Unit

1

5

Platform, Guardrails, and Ladder

Set

1

6

Abrasive Feed System

￠89

Set

6

Main configuration per set as follows

1

Cylinder

SC40*200CB

Piece

1

2

Abrasive Feed Valve

Set

1

VI Dust Collection System

1

Centrifugal Fan

4-68-4.5A 15kW   Air Volume：15000m3/h

Set

1

2

Cartridge Dust Collector

LT3-15;
High-efficiency Two-stage dust extraction (Settling chamber + Cartridge filters).
Air Quality: Guaranteed indoor emission concentration < 20mg/m³

Set

1

meeting international clean-room workshop standards.

Main configuration per set as follows

1

Dust Collector Housing

L2300*W1300*H3200mm

Unit

1

2

Filter Cartridges

Size: Ø325-1100mm; Surface Area: High-capacity 18m² per cartridge

Piece

15

PTFE Coated

3

Pulse Jet System

5-Channel Pulse Timer

Unit

1

4

Pulse Valve

Valves: 1.5" Right-angle Pulse Solenoid Valves

Piece

5

3

Settling Chamber

δ3 steel plate

Unit

2

First-stage filtration

4

Dust Extraction Ducting

Complete Dust Extraction Ducting with optimized Air Inlets.  Integrated Silencer for noise reduction.

Set

1

Galvanized Corrugated Chimney Pipe

VII Electrical Control System

1

1

Electrical Control System

Mitsubishi PLC and Frequency Inverters; All low-voltage electrical components (contactors, breakers, etc.) utilize the CHINT brand.

Set

1

2

Operating Control System

Set

1

3

Accessories and Fittings

Wires and Cables、Cable Trays Accessories and Fittings

Set

1

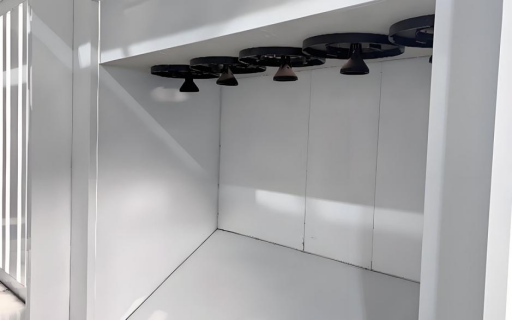

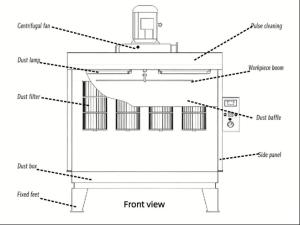

VIII Recovery Cabinet

1

Recycling & Separation Unit

6400*800*2000

Set

1

1.2mm Galvanized Steel Sheet

2

Chamber

6400*1800*2900

Set

1

1.2mm Galvanized Steel Sheet

3

Solenoid Pulse Controller

Set

12

4

Pulse Controller

Set

1

5

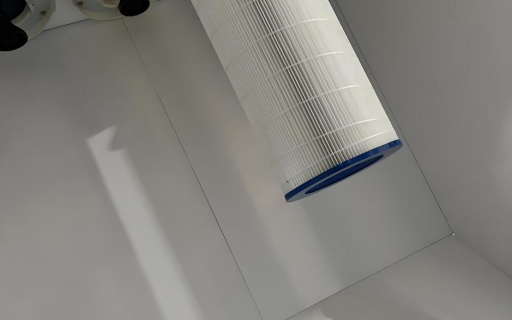

Filtration

325*900

Set

12

Customized

6

Air Header

Set

1

7

Slide Rails

QXG-200

Set

3

1.8m/Set；Sliding Frame: 3 Sets; Single-point load: 30kg

8

Exhaust Fan

4-72-4A -5.5kW

Set

3

9

Controller

Set

1

IX Powder Sprayer

1

Spray Gun

Made in China

Set

3
