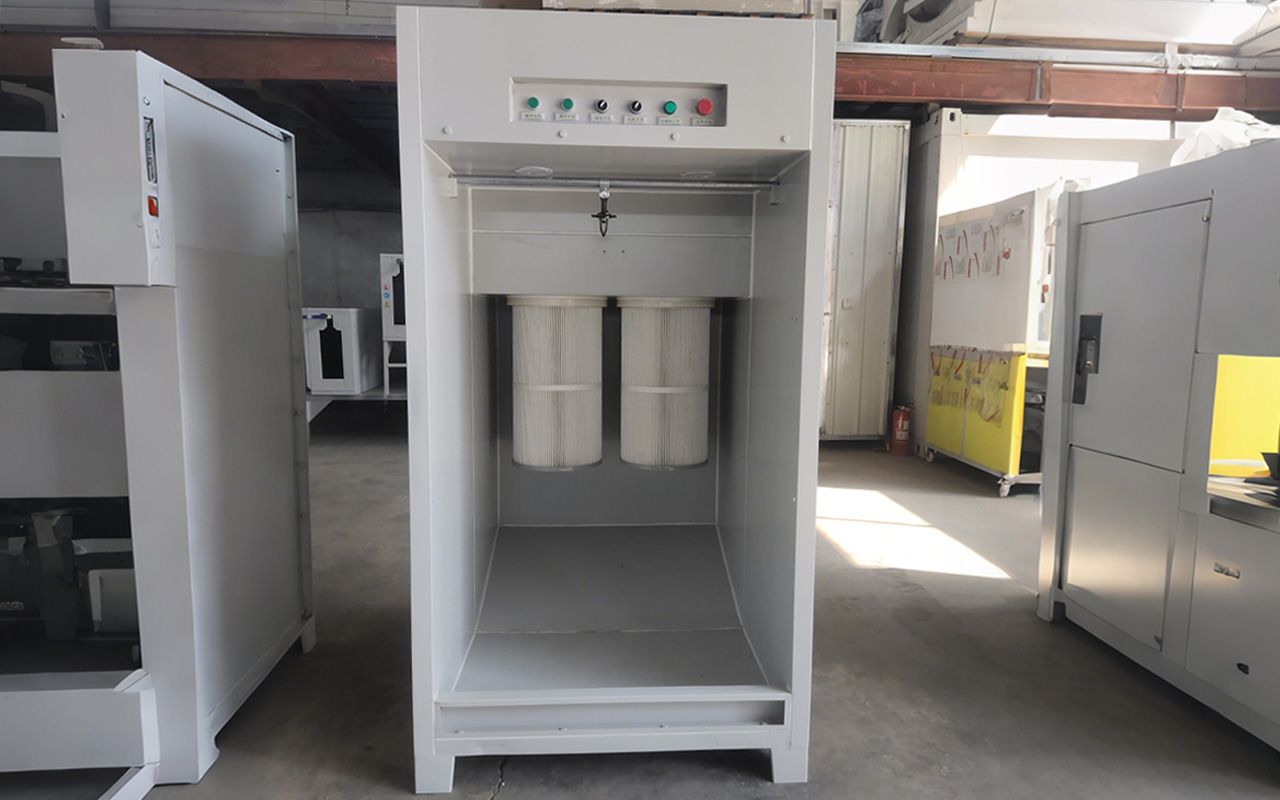

Small Powder Recycling Cabinet

ST-MPC-R5454

Price: USD500~2500

Assembly: Pre-assembled and tested units only require basic electrical and pneumatic connections for setup.
Powder Booth: Designed for industrial powder coating, enabling efficient powder control and reuse.
Construction: Modular design uses durable, demountable components with powder-coated finishes for long-lasting performance.
Recovery System: High-efficiency filters and reverse-pressure cleaning ensure powder recovery and minimal operational downtime.

Overview:
Powder coatings contain no volatile organic compounds (VOCs), with almost no emission of exhaust gases or wastewater. The powder recovery rate can exceed 98%, significantly reducing solid waste and meeting environmental standards.
Modular powder coating booths provide efficient powder retention, controlled emissions, and recovery for reuse, ideal for industrial operations.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Equipment Features

1.High-Quality Coating Film

The coating achieves uniform thickness in a single application, offering excellent corrosion resistance, wear resistance, and aging resistance, along with strong adhesion for effective surface protection.

It forms a smooth, even coating with strong decorative appeal and high color stability, meeting diverse design needs.

2.High Production Efficiency

Compared to traditional spraying processes, productivity can increase by 30–40%, while energy consumption is reduced by approximately 30%, minimizing coating cycles and workpiece stacking time.

It is suitable for automated production lines and can integrate with robots, conveyor chains, and other equipment to enable efficient batch production.

Key Attributes

Name	Parameter
Input Voltage	380v, Single-phase AC200-240V
Input Frequency	50-60Hz
Filter	2 pieces; Diameter160mm *H460mm
Input Power	550W
Air Speed	0.5 m/s
Stainless Steel Thickness	1.1 nm
Product Dimensions	L540mm * W540mm * H720mm
Charging Mode	Using AC 220V
Air Volume	800 m³/h
Stainless Steel Material	201
Product Weight	Net Weight 44 KG
