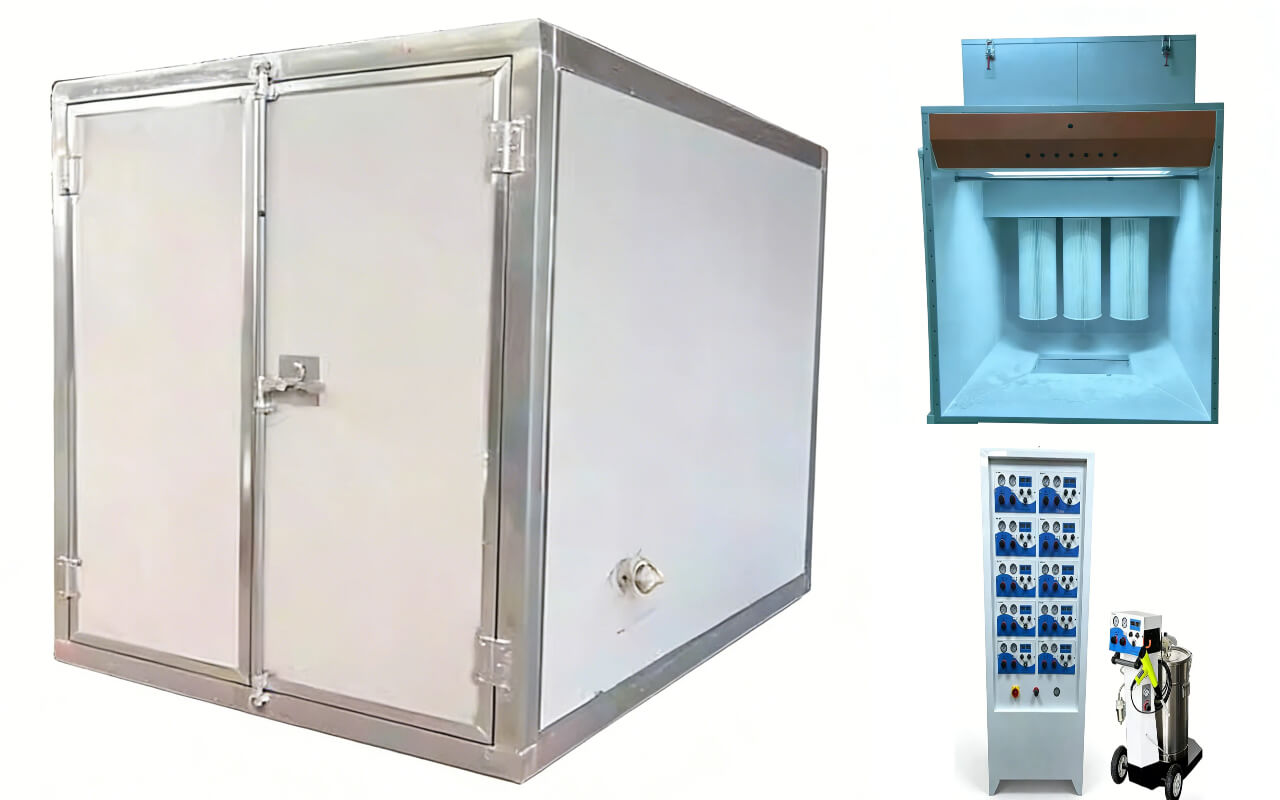

Tiếng ViệtManual High Capacity Powder Coating Spray Booth
ST-MPC-B2521
Price: USD1000~3000
Get Quote PDF
Lower equipment investment and smaller footprint
Improved efficiency and easier quality control than full manual spraying
Not suitable for very small batches or irregular-shaped workpieces
Cost-effective upgrade toward near-automatic production capability
Equipment Overview：

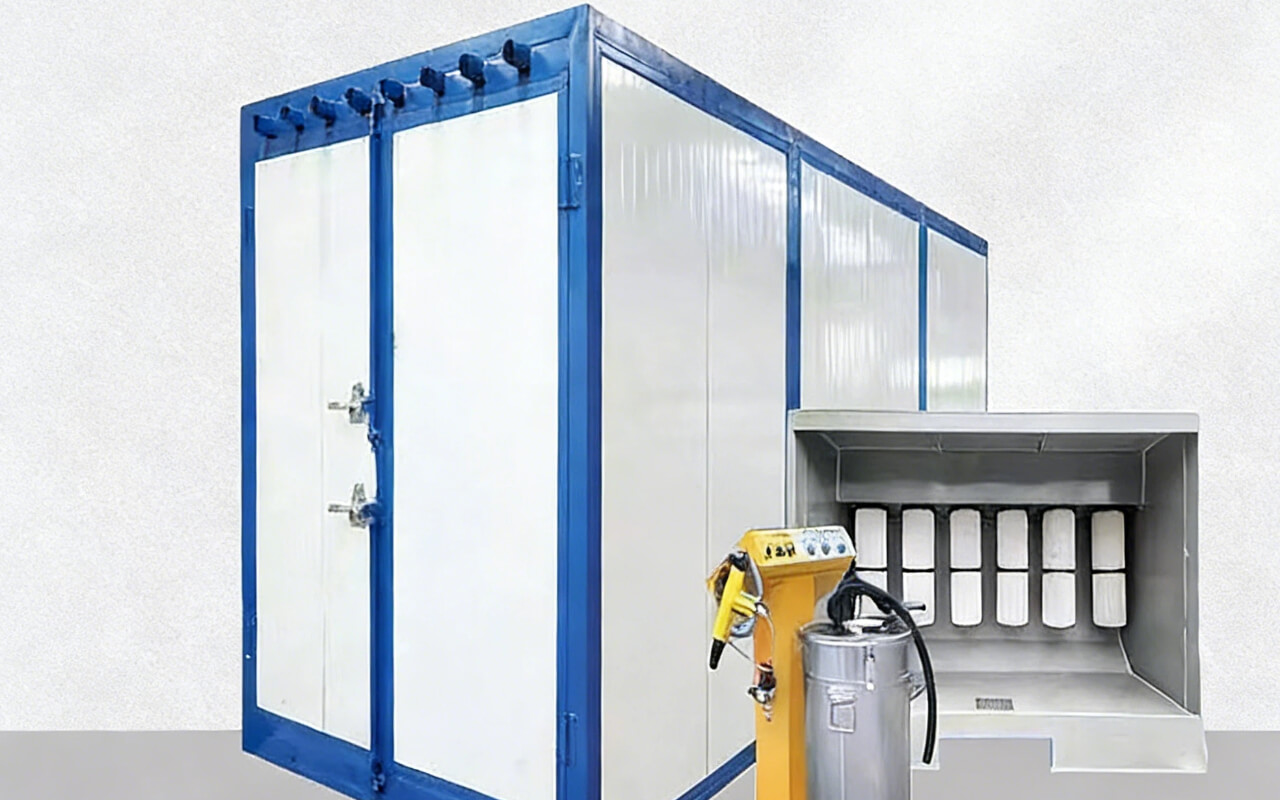

The manual powder coating production line oven is one of the key pieces of equipment in the powder coating process. It is mainly used to perform high-temperature curing treatment on workpieces that have already been powder coated. After the coating is completed, the powder coating on the workpiece surface needs to be heated under specific temperature and time conditions to allow the powder to fully melt, flow, and undergo a cross-linking reaction, thereby forming a dense, uniform, and strongly adhesive coating.
Coating solutions for Industry
Equipment Features
1.Controllable Temperature: Typically equipped with a precise temperature control system that can be adjusted to the suitable curing temperature range for different powder coatings (generally between 160°C and 220°C), ensuring uniform curing of the coating.
2.Excellent Insulation: The oven is constructed with insulating materials, which minimizes heat loss, maintains stable internal temperatures, and reduces energy consumption.
3.Relatively Simple Structure: Compared to automated powder coating line ovens, manual ovens have a more simplified mechanical structure and control system, making them less difficult to operate and maintain.
Key attributes
| Attribute | Specification |
| Voltage | 220V/380V, 3Phase, 50-60HZ |
| Machine Type | Spray Booths, Powder Coating Booth |
| Coating | Powder Coating |
| Substrate | Iron |
| Warranty | 1 Year |
| Core Components | PLC |
| Machinery Test Report/Outgoing-inspection Video | Provided |
| Key Selling Points | Famous Brand PLC |
| Power (W) | 4kw |
| Place of Origin | China |
| Weight (kg) | 580 |
| Brand Name | ShengTai |
| Operating Dimension (LWH) | Width: 2300mm * Depth: 1500mm * Height: 1500mm |
| Overall Dimensions (WDH) | Width: 2550mm * Depth: 2100mm * Height: 2240mm |
| Power Supply | 220V/380V, 3Phase, 50-60HZ |
| Filter Count | 4 pcs, Quick-release Type |
| Fan Power | 4kW |
| Filter Material | Polyester |
| Certification | CE |
