Tiếng ViệtManual spray painting line
ST-MLPL-1266
Price: USD4000
Get Quote PDF
Flexible application: Compatible with various coating materials and processes, including special tasks like touch-ups and localized spraying.
Space-saving design: Requires minimal equipment and layout, making it suitable for facilities with limited floor space.
Easy maintenance: Simple equipment structure with low failure rates. Daily maintenance is straightforward and cost-effective.
High quality control: Operators can visually monitor the coating and adjust parameters in real time, ensuring consistent thickness, uniformity, and appearance—ideal for high-quality finishes.
Key Features of ShengTai’s Manual Liquid Dust-Free Painting Line
High Speed & Exceptional Flexibility
• Fast coating speeds with spray guns capable of multi-angle rotation
• Adaptable to different product shapes and sizes
Coating solutions for Industry
Manual spray painting line
Uniform & High-Quality Coating
• Smooth, even spray application on side surfaces, irregular contours, and curved edges
• Ensures consistent film thickness and visual appearance
Intelligent Control Technology
• Computer-controlled spray gun movement with free-path programming within full travel
• Greatly enhances coating uniformity and paint utilization
• Dual-station rotating table design allows continuous operation, saving space while boosting output
Multi-Spray Gun Configuration
• Supports up to 4 spray guns (standard: 2 guns)
• Dramatically increases throughput and reduces labor requirements
Simple & Efficient Programming
• Fully Chinese digital programming interface
• Easy to learn, easy to operate
• Can store up to 1,000 programs, ensuring flexibility for diverse production needs
| No. | Manual spray painting line specifications | |
| 1 | Conveyor Line | Guangda |
| 1) | Conveyor Chain | Heavy-duty die-forged chain XT-160, single-point lifting capacity 500KG |
| 2) | Conveyor Track | National standard 14# I-beam |
| 3) | Vertical Column | 140*140 & 3.75 square tube |
| 4) | Horizontal Track Elbow | R=600*180°manganese steel construction |
| 5) | Power Unit | Crawler drive, 7.5KW drive motor, variable frequency speed control |
| 6) | Tensioning Device | Counterweight tensioning, R=1000*180°, manganese steel construction |
| 7) | Lubrication | Manganese Steel Component, Length: 1 meter |
| 8) | Tensioning Kit | 140*140 & 3.75 square tube |
| 9) | Tensioning Bracke | 140*140 & 3.75 square tube |
| 10) | Power Bracket | |
| 11) | Incline/Decline Sections | Slider hanger, 320mm spacing |
| 12) | Primary Hanger | provided by customer |
| 2 | Secondary Hanger | L6000×W2800×H3200 |

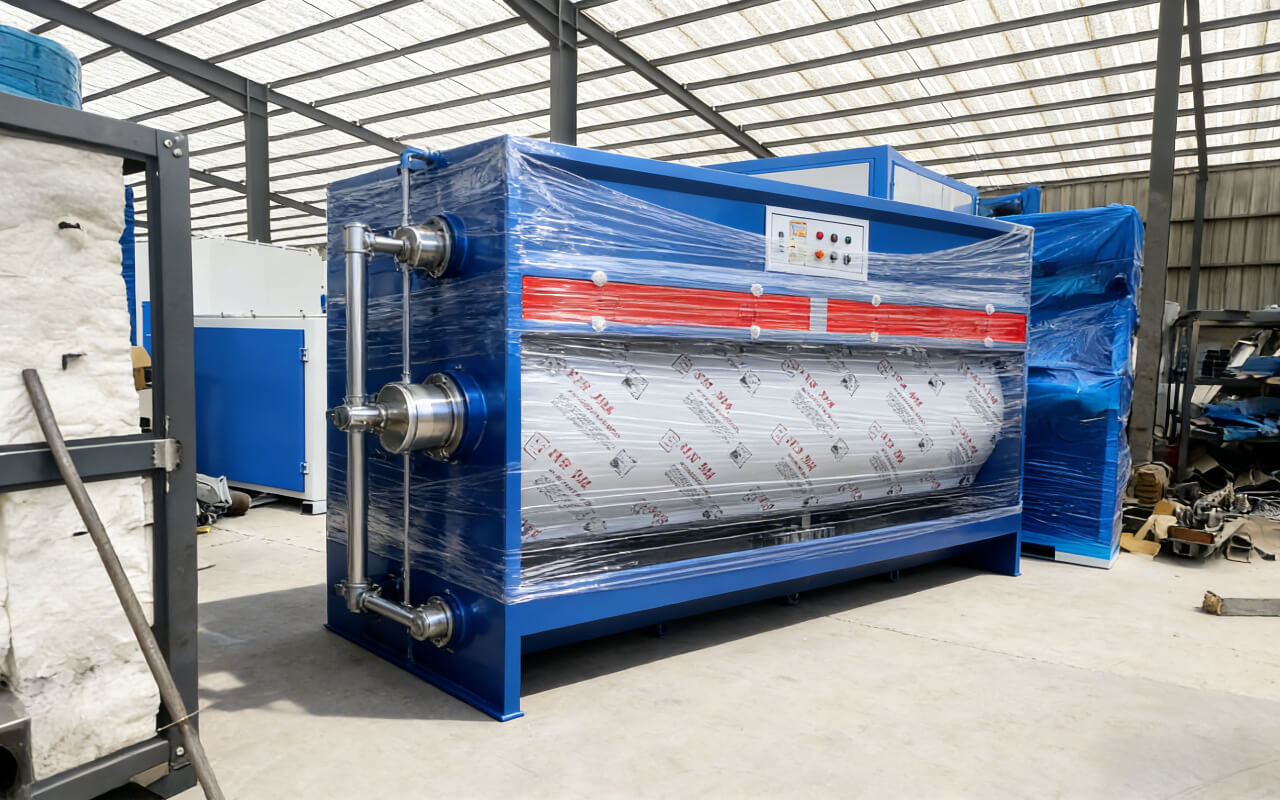

| 1) | Dry Paint Mist Recovery Cabinet | L3000×W1000×H2400 |
| 2) | Enclosure Material | 50mm thick fire-resistant composite panel |
| 3) | Enclosure Frame | 40*60*1.5 galvanized square tube |
| 4) | Filtration System | Paper labyrinth cartridges |
| 5) | lighting system | 40w*2 |
| 6) | Auxiliary Materials | |
| 7) | Floor Grating | |
| 8) | Casing Panel | Made of 1.2mm 304 stainless steel plate |
| 9) | Sealing at Contact Points | Silicone weatherproof waterproof sealant |
| 10) | Air Induction & Exhaust Duct | Φ600/500 |
| 11) | Duct Fittings | |
| 12) | Leveling & Isolation Room | 6.5m*1.8m*2.5m (fire-resistant clean panel construction) |
| 13) | Paint Mixing Room | 3m*1.5m*2.5m (fire-resistant clean panel construction) |
