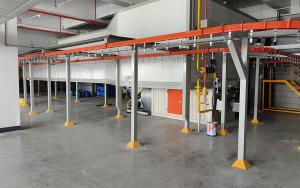

Automatic industrial powder coating oven

ST-APC-C40017

Price: USD10000~20000

Consistent Control: Precise temperature management.
Efficient Operation: Optimized energy use.
Reliable Performance: Dependable results batch after batch.
Uniform Temperature Accuracy: ± 5°C.

Raising the height of the baking oven in an automated powder coating production line can also improve operating space and safety. As the powder coating industry continues to develop, various factors such as the amount of paint to be sprayed, product size, and material transport speed required by the baking oven are changing. To meet the production needs of products of different specifications and sizes, the height of the baking oven needs to be adjusted to ensure that products can pass through smoothly and that operators have sufficient space inside, thereby improving production efficiency and safety.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Automatic industrial powder coating oven

Our powder coating ovens are developed to deliver ideal curing environments across a wide range of powder coating processes. Each unit is carefully designed to maintain precise and uniform temperature control while maximizing energy efficiency and operational stability, helping to improve coating consistency and the overall finish quality of your products.

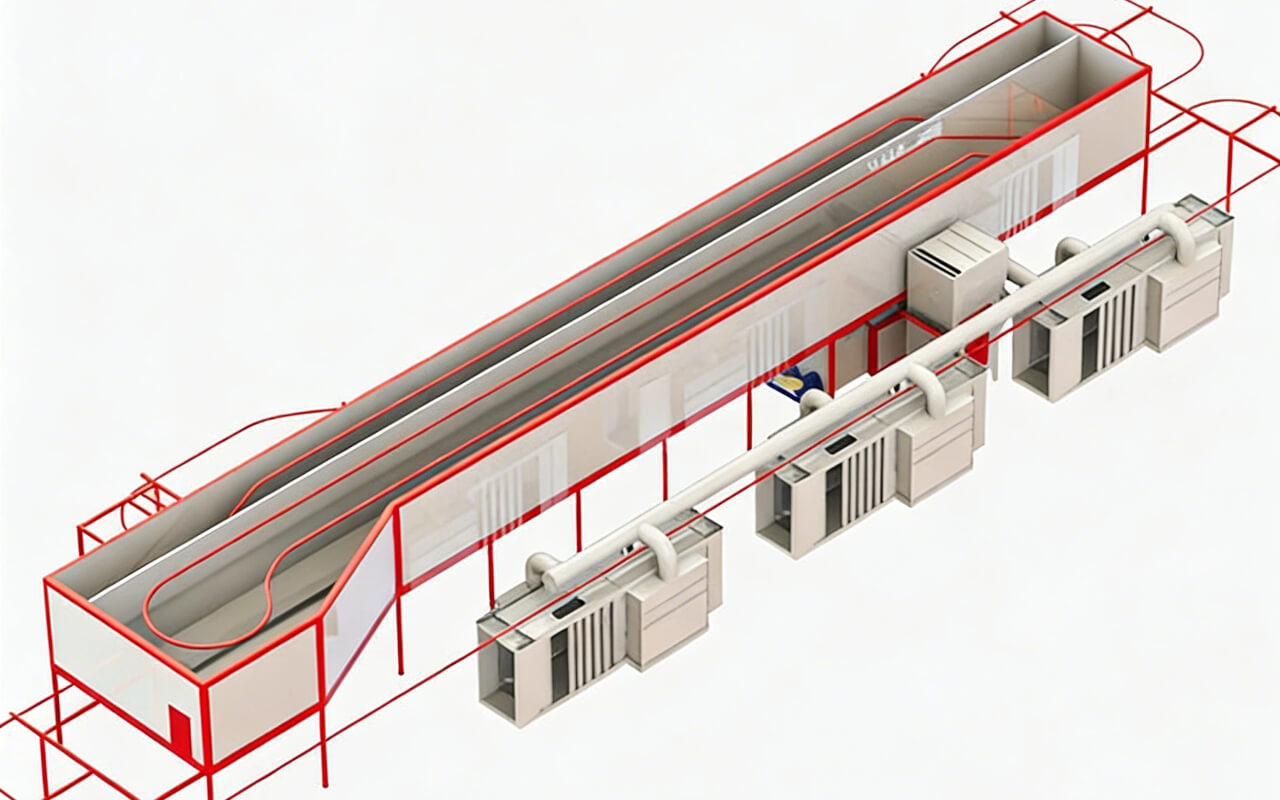

I	Curing Oven (External Dimensions)	L40000W1700H3200mm	1 set
1	Furnace Body Inner panel	Inner Panelδ0.7mm galvanized sheet Outer Panel: δ0.6mm color-coated sheet Rock wool density: 100KG/m³ Insulation layer thickness: inner panel δ100mm, outer panel δ100mm Double-layer panel provides better insulation effect	1 set
1	Furnace Body Stand H3000mm	100*100 δ2.5mm square tube	1 set
2	Inner Corner Bead	δ1.2mm galvanized sheet	1 set
2	Outer Corner Bead	δ2.0mm galvanized sheet	1 set
3	Gas Hood	δ1.2mm galvanized sheet	1 set
4	Auxiliary Materials Welding materials	cutting discs, polishing discs, rivets, expansion bolts, column foot sleeves	1 set
II	Centralized Natural Gas Heating Furnace	Moisture Furnace	1 set
1	Heating Furnace Insulation Body	Inner panel: δ1.5mm SUS304 stainless steel Outer panel: δ1.2mm steel plate Rock wool density: 100KG/m³ Insulation layer thickness: δ200mm	1 set
2	Heating Furnace Combustion Chamber High-temperature	resistant SUS304 δ3.0mm stainless steel plate	1 set
3	Air Supply Duct	δ1.2mm galvanized sheet with adjustable damper	1 set
4	Circulation Fan	GW 5# P=7.5KW	1 unit
5	Burner	RS34	1 set
6	Frame	5# angle iron and channel steel	1 set
7	Insulation Rock Wool		1 set
8	Access Door		1 set
9	Auxiliary Materials	Welding materials, cutting discs, polishing discs, rivets, dovetail nails, etc.	1 set
