Cleaning Systems for an E Coating Line

1. Reverse Osmosis (RO) System

Principle:

Reverse osmosis uses pressure differences to force water molecules through a semi-permeable membrane, effectively retaining dissolved salts, organic matter, and other impurities to produce high-purity deionized water.

Function:

When combined with an ultrafiltration system, the RO unit forms a closed-loop cleaning system (such as EDRO technology), replacing traditional pure-water rinsing. This approach enables water recycling and supports zero-discharge operation in an E coating line.

Structure:

Typically consists of RO membrane elements, high-pressure pumps, security filters, pressure vessels, and related instrumentation. Strict requirements apply to inlet water quality and operating pressure.

2. Pure Water Supply System Principle:

This system removes ions and impurities from water using ion-exchange resins, electrodeionization (EDI), or distillation to produce deionized water that meets electrophoretic coating process standards. Function:

It supplies high-quality pure water for bath preparation and cleaning stages in the E coating line, preventing contaminants from affecting film quality. Structure:

Includes pretreatment units (such as sand filters and carbon filters), ion-exchange columns, EDI units or distillation equipment, along with storage tanks and transfer pumps.

3. Spray Rinsing System Principle:

High-pressure nozzles spray cleaning liquids—such as ultrafiltration permeate, pure water, or specialized cleaning agents—onto the workpiece surface. Impact force and dissolution action remove adhered electrophoretic paint and impurities. Function:

Multi-stage spray rinsing ensures a smooth, defect-free coating surface with no floating paint, meeting the requirements for subsequent drying and finishing processes in the E coating line. Structure:

Composed of spray chambers, nozzles, circulation pumps, pipelines, and valves. Spray angles and flow rates can be customized according to workpiece shape and size.

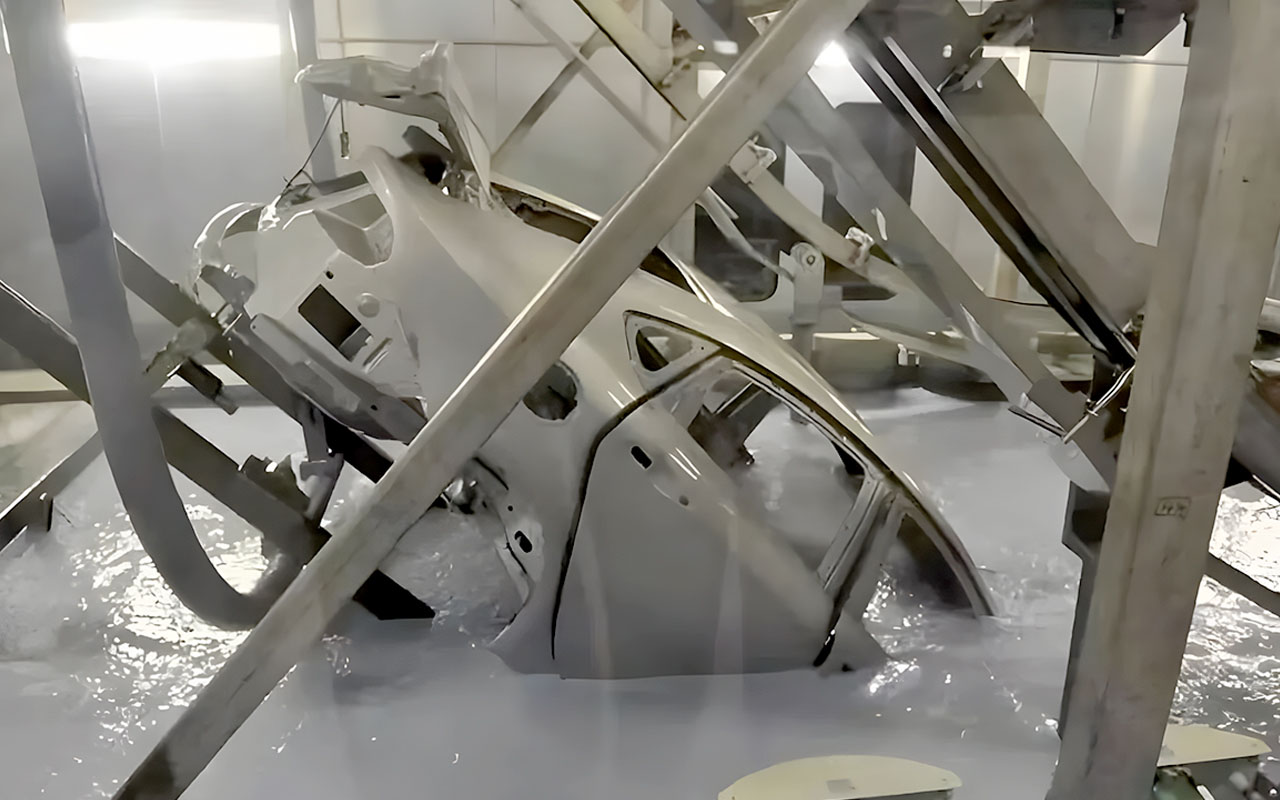

4. Immersion Cleaning Tank Principle:

Workpieces are immersed in a cleaning solution, where chemical reactions and physical dissolution remove residual electrophoretic coating and contaminants. Function:

Used for preliminary cleaning or deep cleaning of complex-shaped parts. Agitation devices can be added to enhance cleaning efficiency. Structure:

Includes the cleaning tank body, agitators, optional heating systems, and overflow tanks. Cleaning solutions may be recycled or replaced periodically.

5. Cleaning Agent Dosing System Principle:

Based on cleaning requirements, precise amounts of specialized chemicals—such as alkaline degreasers, acidic neutralizers, or surfactants—are injected into the cleaning solution to enhance performance. Function:

Effectively removes stubborn contaminants such as oil, rust, and oxide scale, while adjusting the pH value and chemical properties of the cleaning solution. Structure:

Consists of chemical storage tanks, metering pumps, pipeline mixers, and automatic control systems for accurate dosing.

Integrated Cleaning Solutions for E Coating Lines These cleaning systems are typically integrated into a complete E coating line, forming an efficient and environmentally responsible cleaning process. Through optimized process parameters and intelligent operation, ShengTai Painting Equipment delivers advanced E coating equipment that ensures high cleaning efficiency, stable coating quality, and sustainable production for global manufacturers.
