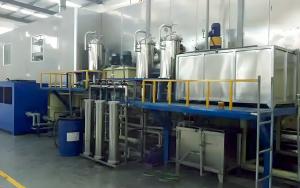

Dosing System for an E Coating Line

ST-EC-DS

Price: USD1200~3000

Automation and Real-time Monitoring: Modern feeding systems integrate fully automatic feeding devices that can automatically monitor key indicators such as tank solution level, conductivity, and pH va
Precise material addition strategy: The system designs dedicated addition paths for different materials (such as electrophoretic paint emulsions, pigments, solvents, and neutralizers). For example, em
Specialized Equipment and Piping Design: The system typically uses a pneumatic diaphragm pump as the feed pump to ensure corrosion resistance and precise flow control. Emulsions, pigments, and other m
Operational Safety and Standardized Procedures: The feeding operation emphasizes standardized procedures, including verifying material batches before feeding, adhering to the first-in, first-out (FIFO

The dosing system is a key component for the stable operation of an E coating line, directly influencing coating quality and production efficiency. Its proper design, integration, and maintenance are essential. ShengTai Painting Equipment provides advanced E coating equipment solutions with reliable dosing systems, helping manufacturers achieve stable processes, high-quality coatings, and cost-effective, environmentally friendly production.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Dosing System for an E Coating Line

The material dosing system plays a critical role in the electrophoretic coating process of an E coating line, with its importance mainly reflected in the following aspects:

1. Ensuring Stable Bath Parameters

Key parameters of the electrophoretic bath—such as solid content, pigment-to-binder ratio, pH value, and conductivity—directly affect coating quality. The dosing system replenishes coating materials, solvents, and neutralizing agents in real time according to production consumption, ensuring that bath composition remains within process requirements. This prevents issues such as uneven film thickness, reduced adhesion, pinholes, and cratering caused by parameter fluctuations.

2. Improving Production Efficiency and Consistency

An automatic dosing system precisely controls both dosing volume and speed, significantly reducing human error. Compared with manual dosing, automated dosing ensures timely and uniform material replenishment, stabilizing the electrophoresis process. As a result, production efficiency is improved, coating quality remains consistent across batches, and the defect rate is reduced.

3. Extending Bath Service Life

A well-designed dosing strategy helps maintain the chemical balance of the bath, reducing impurity accumulation and resin degradation. By regularly replenishing fresh coating material and adjusting bath composition, bath aging can be delayed, extending its service life and reducing the frequency and cost of bath replacement.

4. Optimizing Resource Utilization and Cost Control

The dosing system accurately adds materials based on actual production demand, avoiding over-dosing and material waste. When used in conjunction with an ultrafiltration system, electrophoretic paint can be effectively recovered and reused, further reducing raw material consumption and achieving efficient resource utilization and lower operating costs.

5. Ensuring Safe Production and Environmental Compliance

An automatic dosing system minimizes direct operator contact with chemicals, reducing safety risks. In addition, precise dosing control helps reduce wastewater and sludge generation, meeting environmental protection requirements and supporting sustainable manufacturing.
