Tiếng ViệtElectro-Deposition Paint
STK
Price: USD4-10
Get Quote
ED coating (Electro-Deposition coating) applies Electro-Deposition Paint by passing an electric current through a paint bath, driving uniform film deposition onto the entire surface of a component — including complex geometries, internal cavities, and hard-to-reach areas. The result is outstanding adhesion and reliable, consistent corrosion protection.
Product Overview

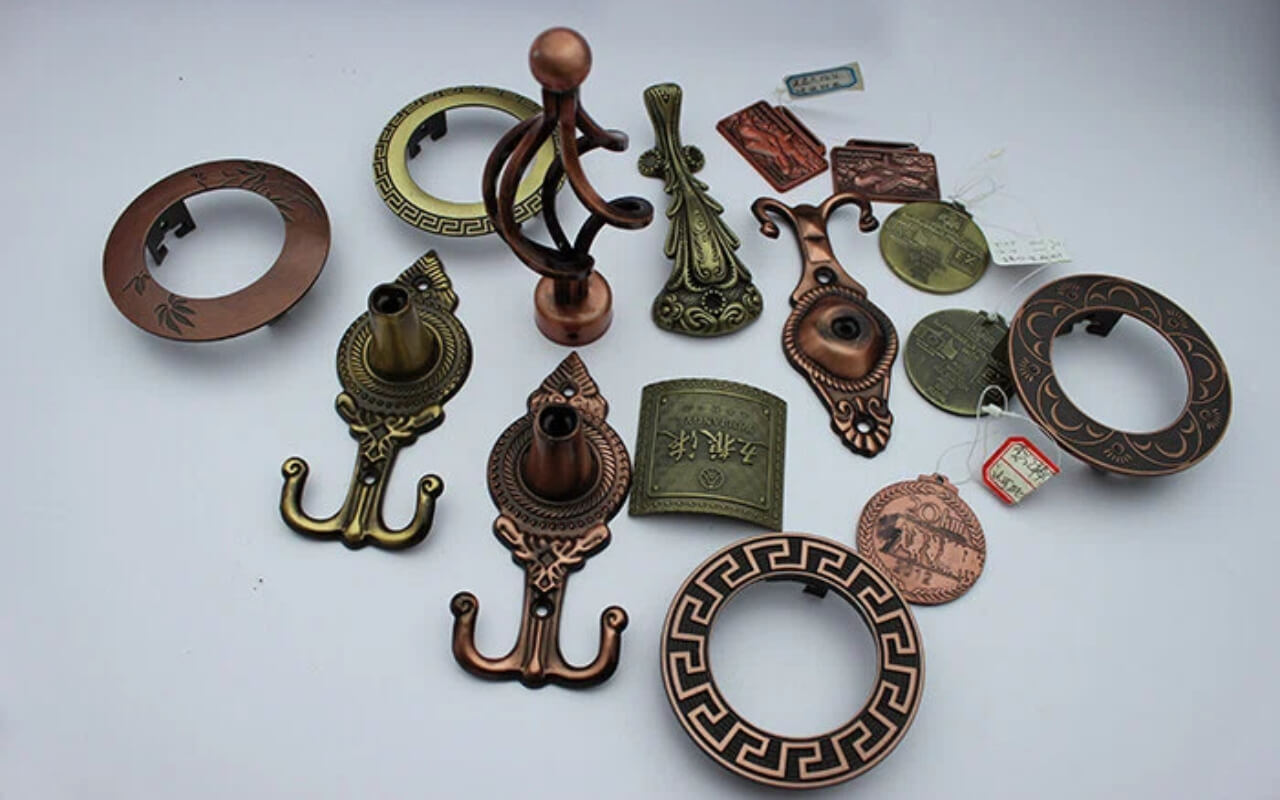

STK-22 is a high-decorative cathodic acrylic electrocoat. Its appearance is similar to that of lacquer and oil-based spray paint. Designed specifically for applications requiring edge coverage resistance, this product is widely used for coating hardware items such as screws, parts with sharp edges, and recessed areas.
| Item | Parameter |
|---|---|
| Model | STK-22 |
| Color | Light yellow |
| Curing Conditions | 160°C constant temperature for 30 minutes |
| Solid Content | 60±2% |
| Conductivity | 550±200 μs/cm |
| pH Value | 4.3-5.3 |
| Electrocoat Feature | Suitable for edge coverage resistance on hardware products |
| Material | Iron | Iron Zinc-Plated | Iron Nickel-Plated | Iron Copper-Plated | Zinc Alloy | Stainless Steel |
|---|---|---|---|---|---|---|
| Film Thickness | 9.2 μm | 9.1 μm | 8.3 μm | 8.4 μm | 9.2 μm | 9 μm |
| Plating Thickness | / | 20 μm | 34 μm | 30 μm | / | / |
| Pencil Hardness | 3H | 3H | 3H | 3H | 3H | 3H |
| Dry Adhesion | Grade 0 | Grade 0 | Grade 0 | Grade 0 | Grade 0 | Grade 0 |
| Neutral Salt Spray Resistance | 24H | 36H | 120H | 120H | 24H | 600H |
