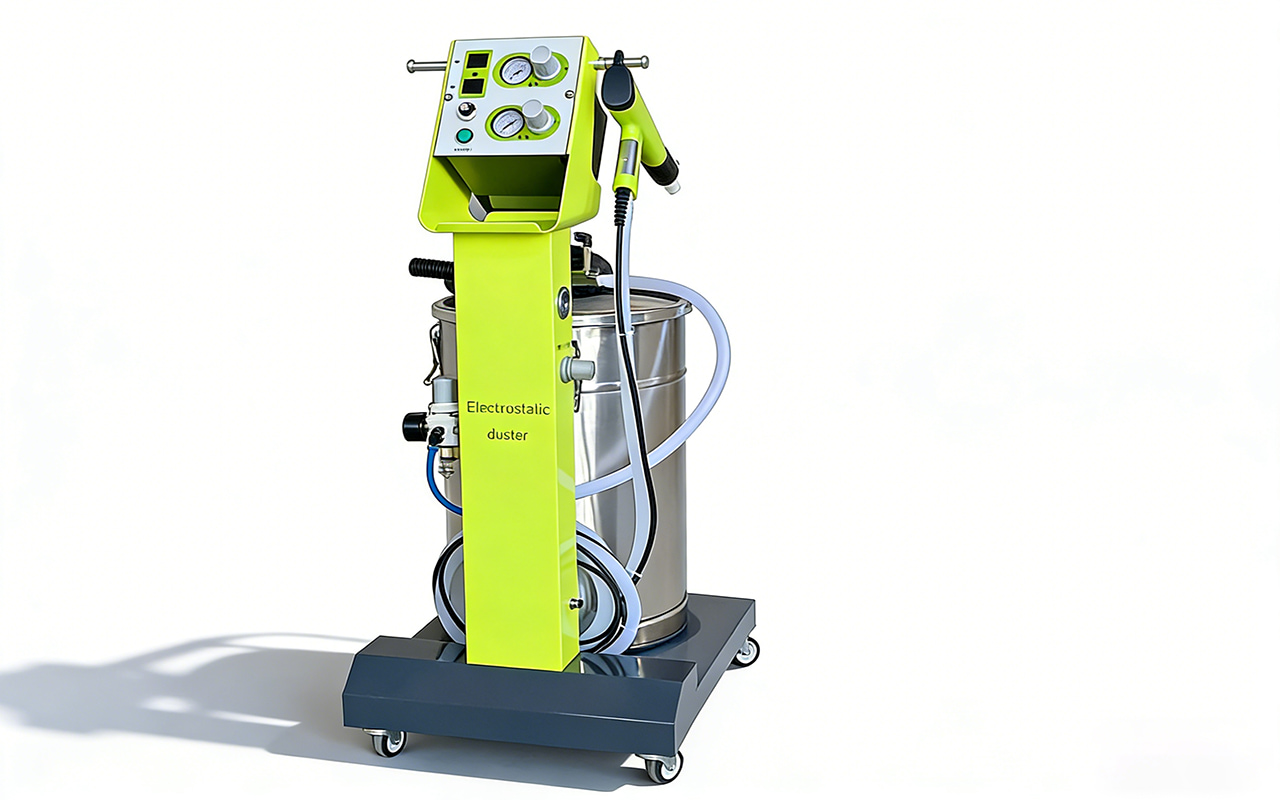

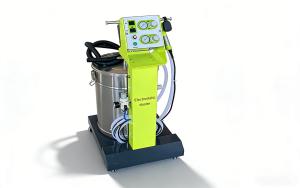

High-Efficiency Electrostatic Powder Coating Paint Gun

ST-MPC-SGKS6

Price: USD500~600

Advantages: Boasts outstanding functionality and user-friendly controls
Power Supply: AC 100-240V / 50-60Hz (Auto-adaptive)
Safety Rating: IP54
Surface Setting:ideal for basic, flat panel components

Equipment Overview:
The MPCL-SGKS6 model powder coating unit is a compact, mobile, hand-operated application device manufactured by our firm, designed with inspiration from GEMA technology. It boasts outstanding functionality and user-friendly controls, rendering it particularly well-suited for trial coatings, miniature workshops, and do-it-yourself projects.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

High-Efficiency Electrostatic Powder Coating Paint System

Equipment Features

Its intelligent control panel features a single-touch button that corresponds to four embedded application settings:

1. Surface Setting, ideal for basic, flat panel components.

2. Edge Setting, designed for coating recessed edges and corners.

3. Touch-up Setting, used for correcting and mending existing coats.

4. Burst Setting: This rapidly adds material to enhance deposition rates, providing a spraying alternative capable of penetrating complex geometries to lower both processing duration and resource use.

Equipment Parameters

ST-MPC-SGKS6 Parameters
Power Supply	AC 100-240V / 50-60Hz (Auto-adaptive)
Max. Power	50 Watt
Safety Rating	IP54
Operating Temperature	0-40℃ (32-104℉)
Electrostatic Polarity	Negative
Max. Output Voltage	130 kV
Max. Output Current	100 μA
Powder Hose Length	3.8 m
Powder Feed Tube Length	3.5 m
Max. Powder Delivery Rate	650 g/min
Hopper Capacity	52 L
Max. Water Content in Compressed Air	1.3 g/m³
Max. Oil Content in Compressed Air	0.1 g/m³
machine type	Coating Equipment
Coating	Powder Coating
Substrate	Any metal
Warranty	1 Year
core components	Pump, Intelligent host, Spray gun, Powder drum, Oil-water separator machinery test report: Not Available
place of origin	Shandong, China
weight (kg)	24.5
brand name	ShengTai
