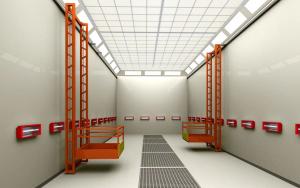

High-Temperature Curing Oven for Liquid Coating Applications

ST-LPH30

Price: USD50000~100000

Heating system: Riello FS10: 100,000 kcal/h
Chamber dimensions: Outer dimensions: L7000×W4000×H3400mm (including side chambers)
Inner dimensions: L6900×W3900×H2600mm
Customization: Multiple size options, tailored to customer requirements

A high-temperature curing oven operates at significantly higher temperatures than a standard curing oven. The high-temperature curing ovens designed by ShengTai Painting Equipment typically feature a working temperature range of 60–240°C. They are mainly used for products such as security doors, iron doors, steel guardrails, and heavy machinery that require high-temperature curing after spray painting with powder coatings or liquid paint, making them an ideal supporting solution for a liquid coating line and related liquid coating equipment.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

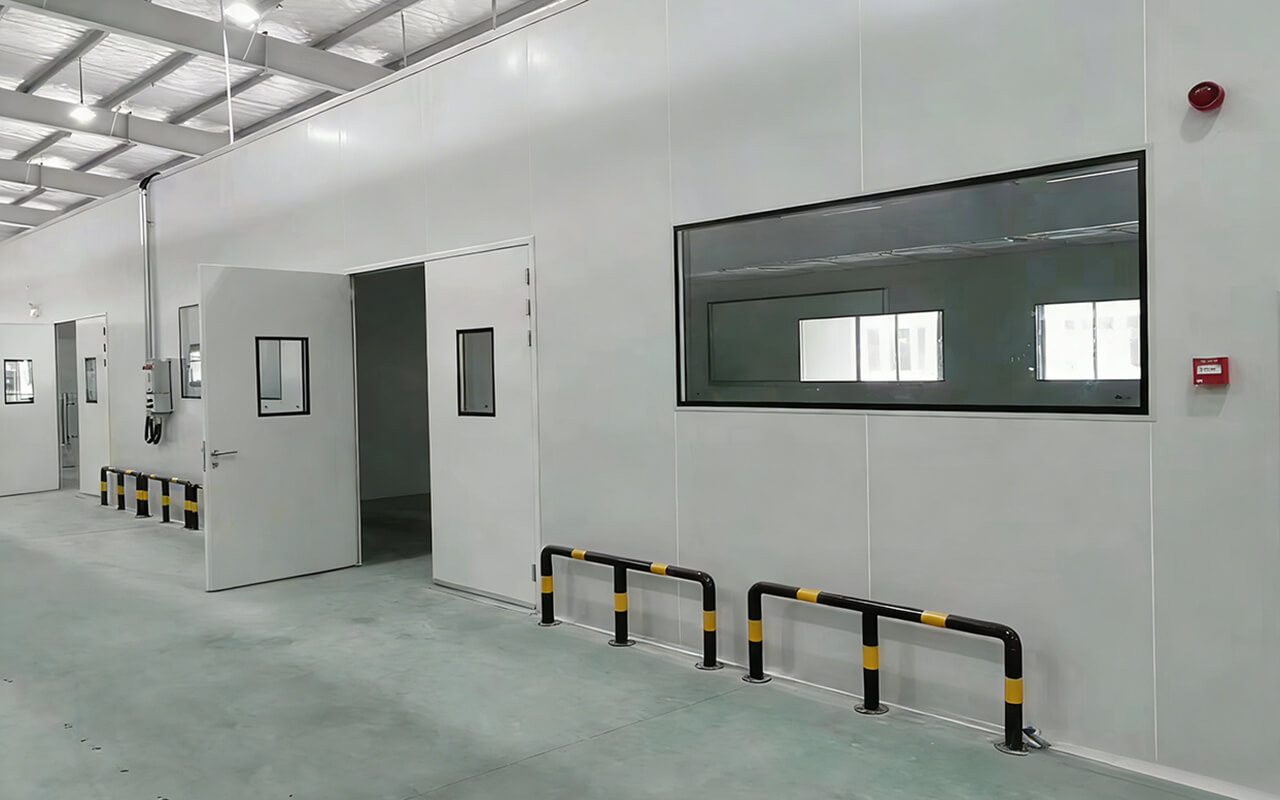

202512238 (13).jpg

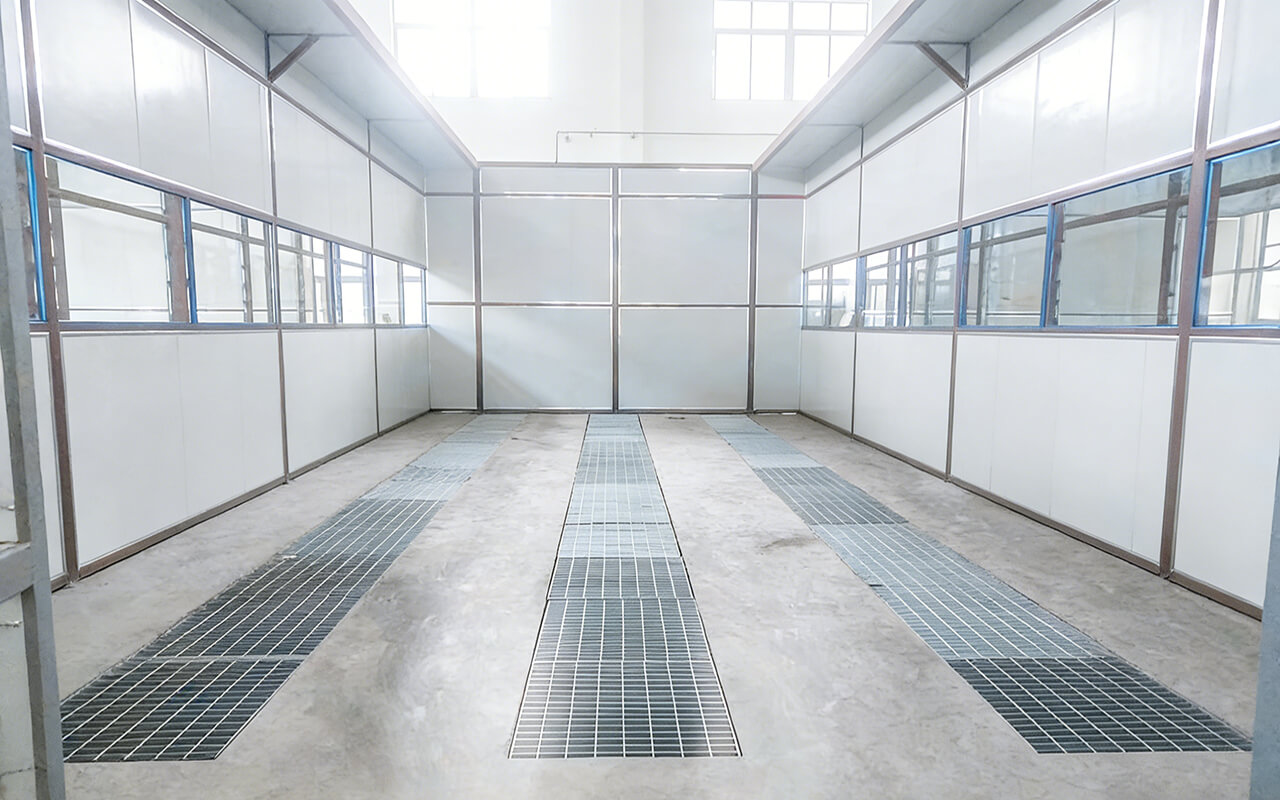

A liquid finishing oven, sometimes referred to as a paint curing chamber or drying oven, is an industrial heating unit employed to cure or dry liquid coating, including paints, lacquers, varnishes, or powder coatings that have been applied to diverse substrates. By supplying regulated temperature and air circulation, it accelerates the curing procedure, enabling the liquid finish to solidify and develop a robust, protective surface layer.

Specification	Details
1. Chamber Dimensions	Outer Dimensions: L7000×W4000×H3400mm (including side chambers)
	Inner Dimensions: L6900×W3900×H2600mm
2. Color Scheme	Optional
3. Gate Size	W3000×H2600mm
	Operating Door Size: W750×H1900mm
4. Chamber System	Wall panels made of 50mm interlocking rock wool flame-retardant boards with 0.42mm color steel plates
	Top made of 0.8mm high-quality galvanized bent iron plate
	Includes bottom rails, excludes trolleys
5. Heating System	Riello FS10: 100,000 kcal/h
6. Lighting System	Top-mounted explosion-proof LED energy-efficient lamps, side-mounted explosion-proof side lamps
7. Ventilation System	Enclosure installed on the side of the chamber with upward air supply and side exhaust
	Each unit includes 2×3kW centrifugal fans with total air volume of 22,000 m³/h
	One 5.5kW exhaust fan with air volume of 16,000 m³/h
	Equipped with 4 rectangular ducts, one 90° elbow, and one 45° elbow
8. Filtration System	Top purification layer uses EU5-grade high-temperature filters
	Bottom layer uses multi-layer glass fiber cotton
	Air intake uses G3-grade filter cotton
	Activated carbon cotton for paint mist filtration
9. Control System	Rotary knob-type intelligent electronic control system
10. Auxiliary Materials	Configure and install one set of auxiliary materials
11. Voltage and Frequency	380V; 50Hz; 3PH (optional)
