Overview of the Fully Automated NdFeB Surface Treatment System

The fully automated surface coating system for NdFeB (Neodymium Iron Boron) magnets is designed to deliver high-efficiency, unmanned production through advanced automation technologies. Featuring a dual-disc design, the system effectively doubles production capacity while ensuring consistent product quality.

This intelligent production line integrates automatic material arrangement, loading, unloading, and in-line flipping, enabling a truly hands-free surface treatment process from start to finish.

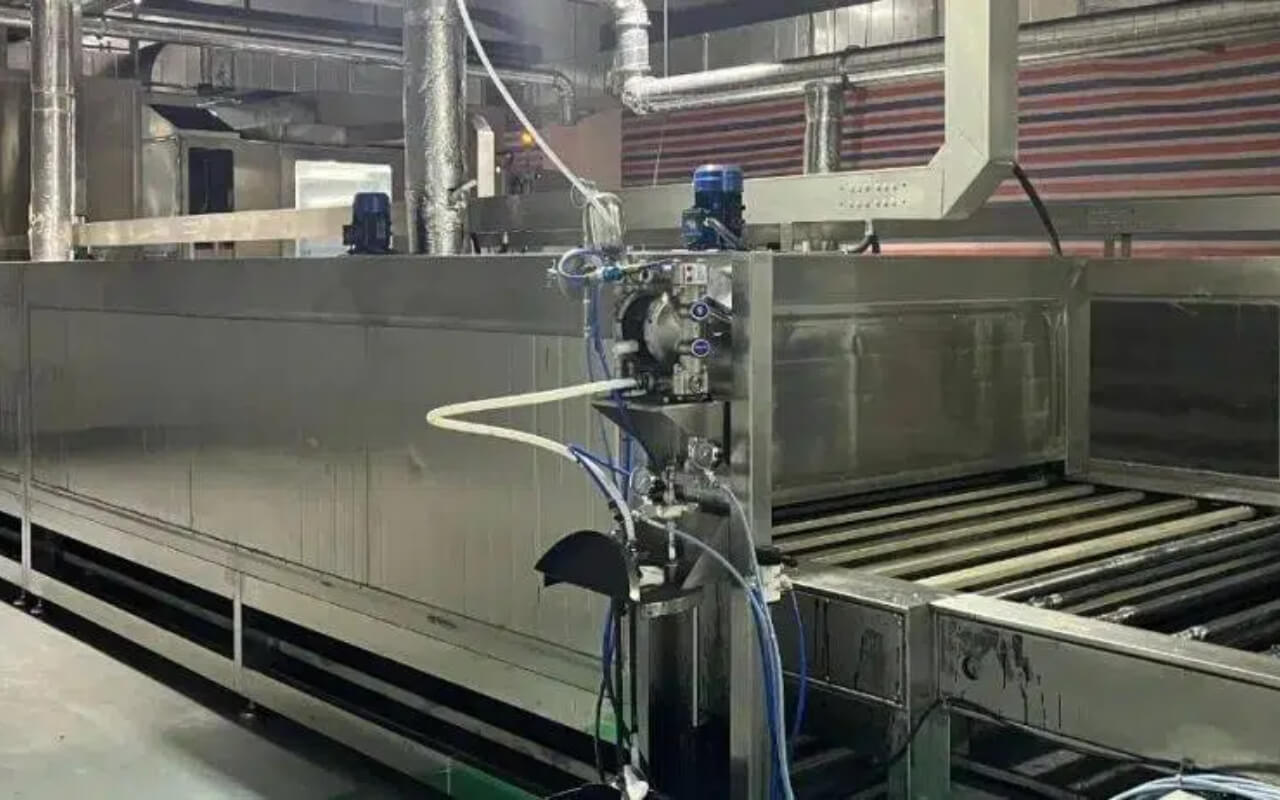

System Configuration

The NdFeB fully automated surface treatment system consists of:

• Automatic material arranging machine

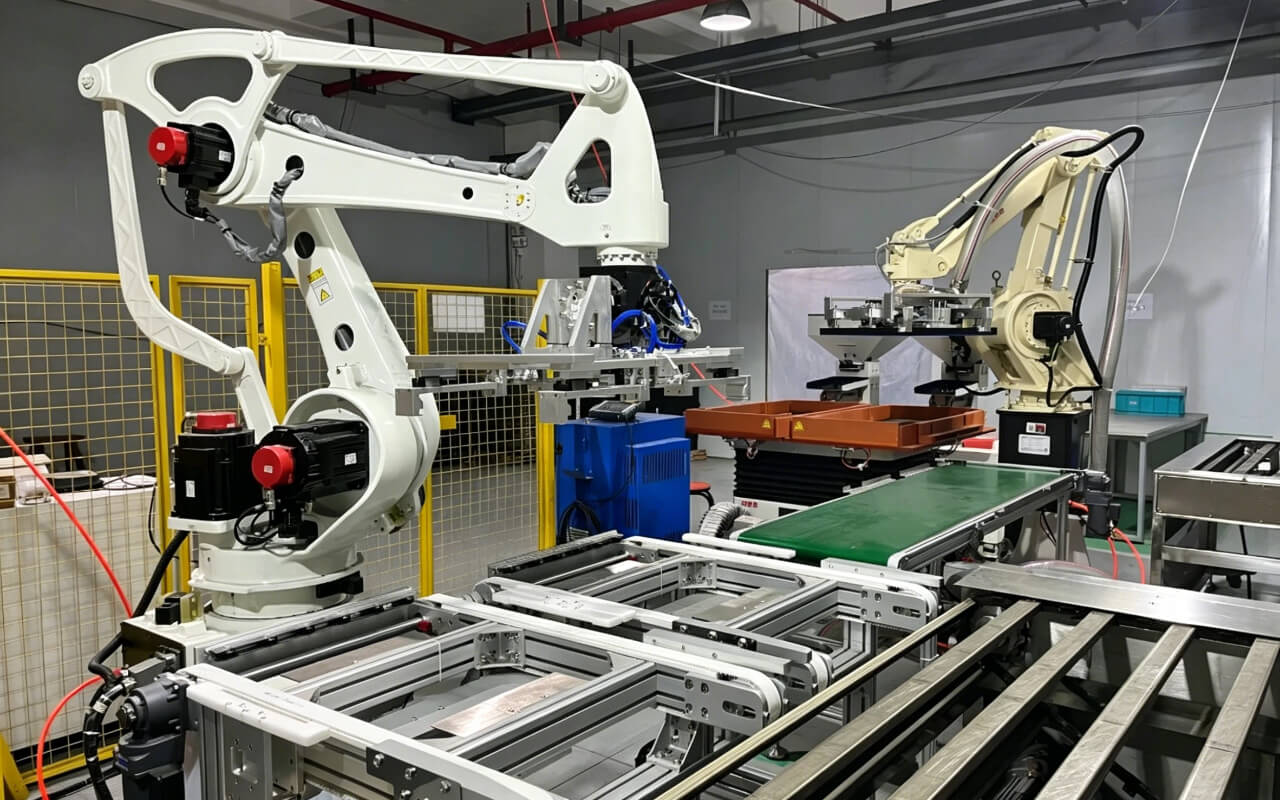

• Automatic loading and unloading systems

• Automatic dust removal equipment

• Preheating furnace

• Eight-axis robotic spraying system

• Cooling system

• Baking oven

• In-line automatic flipping system

• Chain conveyor system (step-by-step or continuous operation)

Equipped with a robot-specific spray control system, the entire solution ensures stable operation for over 10 years, earning strong customer trust and industry recognition.

Key Technical Features

1. Fully Automated Loading & Unloading

The system combines intelligent arranging machines and robotic arms to achieve complete automation in product placement, loading, and unloading. Its modular design allows flexible configurations for various production needs.

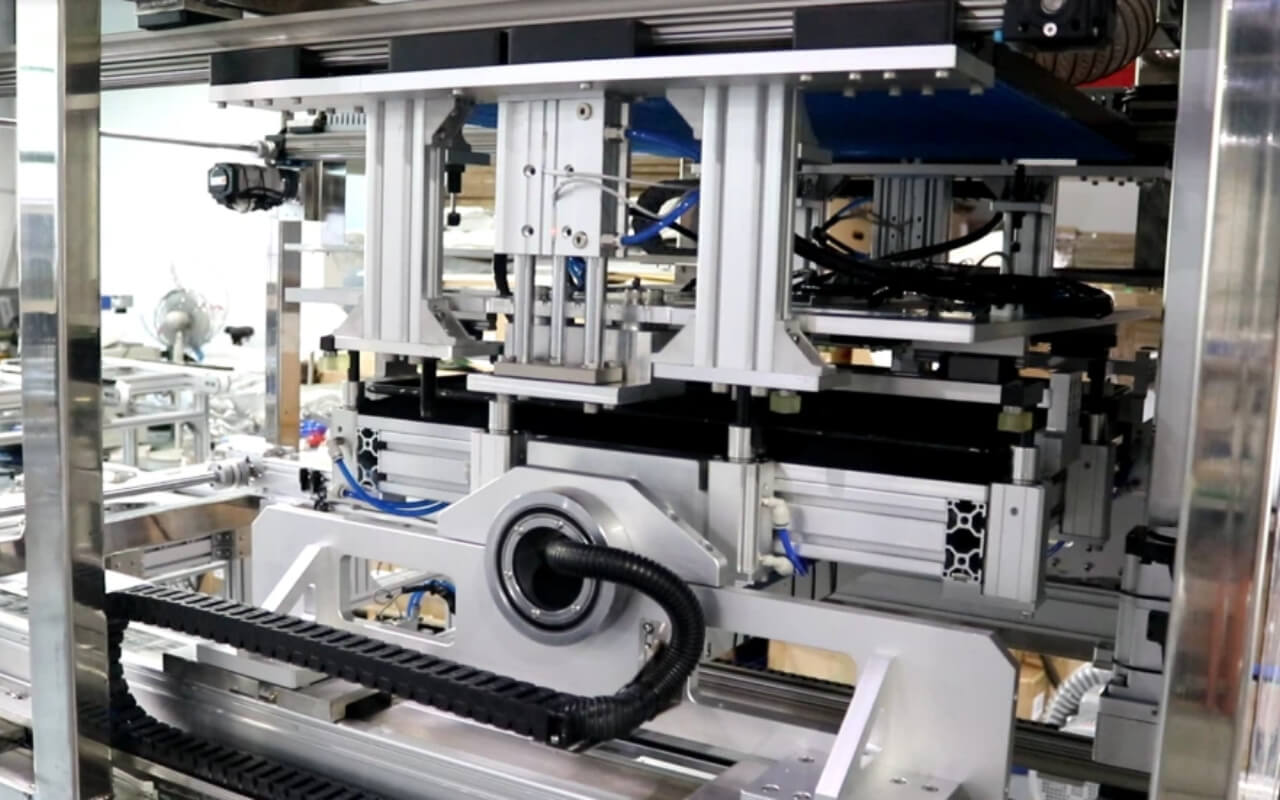

2. In-line Automatic Turning Lift Transfer System

Using a dual-row synchronized lifting and transfer mechanism, product-loaded mesh trays are quickly and stably delivered into the flipping unit.

• A vacuum suction system performs one-time flipping

• Entire flipping process completed within 70 seconds

• No displacement of products on the tray

This significantly improves efficiency while maintaining excellent product consistency and stability.

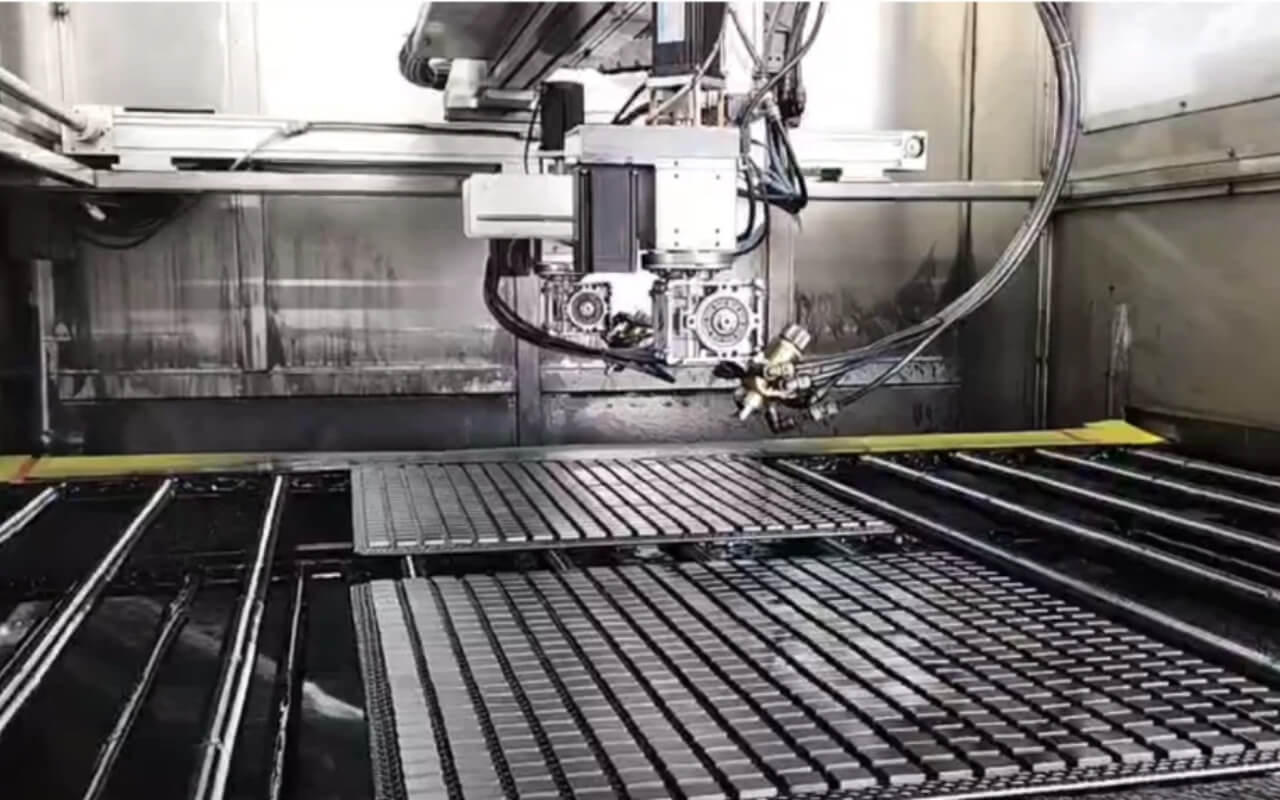

3. Five-Axis Reciprocating Spray System

The reciprocating spray arm features a sealed structural design with built-in air injection ports, maintaining positive internal pressure to prevent powder ingress.

Key benefits include:

• Extended equipment lifespan

• External lubrication design for easy maintenance

• Advanced electrical control system for high-speed, high-precision motion

• Features such as fault alerts, online parameter adjustment, and program integration

The system is user-friendly, stable, and easy to maintain, greatly enhancing overall productivity.

Technical Advantages

✔ 1. Reduced Coating Material Waste

A high-rigidity robotic arm drives the spray gun at high speed, with acceleration up to 50 m/s².

• Overspray distance reduced from 100 mm to ~20 mm

• Significantly lowers coating waste and material costs

✔ 2. Consistent and Stable Quality

Digitally controlled spray parameters ensure:

• High repeatability

• Uniform coating thickness

• Superior product consistency

✔ 3. Precision Control

Key spray parameters such as:

• Atomization

• Spray pattern

• Coating volume

can be remotely controlled via PLC systems, enabling accurate and optimized coating performance.

✔ 4. Easy Maintenance

The coating supply system adopts anti-sedimentation technology, effectively reducing the risk of clogging and minimizing maintenance downtime.

Conclusion

This fully automated NdFeB surface coating line represents a next-generation solution for industrial surface treatment, combining efficiency, precision, and reliability.

By eliminating manual intervention and optimizing every stage of production, manufacturers can achieve:

• Higher throughput

• Lower operational costs

• Consistent, high-quality output

It is an ideal choice for companies seeking smart manufacturing upgrades and long-term competitive advantage in the coating industry.
