Manual paint booth

ST-MLPL-5048

Price: USD500~2000

MAX working width:1300mm
MAX working thickness(include edges):40mm
MAX working thickness(exclude edges):100mm
MIN working length:300mm

Technical Advantages
High-Efficiency Production
• Automated gun-path control reduces manual workload
• Dual-station rotary table allows continuous production with minimal downtime
Precision & Stability
• Multi-angle spray capabilities easily handle complex product shapes
• Smart path planning ensures accurate, even coating layers
Resource Savings
• Intelligent gun on/off control reduces unnecessary spraying
• Improves paint usage efficiency
• Automation significantly reduces labor costs

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

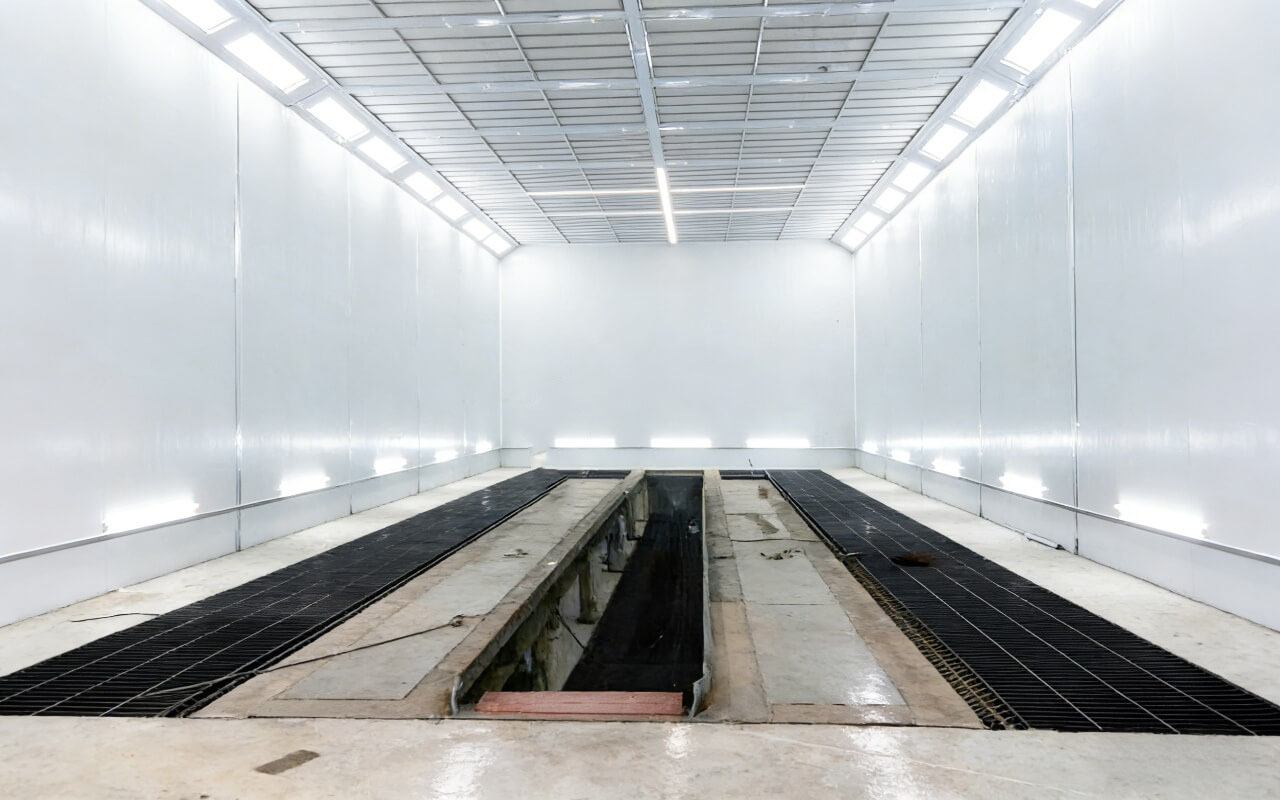

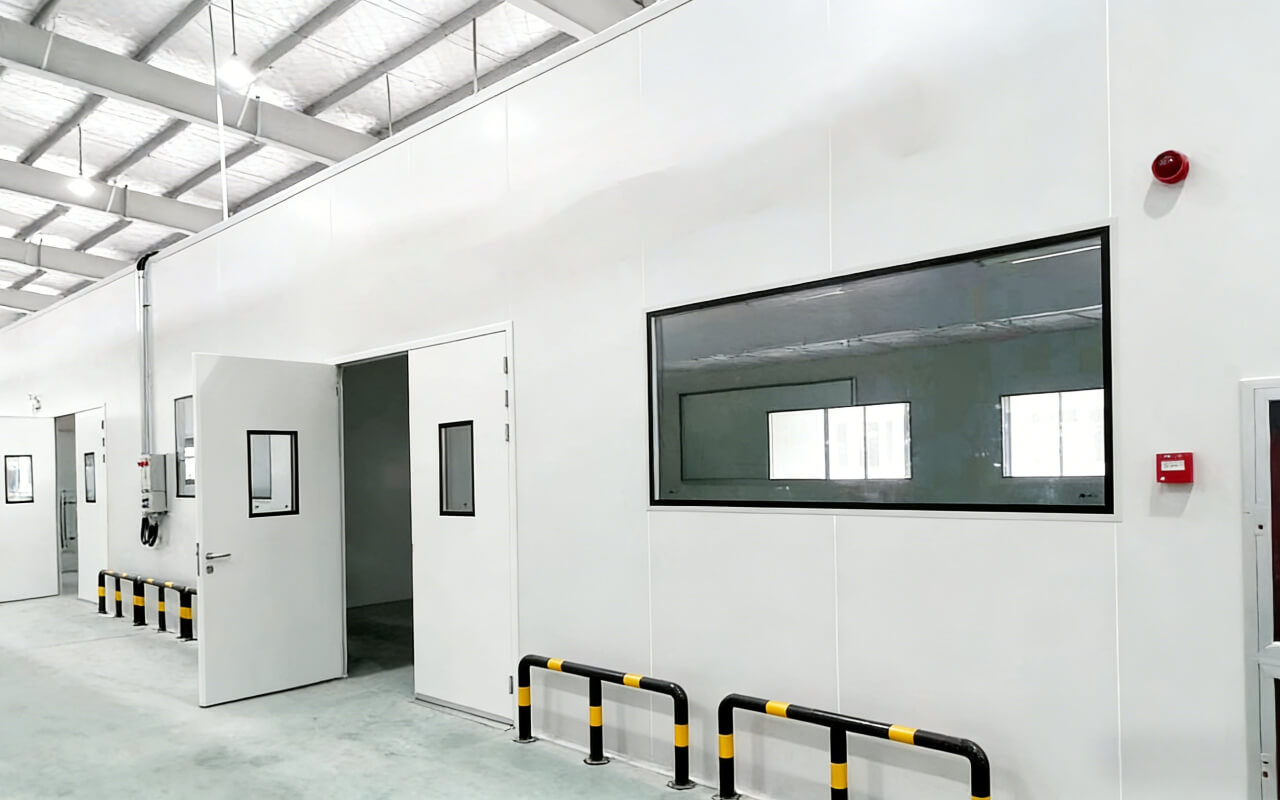

Manual paint booth

Environmentally Friendly & Dust-Free

• Enclosed, dust-free coating environment

• Reduces airborne particles and contamination

• Protects operator health and maintains a clean workspace

Application Scenarios

Furniture Manufacturing

• Panel furniture: wardrobes, bookshelves, cabinets

• Solid wood products: doors, tables, chairs

Architectural Decoration

• Wall panels, ceilings

• Fireproof decorative boards

Name	Reciprocating spray painting machine		Model	ST-TSWP		Place in line	NO.3
Technical Parameters
Overall dimensions(LWH)		5000(+900)48503320mm			Full power			13kw 380V 50HZ 3P
MAX working width		1300mm			Spraying reciprocating action power			1kw*2 sets
MAX working thickness(include edges)		40mm			Conveyor power			1.5kw
MAX working thickness(exclude edges)		100mm			Belt cleaning scraper blade power			0.75kw
MIN working length		300mm			Air inlet power			5.5kw
Average working speed		5-6m/min			Air exhuast power			3kw
Speed of spraying gun		1~1.8m/s			Wind volume			12000m3/h
Estimated weight		5000kg			Paint utilization ratio			80%—95%
Configurations
Control system		DELTA LCD screen, HMI, Chinese and English, 1 set
Servo electric motor		DELTA from Taiwan, China, 1kw*2 sets
PLC controller		Panasonic PLC, Japan, 1 set
Frequency Converter		DELTA from Taiwan, China, 2 sets
Electrical appliance		Schneider from Germany, Chint from China.
Spray gun		Low pressure mixed air spray gun, GRACO from U.S., 8 sets Automatic cleaning.
Paint pump		Merkur bellows plunger type pump, GRACO from U.S., 15:1, 9L, 1 set Automatic cleaning.
Linear guide rail		HIWIN from Taiwan, China, 2 sets Cross reciprocating spraying design.
Lubrication		ISHAN from Taiwan, China, 1 set Automatic lubricate with redundant oil diversion design.
Automatic scanning system		Bonner screen from America, 2 sets
Light		Fire proof type, LED. 0.05kw, 1 set
Conveyor		Germany SIEGLING top industrial wide belt, Height 850mm, Thickness 3mm, Left to right direction.
Belt cleaning pump		Vacuum diaphragm pump, 10L* 2 sets
Steel roller paint scraper blade		50*0.203mm, from Sweden, 3 sets
