All About Automatic Spray Painting Production Lines

Abstract: Spray painting production lines, also known as coating lines, refer to specialized assembly line tools used to apply protective or decorative layers to metal and non-metal surfaces. Primary spraying methods include oil-drip and water-curtain spray booths. These are widely utilized for surface coating in hardware, home appliances, electronics, lighting, plastics, helmets, artificial stone, sanitary ware, cabinetry, flooring, furniture, handicrafts, medical devices, automotive parts, aluminum profiles, and heavy machinery. There are three main configurations: overhead (suspended) drying lines, flat-bed (planar) lines, and floor-track drying lines.

Types of Production Lines

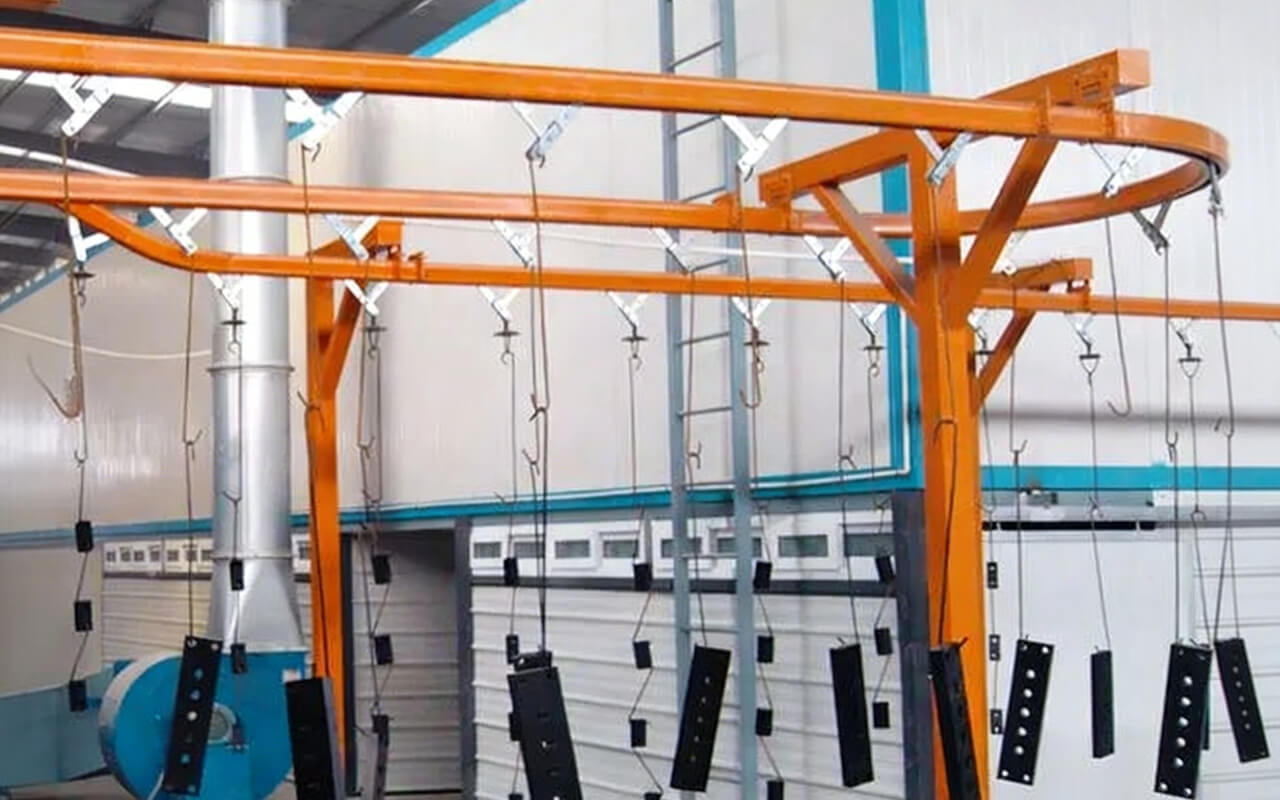

1. Overhead Suspended Lines: Utilizing a suspended chain conveyor, these lines can navigate turns and elevation changes. They consist of spray stations, enclosures, heating systems, and ventilation. The modular wall panels offer excellent thermal insulation.

2. Flat-bed (Planar) Lines: These use mesh belts, rubber belts, or rollers for transport. They are ideal for flat components and feature high-precision intelligent temperature control.

3. Floor-track Lines: These utilize a floor-mounted chain conveyor. These systems are robust, offering environmental protection, rapid drying, and frequency-controlled speed adjustment.

Typical Process Layouts

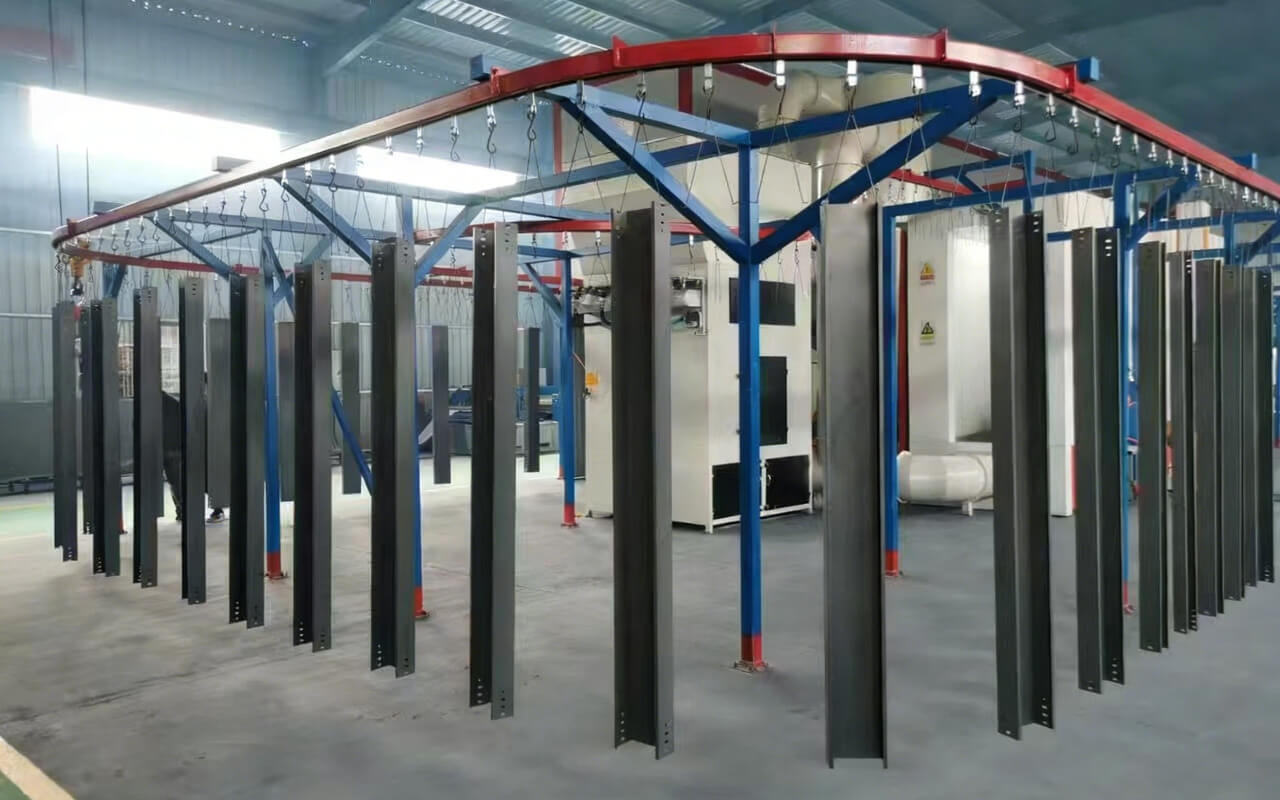

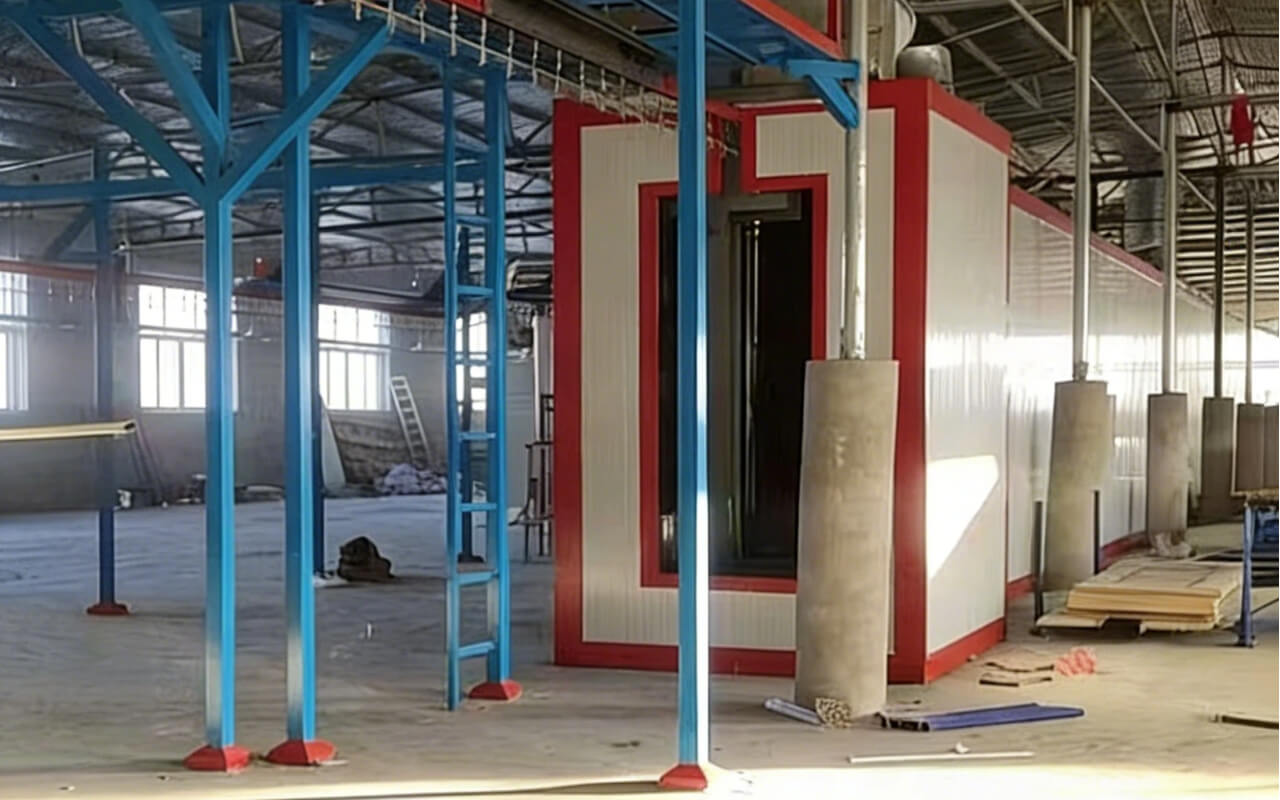

• Powder Coating Line: Loading → Powder Spraying → Drying (10 min @ 180°C-220°C) → Cooling → Unloading.

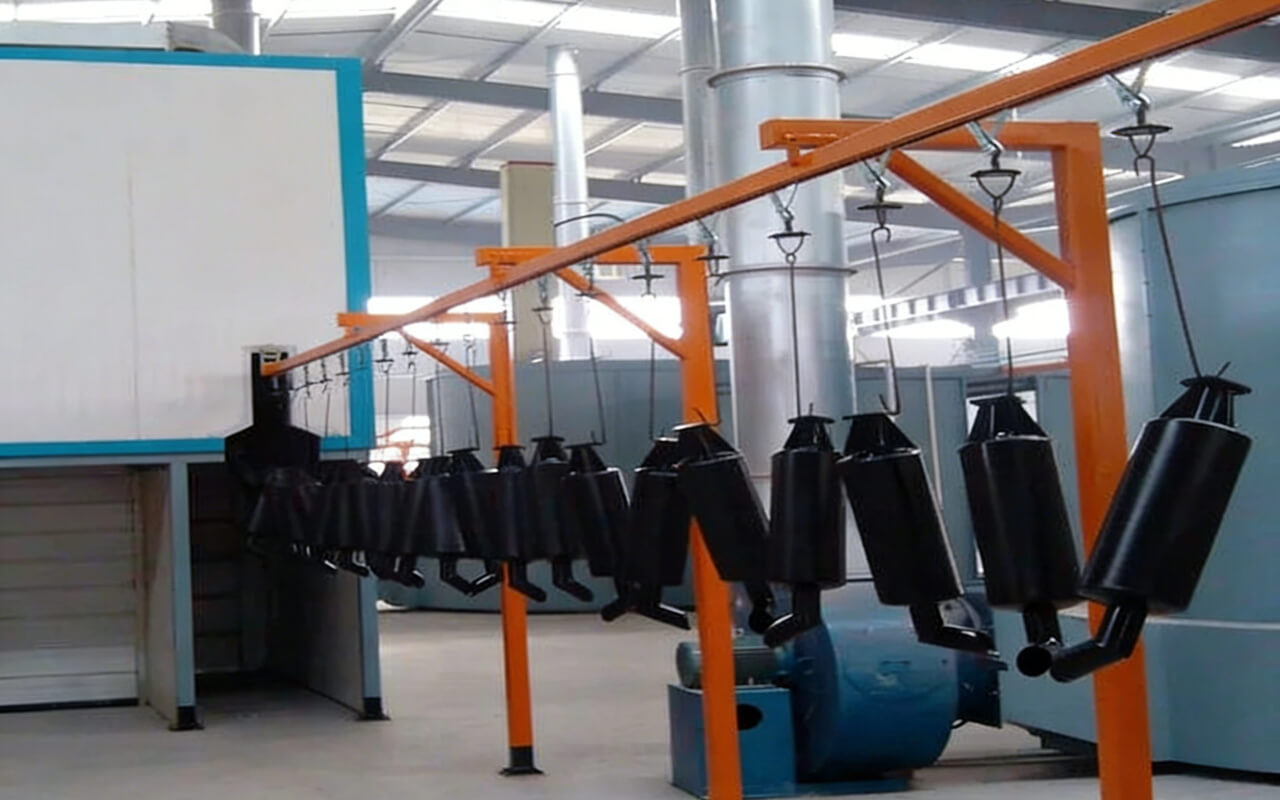

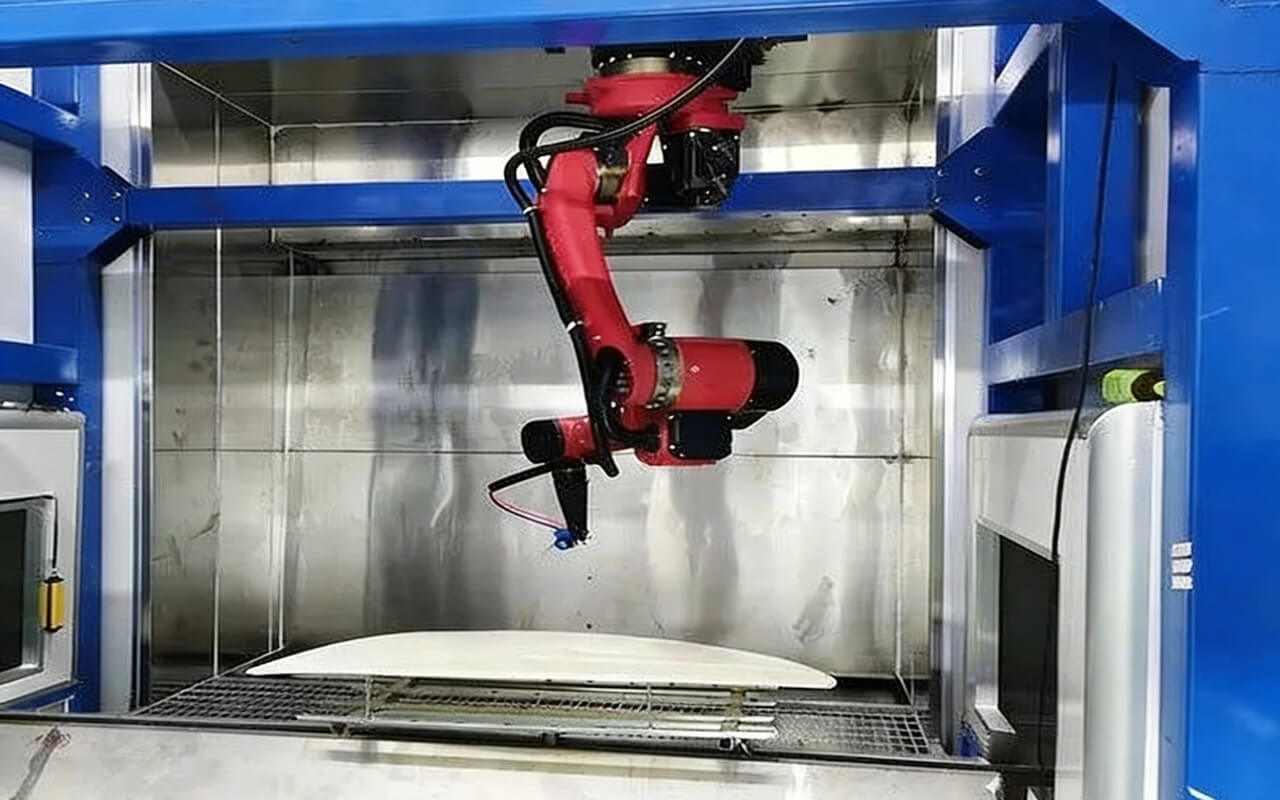

• Liquid Painting Line: Loading → Electrostatic Dedusting → Primer → Leveling → Topcoat → Leveling → Drying (30 min @ 80°C) → Cooling → Unloading.

The 7 Core Components of a Coating Line

1. Pre-treatment Equipment: Uses spray or immersion (degreasing, phosphating, rinsing) to prepare the surface. Shot blasting is also used for heavy rust removal.

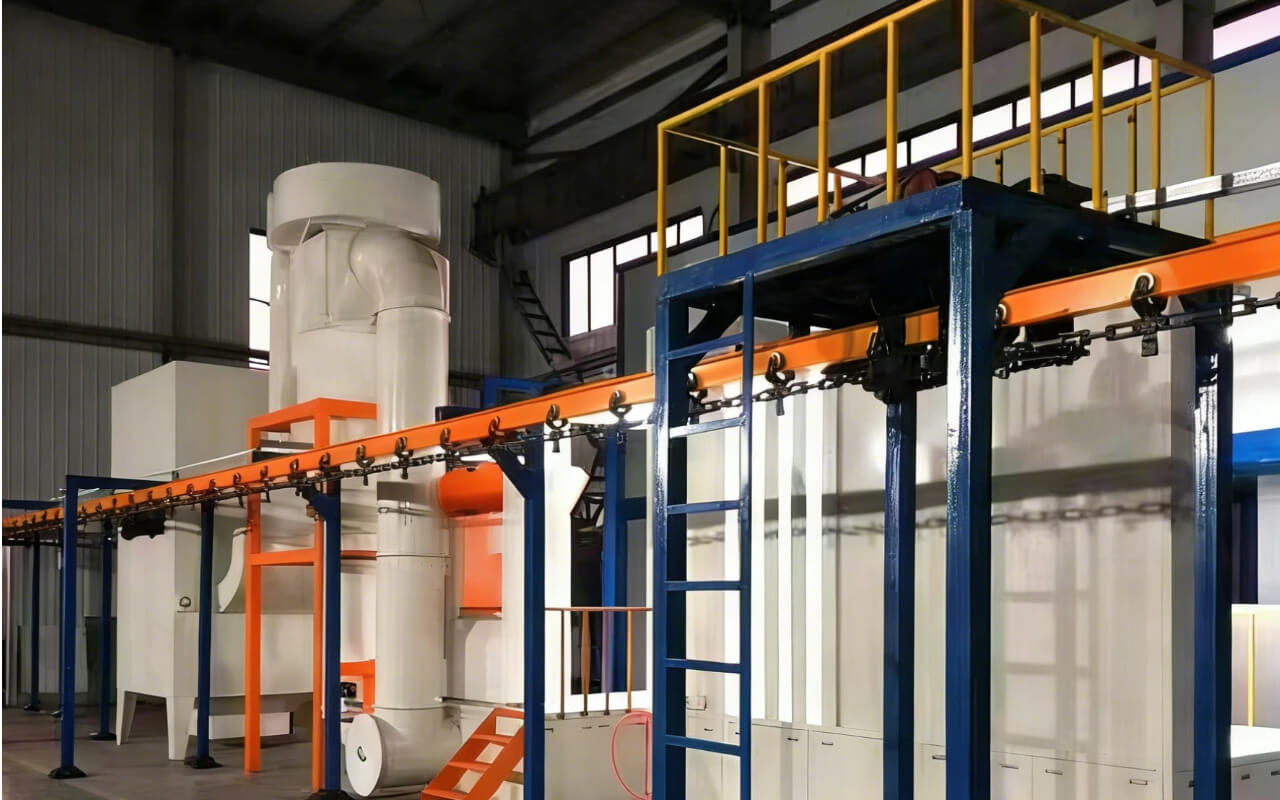

2. Powder Spraying System: Features advanced "cyclone + filter" recovery units for fast color changes.

3. Painting Equipment: Such as water-curtain booths for high-efficiency overspray capture.

4. Curing Ovens: Essential for coating quality. High-performance ovens maintain temperature uniformity within $pm 3^circtext{C}$.

5. Heat Source Systems: Utilizes convection (electricity, gas, steam, or oil) for drying and curing.

6. Electrical Control Systems: Managed via PLC for centralized automation or manual single-station control.

Conveyor Systems: Includes suspended chains or power-and-free conveyors capable of carrying heavy loads (500-600kg).
