Daily Maintenance of Powder Coating Production Lines

Coating production lines have revolutionized the industry by solving traditional challenges such as high labor intensity, low efficiency, excessive staffing, inconsistent quality, poor uniformity, and paint wastage.

An automatic spraying line typically features mobile spraying units that can navigate surfaces, often integrated with automatic gear control and longitudinal/lateral movement systems. By operating based on preset parameters, these lines can cover large areas automatically—slashing labor costs while boosting efficiency and ensuring a stable, uniform finish.

The Importance of Routine Upkeep

To keep these systems running smoothly, daily maintenance must focus on cleaning, fastening, adjusting, lubricating, and anti-corrosion. Every component has a specific maintenance manual and set of precautions. Adhering strictly to these cycles reduces wear and tear, eliminates hidden hazards, and significantly extends the machinery's lifespan.

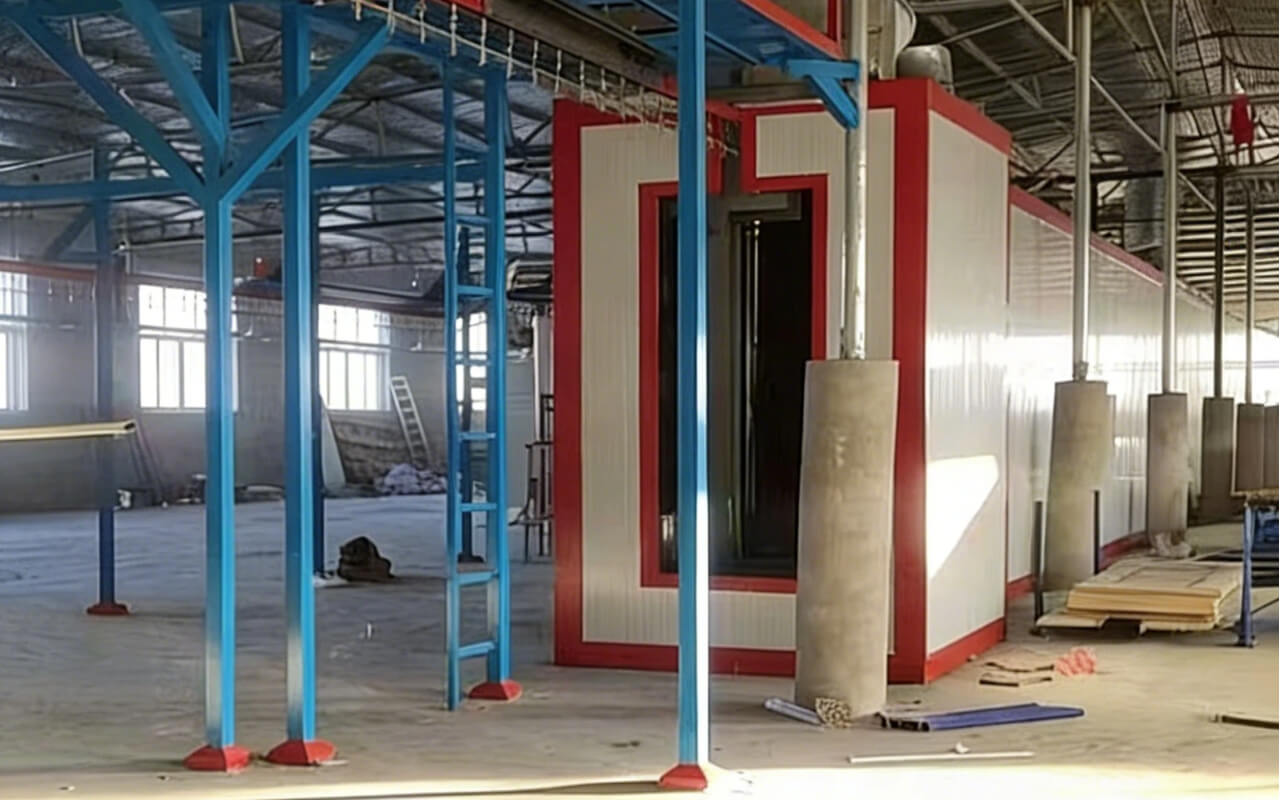

powder coating line (5).jpg

Beyond the basics, here is the breakdown of essential maintenance projects:

1.Planning and Daily Checks

Workshop managers must establish a detailed maintenance schedule. For individual spray machines, the focus is on cleaning, lubrication, and tightening.

Routine Inspections: Performed before, during, or after each shift.
Operator Responsibility: These daily tasks are typically handled independently by the line operators.

2. Key Component Maintenance

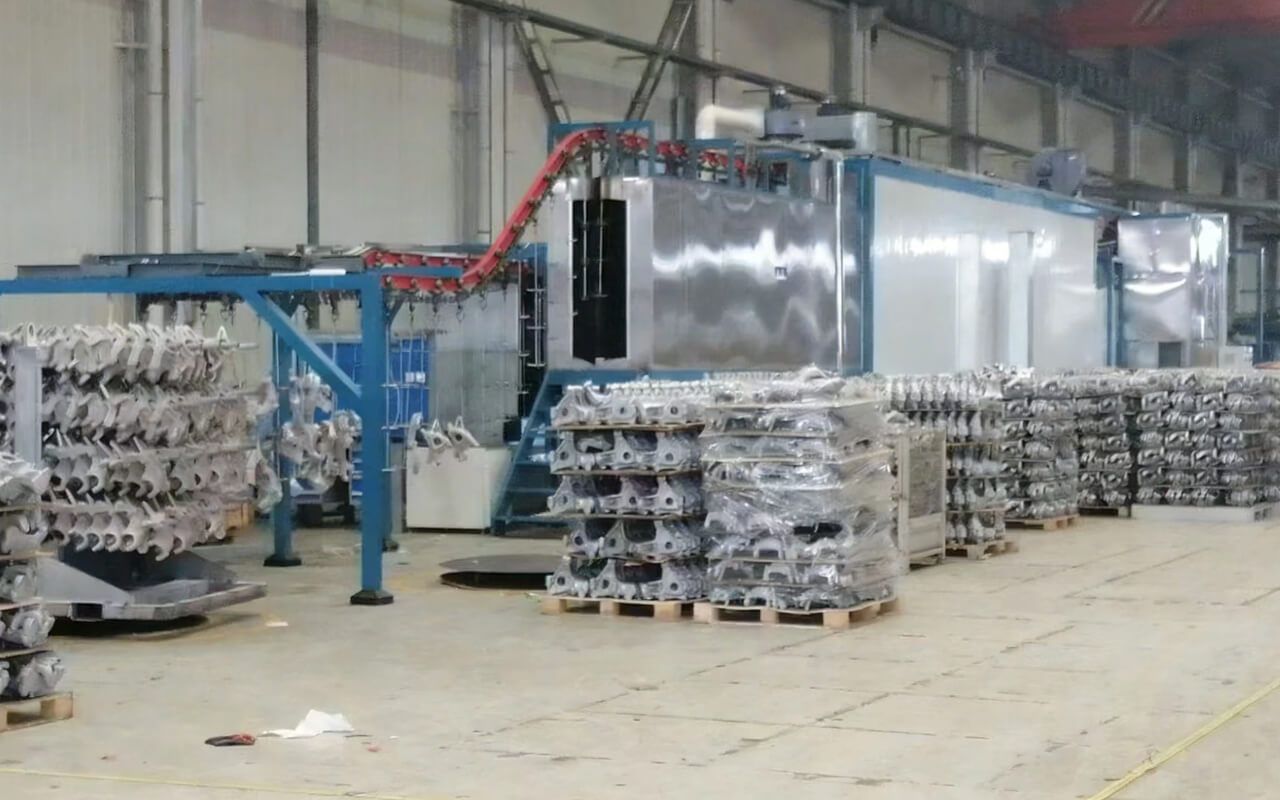

powder coating line (1).jpg

Motor & Transformer: Ensure these units remain dry. Water ingress can destroy insulation, leading to total equipment failure.
Chain Maintenance: Chains require constant observation. Regularly apply grease and lubricating oil. Over time, lubricants evaporate, leading to loud noise and "creeping" (stuttering) movements.
Gearbox (Reducer): Initial Use: After the first quarter of operation, drain all excess oil.

Cleaning: Flush the gearbox with gasoline or diesel.
Refilling: Add fresh lubricant until it reaches the midpoint of the sight glass. Repeat this process annually.

3. Special Focus: The 'Break-in' Period

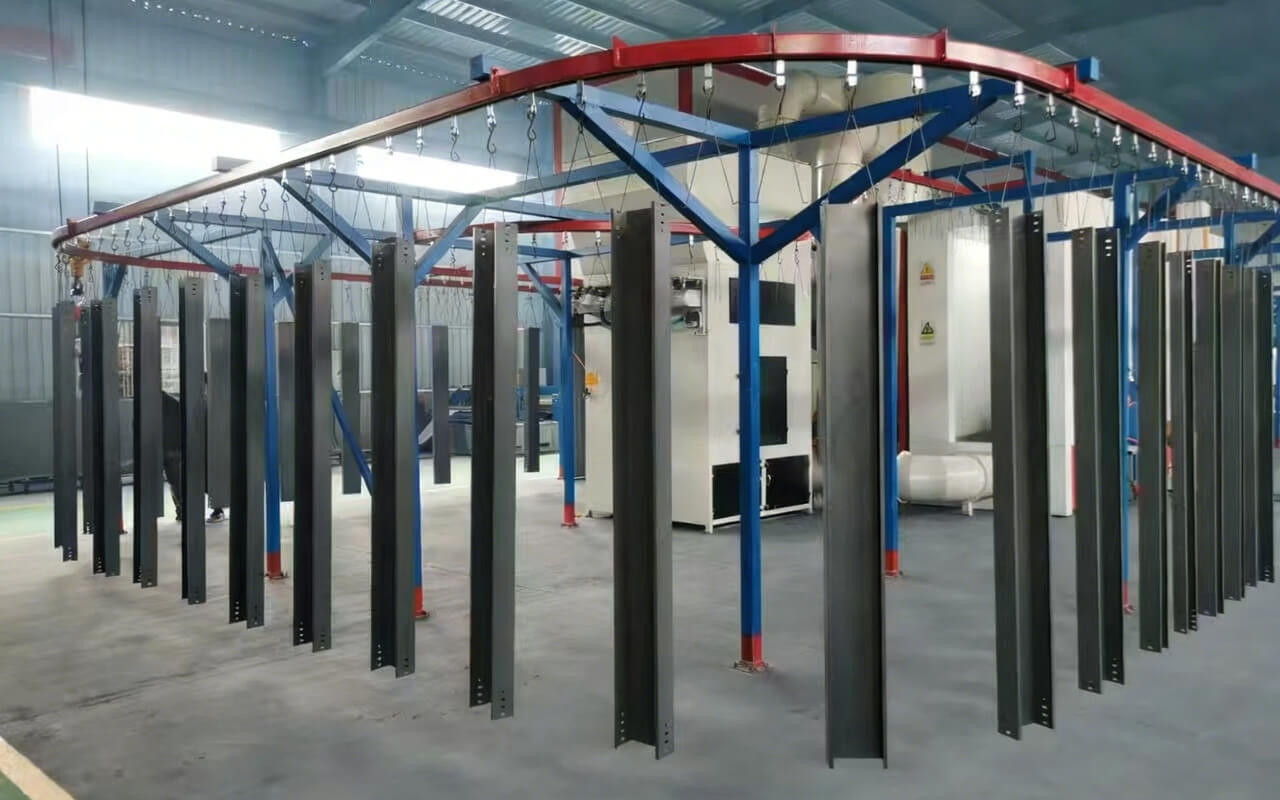

powder coating line (3).jpg

New or newly overhauled equipment requires a critical break-in maintenance phase.

Gradual Loading: Increase the load and speed progressively according to specifications.
Comprehensive Monitoring: Check lubrication and fastening status frequently; address any abnormalities immediately.
Post-Break-in: Once the period ends, replace all lubricants, lubricate all components, and retighten all bolts. Proceed to "Secondary Maintenance" levels thereafter.
