As modern industrial technology continues to advance, painting production lines play an increasingly vital role in manufacturing. Planning a large-scale painting production line requires balancing technical sophistication, production efficiency, cost control, and environmental compliance. The following outlines a comprehensive planning framework to serve as a valuable reference for businesses in this field.

1. Needs Assessment

Before planning a large-scale painting production line, a thorough analysis of the company's actual requirements is essential — including product type, dimensions, coating specifications, and production scale. In the automotive manufacturing sector, for example, painting lines must meet high standards for automation, precision, and environmental compliance. In the furniture industry, the emphasis shifts toward coating versatility and flexibility.

Beyond production characteristics, capacity requirements must also be carefully evaluated. Based on market forecasts and order volumes, the line should not only meet current production demands but also offer scalability to adapt to future market changes.

Keywords: painting line planning, production capacity, coating requirements, scalability, automotive coating, furniture coating

2. Equipment Selection

2.1 Pre-Treatment Equipment

Pre-treatment is the foundational stage of any painting line — surface preparation directly determines coating adhesion and durability. Common pre-treatment equipment includes degreasing, rust removal, and phosphating systems. Key selection criteria include treatment effectiveness, energy consumption, and degree of automation.

Keywords: surface pre-treatment, degreasing equipment, phosphating system, coating adhesion, rust removal

2.2 Coating Equipment

Coating equipment forms the core of the painting line, encompassing spray booths and curing ovens. In addition to performance specifications, environmental compliance is a critical consideration. The use of water-based coatings and high-efficiency exhaust gas treatment systems can significantly reduce environmental impact.

Keywords: spray booth, curing oven, water-based coatings, exhaust gas treatment, painting equipment

2.3 Conveyor Equipment

Conveyor systems are responsible for transferring workpieces between stations throughout the painting line. Common conveyor methods include overhead chain conveyors and floor-track conveyors. Selection should account for production line layout, workpiece weight and dimensions, and required conveyor speed.

Keywords: overhead conveyor, floor track conveyor, workpiece transfer, conveyor system, production line layout

3. Production Line Layout

A well-designed layout is directly linked to production efficiency, energy consumption, and operator workload. The following principles should guide the layout process:

• Smooth workflow — ensure seamless workpiece flow from station to station, minimizing wait times and unproductive movement.
• Space optimization — maximize use of available floor space to reduce footprint and construction costs.
• Ease of maintenance — provide adequate clearance around equipment for routine servicing and repairs.
• Safety compliance — ensure the layout meets all relevant safety regulations to prevent workplace incidents.

Keywords: production line layout, workflow optimization, space utilization, equipment maintenance, industrial safety

4. Automation & Intelligent Manufacturing

Large painting lines are increasingly evolving toward full automation and smart manufacturing. By integrating automated control systems and robotic arms, production lines can achieve self-directed operation — boosting efficiency, reducing labor costs, and improving product quality. Key considerations include:

• System integration — ensure seamless connectivity between all automated equipment and systems for information sharing and coordinated operation.
• Data collection and analysis — use sensors and smart devices to capture real-time production data for deep analysis and process optimization.
• Fault prediction and diagnostics — implement early-warning systems to identify and resolve potential failures before they disrupt operations.

Keywords: industrial automation, smart manufacturing, robotic painting, PLC control system, fault diagnostics, Industry 4.0, IIoT

5. Environmental Protection & Energy Efficiency

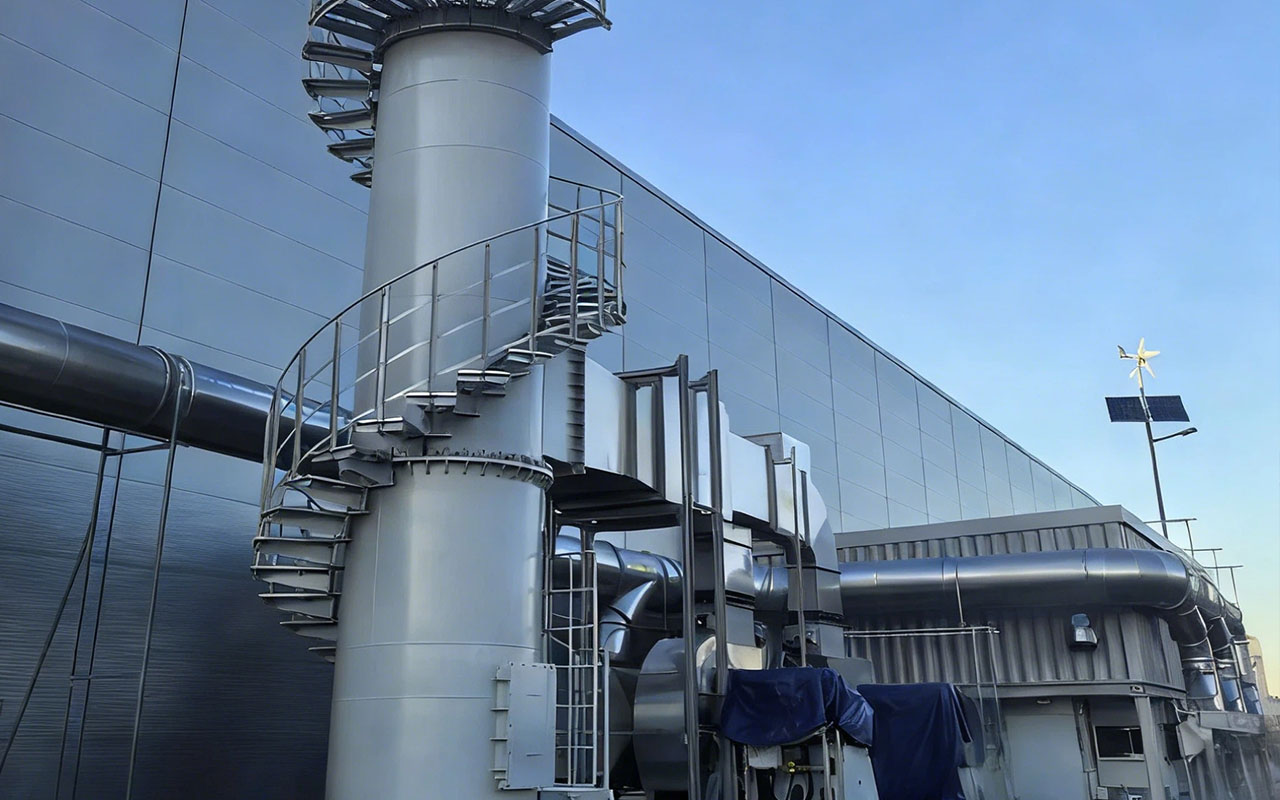

Environmental compliance and energy efficiency are non-negotiable considerations in large-scale painting line planning. Adopting eco-friendly coatings, high-efficiency exhaust treatment systems, and energy-saving equipment helps minimize the environmental footprint of production operations.

Ongoing maintenance management is equally important to ensure that all environmental control systems remain fully operational. Regular energy audits and continuous optimization efforts should be conducted to steadily improve overall energy efficiency.

Keywords: green manufacturing, eco-friendly coatings, VOC treatment, energy-saving equipment, environmental compliance, carbon footprint reduction

6. Cost Control & Return on Investment

Cost control is fundamental to the successful execution of any large-scale painting line project. Through optimized equipment selection, layout planning, and automation strategies, businesses can reduce both capital expenditure and operating costs while maintaining production efficiency and product quality.

A comprehensive ROI analysis should also be conducted, covering productivity gains, product quality improvements, and environmental benefits. A thorough evaluation of both economic and social returns provides a solid foundation for informed business decision-making.

Keywords: ROI analysis, cost optimization, CAPEX, OPEX, production efficiency, quality improvement, investment planning
