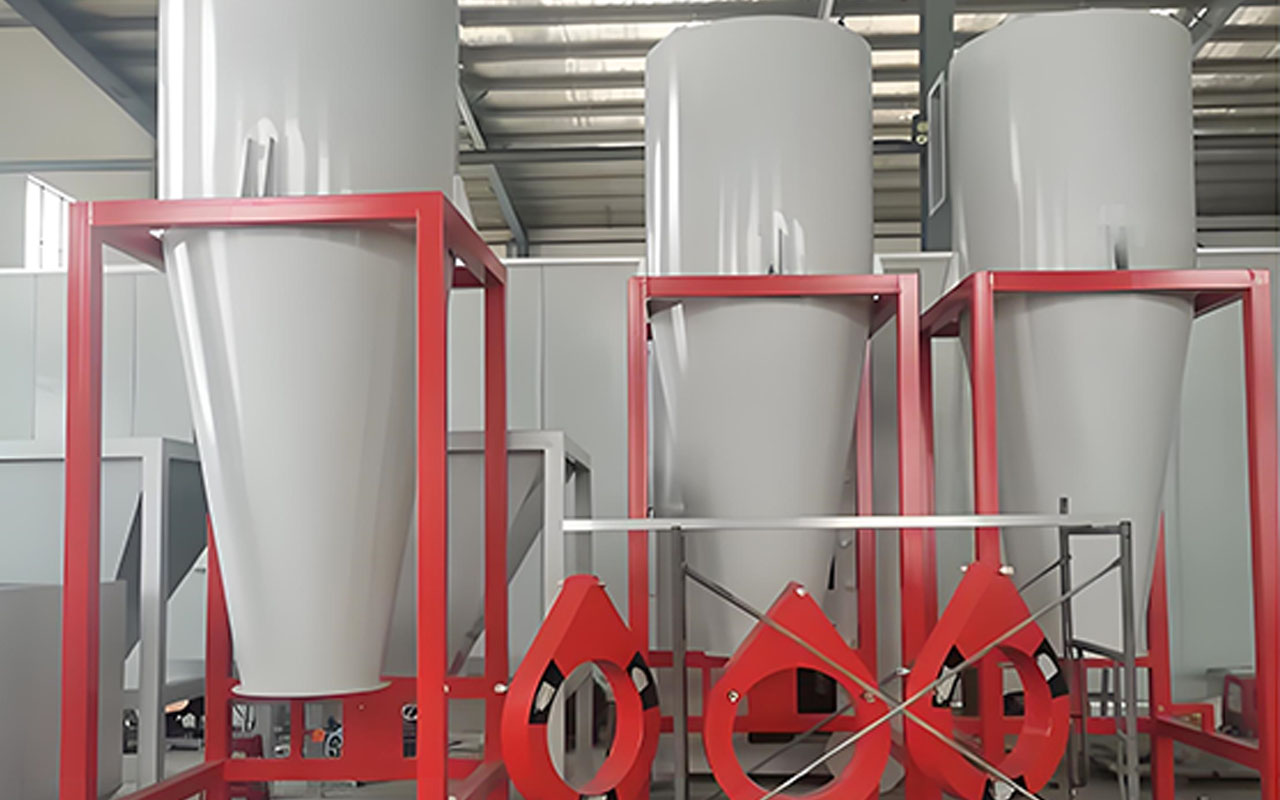

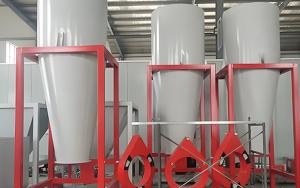

Environmentally Large-scale Cyclone Powder Recovery System

ST-APC-R5223

Price: USD5000~10000

Revolutionary Powder Recovery: up to 98.9% powder recovery
Dust emission: less than 0.03g/m³
Color change time: 15 mins
Production Capacity: 30L/h

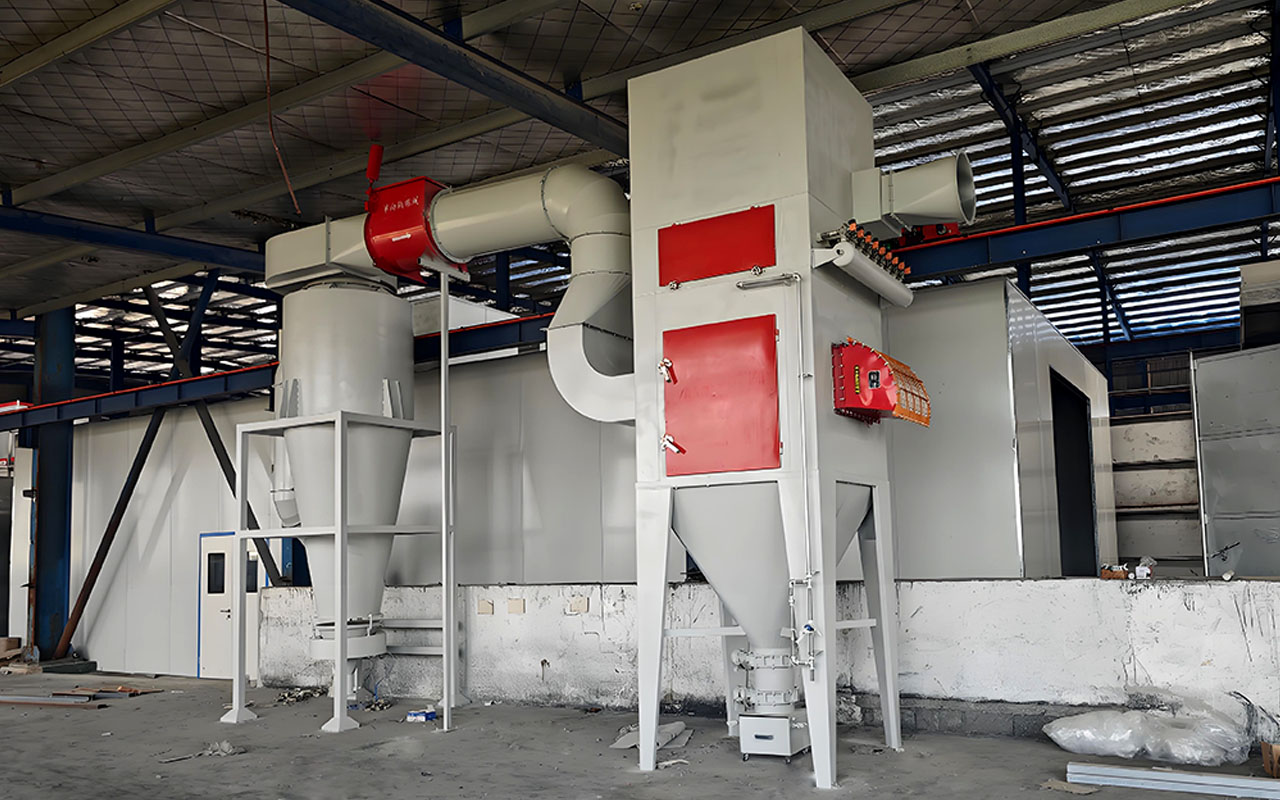

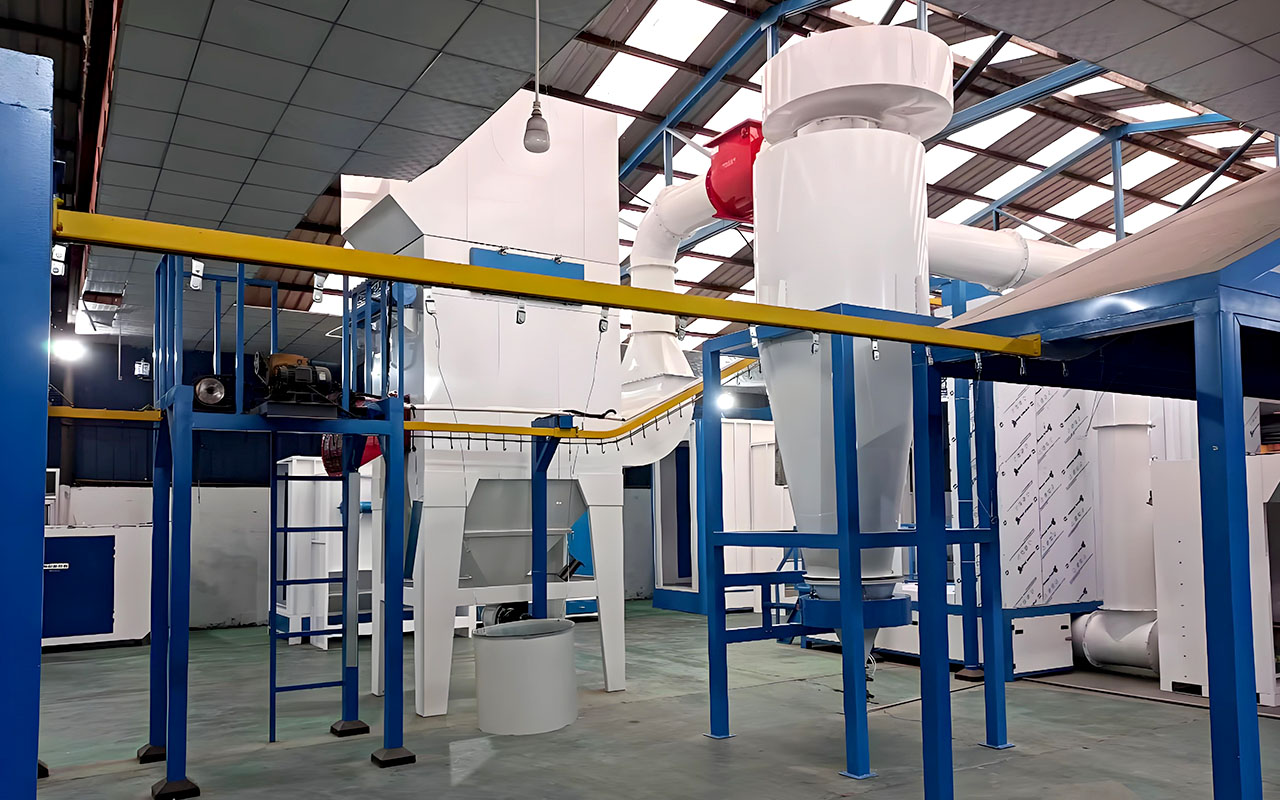

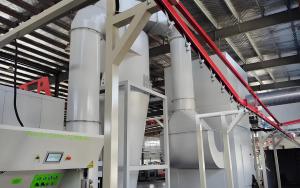

The large cyclone recovery system combines a large cyclone separator and an electrostatic precipitator, which can effectively remove particulate matter and organic matter from the exhaust gas and return the purified air to the working area, achieving the goal of energy conservation and environmental protection.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Equipment Advantages

1.High-efficiency purification: The large cyclone spray recovery system combines a large cyclone separator and an electrostatic precipitator to effectively remove particulate matter and organic matter from exhaust gas, achieving high purification efficiency.

2.Energy-saving and environmentally friendly: Purified air can be returned to the work area, avoiding outdoor air pollution. Furthermore, the system uses energy-efficient equipment, reducing energy consumption and operating costs.

Key Attributes

No.	Name	Specification	Quantity	Note
I	PP Board Spraying Room	500022003200; Entrance size W900*H2000	1 Set	Gantry not included
	Chamber Wall	8mm PP board welding, Sandwich structure (100mm), One side with 2 gun positions	1 Set
	Chamber Base	50002200700	1 Set	Stainless steel + square tube
	Flip Plate	2000*500	1 Set	PP Board
	Reverse Blowing		1 Batch	Aluminum alloy

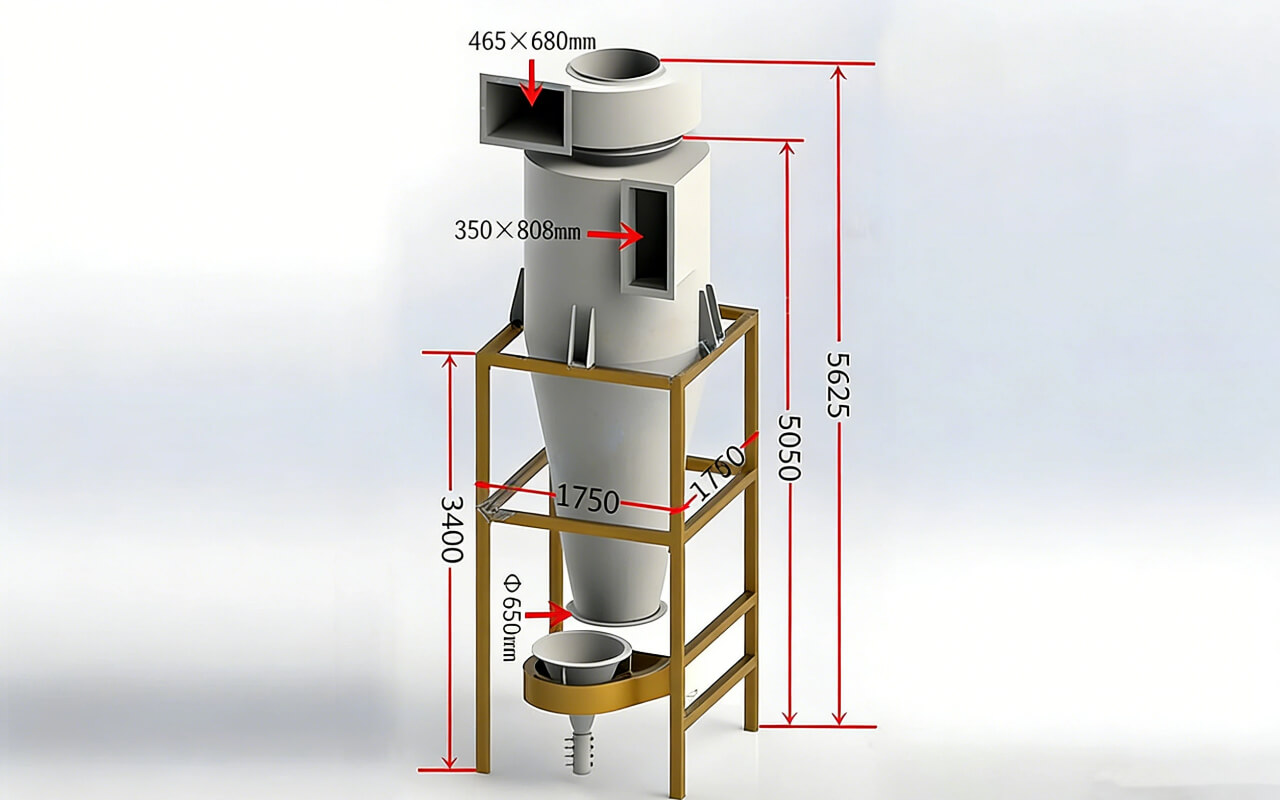

II	Large Cyclone	Φ1100*3955 powder coated	1 Set	ShengTai
	Connecting Duct	Φ480 powder coated	1 Batch	Carbon steel 1.5mm
	Connecting Duct	1001002	1 Set	Powder coated
	Cone body		1 Set	With cylinder
	Powder Return Pump		1 Set	304
	Powder Return Pipe	Φ28	10 meter	Anti-static

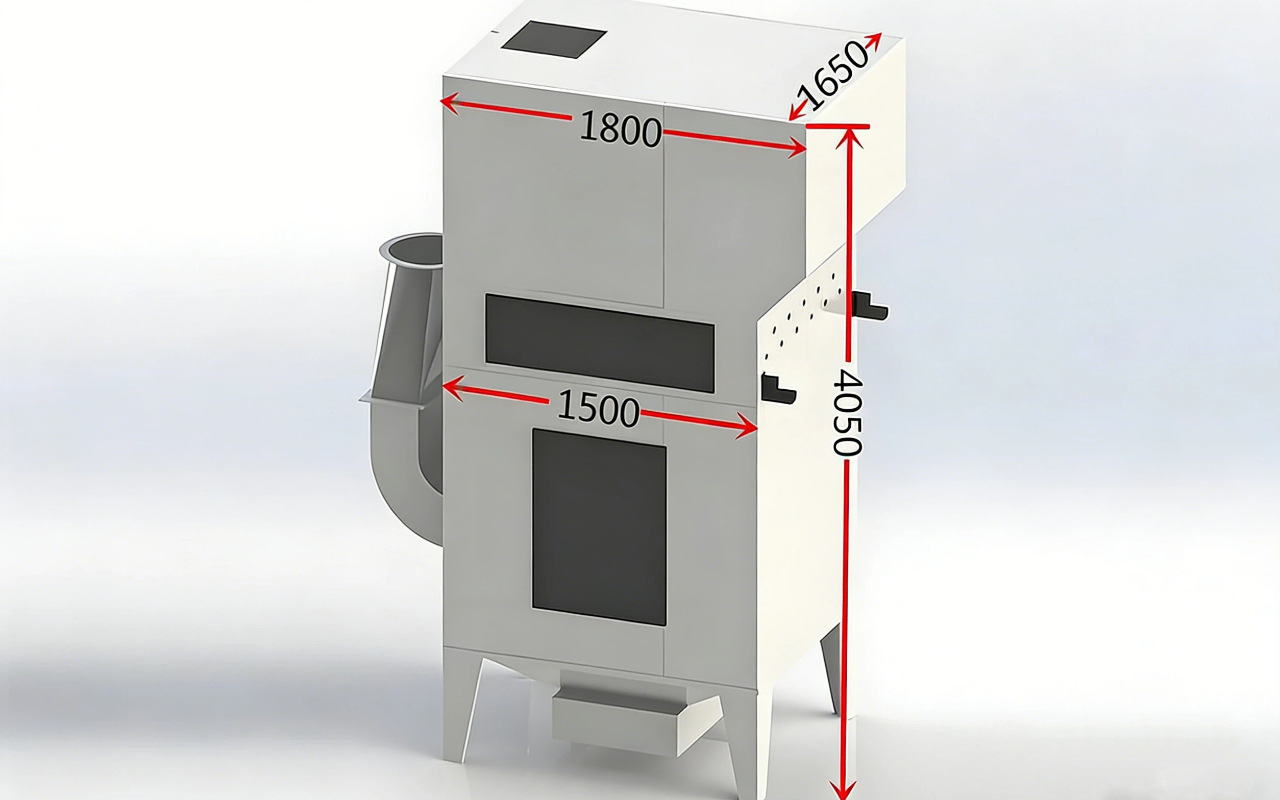

III	Powder Return Pipe	150018005200	1 Set	Carbon steel 2.35mm
	Rotary Wing	1200	9 Set	Customized
	Filter Cartridge	Φ325*600	18 Set	Customized coated
	Fan	22 kW	1 Unit	Sanyi
	Solenoid Valve	1 inch	12 Set
	Flameless Venting Valve	210*320	1 Set	With certificate + insurance
	Explosion Isolation Valve	Φ500	1 Set	With certificate + insurance
	Air-Lock Discharger	200*200	1 Set	Explosion-proof
IV	Control System	Chamber lighting, Flip plate, Reverse blowing, Secondary recovery,Pulse power supply, Discharger, Spray gun power supply, Powder supply center, Reciprocator power supply	1 Set	PLC
V	Spraying Equipment		1 Set
	Reciprocator	Stroke 1500	2 Unit
	Automatic Gun		4 Set
	Electrostatic Cabinet		1 Set
	Powder Supply Center		1 Unit
