Furniture Spray Painting Booth

ST-LPF400

Price: USD5000~10000

Air volume：≥12000m³/h
Door frame：Internal frame of the door structure is fabricated from reinforced galvanized steel plates, bent and welded for high strength and structural stability.
Lighting System：Four groups of ceiling lights installed on both sides of the top
Average capture efficiency: 98%

A furniture baking booth is truly the beauty salon of furniture finishing. It provides an optimal coating environment during spraying, ensuring an even, smooth, and flawless paint surface.At the same time, it efficiently captures and treats paint mist and exhaust gases, creating a more eco-friendly workplace and protecting operators’ health.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

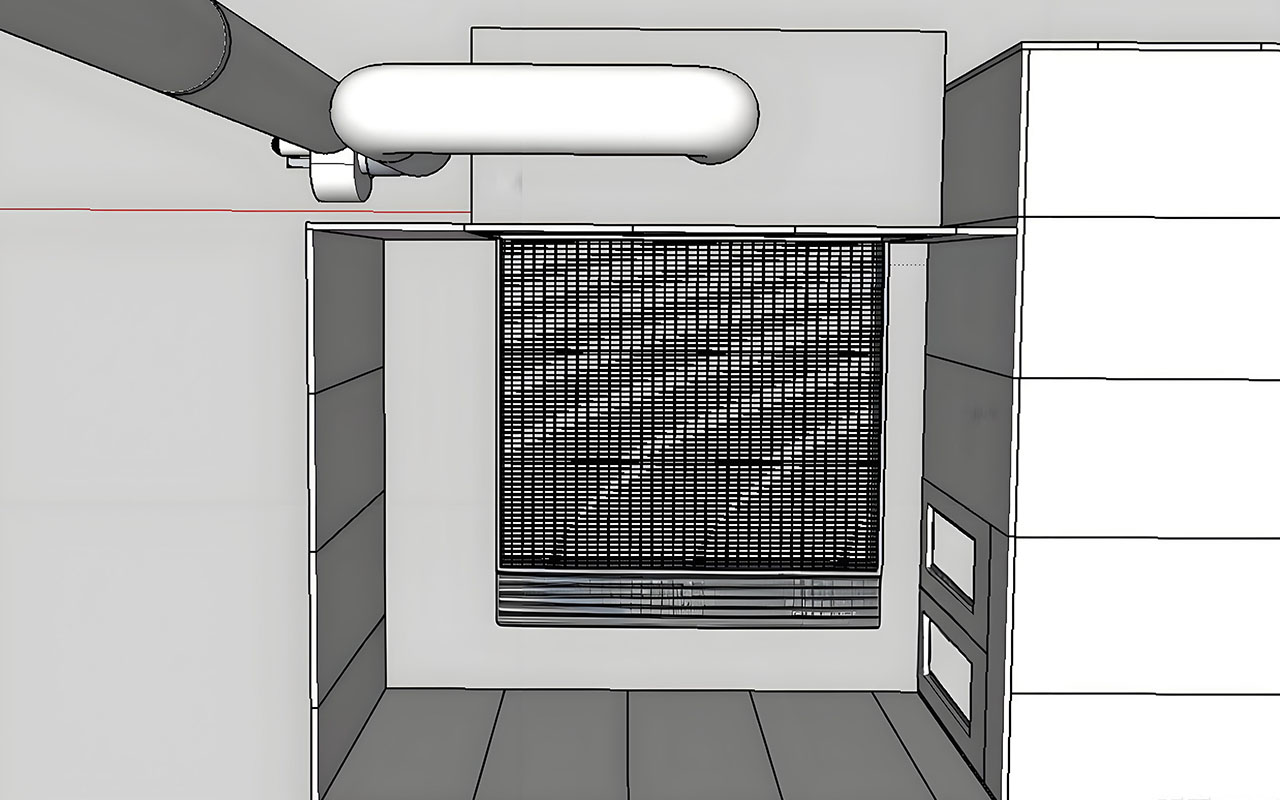

Equipment Features

Did you know the filtration system inside a furniture baking booth is highly advanced? It can maintain air cleanliness above 98%, ensuring a superior paint finish every time.

The heating system is equally impressive, using carbon-fiber infrared heating tubes or vertical/hanging electric hot-air circulation fans to deliver stable, efficient, and precisely controlled temperatures throughout the baking process.

Key Attributes

ST-LPF400 Intermediate Booth – Technical Parameters
Applicable Standards (Operative Norm)	Complies with the Transportation Industry Standard “Automotive Spray and Baking Booth” (JT/T 324-2022). If local environmental impact assessment (EIA) requirements are stricter than national standards, local EIA standards shall apply.
Outer diameter size(L×W×H）	L:7050×W:4000×H:3000
Inner diameter (L×W×H）	L:6900×W:3900×H:2600
Air volume	≥12000m³/h
Load wind speed	≥0.2m/s
Air changes	≥180 times/h
Lighting Lux	≥800Lux
Air purification efficiency	(EN779)98%
Noise	≤75dB（within the working area）
Total power	≈11kW
Gate system	The internal frame of the door structure is fabricated from reinforced galvanized steel plates, bent and welded for high strength and structural stability. The exterior is laminated with color-coated steel panels, ensuring both durability and an attractive appearance. The roll-up door curtain is made of flame-retardant PVC material with a thickness of 0.6 mm. Sealing brush strips are installed in the grooves on both sides of the door frame. The main gate is an electrically operated PVC flexible door. Color: White–Transparent–White (customizable), allowing clear visibility inside the booth.
Work Gate (W×H）	Size: 650 × 1800 mm Bent steel plate frame with sealed edges and internal reinforcement ribs Tempered glass viewing window for safe operation
Building System	Wall panels are made of 50 mm thick double-sided coated rock wool panels, with 0.4 mm color-coated steel sheets on both sides, color: off-white/gray Roof panels are formed from 0.6 mm galvanized steel sheets
Top System	Double-layer main beams assembled with bent galvanized steel plates and screws for high structural stability Second-layer reinforcement ribs made of bent, welded, and powder-coated galvanized steel, ensuring strength and aesthetics Ceiling support mesh made of welded profiles with powder coating; plug-in filter cotton design allows easy replacement and a neat appearance
Lighting System	Four groups of ceiling lights installed on both sides of the top Each group equipped with eight 24W lamps Total: 32 × 24W lamps
Air supply System	Equipped with one 4 kW Jiangsu Hengkang / Shuangju fan Total air volume: 12,500 m³/h
Air purification System	Two-stage filtration system consisting of primary filtration (air inlet) and sub-high-efficiency filtration (ceiling filtration) Primary filtration uses dedicated inlet filter cotton, effectively capturing dust particles larger than 15 μm; installed at the air inlet cabinet with an access door for easy replacement Ceiling sub-high-efficiency filtration uses YW-600G high-grade filter cotton, achieving air purification efficiency above 98% and ensuring indoor dust particle diameter below 5 μm Main technical parameters: Initial resistance: 30 Pa Final resistance: 450 Pa Average capture efficiency: 98% Dust holding capacity: 450 g/m² Thickness: 20 mm Effective for capturing particles larger than 5 μm
Exhaust environmental protection system	Equipped with one 5.5 kW Jiangsu Hengkang / Shuangju fan Total air volume: 15,000 m³/h Pressure: 810 Pa Rotational speed: 900 r/min Includes one layer of fiberglass filter cotton Fiberglass Filter Cotton Specifications: Initial resistance: 15 Pa Final resistance: 250 Pa Dust holding capacity: 3500 g/m² Temperature resistance: up to 150°C
Cabinet configuration	Cabinet frame constructed from 50 × 50 mm square steel tubes, welded for strength Enclosed with galvanized steel panels Entire cabinet surface treated with powder coating
Wind duct configuration	Standard configuration includes: One straight air duct section (600 × 600 mm, 4 meters per section) One 90° elbow
Electronic control system	Electrical control system integrated inside the control cabinet Electrical components use Delixi brand products Equipped with leakage protection, emergency stop, fan switch, lighting switch, and indicator lights Includes: Two compressed air outlets Two 220V explosion-proof sockets Main power switch, lighting switch, fan switch, leakage protection, and emergency stop functions
Power supply configuration	Recommended cable: No. 10 three-phase four-core cable Voltage: 380 V Frequency: 50 Hz
Other configurations	Floor-mounted installation
