Operative norm

Industry Standard of the Transportation Sector: Automotive Spray & Baking Booth (JT/T 324-2022)
If local environmental impact assessment (EIA) requirements are higher than national standards, local EIA standards shall prevail.

Outer diameter size(L×W×H）

L:7000×W:4000×H:3000

Inner diameter (L×W×H）

L:6900×W:3900×H:2600

Air volume

≥26000m³/h

Load wind speed

≥0.25m/s

Air changes

≥300 times/h

Lighting Lux

≥800Lux

Paint baking temperature

≥80℃

Air purification efficiency

(EN779)98%

Noise

≤75dB(inside the working area)

Total power

≈46kw

Gate sssembly

The internal frame of the door is made of reinforced galvanized steel plates, bent and welded for high structural strength and stability. The exterior is finished with color-coated steel panels, ensuring both durability and an attractive appearance.

The main entrance consists of three metal swing doors, each measuring 1000 × 2500 mm, finished in light gray (color optional), and equipped with tempered glass observation windows.

Work Gate (W×H）

（W*H）:650*1800mm; The door frame is formed from bent steel plates with internal reinforcement ribs and a tempered glass viewing window, ensuring operational safety.

Building System

Wall panels are constructed from 50 mm thick double-sided coated rock wool sandwich panels, with 0.4 mm color steel sheets on both sides, finished in light gray.

The roof panels are made from 0.6 mm bent galvanized steel sheets.

Top System

The top structure adopts galvanized bent steel sheets assembled with bolts into a double-layer main beam, providing excellent stability.
The secondary beams are formed from bent galvanized steel, welded and powder-coated for durability and aesthetic appearance.
The ceiling support grid is welded from steel profiles and powder-coated, with insert-type filter cotton installation, allowing easy replacement while maintaining a clean and well-organized structure.

Base system

Base height: 300 mm

Enclosure panels made of 0.8 mm bent and welded galvanized steel plates

Two rows of 30 × 5 mm flat steel gratings, surface galvanized, load capacity 800 kg per wheel

Three rows of 1.8 mm galvanized checker plates, reinforced underneath with welded stiffeners for enhanced load-bearing capacity

Bottom beams made of 1.8 mm galvanized steel plates, offering high structural strength

Lighting System

Four groups of ceiling lights installed on both sides of the roof, each group equipped with eight 24 W fluorescent lamps, totaling 32 × 24 W lamps.

Each light is fitted with tempered glass lamp covers and explosion-proof protective mesh.

Air supply System

Equipped with one 7.5 kW Jiangsu European-style direct-coupled high-capacity turbo fan, with explosion-proof inlet.

Total air volume: 26,000 m³/h.

Air purification System

A two-stage filtration system is adopted, combining primary filtration (air inlet filter) and medium–high efficiency filtration (ceiling filter).

Primary filtration: Specialized inlet filter cotton capable of capturing dust particles larger than 15 μm, installed at the air intake cabinet with an access door for easy replacement.

Ceiling filtration: CC-800XU high-performance filter cotton with filtration efficiency exceeding 98%, ensuring indoor dust particle size below 5 μm.
Key Technical Parameters:

Initial resistance: 30 Pa

Final resistance: 450 Pa

Average collection efficiency: 98%

Dust holding capacity: 450 g/m²

Thickness: 20 mm

Effective capture of particles > 5 μm

Exhast  system

Configured with one 7.5 kW Jiangsu European-style direct-coupled turbo fan, explosion-proof inlet.

Air volume: 26,000 m³/h

Static pressure: 550 Pa

Speed: 960 rpm

Environmental Protection – Stage 1:

One layer of fiberglass filter

One layer of honeycomb activated carbon adsorption

Fiberglass filter parameters:

Initial resistance: 15 Pa

Final resistance: 250 Pa

Dust holding capacity: 3500 g/m²

Heat resistance: up to 150°C

Environmental Protection – Stage 2:

One layer of honeycomb activated carbon adsorption

Activated carbon characteristics:

Features large specific surface area, low airflow resistance, well-developed micropores, high adsorption capacity, and long service life. Pollutants in exhaust gases are effectively adsorbed, achieving efficient air purification.

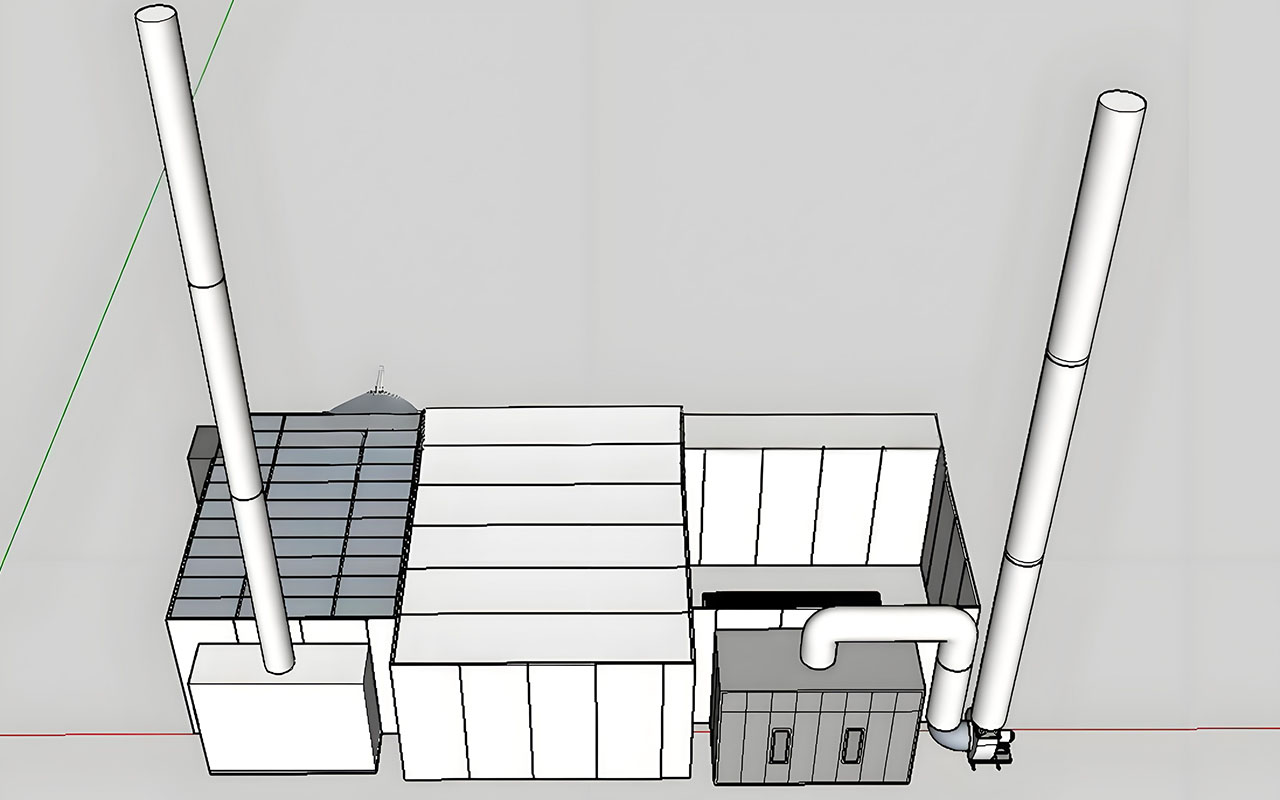

Cabinet configuration

Control cabinets are fabricated from 50 × 50 mm galvanized square tubes, welded and fitted with single-layer external doors.

Air supply cabinet size: 2000 × 1100 × 2200 mm (L × W × H)

Exhaust cabinet size: 1500 × 1100 × 1500 mm (L × W × H)

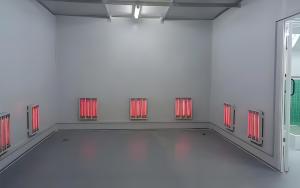

Lamp heating

Internal heating is provided by 10 sets of explosion-proof nano radiant heaters:

•  8 sets on both sides

•  2 sets at the rear

Each heater set is rated at 3 kW, with a total heating power of 30 kW.

Independent circuit control enables targeted local baking while improving energy efficiency and environmental performance.

Wind duct configuration

Standard configuration includes:

1 reducer

3 sections of 600 × 600 mm square ducts

1 elbow

Electronic control system

The system includes functions such as spray painting and baking timers, main power switch, lighting switch, heating switch, fan switch, fault indicator lights, leakage protection, and emergency stop switch.

Other configurations

Installation options include in-ground or above-ground installation.
For above-ground installation, external or internal ramps are available.
External ramp dimensions: 2000 × 750 mm (L × W), two sets.

Heating system option

Natural gas heating

Imported Riello FS20 natural gas burner, with a heat exchanger made of 1.2 mm thick stainless steel plates.

The cabinet is welded from square steel tubes with double-layer insulated and soundproof panels.

Diesel heating

Imported Riello G20 diesel burner, with a heat exchanger made of 1.2 mm thick stainless steel plates.
The cabinet is welded from square steel tubes with double-layer insulated and soundproof panels.
