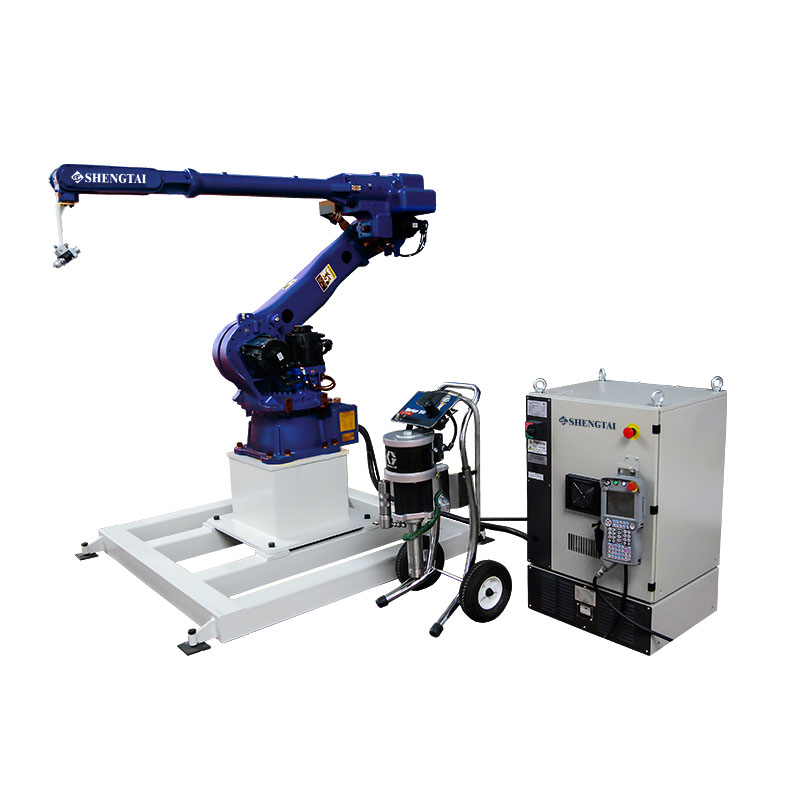

Tiếng ViệtSpray Painting Robot
ST-PCLR1500
Price: USD50000~100000
Get Quote PDF

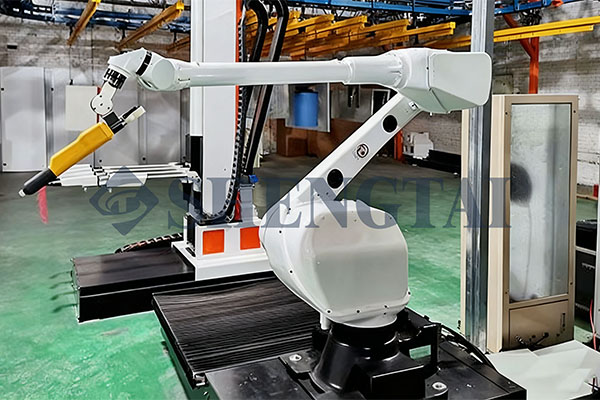

Product Applications: Ideal for applying durable, high-quality finishes to large and medium-sized complex workpieces, including automotive body shells, chassis, and various automotive components.
Enhanced Safety & Simplicity: The system boasts a high explosion-proof rating and user-friendly controls, making the electrostatic powder coating process both safe and easy to operate.
Exceptional Flexibility: A single robotic powder coating machine can be programmed to handle 2–5 different products simultaneously, offering the versatility of multiple units in one.
Precision & Speed: The robot achieves high-speed operation at 2m/s with stable performance and a repeatability positioning accuracy of 0.2mm.
The main advantages of spray-painting robots:
(1) High flexibility and large working range.
(2) Improved painting quality and material utilization rate.
(3) Easy to operate and maintain. Offline programming significantly reduces on-site debugging time.
(4) High equipment utilization. The utilization rate of spray-painting robots can reach 90%–95%.
Coating solutions for Industry
Our spraying robot ensures precise path and output control, guaranteeing uniform film thickness and a defect-free finish. With a first-pass yield exceeding 95%, it enhances quality across the powder coating line.
Model | ST-PCLR1500 |
Overall Dimension | 1550*1720*2000 mm |
Electrical Cabinet Dimensions (L*W*H) | 680*780*1050 mm |
Paint Pump Dimensions (L*W*H) | 600*450*1030 mm |
Repeat Positioning Accuracy | ±0.15 mm |
Working Vertical Distance | 5585 mm |
Working Horizontal Distance | 3106 mm |
Degrees of Freedom | 6-axis |
S-axis (Base Rotation) | -180° to +180°, 180°/sec |
L-axis (Lower Arm) | -90°to +135° 178°/sec |
U-axis (Upper Arm) | -160° to +251°, 178°/sec |
R-axis (Wrist Rotation) | -190° to +190°, 400°/sec |
B-axis (Wrist Swing) | -50° to +230°, 400°/sec |
T-axis (Wrist Extension) | -360° to +360°, 600°/sec |
Total Power | 5kW |
Gross Weight | 1500 kg |
