What are the Pros and Cons of Using a Paint Sprayer?

1. What Is an Air Atomizing Spray Gun?

A spray gun is a professional coating tool that uses compressed air to mix with sprayable materials, either inside or outside the air cap. The air cap then atomizes the coating into fine droplets, forming a controllable spray pattern (spray fan). This process ensures uniform coating, good surface finish, and efficient material application.

2. Types of Air Atomizing Spray Guns

Air atomizing spray guns are generally classified into three types based on the paint supply method:

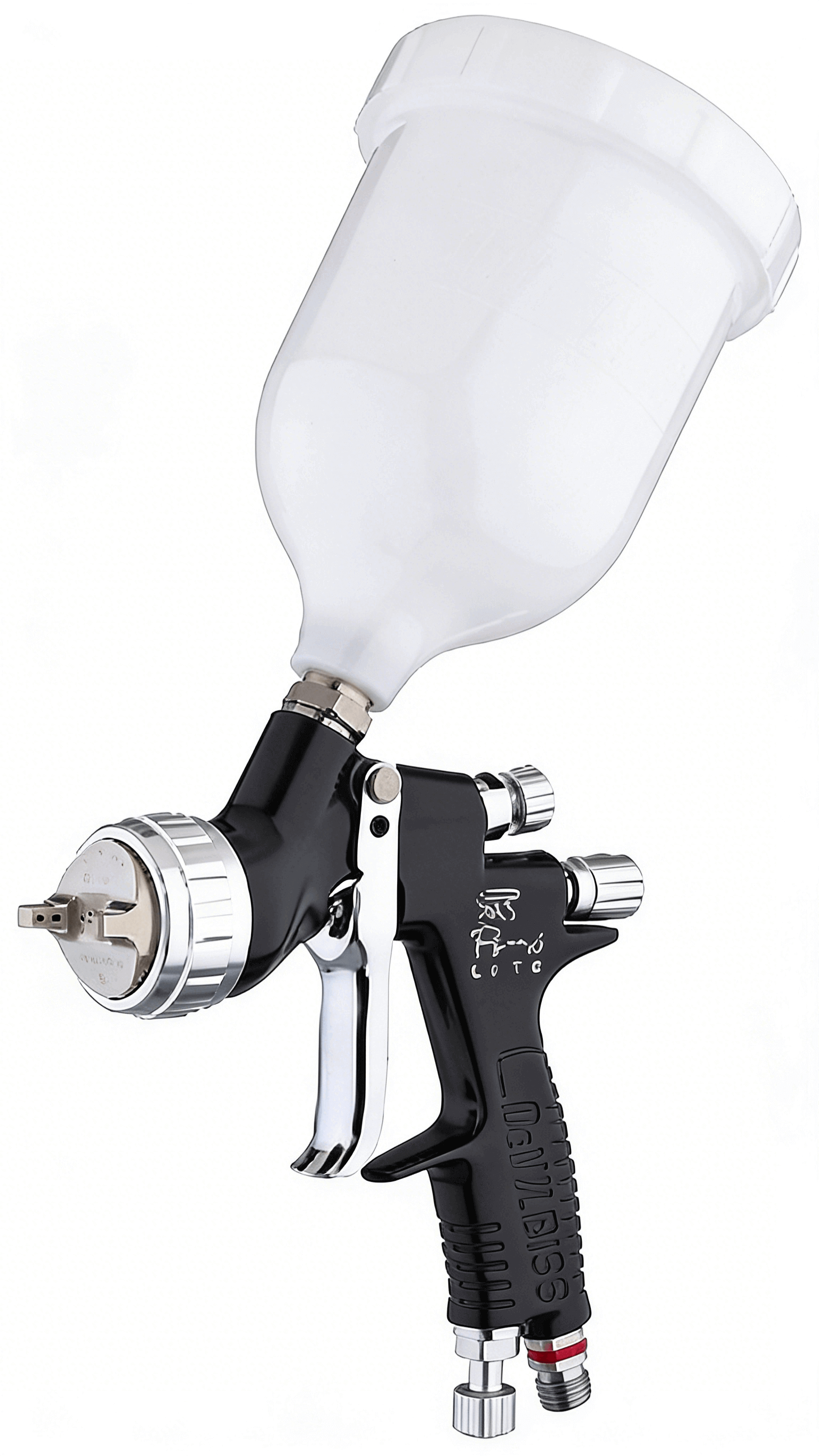

Gravity Feed Spray Gun

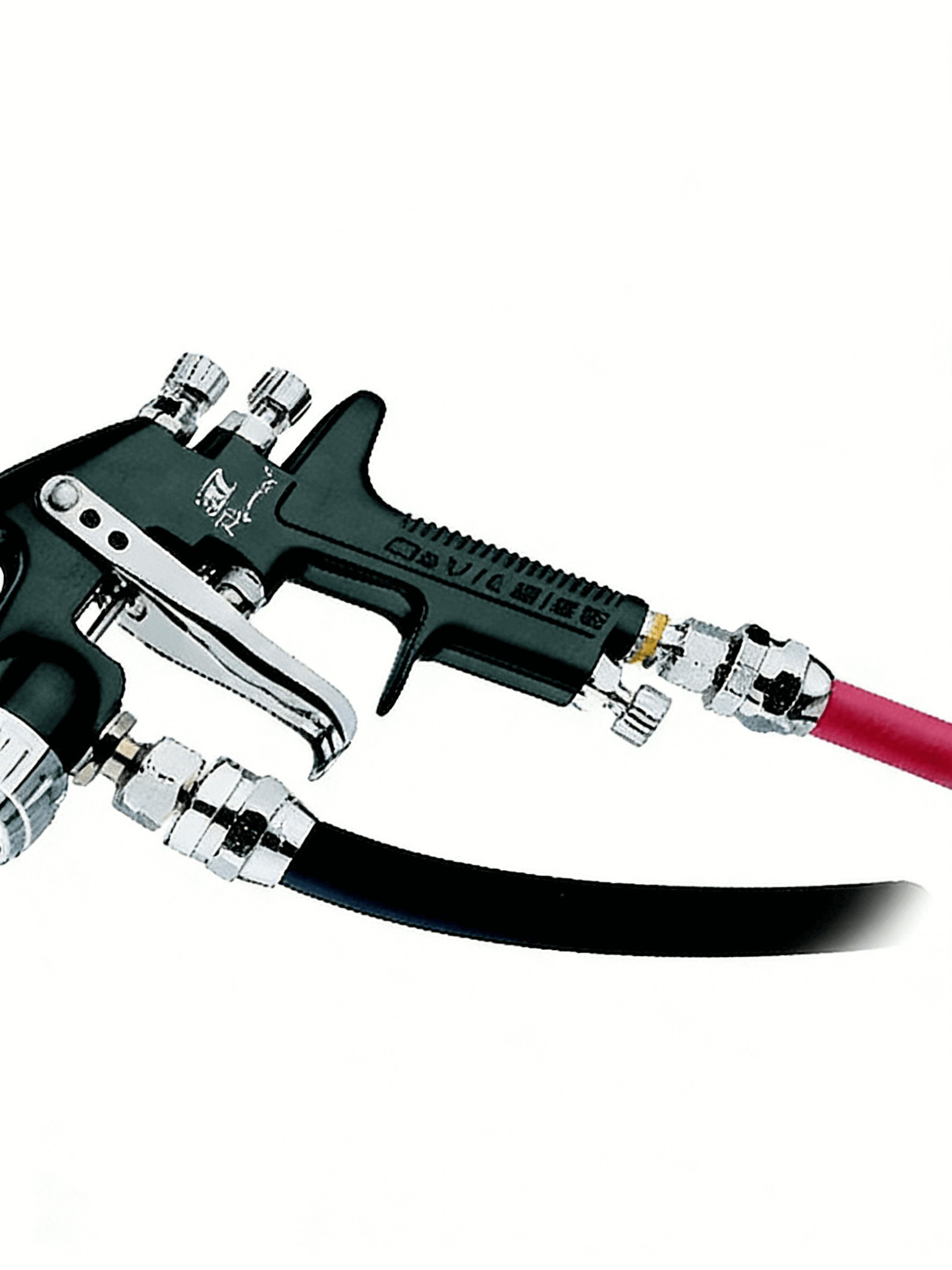

Suction Feed Spray Gun
Pressure Feed Spray Gun

1 (2) (1).png

1 (1) (1) (1) (1) (1) (1).png

1 (3).png

3. Advantages and Disadvantages of the Three Feed Types

Gravity Feed Spray Gun

Advantages:

Center-mounted cup: Excellent balance, easier to control
Side-mounted cup: Adjustable angle for more flexible operation
Paint viscosity changes have minimal impact on paint output

Disadvantages:

Small paint cup capacity, not suitable for large-area spraying
Color change and refilling are inconvenient and often require a stand or holder

Applications:
Automotive refinishing, small industrial parts, and other small-area coating applications.

Suction Feed Spray Gun

Advantages:

Ideal for frequent color changes
Larger paint cup, suitable for small-batch spraying

Disadvantages:

Metal cup with large capacity can cause operator fatigue
Paint utilization is not thorough, prone to spray interruption
Paint output varies with changes in paint viscosity

Applications:
Large-area repair spraying, buses, trucks, and industrial coating projects.

Pressure Feed Spray Gun

Advantages:

Enables continuous paint delivery for high-volume production
Suitable for most types of coatings
Ideal for large-scale and industrial spraying operations

Disadvantages:

Requires additional equipment such as pressure tanks, diaphragm pumps, or paint supply systems
Color change and cleaning are more time-consuming

Applications:
Large industrial coating projects such as trains, aircraft, and heavy equipment.

Advantages and Disadvantages of Traditional Air Atomizing Spray Guns

Advantages

High spraying speed: Suitable for mass production and high-efficiency operations
Lower cost: A cost-effective choice for users with limited budgets

Disadvantages

Poor environmental performance: High overspray and low transfer efficiency lead to paint waste and environmental pollution
Challenging working environment: Excessive paint mist easily contaminates the spray booth

Conclusion

Traditional air atomizing spray guns have both strengths and limitations. Choosing the right spray gun depends on your application requirements, production scale, coating type, and environmental considerations. Selecting the appropriate feed system can significantly improve coating quality, efficiency, and overall production performance.
