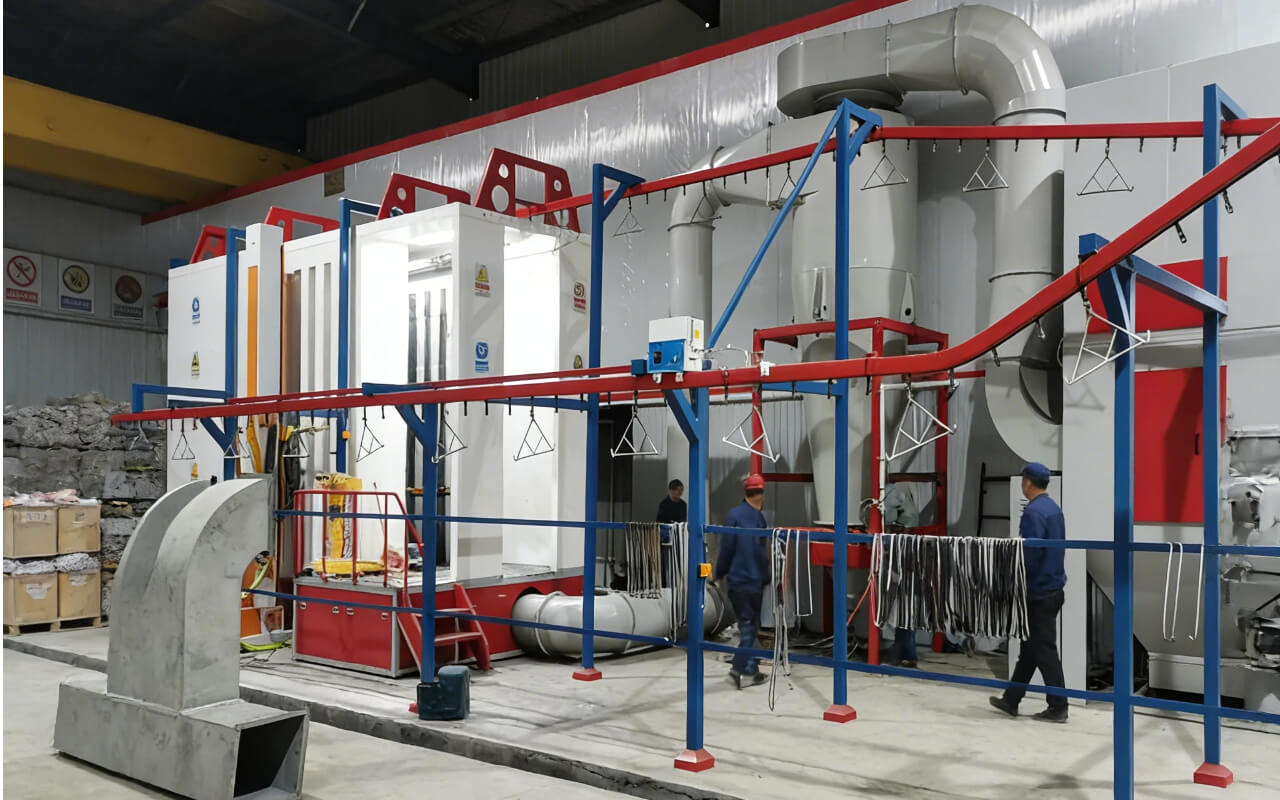

Automatic Powder Booth with Cyclone Recovery

ST-APCL-B5030

Price: USD2000~5000

Best Applications: High-volume, repetitive production processes
Supplier Support: Spray Systems provides both conventional and automated booths and assists with selection and seamless integration
Painting Quality: High-quality coating even on difficult or intricate parts
Control System: PLC control with electronic controllers linked to inverters

Booth automation provides operators with a range of key benefits, such as enhanced workplace safety, reduced material waste, uniform and reliable spray application, and decreased overall operating expenses.

Our engineered solutions emphasize flexibility, automated operation, operational safety, and environmental responsibility. Designed specifically for small- and medium-scale production requirements, our spray booths feature an advanced four-stage paint mist filtration and abatement system.

Parameters:

Name	Size	Quantity	Remarks
Spray room	500030003500	1 set
Wallboard	1.2mm zinc plating	1 batch
Recycling machine	25006002000	2 sets	Galvanized 1.2mm
Filter cartridge	φ325*900	8 sets	chuck
Illuminate	be explosion-proof	4 sets	LED
Fan	4 kilowatts	2 sets
Pipeline	Diameter 400	1 batch
Control	illuminate Spray gun power supply 4 kW Fan Control 2 Pulse power supply 2	1 set	Delixi
