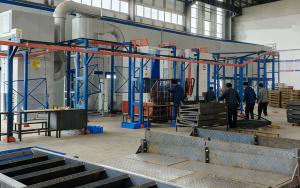

Fully Automatic Spray Booth

ST-APCL-B6219

Price: USD2000~5000

Automatic Spray Booths: Used for painting in fashion, eyewear, small parts, and electronic components
Painting Quality: High-quality coating even on difficult or intricate parts
Customization: Pre-loading and setting of customized painting programs based on customer requirements
Process Flexibility: Adjustable painting cycle, painting unit travel speed, and frame speed

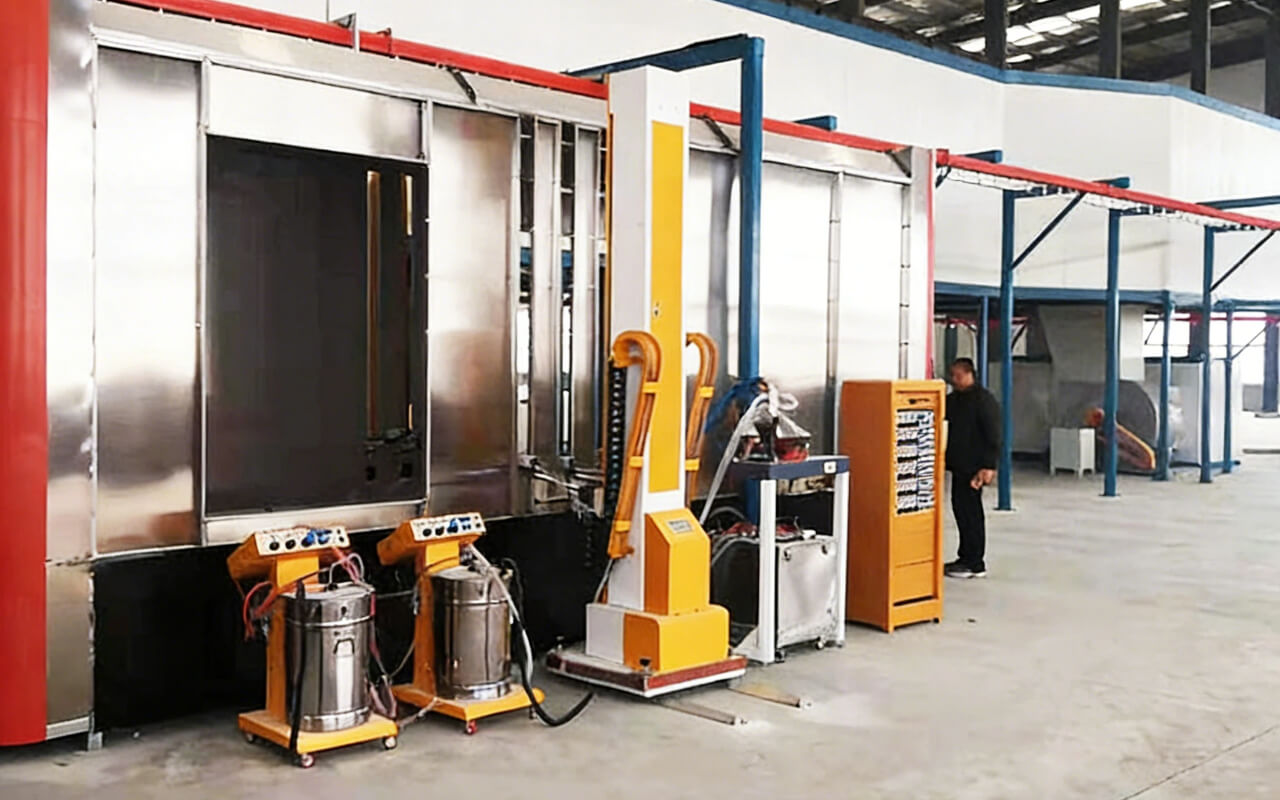

The reciprocator is powered by an electric motor with frequency control and managed by a PLC, delivering smooth and accurate movement to achieve consistent, high-quality coating results. Its wheeled structure allows for easy positioning and secure fixing. In addition, the slim column design enables efficient, space-saving installation of spray guns.

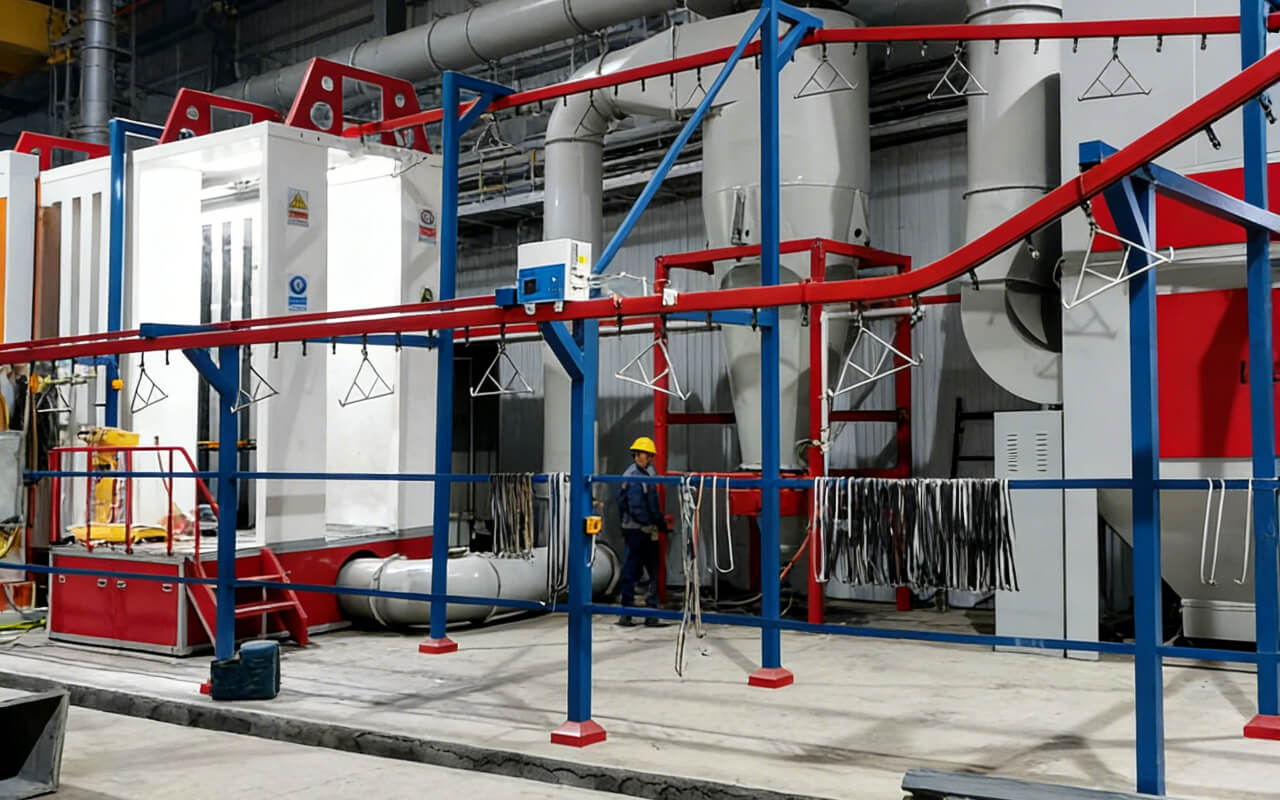

11 (1).jpg

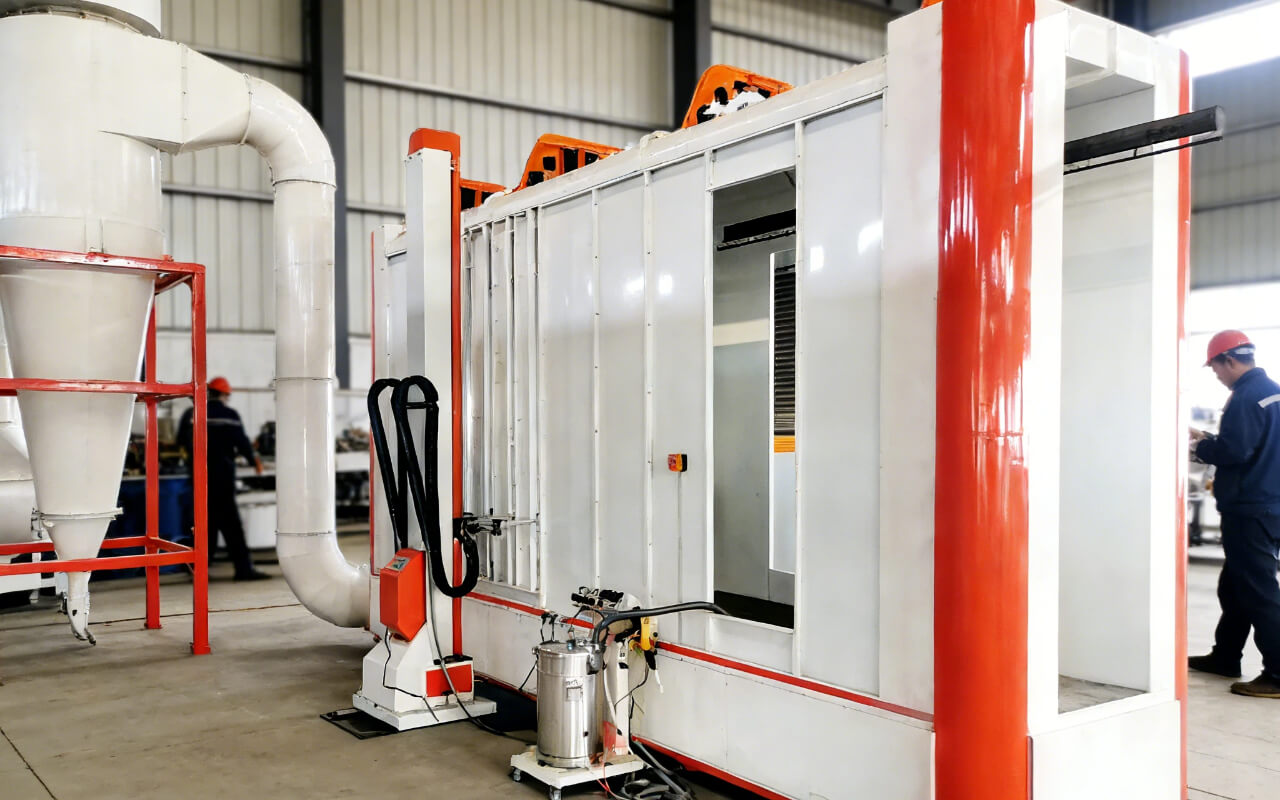

We provide a range of advanced paint booth solutions designed for superior spray application. Our portfolio includes customizable spray booths, along with specialized options featuring wet scrubber, dry scrubber, and dry filter systems to meet diverse operational and environmental needs.

Name	Size/Material	Quantity
Automatic Powder Spray Booth	L6200W1900H3500	1 set
Housing Material	Material: Galvanized Sheet with Plastic Coating - t1.5mm, &1.2	1 set
Base Frame Material	Galvanized Square Tube 50502.0mm	1 set
Floor Plate Material	Material: Galvanized Sheet with Plastic Coating - t2.0mm	1 Batch
Open Spraying Stations		10 units
Touch-up and Maintenance Stations		2 units
Pneumatic Pipeline System		1 set
Automatic Powder Booth Cleaning Device	Air Knife + Pulse Automatic	1 set
Centralized Powder Supply Center	Including Powder Cylinder, Automatic Sieving Machine, Air Supply System, etc.	1 set
Lighting	Triple-Proof Light, AC220V-40w	6 units
