Electrostatic Spray Gun and Reciprocating Machine

ST-PCL-2AT8526

Price: USD1500-3000

Workpiece Name：reciprocating spraying machines
Control Panel: Precise control on PLC controller through touch screen
Considerate Details: Multiple languages to choose from
Excellent Duality: Automatically detect faults, adapt to different workpiece spraying requirements, with higher flexibility

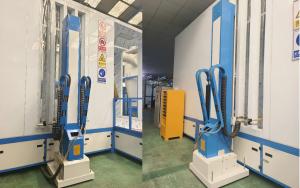

The spray gun of a reciprocating coating machine is driven by a motor to move back and forth along a programmable path, like a precise painter applying an even coat. Its reciprocating speed and spray output can be accurately adjusted to suit different coating requirements: for furniture finishing, the spray output can be reduced and the speed increased to achieve a thin yet durable coating, while for large industrial equipment, the speed can be lowered and the spray output increased to form a thick protective layer.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

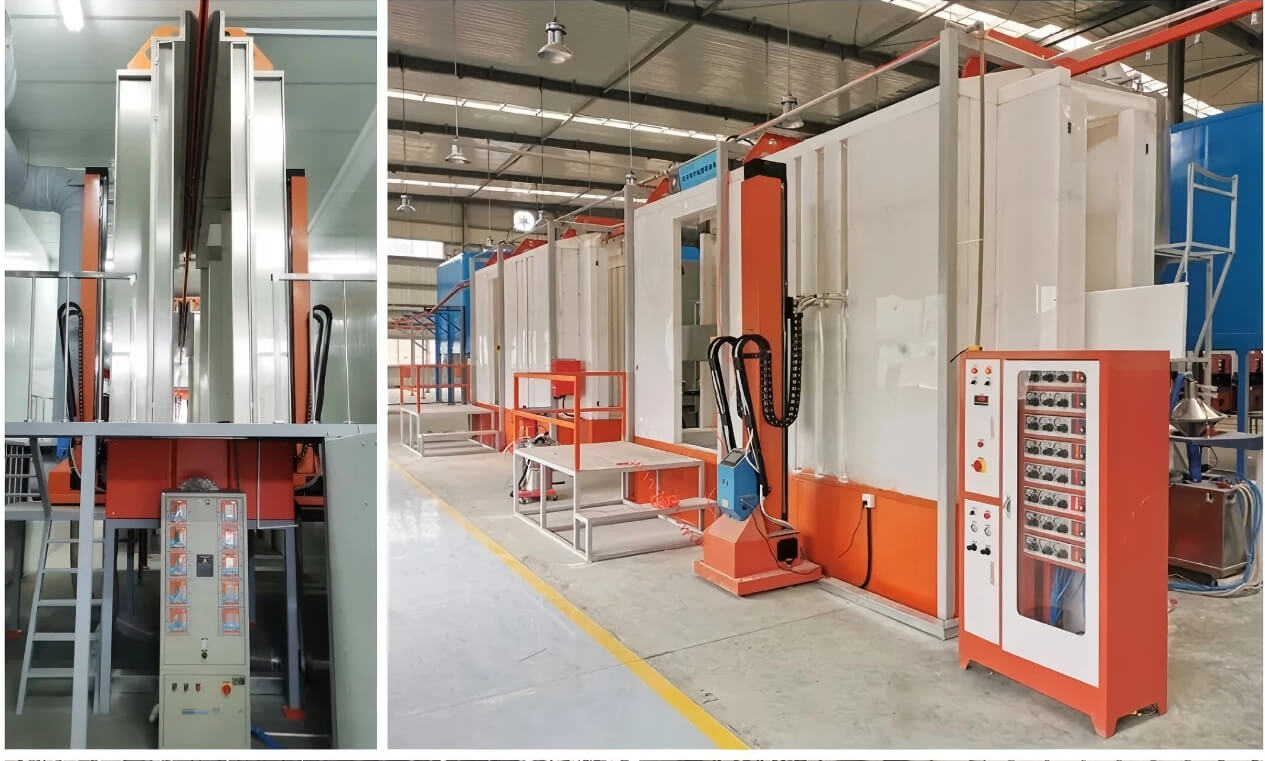

Electrostatic Spray Gun and Reciprocating Machine

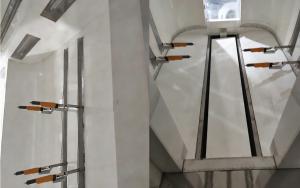

This product uses a spray robot arm made of special aluminum profiles and a bearing housing made of precision machined aluminum blocks.

Equipment Configuratiom

No.	Name	Details
1	Dimensions	L800 × W500 × H2600 mm
2	Process	Load → Enter zone → Robotic arm sprays → Move with workpiece → Spray sides → Repeat
3	Frame	Steel frame, aluminum arm & housing
4	Motion (Y/Z)	Servo-driven, max speed 1.5 m/s, linear rails
5	Sync	Uses conveyor signal; 2 guns for 2 workpieces
6	Workpiece	2000L × 350Ø mm; Rotation: 10–80 rpm
7	Spray Gun	Taiwan Mingli WAP-102; Water-based pump & circulation
8	Control	Weintek touch screen, Omron PLC, CHINT components Sensors Omron proximity switches, encoder for sync
9	Sensors	Sensors Omron proximity switches, encoder for sync
10	Features	CNC servo, fault detection, easy setup, modular, efficient
