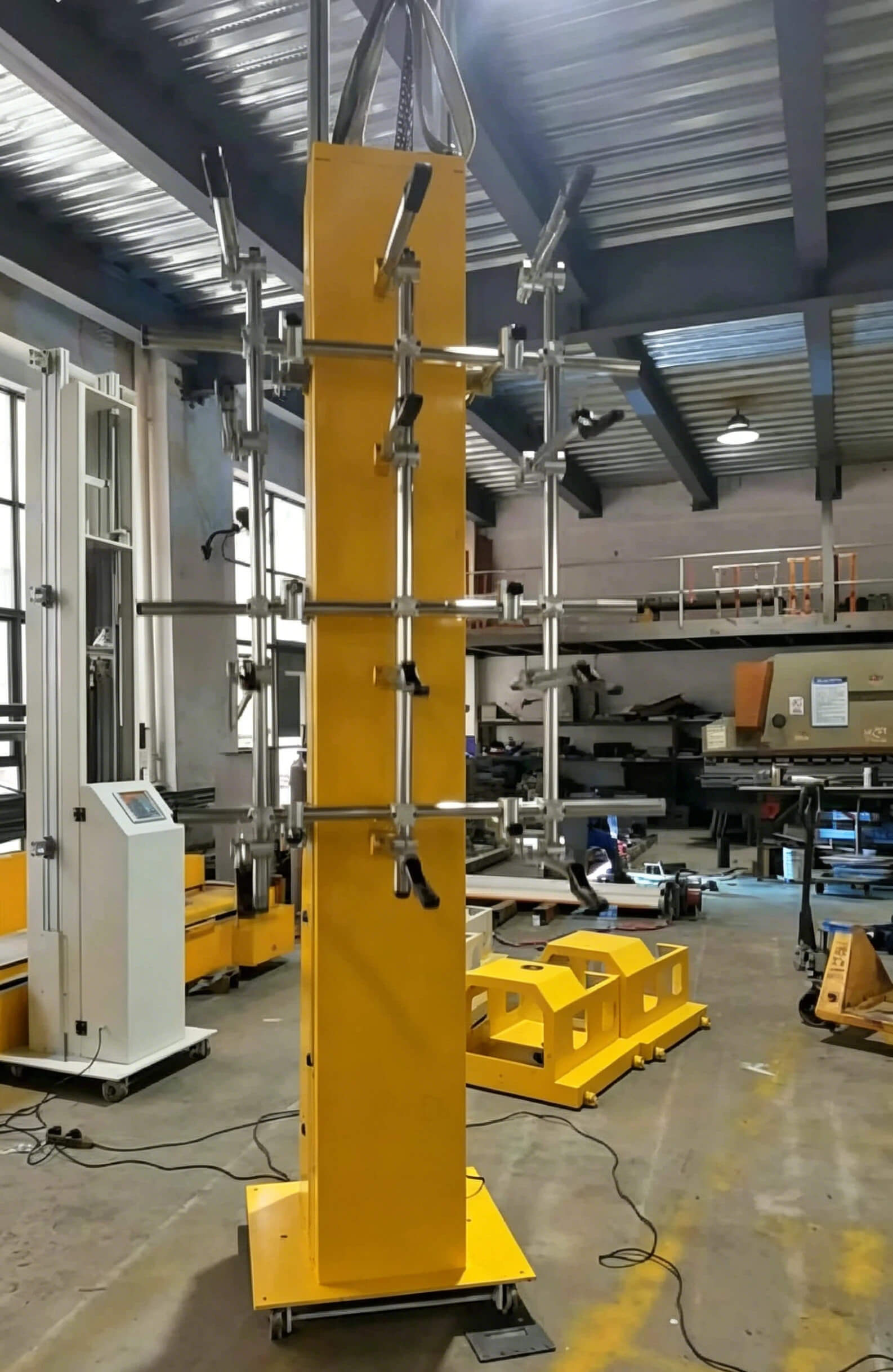

Spraying Reciprocating Machine Swing Type

ST-PCL-R800

Price: USD1000~1500

Multiple spray guns can be installed on the oscillating machine—typically up to 24 guns—which is 2 to 3 times the capacity of a conventional reciprocating machine.
With the load capacity increased by 2 times, the spraying output increases proportionally by 2 times, providing a significant boost for companies with an urgent need to scale up production.
Faster spraying speed. It is ideal for products with specific coating thickness requirements. Because multiple sets of spray guns apply coating simultaneously, the conveyor line speed can be slowed down to substantially increase thickness, achieving the desired result in a single pass without needin
Unlike long-stroke reciprocating machines that constantly reverse direction, the oscillating machine rotates in a single direction. Frequent forward and reverse rotations cause severe wear and tear on speed reducers, whereas the single-direction rotation of the oscillating machine results in an extr

Massive Gun Capacity: The oscillating machine supports up to 24 spray guns simultaneously—delivering 2 to 3 times the payload capacity of conventional reciprocating systems.

Exponential Output Gains: Doubling the gun capacity directly translates to a 2x boost in production volume, making it the perfect breakthrough solution for manufacturers looking to scale up fast.

High-Speed, Single-Pass Coating: Engineered for demanding thickness specifications. By running multiple gun sets simultaneously, you can slow down the line speed to achieve thick, flawless coatings in a single pass—completely eliminating the need for a second coat.

Unmatched Mechanical Reliability: Unlike traditional long-stroke reciprocating machines that suffer from heavy wear due to constant direction changes, this system rotates continuously in a single direction. This drastically reduces wear on the speed reducer, resulting in an exceptionally low failure rate.

Zero Over-Spraying on Edges: Equipped with two sets of precision-staggered oscillating arms that move in perfect harmony, the system eliminates overlapping spray zones and prevents heavy buildup on product edges.

Structure and Motion Profiles

Reciprocating Machines: Typically utilize linear reciprocating motion. The spray guns move back and forth along a single linear axis (vertical or horizontal), with the start and end points controlled by limit switches or sensors to achieve spray coverage.
Oscillating Machines: Incorporate an additional oscillating function on top of the reciprocating movement. The spray guns or oscillating arms swing left-to-right or up-and-down during the reciprocating cycle, creating more complex spray trajectories such as "Z" or "S" patterns.

Gun Configuration and Load Capacity

Reciprocating Machines: Generally configured with fewer spray guns and a lower payload capacity. They are best suited for spraying simple shapes or flat workpieces.
Oscillating Machines: Can accommodate a higher number of spray guns (up to 24). Through oscillation and multi-point spraying, they can simultaneously cover larger surface areas or more complex workpieces, offering a significantly higher load capacity.

Coating Uniformity and Precision

Reciprocating Machines: Achieve high coating uniformity during linear reciprocating motion if the workpiece shape is simple. However, complex geometries or edge areas may require multiple passes or stroke adjustments.
Oscillating Machines: Deliver more uniform coverage across the workpiece surface via the oscillating motion, reducing overlapping spray zones or missed spots. They are particularly ideal for irregularly shaped parts, curved surfaces, or scenarios with strict dry film thickness (DFT) uniformity requirements.

Failure Rate and Maintenance

Reciprocating Machines: Feature relatively simple moving parts, resulting in a low failure rate and minimal maintenance costs. Maintenance primarily focuses on wear and tear of the motor, guide rails, and spray guns.
Oscillating Machines: Contain more complex moving parts due to the added oscillation mechanism. This results in a higher relative failure rate, requiring regular maintenance of the oscillating bearings, arms, and associated components.

Application Scenarios

Reciprocating Machines: Suitable for conventional workpieces such as flat panels and simple profiles—for example, furniture boards and metal sheets.
Oscillating Machines: Better suited for irregularly shaped parts, curved surfaces, complex structural components, or scenarios requiring high-uniformity coatings, such as automotive parts, handicrafts, and medical devices.

Product name	Lifting reciprocators
Application	Hardware Spraying Equipment
Powder	750W
Color	Yellow, Can Also Be Customized
Model No.	ST-PCL-R800
Frequency	50Hz
Max Work Weight	200kg
Effective Travel	1-3m(Customized)
Type	Air-Assisted Airless Spray Equipment
Coating	Powder
Method Type	Automatic
Condition	New
Transport Package	Wooden Case
Specification	800× 800× 2200-4200mm
Trademark	Shengtai
Origin	Shandong, China
HS Code	8424899990
Production Capacity	3000
