Manual Metal Powder Coating Line

ST-MPCL6010

Price: USD1000~3000

Operation Flexibility: Capable of coating large-sized products; suitable for spray coating on flat products with uneven or textured surfaces; able to spray multi-color and color-matched products.
Small footprint: Manual spray coating lines do not require large automated conveying systems or complex equipment layouts, occupying less space and making them ideal for factories with limited floor a
Small footprint: Manual spray coating lines do not require large automated conveying systems or complex equipment layouts, occupying less space and making them ideal for factories with limited floor a
High production flexibility: Production plans can be adjusted at any time according to demand, without the complex equipment debugging and parameter setup required by automatic spray lines.

Powder coating line is also known as manual powder coating line, semi-automatic powder coating line, powder coating system, powder coating equipment, and powder dip coating line. The semi-automatic electrostatic powder coating line is equipped with a manual conveyor line.
This significantly improves production efficiency.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Semi-Automated Powder Coating Line

This significantly improves production efficiency.

The semi-automatic electrostatic powder coating line offers better compatibility with various workpieces and can be put into production with only minor modifications to the hangers. It is the optimal choice for small and medium-sized powder coating factories.

Advantages of ShengTai Painting Equipment Manual Powder Coating Line

1. Good Atomization Effect: The spray gun achieves high atomization, providing a fine mist that easily addresses dead corners and grooves.

2. High Powder Output Rate: The spraying particles are small, ensuring even coating with strong adhesion and excellent finish, resulting in a high powder application rate.

3. High Spraying Efficiency: With a fixed installation of the electrostatic spray gun, multiple units can operate simultaneously, significantly enhancing spraying efficiency.

4. Low Loss: The spray gun's misting quality ensures high paint utilization, minimizing overspray and preventing waste in the coating process.

5. Simple Operation: The use of a digitized automatic operating station eliminates the need for specialized personnel, while the lightweight design allows for easy movement and operation.

Specifications

Maximum workpiece dimensions	L6000* W1000* H2000 mm
Production line speed	Walking-in (indexing)
Workpiece weight	≤150 kg; large parts use a floor conveyor, small parts use an overhead conveyor

Powder Coating System

Powder booth dimensions	L7000 W4500 H3500 mm
Recovery method	Cartridge-style pulse recovery
Coating method	Manual spraying

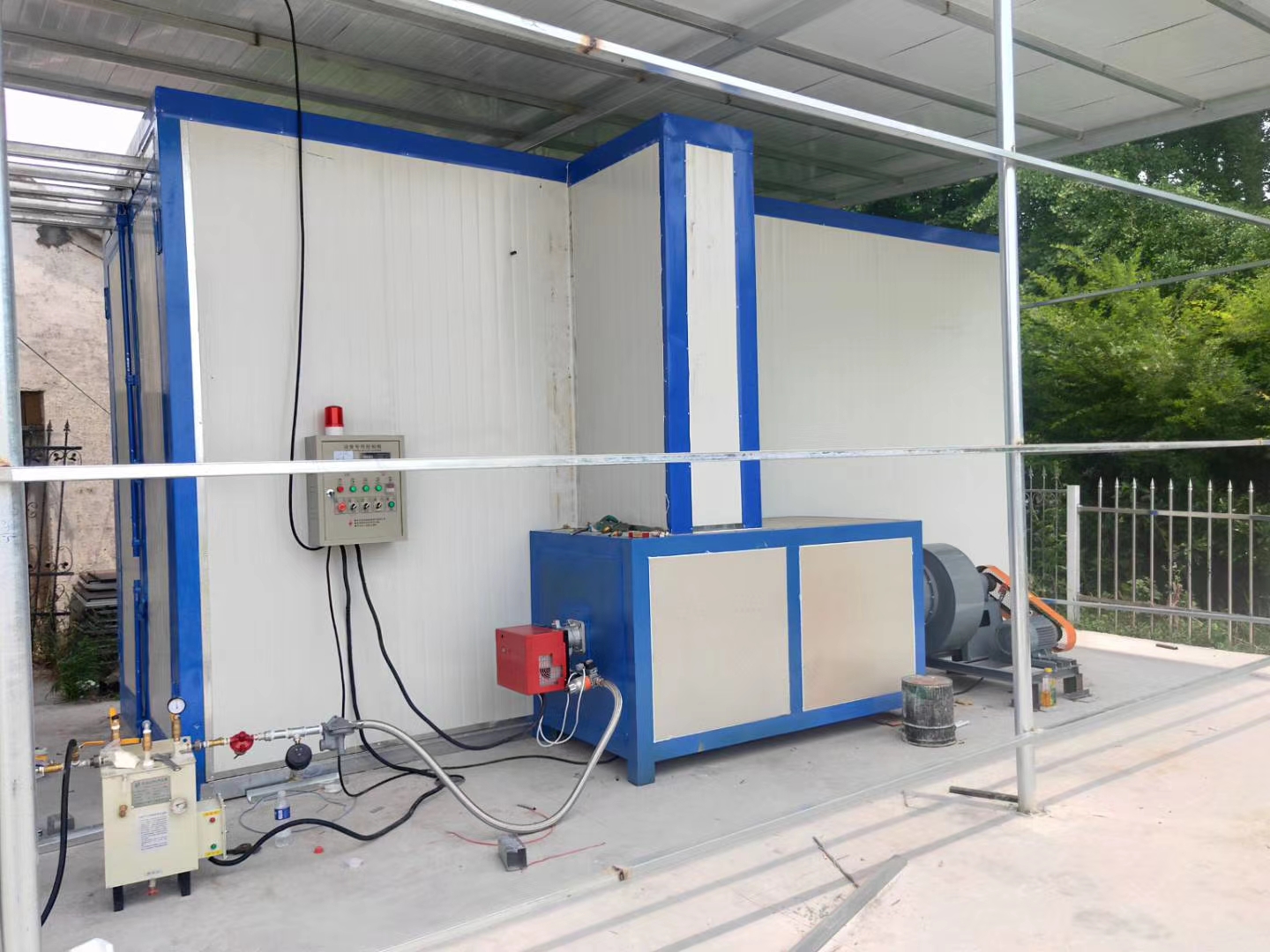

Powder Curing Oven

External dimensions	L7000 W3500 H3500 mm
Maximum temperature	210°C
Heating method	Diesel
Heating capacity	220,000 kcal
Gas-fired heater * 1 unit; circulation fan	5.5 kW*1 unit；Electrical Control
