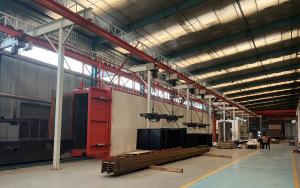

Manual Powder Coating Machines for Aluminum Profile

ST-MPCL6225

Price: USD50000~100000

Pretreatment Process Type:Ensures complete treatment of all surfaces of complex aluminum profiles with high efficiency.
Special Requirements: Electrical compatibility with local standards; Local Language/English control interface; Complete CE Certification; Minimum 24 months warranty.
Training: Training for 5 technicians at client's site in - Remote technical support via multiple platforms.
Support: Availability of spare parts on client's side.

The aluminum alloy profile coating process generally includes three main stages: pretreatment, coating application, and baking & curing.
In practice, the typical process flow is: loading → pretreatment → drying → coating application → baking & curing → inspection, which represents a standard aluminum profile coating line.

By adopting a series of new technologies—such as an advanced accumulating chain conveying system with automatic profile turning angle adjustment and automatic chemical dosing systems—the line can significantly reduce the space required for loading/unloading zones and curing ovens. At the same time, these innovations deliver notable energy-saving and emission-reduction benefits, further enhance the automation level of powder coating operations, reduce labor intensity, and greatly improve product quality in both pretreatment and coating processes. Ultimately, this promotes the aluminum profile processing industry toward green manufacturing, energy efficiency, space optimization, and equipment automation.

Item	Detailed Specifications
Workpiece Size	Length 6,000 mm × Width 200 mm × Height 2,500 mm
Line Speed	V = 1.5 m/min (adjustable range: 0.5–4.0 m/min)

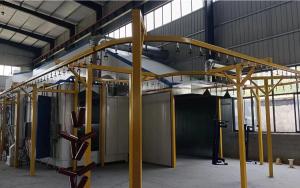

Conveyor System	QXG-300 type overhead hanging conveyor; Single-point load capacity: 100 kg; Total conveyor length: approx. 106 m; One complete conveyor drive system; Variable frequency (VFD) speed control
Oven Construction	The oven tunnel uses high-quality rock wool panels with a thickness of 120 mm
Curing Oven Dimensions	L 30,000 × W 1,140 × H 4,000 mm (clearance height: 500 mm)
Moisture Drying Oven Dimensions	L 7,000 × W 3,000 × H 3,000 mm
Heating Method	Natural gas heating
Spray Booth Dimensions	L 6,500 × W 1,400 × H 4,200 mm
Immersion Tank Dimensions	L 6,500 × W 1,500 × H 1,500 mm

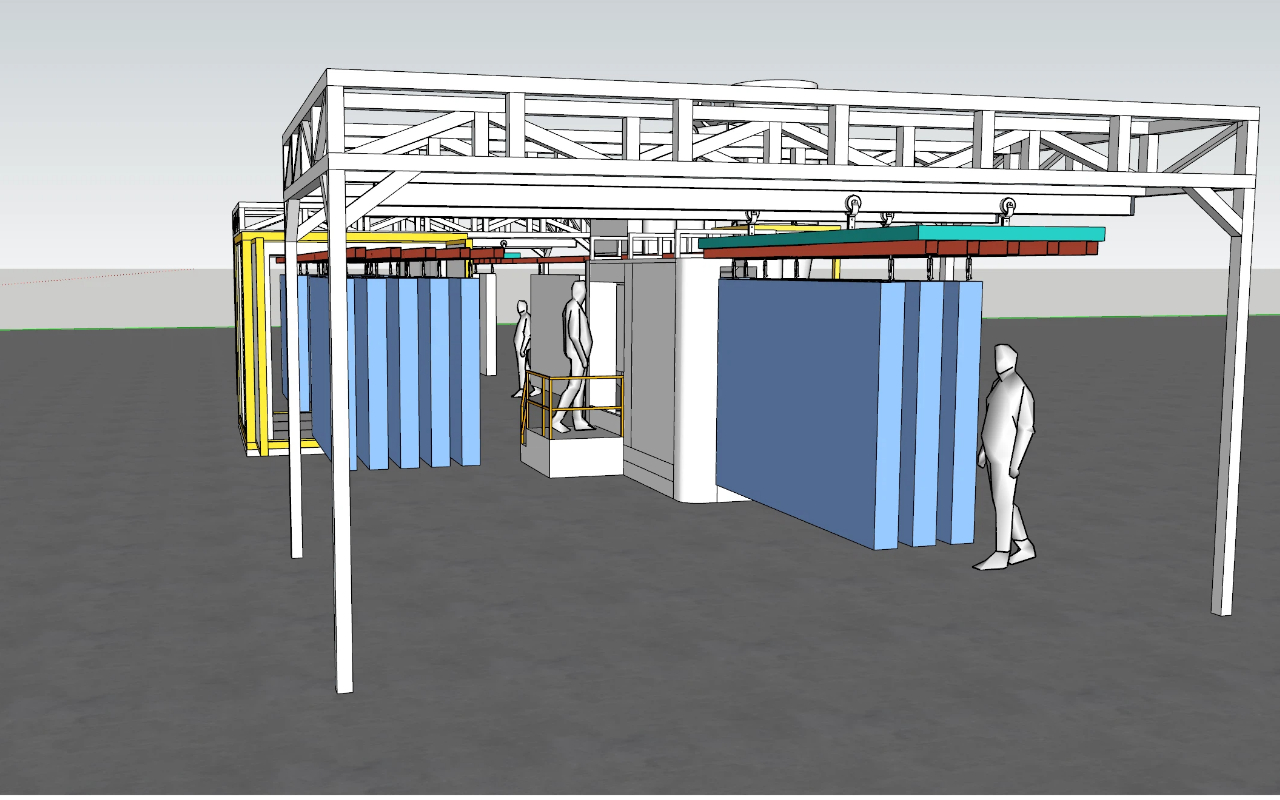

On modern horizontal powder coating lines, an accumulating conveyor system is widely used. This system consists of a drive track and a load-bearing track, enabling workpieces to be diverted, disengaged, transferred, and stored as needed. It provides stable and reliable load control, facilitates flexible equipment layout, and improves operating conditions. In addition, it significantly reduces the size of the curing oven as well as the footprint of the loading and unloading areas, thereby greatly improving workshop space utilization and substantially lowering overall operating costs.
