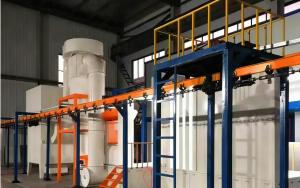

Powder Coating Line for Furniture (European Project)

ST-APC-F11350

  • Powder Coating Line for Furniture (European Project)

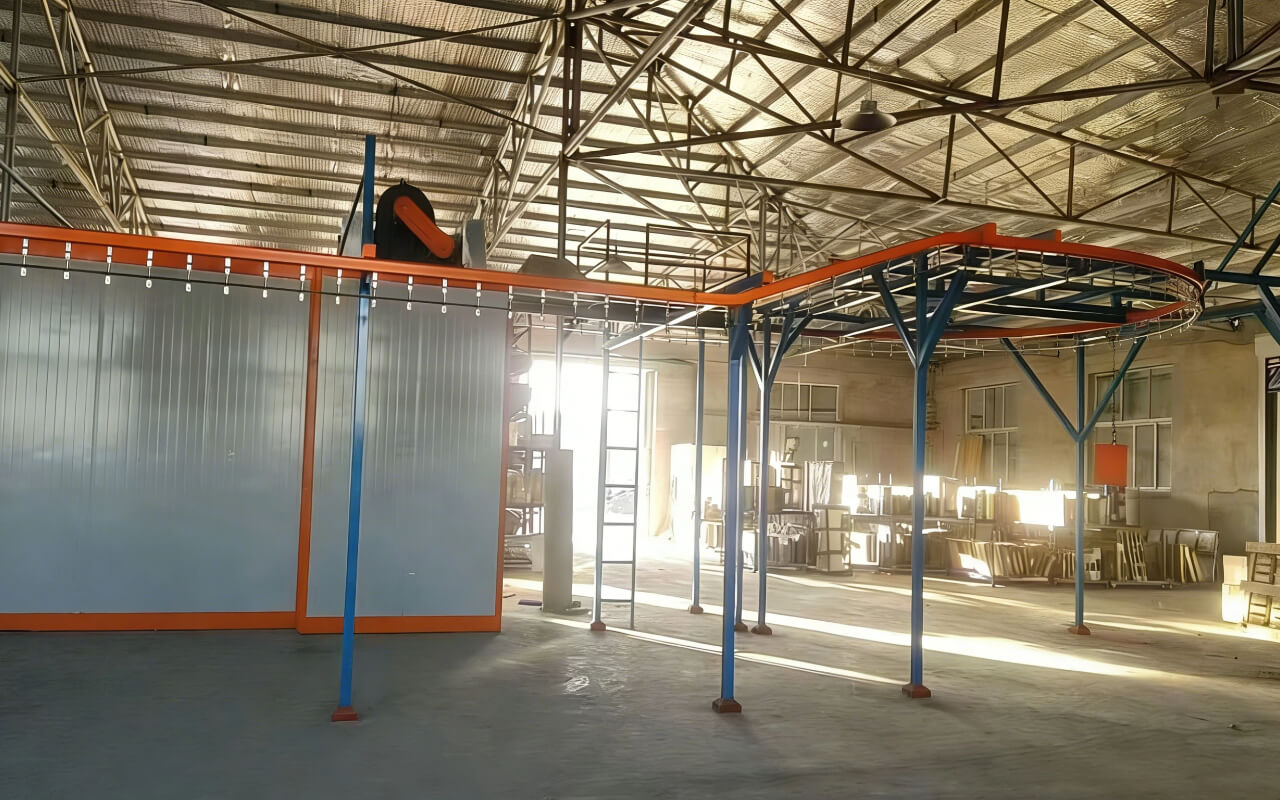

  • Powder coating for industrial products

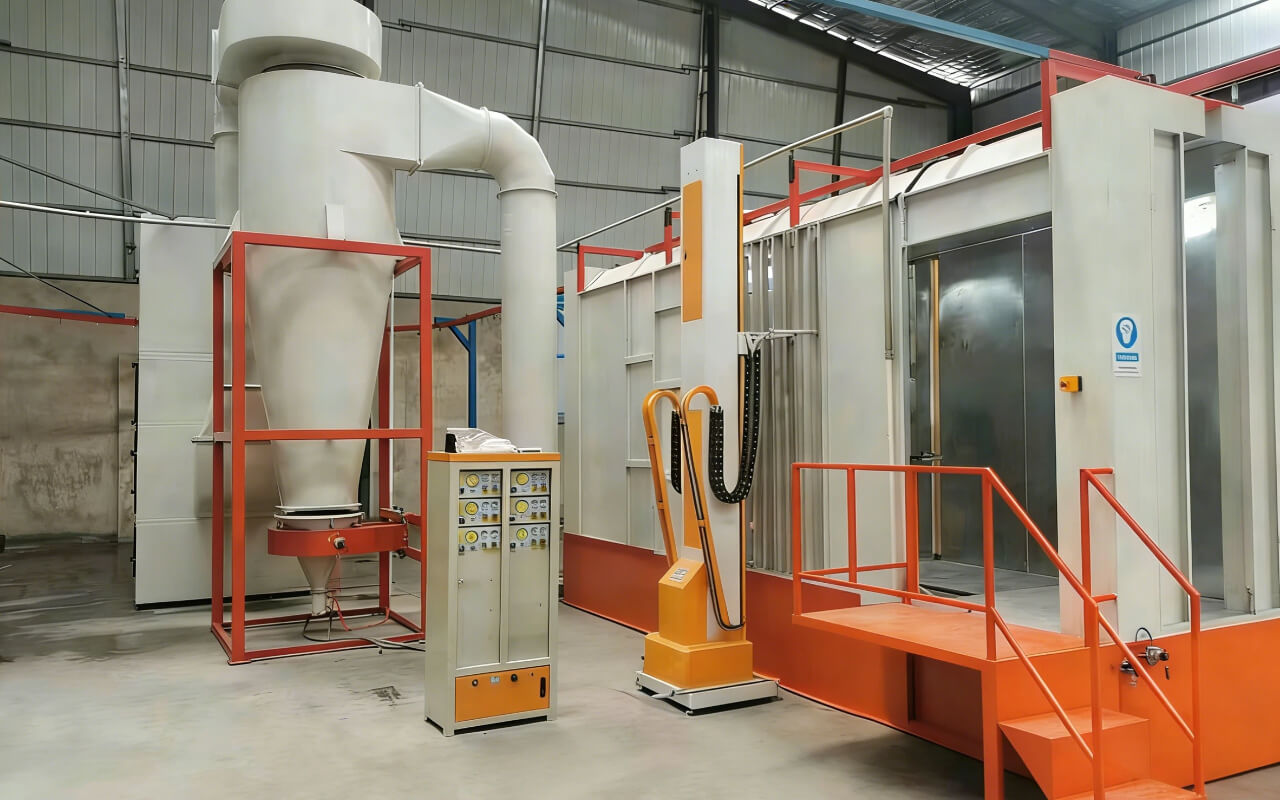

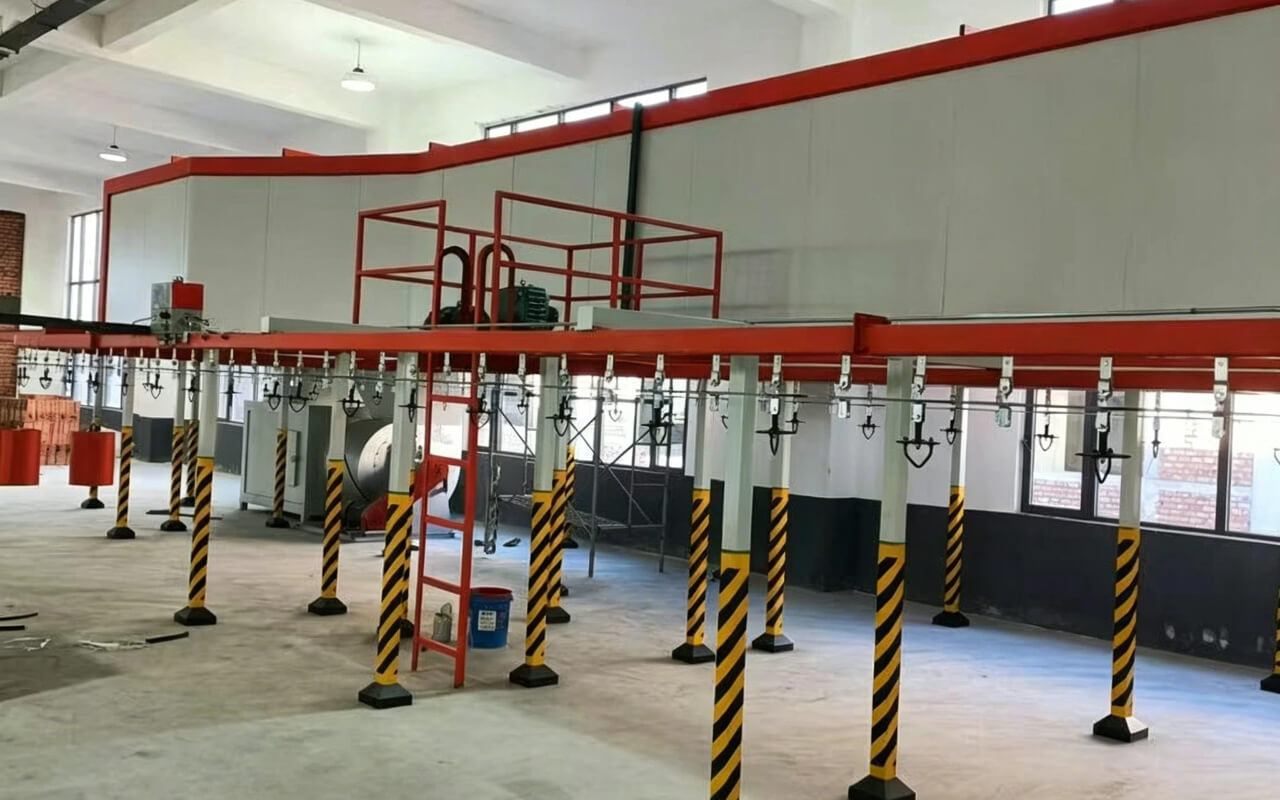

  • automatic powder coating line

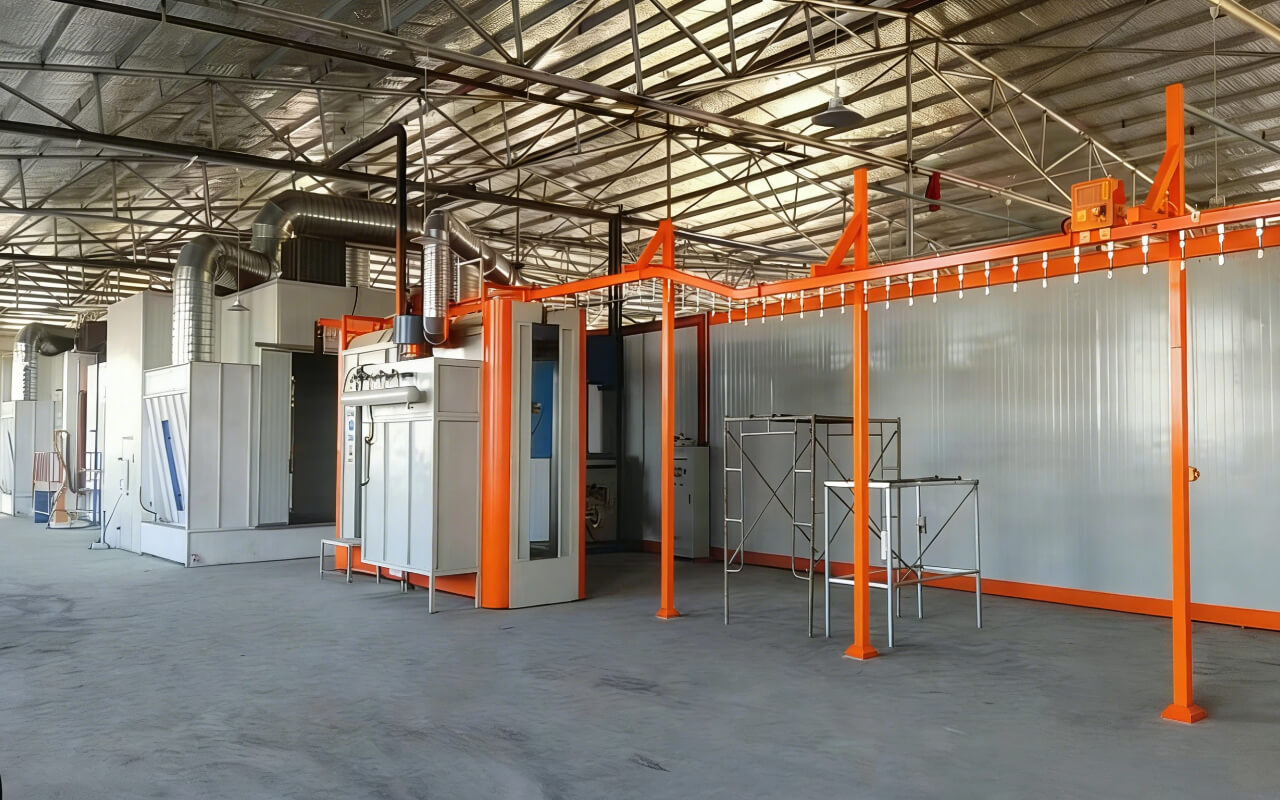

  • Powder Coating Conveyor Systems
  • Powder Coating Line for Furniture (European Project)
  • Powder coating for industrial products
  • automatic powder coating line
  • Powder Coating Conveyor Systems

Price: USD100,000~200,000

Get Quote PDF

This coating method provides first-class finishes for a wide range of surfaces, offering not only an excellent tactile feel but also exceptional aesthetic appeal and long-lasting durability.
Leveraging ShengTai’s advanced process technology, the system excels in powder feeding, application, and recovery, enabling rapid color changes and significantly boosting production productivity.
Whether for manual coating or complex automated production lines, we provide both standardized products and solutions tailored to your specific application scenarios.
We offer a highly flexible range of colors and surface effects while ensuring the coating process meets sustainable environmental requirements through efficient resource utilization.

ShengTai's automated and manual spray solutions set the gold standard for application efficiency and surface finish. With an extensive range of durable nozzles, we provide the perfect spray pattern for every unique project. Our precision-engineered components facilitate rapid, high-quality color changes through fully automated internal and external cleaning cycles.

Manufacturers worldwide are boosting their throughput and achieving substantial material savings by adopting our technology. Elevate your production efficiency and reach peak product quality with ShengTai Powder Coating Lines.

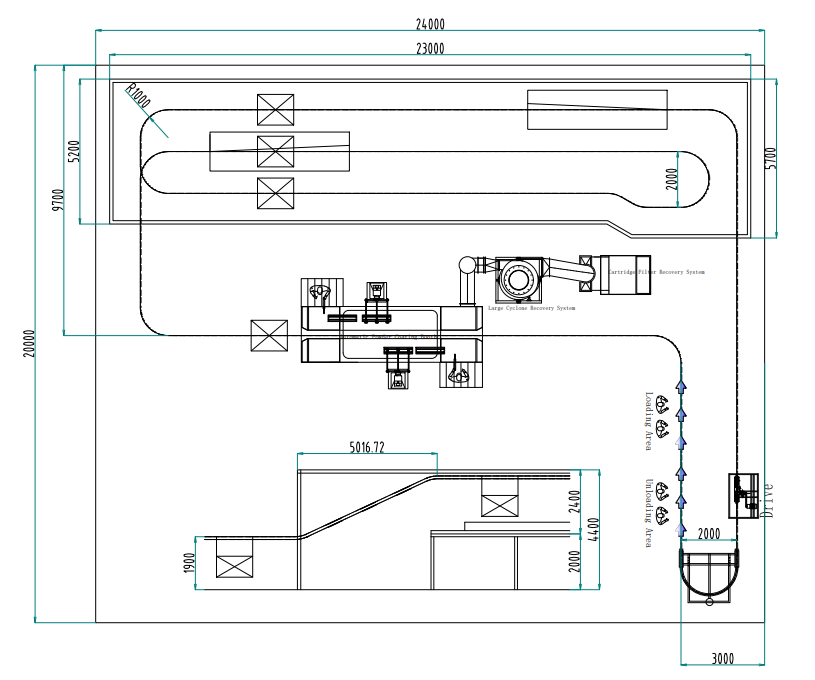

powder coating line layout

I. Integrated Powder Coating Solutions for Automated Manufacturing

ShengTai systems are engineered for maximum efficiency, condensing high-performance coating into a single, seamless package. Every setup we deliver features precision-matched components designed to work in perfect harmony. From upgrading existing lines with advanced application technology to building a facility from the ground up, we customize our automatic systems to fit your specific production goals and spatial requirements.


II. Parameters of Powder Coating Line

No.Specification / ModelQtyRemarks
IPowder Coating Booth (6500*2400*3000mm)1 Set
1Wall Panels (8mm PP Board)1 Batch
2Base (Stainless Steel + Square Tubing)1 Set
3Pulse Jet Cleaning (Back-blowing)20 Sets
4Flap Valves (PP Board)1 Set
IILarge Cyclone Separator   (1500*1500*4300mm)1 Set
1Main Body (1300mm Diameter)1 Unit
2Support Stand (100*100*2mm)1 Set
3Powder Recovery Pump (Stainless Steel)1 Unit
4Powder Hopper1 Unit
IIISecondary Recovery System   (1500*2000*4500mm)1 Set
1Enclosure Cabinet1 Batch2.35mm Powder-coated Carbon Steel
2Fan Motor (37 kW)1 UnitBrand: Sanyi
3Fan Silencer/Acoustic Chamber1 Set50mm Sound-absorbing Cotton
4Filter Cartridges (φ325*600)12 Sets
5Rotary Wings (Cleaning)12 Sets
IVPowder Coating Equipment1 Set
1Manual Spray Guns2 SetsBrand: Taiben
2Automatic Spray Guns8 SetsBrand: Taiben
3Reciprocators2 Units1.5m Stroke
4Electrostatic Control Cabinet1 Unit
5Powder Feed Center1 Set
VCuring Oven (23000*5200(5700)2400mm)1 Set
1Wall Panels 120mm (120kg density)400 m²0.6mm (Outer/Inner) Compaction
2Air Circulation Ducting1 Set0.8mm Galvanized Steel
3Support Brackets1 Batch1001001.8
4Sealing Plates (50mm Rockwool)1 Batch
VIHeating System1 SetElectric
1Heating Elements (Rods)432 kW
2Support Frame1 Set
3High-Temperature Wire6 Coils304*3mm
VIIConveyor System1 SetModel: QXG-200
1Conveyor Chain (Type QXG-200)125 mBrand: Jiangsu Yilong
2Horizontal Curve (R1000*180°)1 Set
3Linear Drive Unit (3 kW with Reducer)1 SetBrand: Jiangsu Yilong
4Tensioning Device (Diameter 1000*180°)1 SetBrand: Jiangsu Yilong
5Scissor-type Hangers/Hooks625 Sets200mm Spacing
6Gantry Supports1 Batch1001002
VIIIInstallation Accessories1 Batch
IXControl Systems (Booth + Chain + Heat)3 Sets
Feedback

Please provide detailed information so that we can provide you with a more accurate solution

  • What are the Maxminum and Minimum dimensions of your workpieces (L × W × H)?
  • What is the maximum weight of each workpiece? If available, please also provide product photos.
  • How many workpieces do you plan to coat per day (based on 8 or 16 working hours) or per month?
  • Which heating source do you prefer, such as electric power, diesel, fuel oil, or natural gas?
  • What are the dimensions of your workshop (L × W × H)? If possible, could you share a layout or drawing of the facility?
  • Prior to coating, do you require spray pre-treatment to prepare and clean the product surface?
  • What voltage and frequency standards are used in your country?

Please also share your WhatsApp or another instant messaging contact so we can communicate more efficiently.
