Epoxide Powder Coating Systems

ST200–2000

Price: USD200,000~300,000

Excellent Corrosion Resistance Epoxy powder coatings offer outstanding corrosion resistance, capable of withstanding a wide range of chemical attacks including acid, alkali, salt spray, and oxidation.
High Strength and Hardness Once cured, epoxy powder coatings form a robust anti-corrosion layer with high strength and hardness, effectively protecting steel pipes from abrasion and mechanical damage.
Eco-Friendly and Non-Polluting Epoxy powder coatings contain no solvents or volatile organic compounds (VOCs), producing no emissions or harmful gases during application, and causing no environmental pollution.
Attractive Decorative Effect Available in a wide range of colors, epoxy powder coatings form a smooth, attractive, and long-lasting anti-corrosion layer on the surface of steel pipes, delivering an excellent decorative finish.

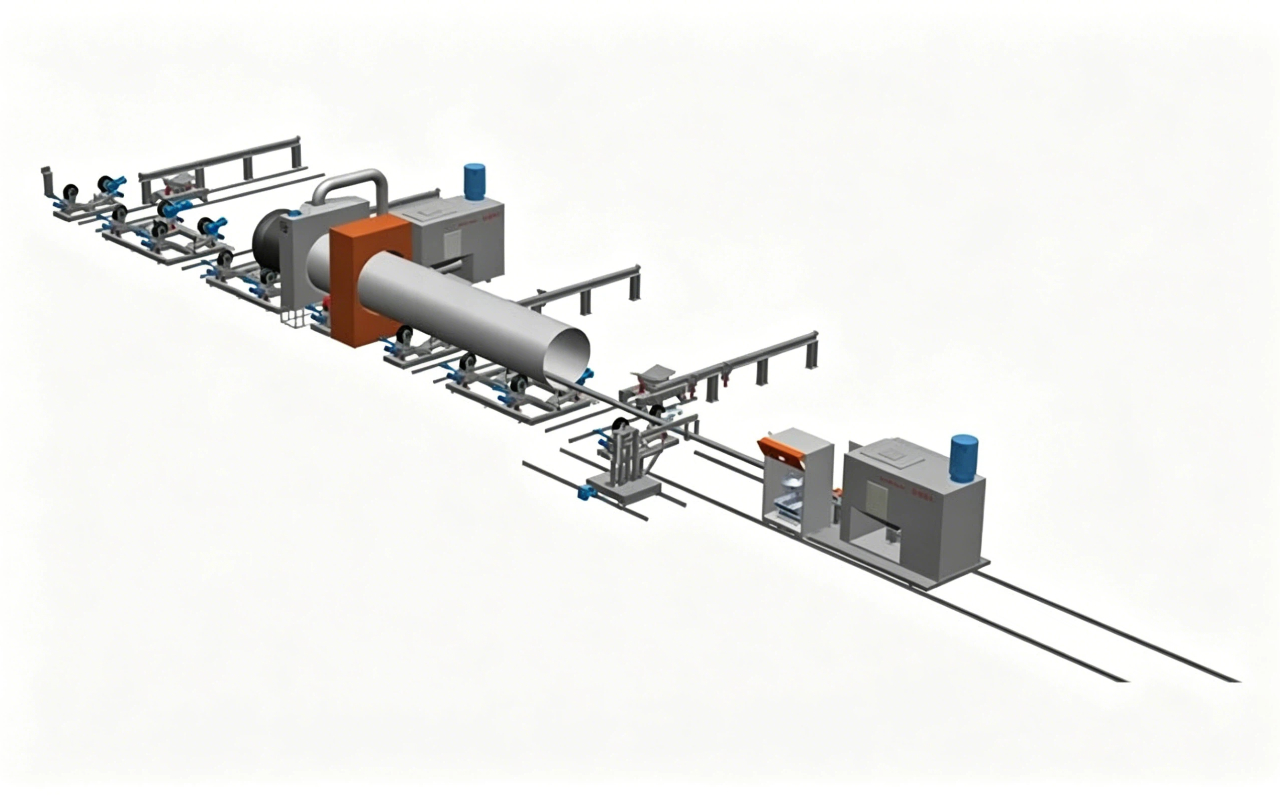

Epoxide Powder Coating Equipment Composition
Split-type steel pipe conveying system, heating system, coating system, powder recovery system, dust removal system, hydraulic & pneumatic system, and electrical control system.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Epoxide Powder Coating Systems Equipment Composition

Split-type steel pipe conveying system, heating system, coating system, powder recovery system, dust removal system, hydraulic & pneumatic system, and electrical control system.

Equipment Features

Split-type spiral conveyor line, high-temperature resistant, capable of transporting bell-and-spigot steel pipes
Online medium-frequency heating and online electrostatic spraying enable continuous coating production
High-quality electrostatic spraying system ensures uniform powder atomization, high powder deposition rate, uniform coating thickness, and prevention of pinholes
Closed-loop powder recycling system eliminates powder recovery and secondary pollution issues during electrostatic spraying
Rationally designed powder spray booth prevents dust vortex formation; interior lined with epoxy resin panels to effectively prevent multi-layer powder adhesion
Powder dust removal system offers high efficiency, clean and eco-friendly operation; overall noise-dampening treatment ensures low noise levels that meet environmental requirements
Production line integrates PLC programmatic control and variable frequency drive technology for a higher degree of automation

Technical Parameters

Parameter	Specification
Steel Pipe Size	DN200–DN2000
Steel Pipe Length	6–12 m
Floor Area	53 m × 10 m
Equipment Power	45 kW + 1,000 kW
Processing Efficiency	3–12 pipes / hour
Dust Removal Method	Cyclone + Filter Cartridge
Powder Recovery	Closed-Loop Recycling
Control Method	PLC Module + VFD + Touch Screen

ShengTai Epoxy Anti-Corrosion Equipment Capabilities

Solvent-Free / Powder-Based:Zero VOC emissions, full environmental compliance, enhanced adhesion and corrosion resistance
Intelligent Spraying:Constant pressure and constant current control, closed-loop film thickness regulation, 360° full-coverage spraying of inner walls with no blind spots
Integrated Internal & External Lining:Simultaneous production of 3PE/PP external coating and epoxy internal lining in a single linked process
Extended Service Life:Coating lifespan upgraded to 30+ years, compatible with deep-sea, nuclear power, and hydrogen energy applications
Customized Solutions:Complete equipment packages for bends, fittings, field joint coating, and on-site construction
