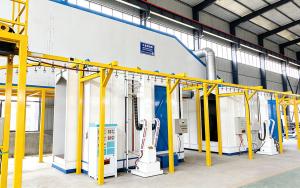

Tiếng ViệtCustomized Automatic Powder Coating Production Line
ST-APCL-03C
Price: USD50000~150000
Get Quote PDF
Pre-heating Oven: Pre-heating oven aims to preheat the workpiece to required temperature. It is usually max 450°C.
Core Product Concept: Unified systems combining high-quality, coordinated components.
Customization & Configuration: Can be optimally integrated into existing production lines or serve as new installations.
Implementation & Expertise: Efficiently implemented based on effective pre-planning by specialists.

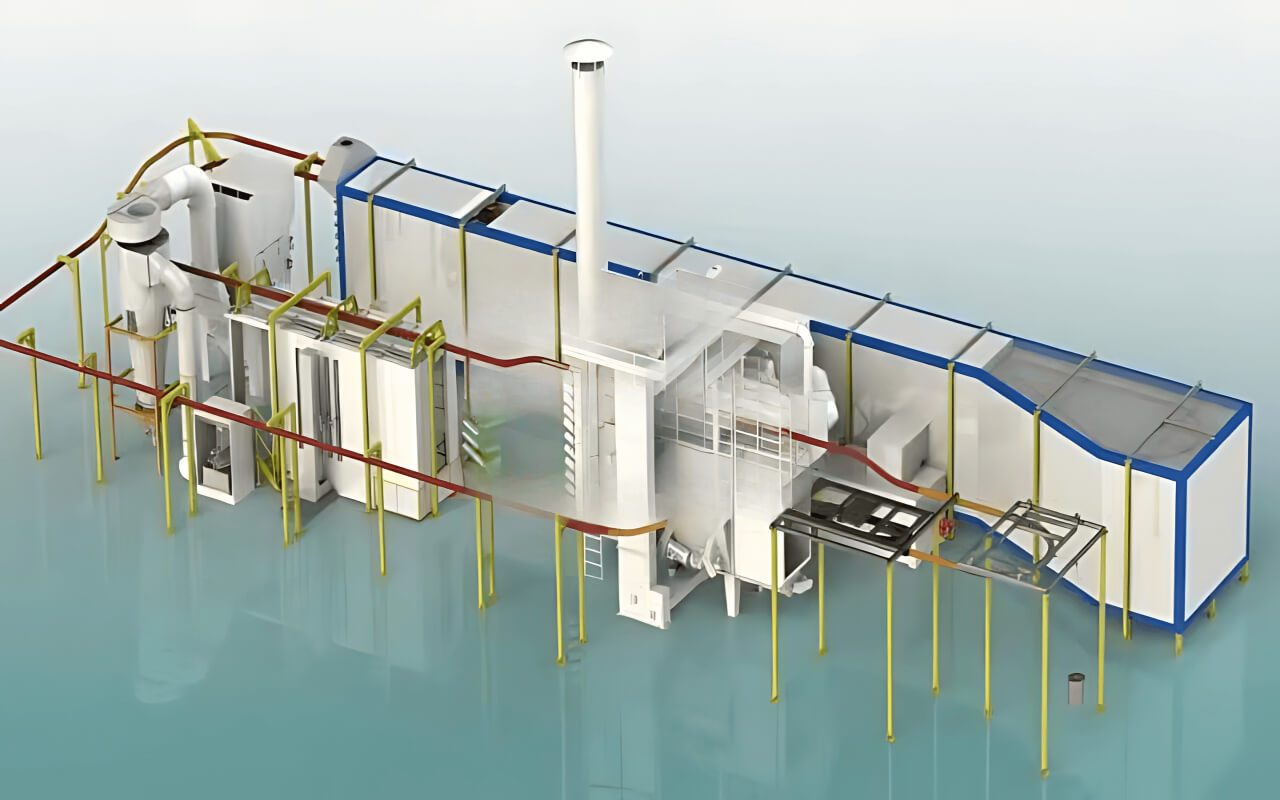

Complete Support for Automated Metal Coating Systems
Managing extensive, multi-stage powder coating installations requires dedicated project oversight. ShengTai specializes in seamlessly combining varied system components, guaranteeing timely delivery and precise setup. Backed by more than 15 years of expertise and a global history of successful fully automated coating line deployments, we deliver adaptable and secure processes from start to finish.
Coating solutions for Industry
ShengTai's complete powder coating systems provide unified, automated solutions tailored to specific production needs. Systems are designed and expanded to suit the respective application.The configurations are optimized for seamless integration, modernization, or entirely new installations.
| Automatic Powder Coating Line Specifications | ||
| Equipment/Component | Item | Specifications |
| Fast Color Change Powder Coating Cyclone Booth | Equipment Name | Fast Color Change Powder Coating Cyclone Booth |
| Material Options | Stainless Steel (SS) or Polypropylene (PP) | |
| Model | ST-APCL-03C | |
| Booth Type | Automatic Type | |
| Operator Dimensions (W × D × H) | 800 × 6000 × 2000 mm | |
| Weight | 4000 kg | |
| Power Supply | Electric | |
| Nominal Power | 15 kW | |
| Voltage | 380V/220V (Customizable to local standards) | |
| Frequency | 50-60 Hz | |
| Filter Type | Polyester | |
| Filter Count | 32 pcs (325 × 900 mm) | |
| Filter Hanging Type | Rotary Wing Type (Easy to clean) | |
| Filter Cleaning System | Pneumatic | |
| Booth Material | Wall: PVC; Floor: PVC & Stainless Steel | |
| Cyclone Material | Stainless Steel | |
| Reciprocating Machinary | Power Supply | AC 220V/110V 50-60 Hz |
| Motor Power | 0.75 kW | |
| Speed | 0–0.8 m/s (0–50 m/min) | |
| Acceleration | 1 m/s² | |
| Max. Loading Capacity | 25 kg | |
| Controller | Digital | |
| Motor Frequency | Adjustable | |
| Stroke | 2 m | |
| Qty of Spray Guns Loading | 2–12 pcs | |
| Automatic Powder Feed Center | Power Supply | AC 220V/110V 50-60 Hz (As required) |
| Overall Dimensions | 1350 × 1940 × 900 mm | |
| Power Hopper Size | 550 × 550 × 550 mm | |
| Sieve Frame Size | φ400 mm | |
| Standard Mesh Size | 80 mesh (Customizable) | |
| Air-in Pressure | 6–8 bar | |
| Recommended Air Compressor HP | 20 kW (30 HP) | |
| Air Consumption | Approx. 300 m³/h (Standard condition) | |
| Ambient Temperature | 5–40 ℃ | |
| Powder Coating Oven | Workspace Dimensions (W × H × D) | 1800 × 1800 × 5000 mm |
| Overall Dimensions (W × H × D) | 2100 × 2200 × 5200 mm | |
| Heating Energy | LPG / Gas / Diesel | |
| Voltage/Frequency | 380V/220V (50-60 Hz) | |
| Warm-up Time (to 180℃) | 15–30 minutes | |
| Temperature Stability | < ±3.0–6℃ | |
| Max. Temperature | 250℃ | |
| Transport System | Two trolleys | |
| Burner | Italy Riello, 100,000 cal | |
| Circulation / Air Flow | Vertical, adjustable via side wall holes | |
| Ventilation Performance | 8288–16576 m³/h | |
| Motor Power | 7.5 kW | |
| Warranty | 12 months | |
