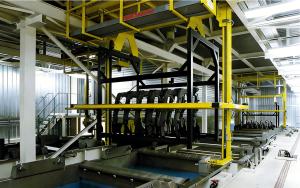

Tiếng ViệtCustom-Designed Automatic Powder Coating Line for Wheelchairs (Iraq Factory Project)
ST-APC-1286
Price: USD50000~90000
Get Quote PDF
When processing thick workpieces, appropriately reduce line speed and increase oven temperature to meet product quality.
Winter workshop temperature of 10℃ is used as the design temperature.
An automatic temperature control system is used to control and digitally display temperature.
Equipped with an independent centralized gas heating chamber, negative pressure circulation structure, featuring high heat exchange efficiency, easy cleaning.
Precautions:
1、Good Grounding: A ground wire is included.
2、Clean Air Source: All compressed air must be clean, dry, oil-free, and water-free. Preferably use air processed by a refrigerated dryer.
3、Prevent Powder Spitting: If powder spitting (i.e., inconsistent powder output) occurs, it is usually due to improper adjustment of transport air and mixing air. Increasing transport air increases powder output but can cause spitting; simultaneously increase mixing air slightly for uniform powder output.
4、Timely Powder Cleaning: After a period of use, blow clean the powder pump and spray gun with compressed air.
5、Correct Adjustment: The pressure regulating valve has a locking device: push to lock, pull to unlock. Adjust each valve knob to a suitable position (for satisfactory powder output). If pressure cannot be increased, check:
(1) Compressor air pressure is above 5kg/cm².
(2) Air lines for leaks.
(3) Solenoid valve malfunction.
(4) Pressure regulating valve normal.
A normal valve adjusts relatively easily. Do not use excessive force when turning counterclockwise to close or clockwise to maximum. If pressure cannot be increased, find the cause and fix the fault before use.
Coating solutions for Industry
| Building Conditions & Primary Power Sources | |
| Workshop Area | See layout above |
| Power Circuit: | 380V×50HZ×3Φ, three-phase five-wire system |
| Voltage Fluctuation | ±10% |
| Control Circuit/Lighting Circuit | 220V×50HZ×1Φ |
| Tap Water | Pressure ≥0.2Mpa, 4-5T/hour |
| Equipment Composition Description | ||||
| No. | Process Name | Process Time(s) | Process Temp.(℃) | Remarks |
| 1 | Loading | |||
| 2 | Powder Spraying | Ambient | Automatic + Manual Touch-up | |
| 3 | Curing | 1200-1800 | 180～210 | Adjustable |
| 4 | Cooling | 1200-1500 | Natural Cooling | |
| 5 | Unloading | |||
1. When processing thick workpieces, appropriately reduce line speed and increase oven temperature to meet product quality.
2. Winter workshop temperature of 10℃ is used as the design temperature.
| Electric Heating Curing Oven Equipment | |
| Type | Tunnel Through-type |
| Heating Form | Forced Hot Air Circulation |
| Design Parameters | Workpiece Size (mm) |
| Main Dimensions (mm) | L19800*W2900*H2200 |
| Curing Time | 20min |
| Workshop Temp | 5℃ |
| Temp. Range | 70～210℃ |
| Heat-up Time | ≤40min |
| Heat Output | 40×10⁴ kcal/h |
| Temp. Control System | Automatic Temperature Controller |
| Oven Body | Channel Boxes, Edge Trims, etc.:Galvanized Steel Sheet δ1.0 mm |
| Outer Wall Panel | A3 Color Steel Plate 0.6mm |
| Inner Wall Panel | Galvanized Steel Sheet δ0.6 mm |
| Internal Frame | Structural Steel |
| Insulation Layer (Thickness 150mm) | Rock Wool (Density 120kg/m³) |
| Others | A3 δ2.0～δ4 |

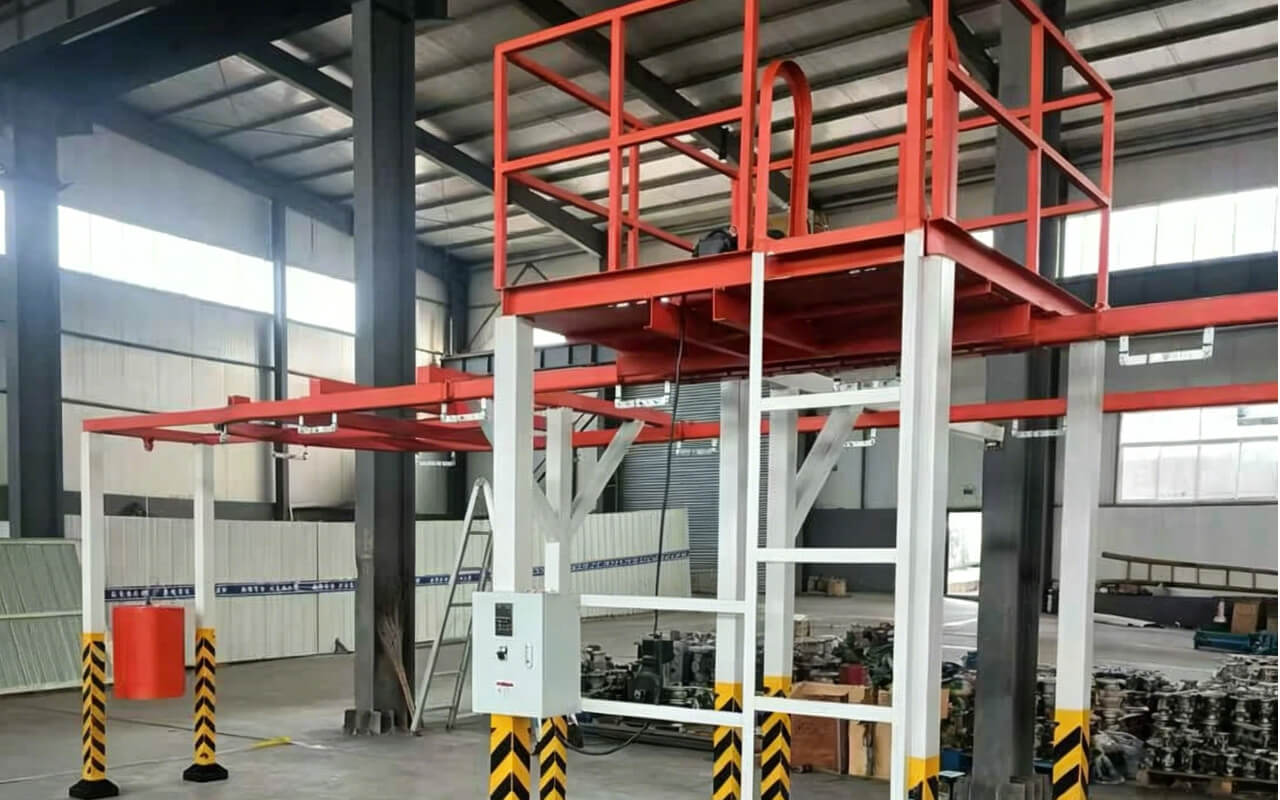

| Overhead Suspension Conveyor System Parameters | |
| Model | QXG-200 |
| Chain Pitch | 200㎜ |
| Single-point Load | 30㎏ |
| Operating Speed | 1.5m/min |
| Speed Adjustment Range | 0.7-4m/min steplessly adjustable |
| Operating Temperature | 0～210℃ |
| Conveyor Power | 3kW (single unit power) |
The control system for this coating line adopts segmented control, mainly consisting of curing oven control, conveyor system control, etc., controlling the operating status of motors, fans, lighting devices, etc. Operators at the instrument panel can operate the start/stop of all electrical equipment, adjust conveyor speed, etc. In case of abnormal conditions, the equipment can be stopped promptly or alarm signals issued
| PP Powder Booth Equipment Structure | ||
| Name | Item | Specifications |
| Booth Body | Welded assembly from engineering plastic sheets | |
| Dimensions | L6500×W2000×H3000（mm） | |
| Material | 8mm PP sheet | |
| Forming Method | Welded panel assembly | |
| Workpiece In/Out Dim. | W1000×H1800(mm) | |
| Automatic Spraying Host | Built-in type | 8 sets (4 sets front and back) |
| Lifts | Front & Rear | 2 units |
| Powder Feed Center & Recovered Powder Filtration System | Powder Transfer System | Transfers powder from fluidized bed and cyclone separator back to feed center, returning to feed hopper |
| 1 set Feed Hopper | Capacity 60 liters | |
| Automatic Air Blow Cleaning Device for suction hoses and pumps | ||
| Piston for Clamping Powder Boxes | ||
| Pneumatic Piston Lifting Device for Venturi pumps and suction hoses | ||
| Lighting | LED | 6 sets |
This is a new, economical quick color change system. Cleaning the booth and completing a color change takes about 30 minutes.
| E7 Manual Basic Parameters | |
| Parameter | Specification |
| Input Voltage | AC100-240V |
| Single Unit Input Power | <35W |
| Oscillation Frequency | 18KHZ Sine Wave Pulse |
| Single Unit Air Consumption | ≤0.3m³/min |
| Dimensions (cm) | 48*50*103cm |
| Weight | 34KG |
| Operating Temperature | -20℃-50℃ |
| Control Method | Pressure Regulator Mode Operation |
| Applicable Workpieces | Suitable for flat panels, doors, etc., requiring high powder volume, e.g., guardrails, pipes |

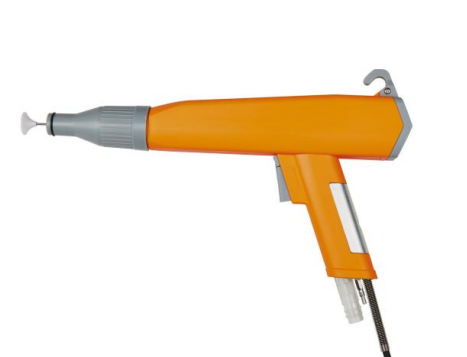

| E7 Manual Gun Configuration | |
| Parameter | Specification |
| Input Voltage | 12VDC |
| Output Voltage | 0-85KV Adjustable |
| Output Current | 0-100uA Adjustable |
| Protection Level | Moisture Resistant Grade |
| Weight | 600g/piece |
| Dimensions | 260*265 (mm, default) |
| Static Wire Length | 4.5 meters/piece |
| First-pass Transfer Efficiency | For flat workpieces, powder output <350g/min, first-pass transfer efficiency can reach 70% |
| Nozzle | Flat/Round/Extension Rod |
| Configuration list for E7 manual powder spray gun | ||
No. | Product Model/Specifications | Quantity |
1 | Host Unit E7 | 1 |
2 | Electrostatic Manual Gun E7 | 1 |
3 | Anti-static Powder Hose (4.5 meters) | 1 |
4 | Wear-resistant Static Wire (4.5 meters) | 1 |
5 | Stainless Steel Powder Hopper | 1 |
6 | 200mm Extension Rod with Electrode | 1 |
7 | Flat Nozzle with Electrode | 1 |
8 | Powder Pump E7 | 1 |
9 | Venturi E7 | 3 |
10 | Ground Wire E7 | 1 |
11 | Trolley E7 | 1 |

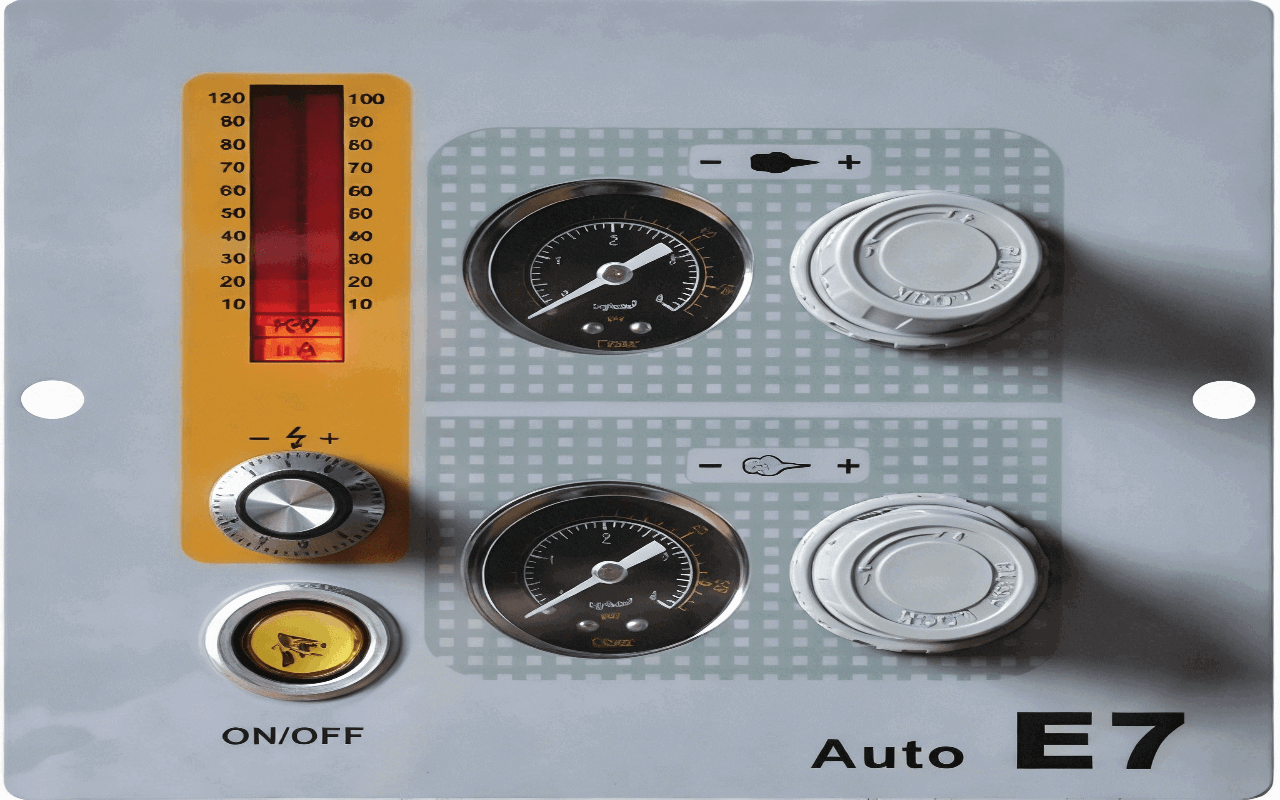

| E7 host basic parameters | |
| Parameter | Specification |
| Input Voltage | AC100-240V |
| Single Unit Input Power | <50W |
| Oscillation Frequency | 20KHZ Sine Wave Pulse |
| Single Unit Air Consumption | ≤0.3m³/min |
| Dimensions (mm) | 280*175*176mm |
| Weight | 4.2KG |
| Operating Temperature | -20℃-50℃ |
| Control Method | Pressure Regulator Control |
| Installation Method | Used in conjunction with system control cabinet |

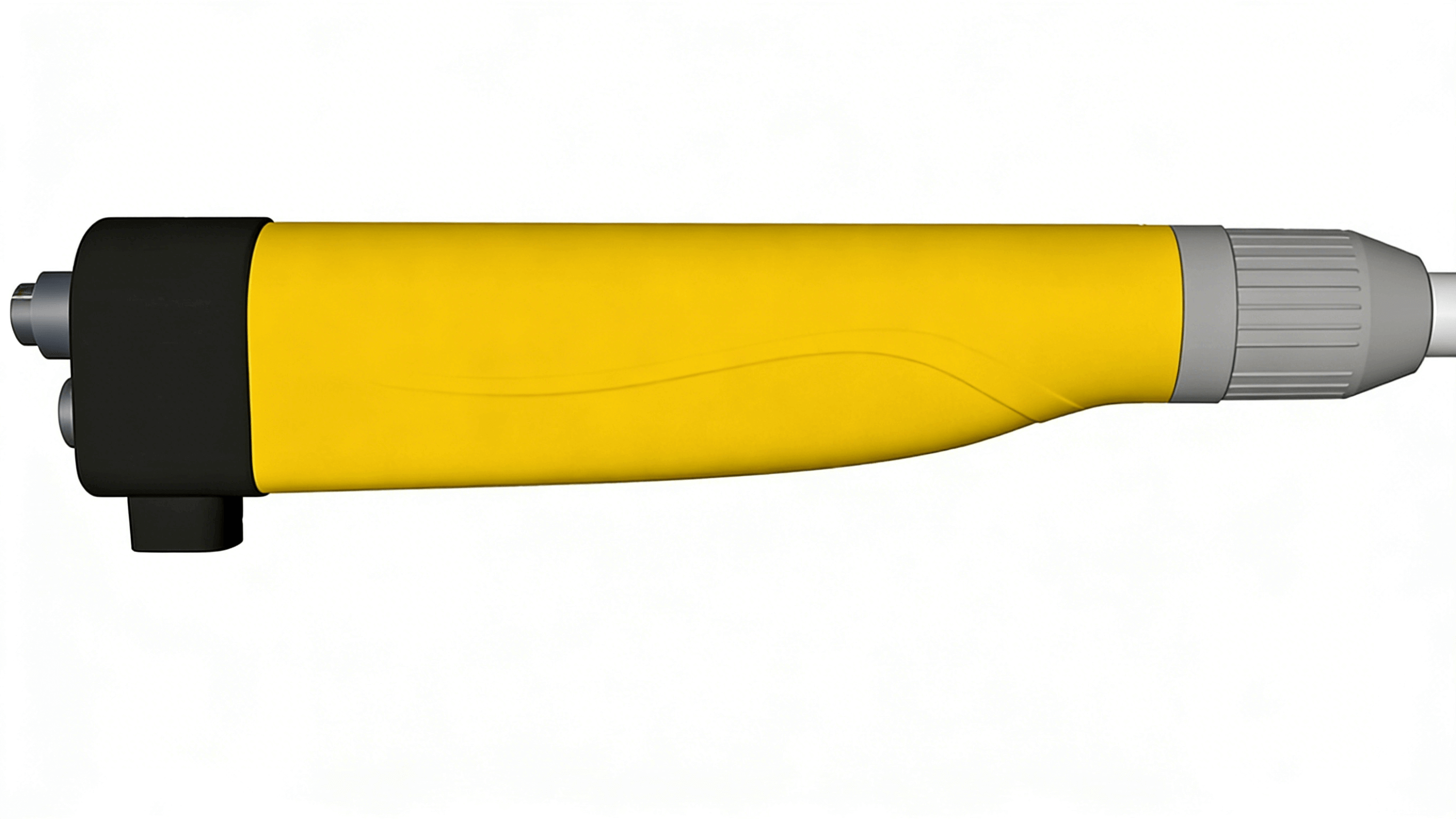

| Basic parameters of built-in electrostatic single gun | |
| Parameter | Specification |
| Input Voltage | 12VDC |
| Output Voltage | 0-100KV Adjustable |
| Output Current | 0-100uA Adjustable |
| Protection Level | Waterproof Grade |
| Weight (Automatic Single Gun) | 610g/piece |
| Dimensions (Automatic Single Gun) | Length: 410mm |
| Static Wire Length (Automatic Single Gun) | Vertical Wire: 15 meters/piece |
| First-pass Transfer Efficiency | For flat workpieces, powder output <250g/min, first-pass transfer efficiency can reach 75% |
| Flat Nozzle Selection | 3.0mm Flat Nozzle, 4.0mm Flat Nozzle |
| Auto Gun Mounting | Fixed Bracket Mounting, Extension Insulating Rod Mounting |
| Round Nozzle Selection | Steel Needle Round Nozzle (21, 18, 15); Plastic Needle Round Nozzle (24, 22, 20, 18) |

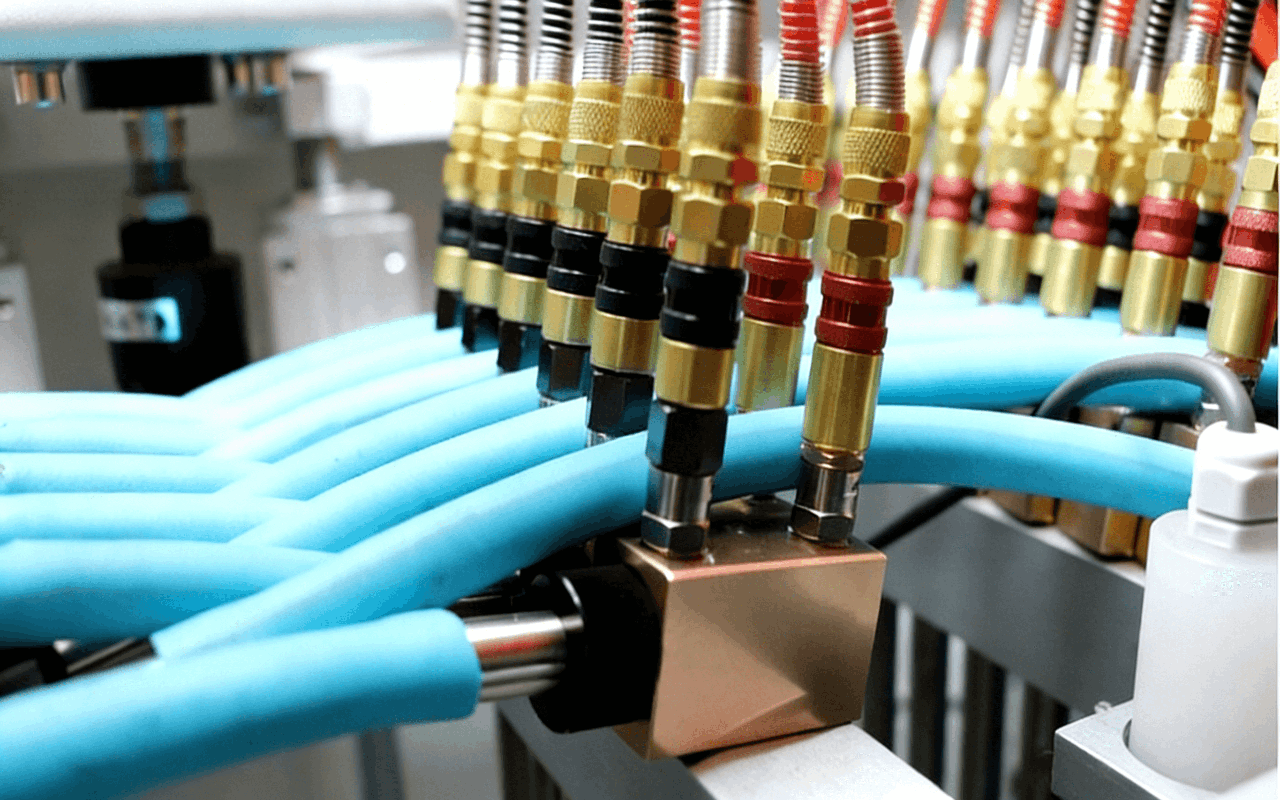

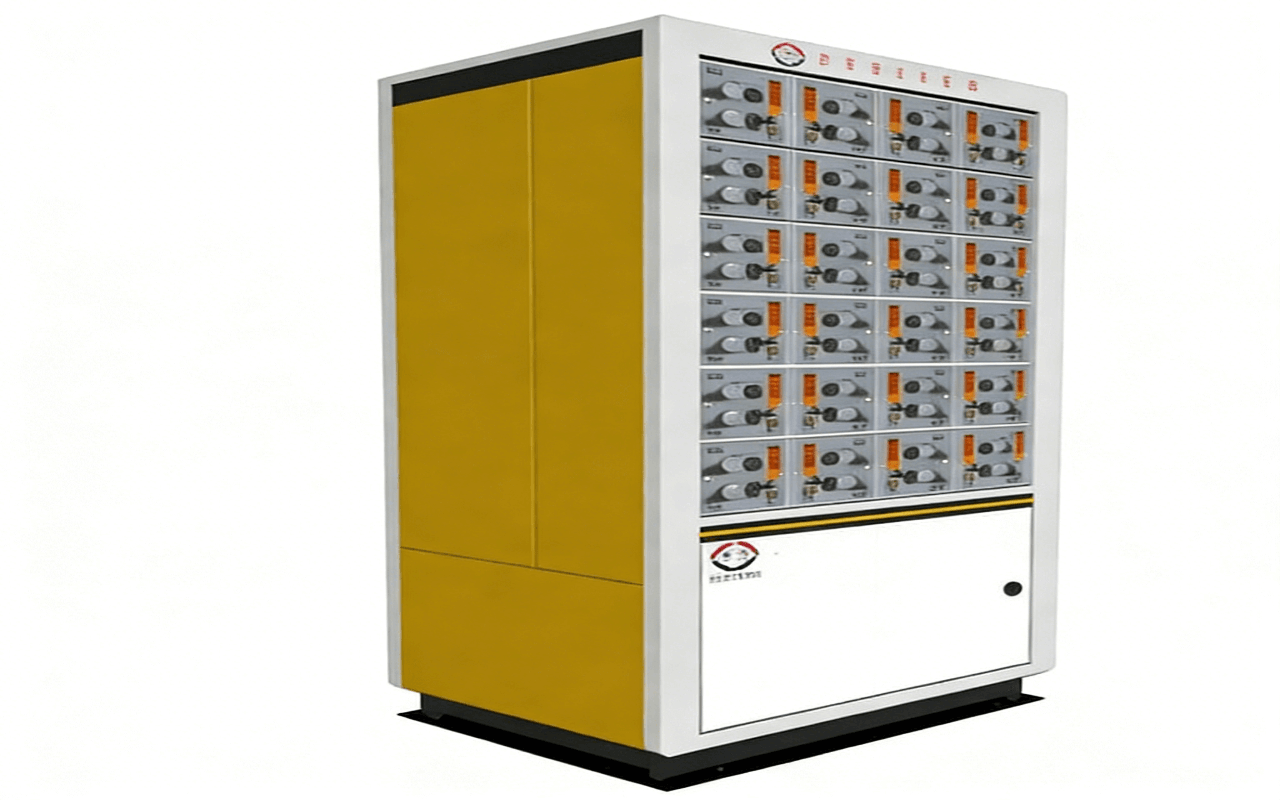

| Powder Pump Parameters | |
| Component | Specifications/Features |
| Pump Body | CNC precision machining ensures concentricity accuracy of air jet nozzle and venturi |
| Venturi | Made of special engineering plastic, wear-resistant, non-stick |
| Jet Pipe | Stainless steel gold-plated, wear-resistant |
| Connection Size | ∅11, ∅12 |
| Powder Output Rate | ≤550g/min |
| Check Valve | Uses high-sensitivity check valve to prevent powder backflow |
| Anti-misconnection Quick Coupler | Anti-misconnection quick coupler for convenient operation |
| Control Cabinet | |
| Name | 10-Bay Control Cabinet |
| Specifications | 600mm*600mm*143mm |
| Group Control | 1 group |
| Light Curtain Detection | Not Supported |
| Voltage Stabilization & Filtration | Supported |
Control cabinet parameters
| Name | Specifications | Quantity | Group Control | Light Curtain Detection | Voltage Stabilization & Filtration |
| 10-Bay Control Cabinet | 600mm*600mm*143mm | 1 group | Not Supported | Supported | Supported |
Detailed list of main components
| No. | Product Model/Specifications | Quantity |
| 1 | Host Unit E7 | 1 |
| 2 | Electrostatic Auto Gun (Built-in Module) V12 | 1 |
| 3 | Sharkskin Anti-static Powder Hose 15 meters | 1 |
| 4 | Wear-resistant Static Wire 15 meters | 1 |
| 5 | PU Red Air Hose 10 meters | 1 |
| 6 | PU Black Air Hose 10 meters | 1 |
| 7 | Pressure Regulating Valve Mindman | 1 |
| 8 | Flat Nozzle V12 | 1 |
| 9 | Powder Pump V16 | 1 |
| 10 | Venturi V16 | 1 |
| 11 | Ground Wire E7 | 1 |
More parameters see the PDF File attached.
