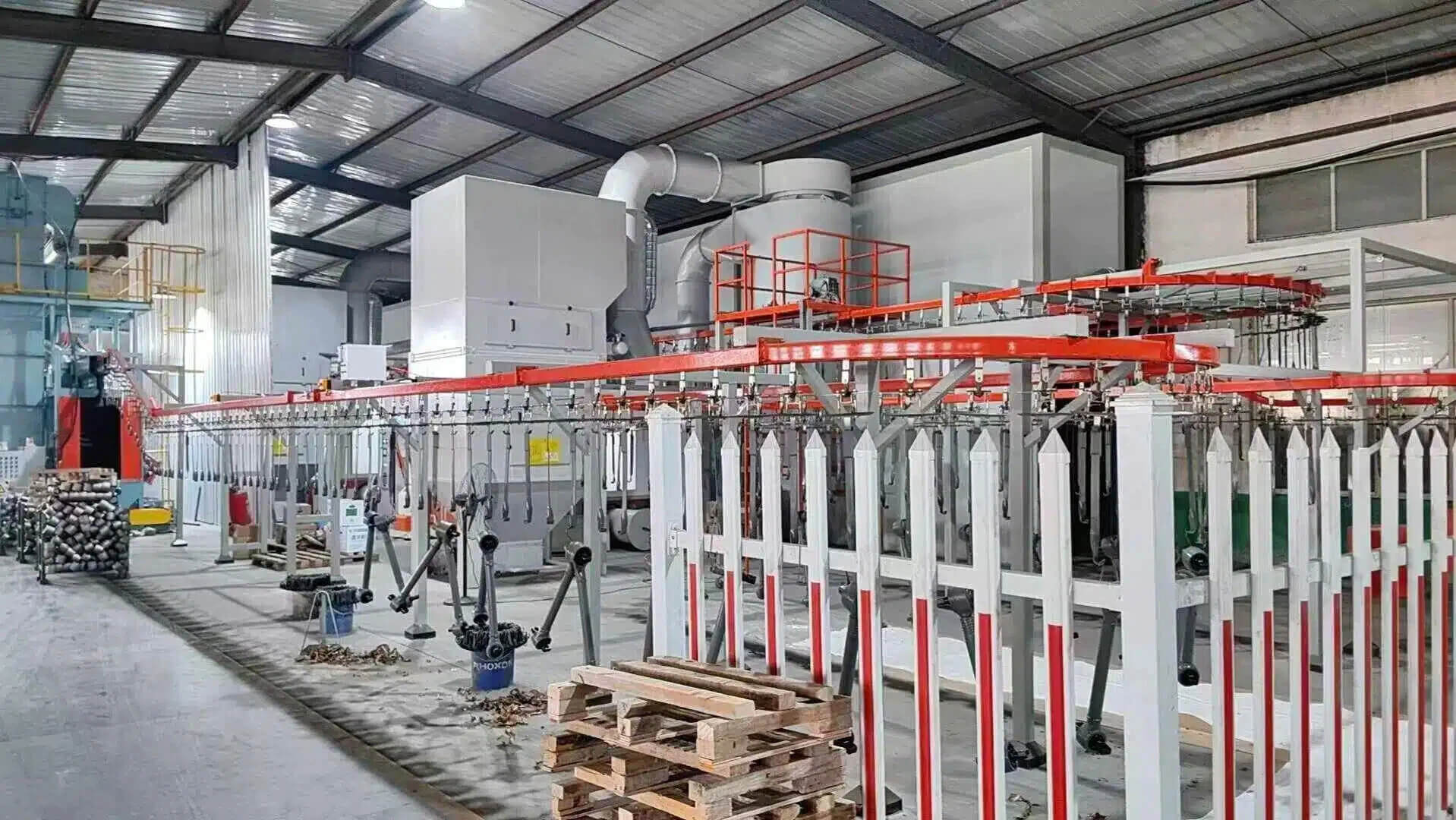

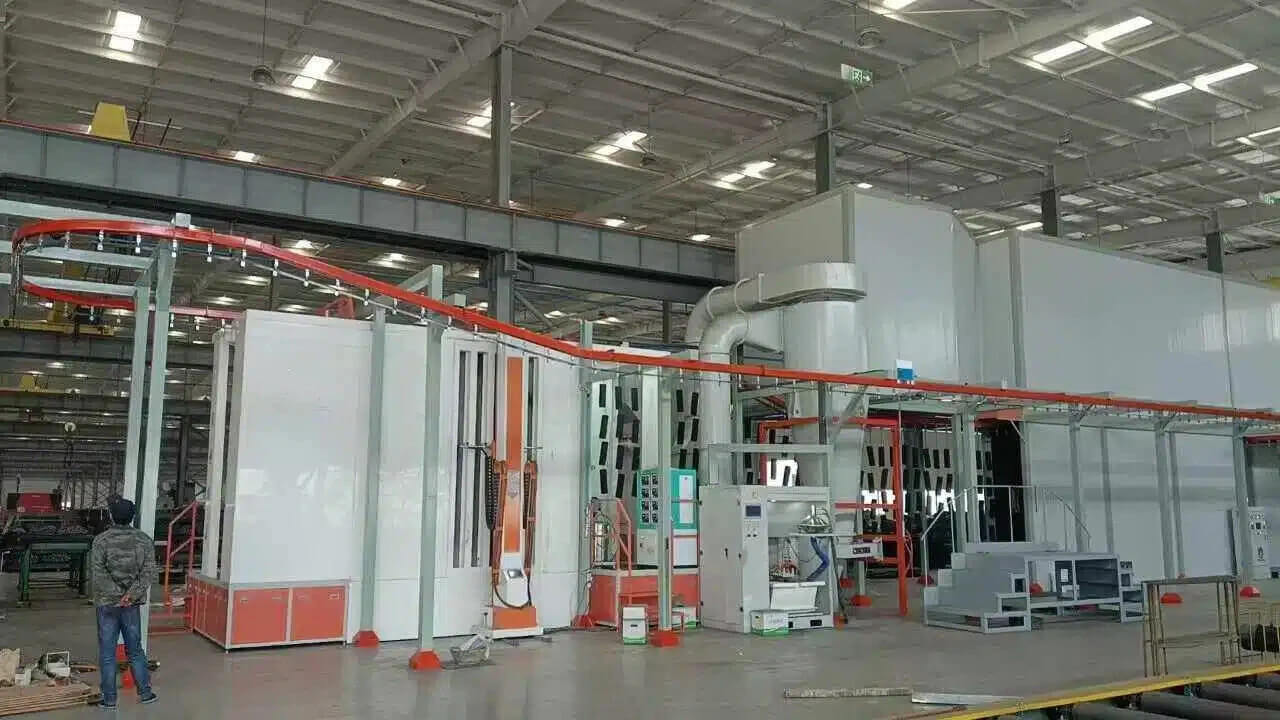

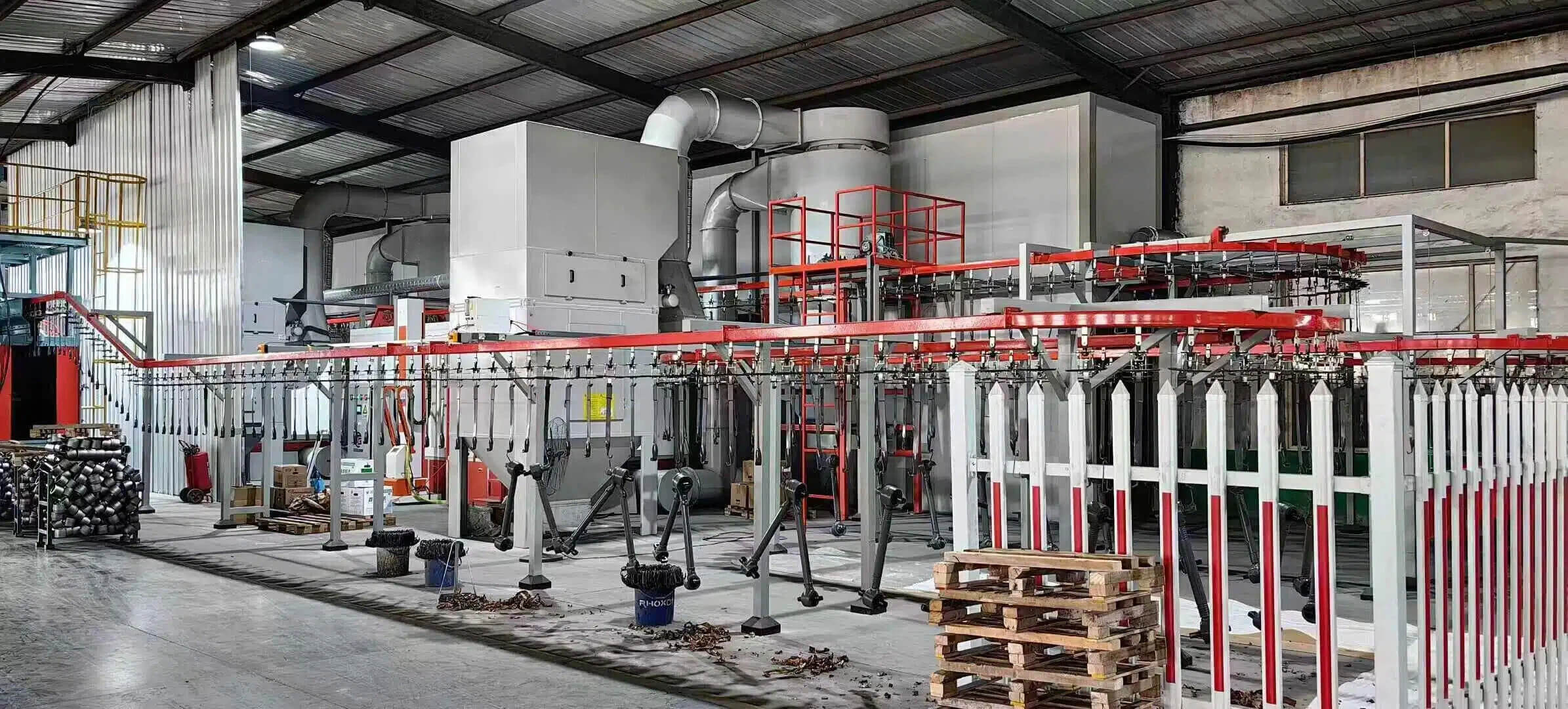

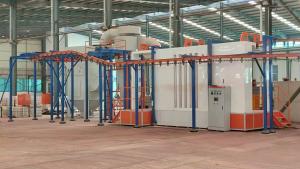

Auto Parts Powder Coating Line

ST-APC-C236

Price: USD50000~100000

Core Technology: Deconstructing the "Black Technology" of Intelligent Coating;
Green Intelligent Manufacturing: A Win-Win for Efficiency and Environmental Protection;
Industry Empowerment: Contributing to the High-Quality Development of the Automotive Industry;
Cost Reduction: Through Intelligent Operation and Maintenance (O&M), and Zero Emission Waste Gas Treatment.

As the automotive industry moves towards a new phase of high-end, intelligent, and green development, the quality of coatings on auto parts directly determines the aesthetic texture and durability of the entire vehicle. Intelligent production lines, built to international top standards, will inject a more efficient, environmentally friendly, and reliable new impetus into the supply chain of the new energy vehicle industry.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

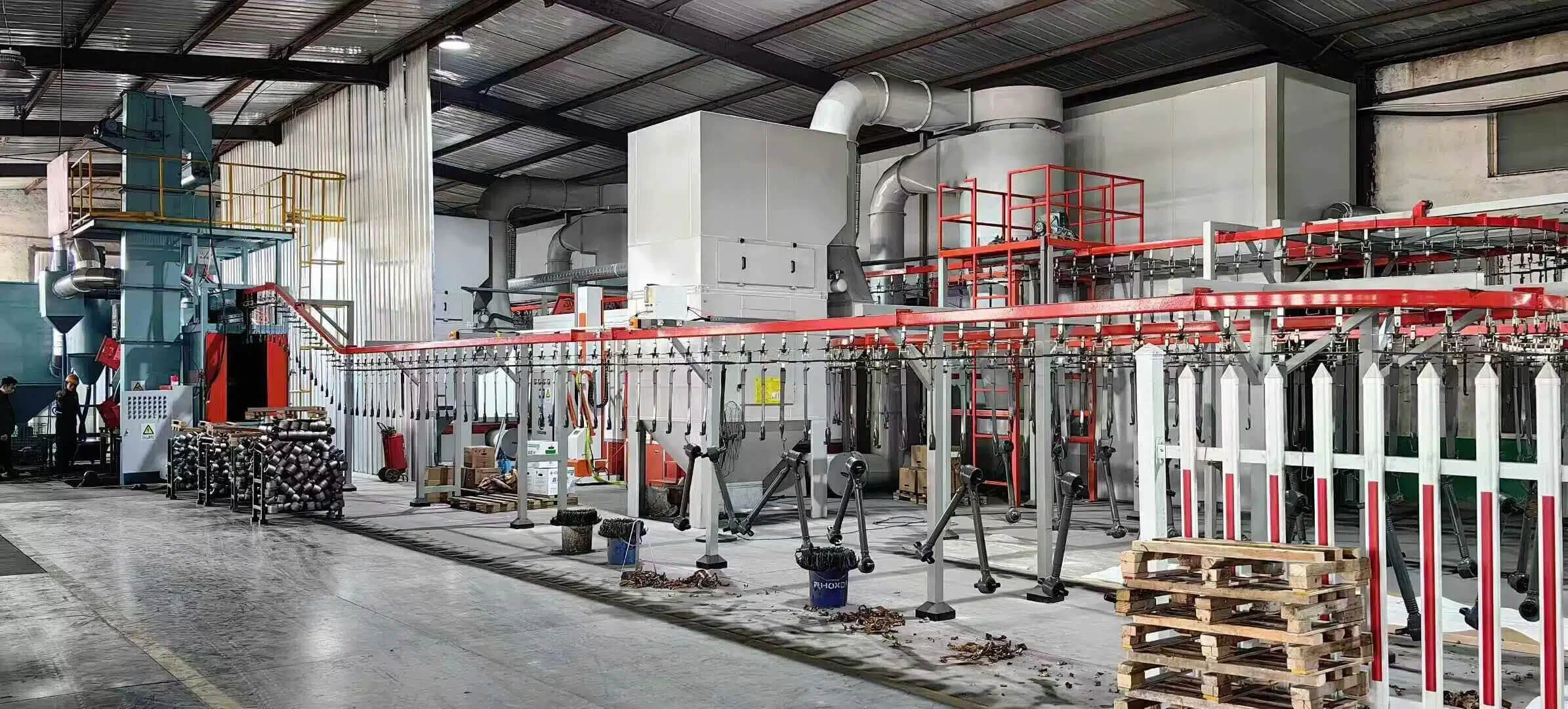

powder coating line (2).jpg

Resource Consumption Reduction: The maskless two-tone coating technology eliminates the traditional tape masking step, reducing plastic waste generation. Concurrently, the centralized paint supply system automatically controls viscosity, preventing paint waste.

Cost Reduction through Intelligent Operation and Maintenance (O&M): Equipped with a predictive maintenance system, the line analyzes equipment operating data to pre-warn of faults, reducing unplanned downtime by 60%. This fully meets the bulk supply requirements of major automotive manufacturers.

Zero Emission Waste Gas Treatment: Equipped with a Regenerative Thermal Oxidizer (RTO) device, Volatile Organic Compounds (VOCs) generated during the spraying process are collected, oxidized, and treated. The resulting emission concentration is far below national environmental standards. The recovered heat from the treatment process can be recycled, reducing energy consumption by 25%.

Item	Details
Workpiece Size	Length 2000mmHeight 30mmWidth 600mm
Process Line Speed	V = 1.5m/min (Adjustable range 0.5m/min - 4.0m/min)

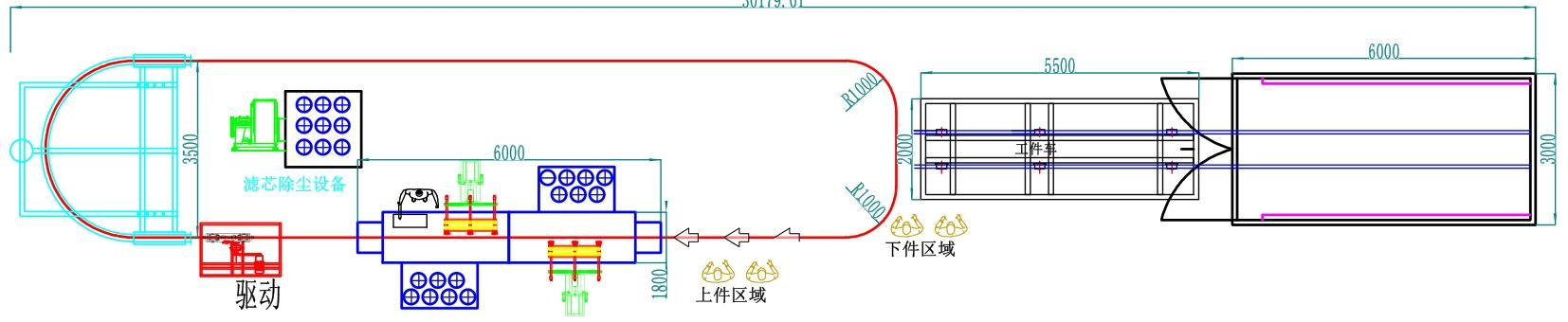

Conveyor System	Adopting QXG-150 type suspended conveyor chain, track length approximately 39m, 1 set of conveyor line power, utilizing variable frequency drive (VFD)
Process Flow	Loading -- Spraying -- Unloading (manual transfer cart) -- Curing
Drying Tunnel	Uses high-quality rock wool board, 100mm thickness
Curing/Drying Oven	L6000W3000H3400, heating chamber utilizes electric heating
Spray Booth Dimensions	600018003200 (Galvanized steel spray booth + filter cartridge dust removal equipment)
Baking Room Environmental Protection Equipment	Uses an activated carbon adsorption box and a 3 kW fan
