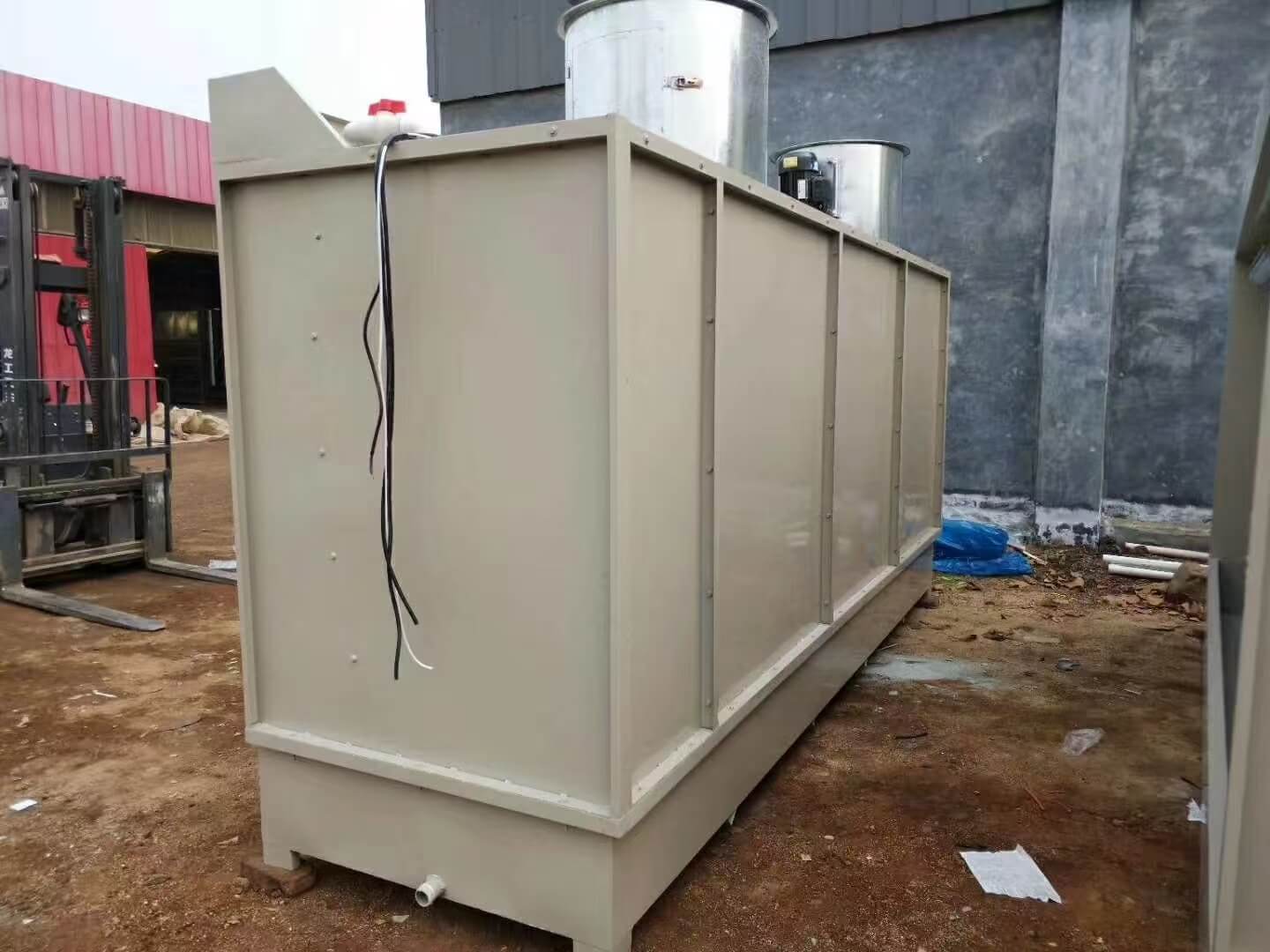

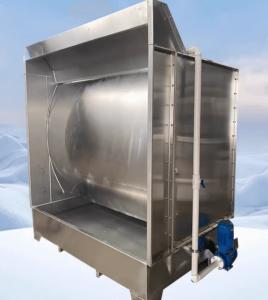

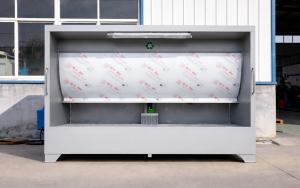

Galvanized Sheet Water Cabinet Spray Booth

ST-MLP-WXT160

Price: USD1000～4000

Air Velocity: 0.3~0.7 m/s
Explosion-proof Lighting: installed at the top of the water-wall cabinet
High Purification Rate: Overspray from liquid coating machines is subjected to the water curtain and negative pressure before entering a multi-layer splashing chamber
Good Ventilation Performance: Integrated seamlessly into any liquid coating line, the cabinet is equipped with a powerful 2.2 kW axial flow fan

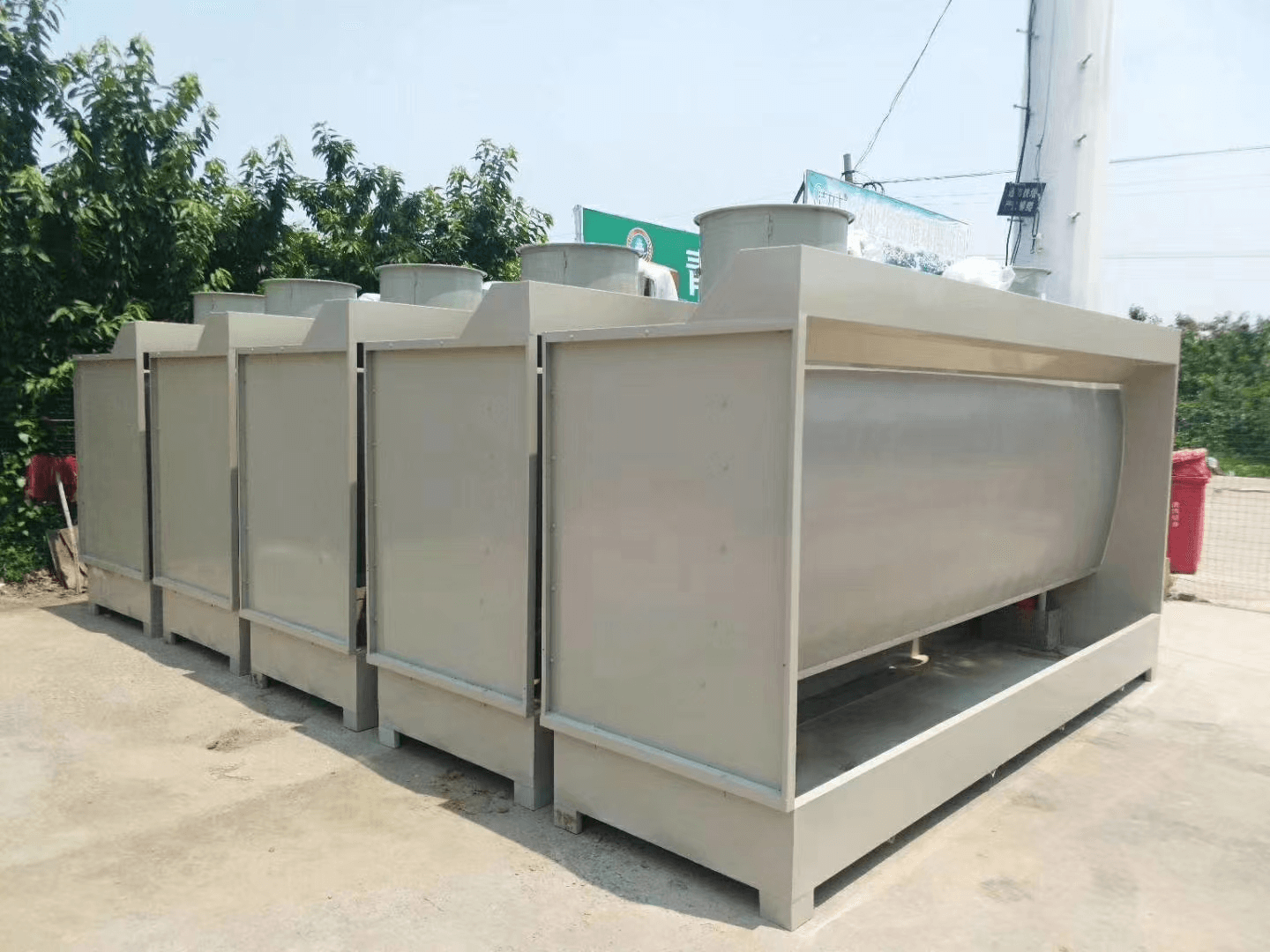

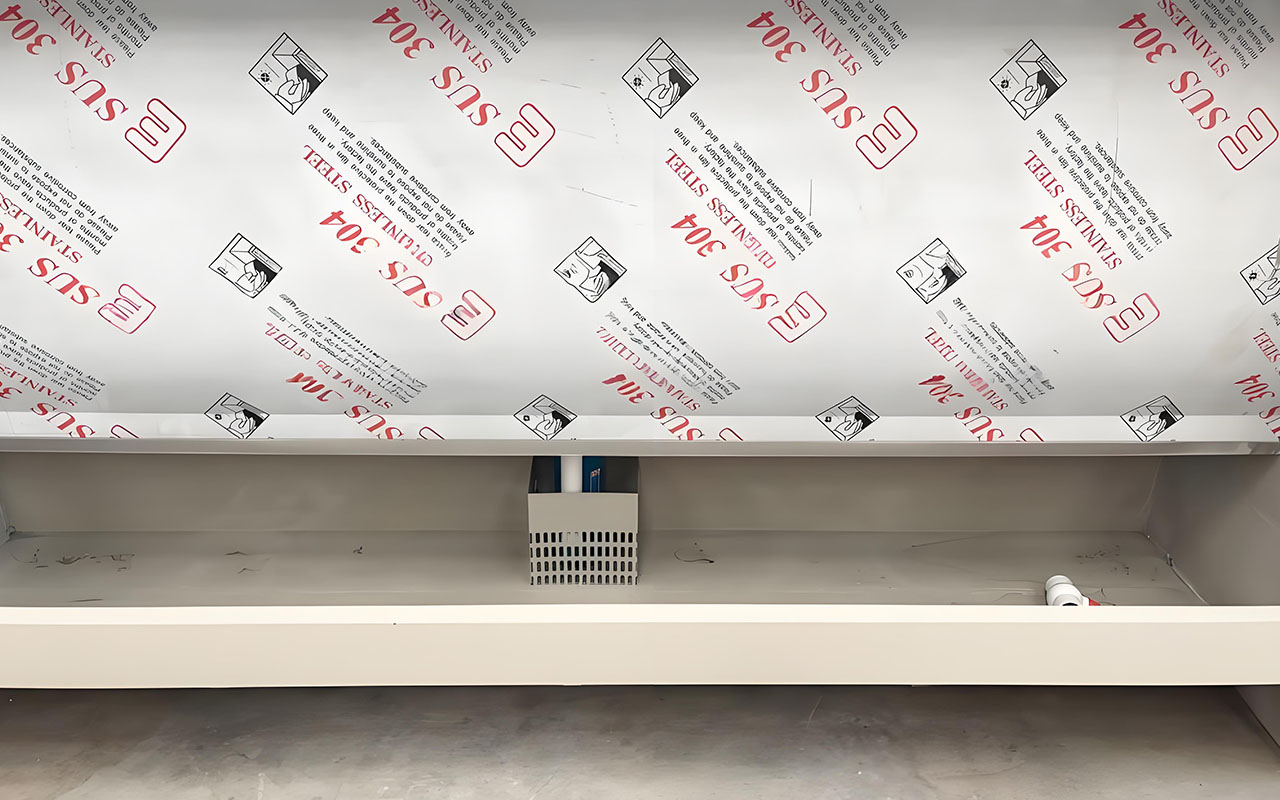

A water curtain booth is an environmentally friendly spraying equipment used for surface coating operations such as spray painting and oil spraying. It primarily uses a water curtain filtration system to effectively capture and treat paint mist generated during the spraying process. The equipment utilizes circulating water to form a continuous water curtain, causing the paint mist to be quickly absorbed and settled, thereby reducing air pollution and improving the working environment.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Equipment Features

1.Highly Efficient and Environmentally Friendly: Utilizing a water curtain filtration system, it effectively captures paint mist and harmful particles generated during spraying, significantly reducing air pollution and meeting environmental emission requirements.

2.Improved Working Environment: Reduces paint mist diffusion and odors, maintaining clean air in the spraying area and improving worker comfort and safety.

3.Stable Spraying Results: A rational airflow organization design ensures uniform wind speed in the spraying area, contributing to improved coating smoothness and adhesion.

4.Simple Structure and Easy Maintenance: The equipment has a mature structure, stable operation, and simple daily maintenance and cleaning, resulting in low operating costs.

5.Wide Applicability: Suitable for various spraying processes, such as painting and oil spraying, and widely used in industries such as hardware, furniture, machinery, and automotive parts.

6.Highly Customizable: Size, airflow, water circulation system, and configuration can be customized according to customer needs to meet different production scales and process requirements.

Key Attributes

Water Cabinet Spray Booth wih Conveying System Specifications
Component	Model / Type	Key Function / Description	Material / Construction Features
Conveying System	XT-160 Heavy-Duty Carrier	The main function is to support the chain, bear the weight of objects and hangers. On vertical bending sections, it also withstands the resultant force of chain tension, ensuring the chain travels correctly along the track.
	Material	High-strength, good-toughness 45# steel.
	Features	Equipped with roller bearings. A grease nipple is installed at the end for enhanced lubrication and reduced running resistance.
Water Cabinet Spray Booth	Enclosed Top-Exhaust Type	The booth's internal clear dimensions accommodate spraying and passage of the largest workpiece, considering turning radius to avoid interference. It features enclosed top exhaust and shaped access doors on both sides to allow workpiece passage while isolating the internal environment.
	air velocity	0.3~0.7 m/s	Airflow volume is appropriately sized to prevent paint mist overspill and over-extraction, improving paint utilization.
	Explosion-proof lighting	installed at the top of the water-wall cabinet	Uses a wet paint mist capture system. Atomized water fully mixes with and scrubs paint-laden air in primary treatment. Air then enters the exhaust duct, drawn by a fan through a demister and secondary activated carbon filter.
	residual mist	over 90% captured
	particle sizes/condensate-generated particle size	1.0–150μm/0.10–30μm	Demister (Wave-Plate Mist Eliminator): In industrial processes and exhaust treatment, gas-liquid separation is crucial. It efficiently separates entrained mist/dust. It offers high separation efficiency, low resistance, resistance to clogging, compact installation, economical operation, safety, reliability, and ease of operation.

Spray Painting Line Process Flow Table
Step	Process	Details
1	Upper Conveyor Chain	Workpiece loading onto the conveyor system.
2	Electrostatic Dust Removal	Removes dust and particles from the workpiece surface using static electricity to ensure coating adhesion.
3	Primer Coating	Application of the primer coat.
4	Flash-off	A short resting period allowing solvents in the primer to partially evaporate and the coating to level.
5	Top Coat	Application of the final color/finish coat.
6	Flash-off	A second resting period for the top coat to level.
7	Drying/Curing	Drying and curing in an oven. Parameters: 30 minutes at 80°C.
8	Cooling	Workpiece cooling down to a safe handling temperature.
9	Unloading	Finished workpiece is unloaded from the line.
