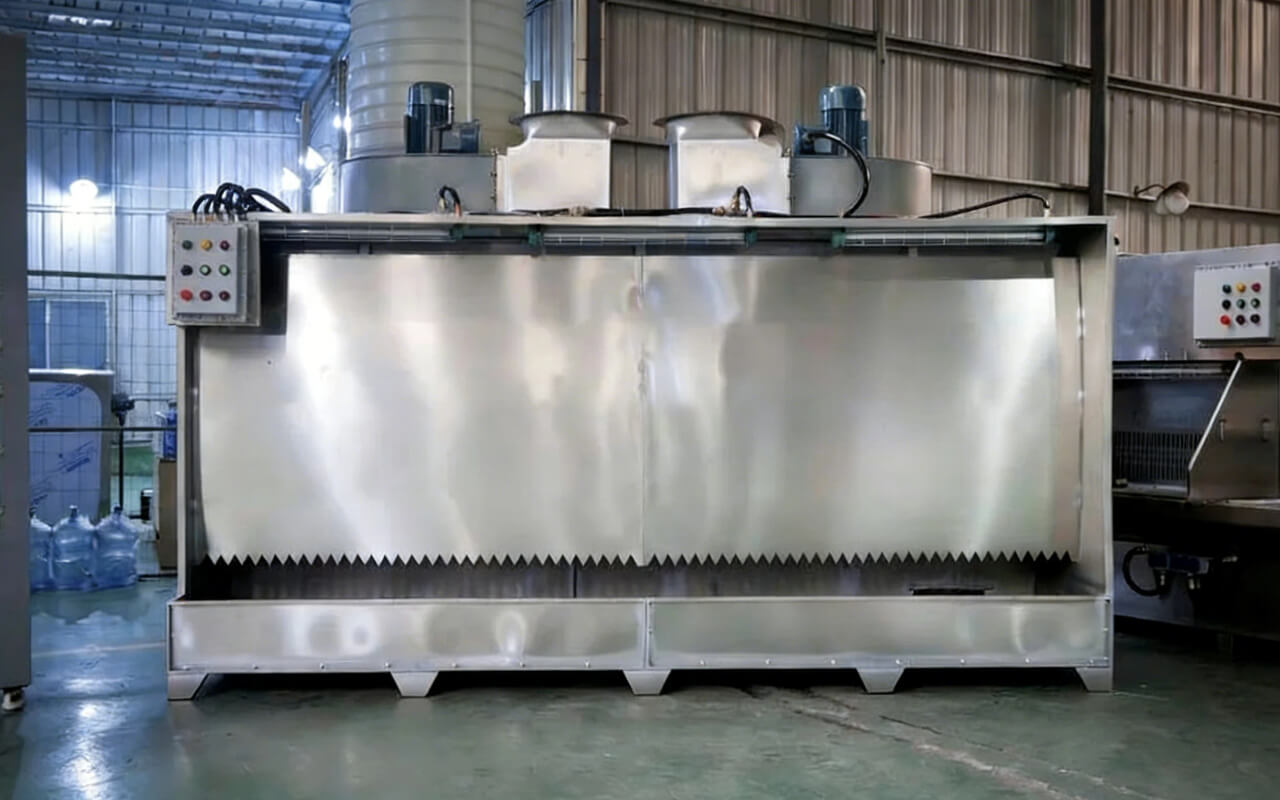

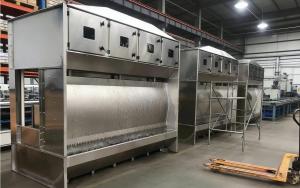

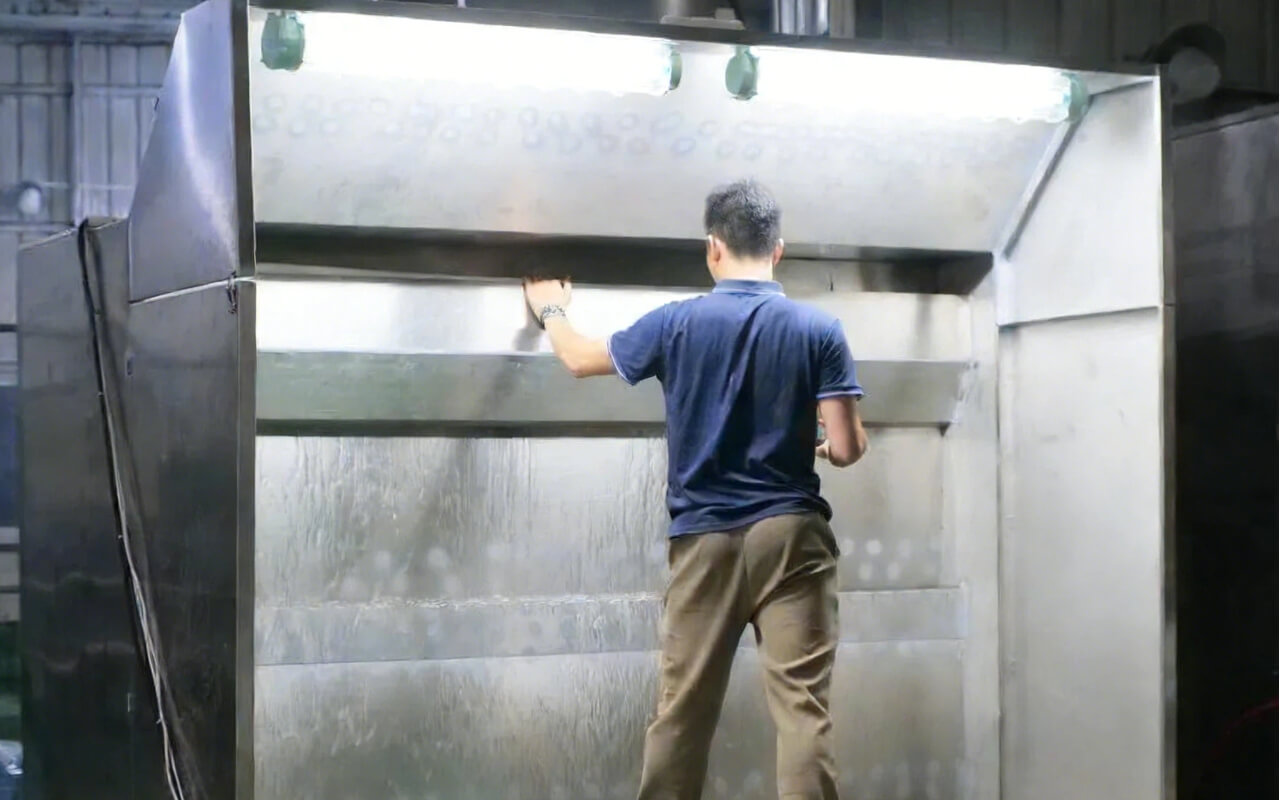

Pumpless Water Wash Spray Booth

ST-MLP-PW3383

Price: USD5000~20000

Collision & Mixing: Air containing paint mist collides with the water curtain, then enters the air-water channel where it undergoes intense mixing.
Separation: Upon entering the plenum chamber (collection box), the airflow velocity decreases, causing the air and water to separate.
Discharge: The air passes through moisture eliminator plates (baffles) before being exhausted into the atmosphere by the fan.
Circulation: The separated water gathers in the collection box, flows into the overflow trough, and spills over the flood plate to re-form the water curtain as it returns to the main tank.

The ShengTai Pumpless Water Wash Spray Booth is an advanced technical solution designed for high-efficiency paint mist purification and environmental treatment.
Working Principle
The pumpless system utilizes air-induced suction to lift water and create a continuous circulating water curtain.

Structural Features
• Base Section: A water tank is integrated into the bottom of the cabinet.
• Internal Components: The unit features a water-vapor lift pipe connected to the tank at the bottom and a water-vapor chamber at the top.
• Airflow Management: It includes a primary and secondary induction chamber. A baffle plate is positioned between the water-vapor chamber and the primary chamber.
• Distribution: The lower part of the primary chamber features a water storage trough connected to the water curtain plate.
• Filtration: A floor grating is placed between the curtain plate and the lift pipe. Mist-eliminating baffles sit between the primary and secondary chambers, with the exhaust fan mounted at the end of the secondary chamber.

Technical Advantages

• Pumpless Reliability: By eliminating the water pump, common issues like clogged pipes or pump failure are completely avoided, significantly reducing equipment downtime.

• High Efficiency: The intensive air-water agitation enhances the removal of solid paint particles, achieving a filtration rate of ≥98%.

• Easy Maintenance: Operation is as simple as starting/stopping the fan. Daily tasks only require replenishing water, while periodic maintenance involves adding flocculants and removing paint sludge.

• Zero Wastewater Discharge: Exhaust gases are purified through circulating water. You only need to clear the collected paint residue periodically, making it an eco-friendly "closed-loop" system.

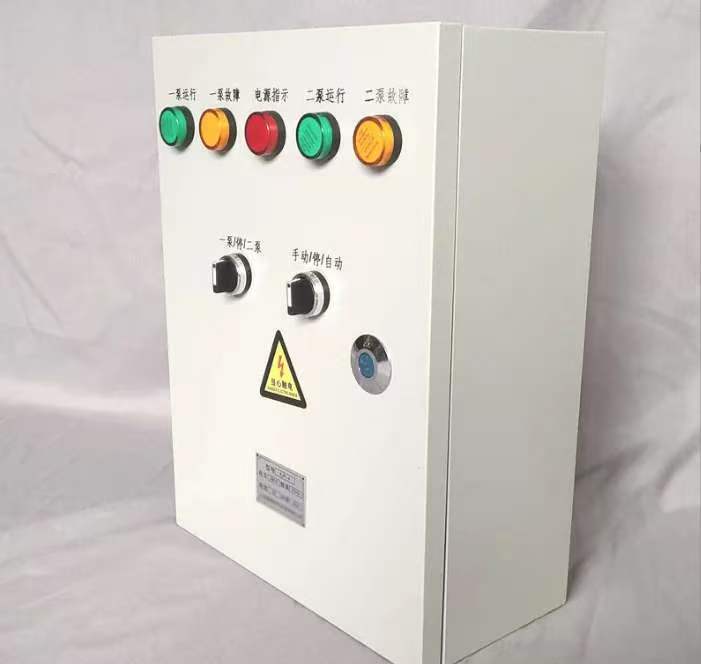

Control System

Water Pump

Dual Vortex Barrels

Configuration List for Water Curtain Spray Booth
No.	Equipment Name	Main Specifications	Quantity
1	Spray Booth	3000(W) x 3800(D) x 3000(H) mm	1 Set
2	Dual Vortex Barrels	Φ1100	2 Sets
3	Water Tank (Basin)	Stainless Steel 201 (2.0mm thickness)	-
4	Wall Panels	Stainless Steel 201 (1.2mm thickness)	-
5	Water Pump	2.2 kW	2 Units
6	Exhaust Fan (Blower)	4.0 kW	2 Units
7	Lighting	Explosion-proof	4 Sets
8	Floor Grating	30 x 30 mm	6 m²
9	Control System	For Lighting, 2x Pumps, 2x Fans	1 Set

Application Scenarios

This equipment is widely utilized across various industries including aerospace, locomotives, automotive, and heavy machinery, as well as for coating small to medium-sized components in the electronics industry.
