Liquid Spray Painting Booth

ST-MLP-W5240

Price: USD1000～4000

Water curtain surface：2600*1100*2100
Water pump:2.2 kw
High purification rate: Ensuring a clean environment for both liquid and powder coating lines.
Advantages: High purification rate, automatic water intake, low noise

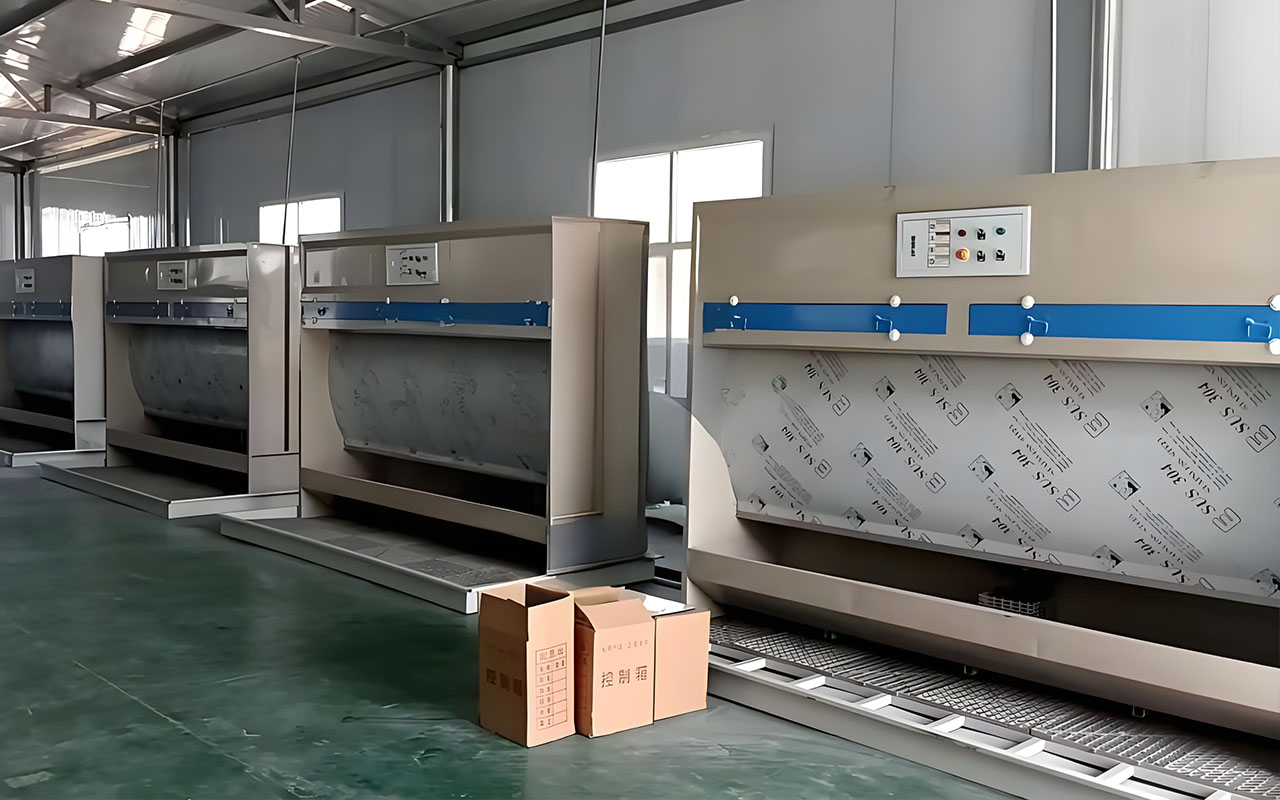

The Water Curtain Cabinet is an essential component in both liquid(wet) coating lines. It is characterized by its ability to wash residual overspray—whether from liquid coating equipment or powder—directly into the water tank or onto the water curtain surface during the spraying process. The odors and any unabsorbed particulates generated are filtered through multiple layers of the water curtain and then exhausted outside the spray booth. This crucial function serves to purify the working environment for operators of liquid coating machines, protect personnel health, and contributes to achieving a smooth finish on the painted work surface.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Equipment Features

1. High Purification Rate:Overspray from liquid coating machines is subjected to the water curtain and negative pressure before entering a multi-layer splashing chamber. This effectively filters airborne particles, ensuring a clean environment for both liquid and powder coating lines.

2. Good Ventilation Performance:Integrated seamlessly into any liquid coating line, the cabinet is equipped with a powerful 2.2 kW axial flow fan. This provides the high air volume and stable airflow necessary for efficient and prolonged operation of liquid coating equipment.

3. Automatic Water Intake Device:This system features an automatic water intake device, a key feature for maintaining consistent performance in automated liquid coating lines by ensuring the water spray continuously and effectively filters the paint.

4. Safe, Stable, and Reliable:As a reliable piece of liquid coating equipment, it safely handles exhaust gases without the need for complex treatment. Suspended particles are captured by the water, requiring only regular tank cleaning and water replacement for maintenance.

Key Attributes

Paint Spray Booth	520040002500	1 Set
Pond	26003000400	2 Sets	1.8mm201
Water Curtain Surface	260011002100	2 Sets	304*1.0
Grid	3*3	15.6 Ping	Spraying Plastics
Water Pump	2.2 Kw	2 Sets	Sewage Pump
Illuminate	Led	4 Zu	Be Explosion-Proof
Control	Illuminate Water Pump *3 Fan 18.5 Kw	1 Set	Delixi
Fan	18.5 Kw	1 Set	Three Billion
Pipeline+Discharge	Φ600	1 Batch	Galvanize
