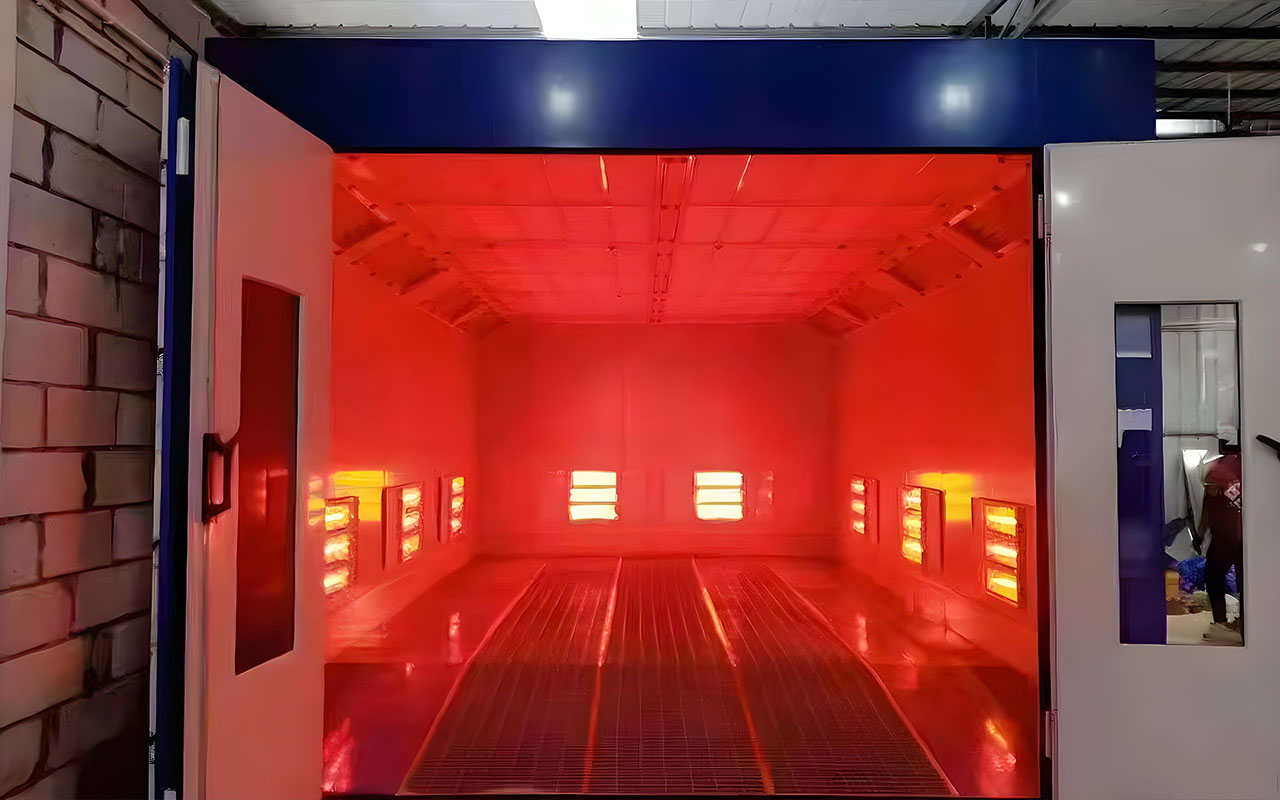

High-quality Automotive Paint Oven for Vehicles

STC30

Price: USD500~2000

Clean Air System: Multi-stage filtration ensures high-quality paint finish
Uniform Heating: Even temperature distribution for perfect curing
Energy Efficient: Optimized insulation and heating reduce energy consumption
Spray & Bake Integrated: Improves painting efficiency and workflow

Automobile spray booths integrate advanced technology and design to deliver efficient, high-quality, and environmentally responsible vehicle coating, making them essential in the automotive industry.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

How to choose a suitable car paint booth

How to Choose the Right Automobile Spray Booth Selecting a suitable spray booth requires considering multiple factors.

Key considerations include:

Technical Parameters

1. Airflow & velocity: Uniform top-down airflow at 0.2–0.3 m/s ensures timely removal of paint mist.

◦ Positive pressure design: Slightly higher intake than exhaust maintains positive pressure (>0.05–0.1) to prevent dust entry.

◦ Heating & temperature stability: Heating from 20°C to 60°C within 10–15 minutes, with precise temperature control based on actual metal body temperature.

◦ Air exchange rate: 5–10 times per hour to maintain air freshness and reduce odors/harmful gas buildup.

2. Filtration System

◦ Ceiling and floor filters: Ceiling filters (e.g., EU5, EU6, VF600G) with >95% efficiency; floor filters should absorb paint particles to minimize environmental pollution.

◦ Filtration performance test: Use a sun lamp to inspect—fewer than 5 tiny dust particles per square meter indicates high air cleanliness.

3. Lighting & Environment

◦ Illuminance: 800–1000 lux with D65 light source to simulate natural daylight for accurate color assessment.

◦ Walls & sealing: Matte white walls reduce glare; tight booth sealing prevents air leakage and dust accumulation at joints.

4. Heating System

◦ Heating methods: Choose among fuel, gas, or electric heating based on needs. Fuel heating is cost-effective but requires oil residue management; gas is eco-friendly and efficient; electric offers rapid heating and precise control.

◦ Sealing & safety: Ensure burners and chimneys are well-sealed with no oil/dust leaks. Safety devices like overheat and leakage protection are essential.

5. Environmental Performance

◦ Paint mist treatment: Effective systems such as dry filtration or wet water curtains meet emission standards and reduce pollution.

◦ Exhaust treatment: For fuel or gas heating, install exhaust purification (e.g., catalytic combustion, activated carbon adsorption) to lower harmful emissions.

6. Dimensions & Space

◦ Booth size: Select according to vehicle size and operational needs to ensure easy access and sufficient working space.

◦ Floor design: Flat, anti-slip, and easy-to-clean floors; some booths may require pits or basements for exhaust—consider layout during planning.

7. Brand & Service

◦ Brand reputation: Opt for reputable brands with reliable product quality and after-sales support. Check user reviews, case studies, and certifications.

◦ After-sales service: Evaluate the manufacturer’s support, including installation, maintenance, repair, and spare parts availability, to ensure long-term stable operation.

Key Attributes

ST-C30 Configuration Table of Automotive Spray Paint Room
	Basic Configuration			Optional
Size	Outside size		700052503400mm(LWH)	Customizable size
	Inside size		690039002650mm(LWH)	Customizable size
Entrance door	3 high-strength sheet metal doors, size: 3000 * 2600mm (width * height), sandwich anti flame retardant EPS board, covered with special protective film on the surface.			Optional four glass doors, additional charge
Work gate	Size: 750 * 1900mm (width * height), aluminum alloy edge wrapped safety work door, door panel material 50mm thick flame- retardant EPS board, equipped with observation window and pressure lock. Work door color: The default color is the same as the wall panel color, and customization will incur additional fees.
Housing system	Top		The top is a purification room with a height of 450mm, and the ceiling filter frame is filled with high-quality filter cotton.
	Wall Panel		50mm socket type flame-retardant EPS insulation board, 0.42mm color steel plate.	EPS/rock wool board optional
	Roof		The top plate is made of 0.8mm galvanized bent iron plate.

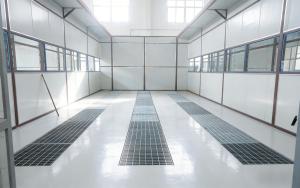

	Bottom structure		Equipped with 2 steel grilles and 3 patterned plates. There is a support frame with floor filter cotton under the steel grating. 2 sets of ramp platform dimensions: 750 * 1800mm (length * width). There is a step platform at the safety gate.	① Optional 3 grilles+2 panels or optional full grille ②Choose 3 sets of climbing platforms and 4 sets of climbing platforms
	Base		300 millimeters highHigh quality galvanized sheet, thickness: 1.0mm, powder coated. (default color galvanized silver pink)
	Ventilation system		Send upwards and suck downwards. The air inlet is located at the top, the exhaust outlet is located at the bottom, and the paint mist exhaust gas is discharged through the lower chamber.
Air intake and exhaust system	Inlet fan		2 * 4kw double inlet centrifugal fan, The total air volume is 25000m ³/H.
	Outlet fan		1 * 7.5kw centrifugal exhaust fan, each with an air volume of 22000m ³/H.
	Pipe fitting		Equipped with 4 rectangular air ducts, 1 90 ° elbow, and 1 45 ° elbow.
	Wind speed		Loaded wind speed: 0.25 m/s;Ventilation rate: 280 time/h.
	Occurrence of box		Installed on the side of the building, welded frame, and sprayed treatment. (default color is the same as the door color), filled with rock wool board in the middle.
Heating system	Heating method		Fuel heating+heat exchanger.Adopting double-layer stainless steel material heat exchanger.
	Fuel heating		Italian RIELLO G20 gas burner, Heating capacity: 180000Kcal/h, Heating time: 6-8 minutes (20-80°C).
Lighting system	Overhead lighting		8 sets of 4 x 16w LED high-efficiency energy-saving lamps, galvanized sheet painted light box shell. The ceiling is installed at a 45 degree angle on both sides.
	Side lighting		10 sets of * 1 x 60w LED high-efficiency energy-saving lamps, vertically installed.
Filtration system	Air inlet filtration		G3 level, filtering effect>83%.
	Top filter		EU5 level efficient filtration, with a filtration effect greater than 98%,Ventilation cotton filtration.
	Bottom filtration		Multi layer glass fiber cotton with a filtration effect of over 70%.
	Box paint mist filtration		Activated carbon cotton filter.
Electric control system	Control panel		Intelligent electronic control system.
	Function		Lighting/temperature time setting/painting/constant temperature painting/baking paint/emergency stop/fault alarm.
Total power		16.6kw
Voltage frequency		380V，50HZ，3PH（Optional）
