Industrial Automotive Paint Spray Booth

ST-C107051

Price: USD1500～5000

Heating method:Fuel heating+heat exchanger
Air inlet filtration:G3 level, filtering effect>83%
Box paint mist filtration:Activated carbon cotton filter
Control panel:Intelligent electronic control system

Automotive paint booths are equipped with efficient air supply and exhaust systems and multi-stage filtration devices to ensure uniform airflow and timely removal of paint mist, resulting in a smoother and more delicate paint surface.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Equipment Features

1. Lighting & Workspace:Equipped with shadow-free or high-brightness lighting (>800–1000 lux), providing clear visibility and minimizing shadows and color distortion. Booth dimensions can be customized to accommodate different vehicle sizes.

2.Safety Protections:Includes temperature controllers, explosion-proof systems, overload and short-circuit protection, and automatic temperature regulation to prevent overheating, fire hazards, and ensure operational safety.

Key Attributes

	Basic Configuration	Optional
Size	Outside size	700051003300mm(LWH)	Customizable size
	Inside size	690039002650mm(LWH)	Customizable size
Entrance door	3 aluminum alloy edge wrapped doors, size: 3000 * 2600mm (width * height), sandwich anti flame retardant EPS board, covered with special protective film on the surface.		Optional sheet metal door/four glass doors, additional charge.
Work gate	Size: 750 * 1900mm (width * height), aluminum alloy edge wrapped safety work door, door panel material 50mm thick flame-retardant EPS board, equipped with observation window and pressure lock. Work door color: The default color is the same as the wall panel color.		Customizable colors, additional fees charged.
Housing system	Top	The top is a purification room with a height of 370mm, and the ceiling filter frame is filled with high-quality filter cotton.
	Wall Panel	50mm socket type flame-retardant EPS insulation board, 0.32mm color steel plate.	EPS/rock wool board optional
	Roof	The top plate is made of 0.8mm galvanized bent iron plate.

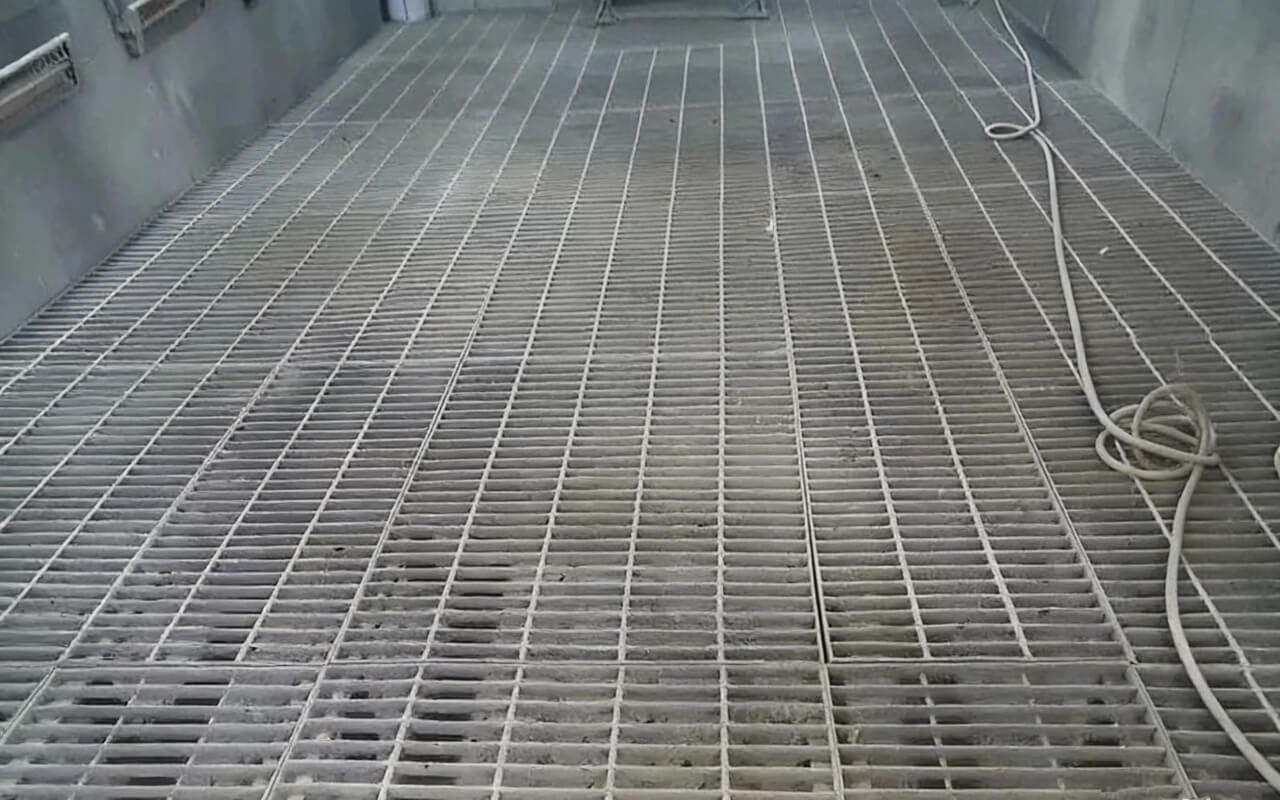

	Bottom structure	Equipped with 2 steel grilles and 3 patterned plates. There is a support frame with floor filter cotton under the steel grating. 2 sets of ramp platform dimensions: 750 * 1800mm (length * width). There is a step platform at the safety gate.	① Optional 3 grilles+2 panels or optional full grille ②Choose 3 sets of climbing platforms and 4 sets of climbing platforms
	Base	280 millimeters highHigh quality galvanized sheet, thickness: 1.0mm, powder coated. (default color galvanized silver pink)
	Ventilation system	Send upwards and suck downwards. The air inlet is located at the top, the exhaust outlet is located at the bottom, and the paint mist exhaust gas is discharged through the lower chamber.
Air intake and exhaust system	Inlet fan	2 * 3kw double inlet centrifugal fan, The total air volume is 16000m ³/H.
	Outlet fan	None, optional configuration.
	Pipe fitting	Equipped with 4 rectangular air ducts, 1 90 ° elbow, and 1 45 ° elbow.
	Wind speed	Loaded wind speed: 0.25 m/s;Ventilation rate: 280 time/h.
	Occurrence of box	Installed on the side of the building, welded frame, and sprayed treatment. (default color is the same as the door color), filled with rock wool board in the middle.
Heating system	Heating method	Fuel heating+heat exchanger.Adopting double-layer stainless steel material heat exchanger.
	Fuel heating	Domestic RIELLO G10 gas burner, Heating capacity: 100000Kcal/h, Heating time: 6-10 minutes (20-80°C).

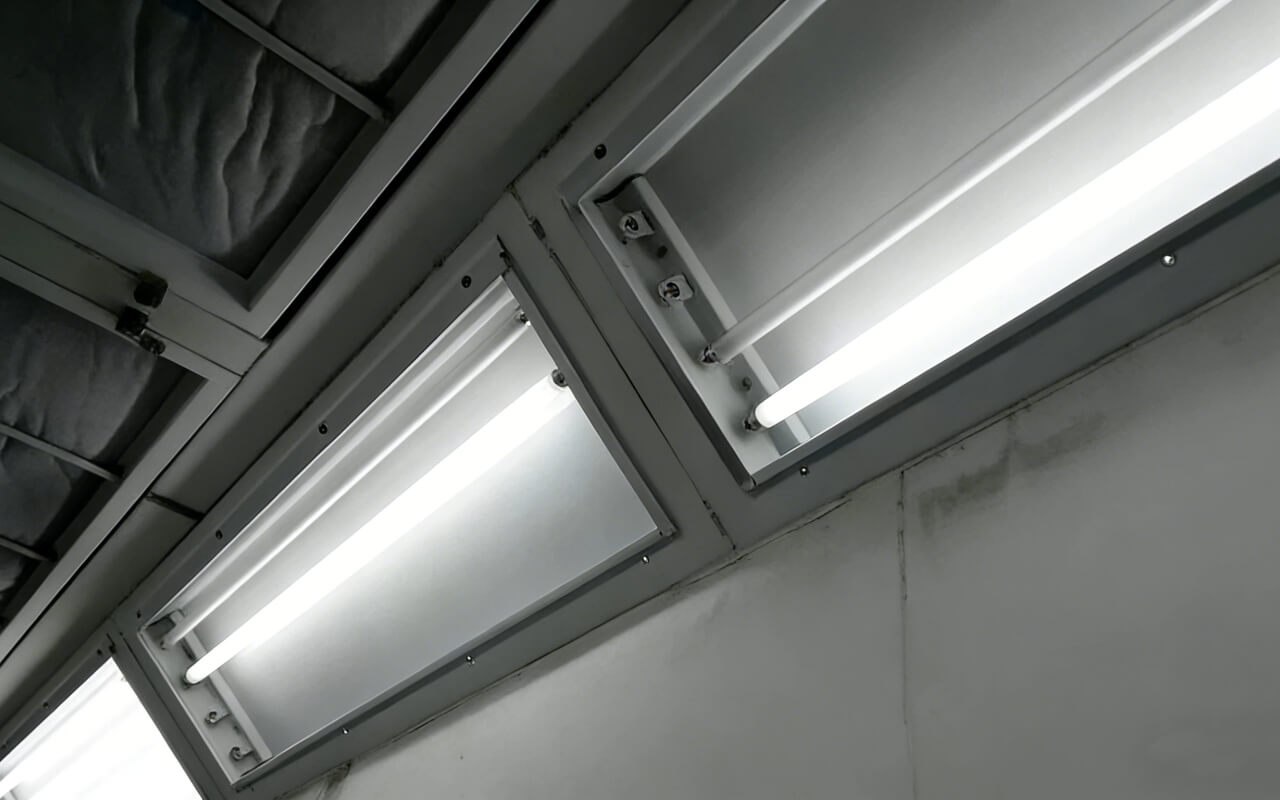

Lighting system	Overhead lighting	8 sets of 4 x 16w LED high-efficiency energy-saving lamps, galvanized sheet painted light box shell. The ceiling is installed at a 45 degree angle on both sides.
	Side lighting	None, optional configuration.
Filtration system	Air inlet filtration	G3 level, filtering effect>83%.
	Top filter	EU5 level efficient filtration, with a filtration effect greater than 98%,Ventilation cotton filtration.
	Bottom filtration	Multi layer glass fiber cotton with a filtration effect of over 70%.
	Box paint mist filtration	Activated carbon cotton filter.
Electric control system	Control panel	Intelligent electronic control system.（Knob)
	Function	Lighting/temperature time setting/painting/constant temperature painting/baking paint/emergency stop/fault alarm.
Total power	6.6kw
Voltage frequency	380V，50HZ，3PH（Optional）
