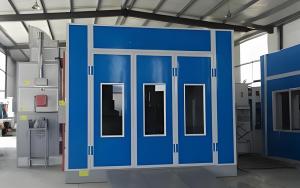

Professional Automotive Paint Booth

STC20

Price: USD1500～5000

Wall Panel:50mm socket type flame-retardant EPS insulation board, 0.37mm color steel plate
Outlet Fan:1 * 5.5kw centrifugal exhaust fan, each with an air volume of 15000m ³/H
Excellent Heat Retention：High-quality insulation materials are used to reduce heat loss and lower energy consumption
Intelligent Temperature Control ：Equipped with an automatic temperature control system to precisely adjust the temperature and avoid energy waste.

During the baking stage, the paint spray booth uses a constant-temperature hot air circulation heating system to ensure that the paint film is heated evenly and cured quickly, guaranteeing consistent color, strong adhesion, and resistance to blistering or cracking. The entire machine features energy efficiency, environmental friendliness, safe operation, and stable performance. It can be customized to meet different vehicle models, site conditions, and process requirements, and is widely used in 4S car dealerships, repair shops, manufacturing enterprises, and the modification industry.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Equipment Advantages

1.Energy Efficiency & Environmental Compliance:Energy-saving technologies such as electric or infrared heating lower operational costs. Exhaust treatment systems (e.g., activated carbon adsorption, water curtain filtration) reduce solvent emissions and meet environmental standards.

2. Better Working Conditions:Effective ventilation and filtration lower concentrations of paint mist and solvents, minimizing operators' exposure to harmful substances and promoting a healthier work environment.

Key Attributes

ST-C20 Configuration Table of Automotive Spray Paint Room
	Basic Configuration			Optional
Size	Outside size		700051003300mm(LWH)	Customizable size
	Inside size		690039002650mm(LWH)	Customizable size
Entrance door	3 aluminum alloy edge wrapped doors, size: 3000 * 2600mm (width * height), sandwich anti flame retardant EPS board, covered with special protective film on the surface.			Optional sheet metal door/four glass doors, additional charge.
Work gate	Size: 750 * 1900mm (width * height), aluminum alloy edge wrapped safety work door, door panel material 50mm thick flame-retardant EPS board, equipped with observation window and pressure lock. Work door color: The default color is the same as the wall panel color.			Customizable colors, additional fees charged.

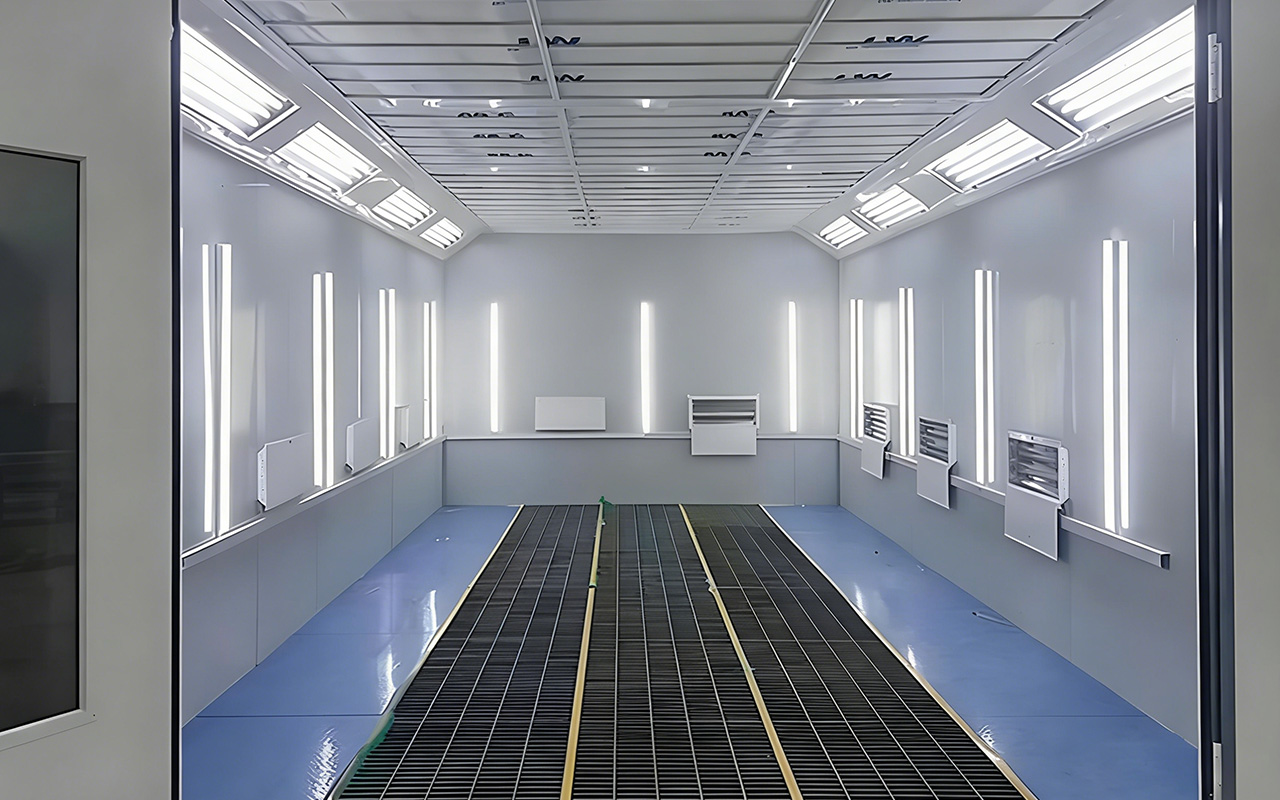

Housing system	Top		The top is a purification room with a height of 370mm, and the ceiling filter frame is filled with high-quality filter cotton.
	Wall Panel		50mm socket type flame-retardant EPS insulation board, 0.37mm color steel plate.	EPS/rock wool board optional
	Roof		The top plate is made of 0.8mm galvanized bent iron plate.
	Bottom structure		Equipped with 2 steel grilles and 3 patterned plates. There is a support frame with floor filter cotton under the steel grating. 2 sets of ramp platform dimensions: 750 * 1800mm (length * width). There is a step platform at the safety gate.	① Optional 3 grilles+2 panels or optional full grille ②Choose 3 sets of climbing platforms and 4 sets of climbing platforms
	Base		280 millimeters highHigh quality galvanized sheet, thickness: 1.0mm, powder coated. (default color galvanized silver pink)
	Ventilation system		Send upwards and suck downwards. The air inlet is located at the top, the exhaust outlet is located at the bottom, and the paint mist exhaust gas is discharged through the lower chamber.
Air intake and exhaust system	Inlet fan		2 * 3kw double inlet centrifugal fan, The total air volume is 16000m ³/H.
	Outlet fan		1 * 5.5kw centrifugal exhaust fan, each with an air volume of 15000m ³/H.
	Pipe fitting		Equipped with 4 rectangular air ducts, 1 90 ° elbow, and 1 45 ° elbow.
	Wind speed		Loaded wind speed: 0.25 m/s;Ventilation rate: 280 time/h.
	Occurrence of box		Installed on the side of the building, welded frame, and sprayed treatment. (default color is the same as the door color), filled with rock wool board in the middle.
Heating system	Heating method		Fuel heating+heat exchanger.Adopting double-layer stainless steel material heat exchanger.
	Fuel heating		Domestic RIELLO G10 gas burner, Heating capacity: 100000Kcal/h, Heating time: 6-10 minutes (20-80°C).
Lighting system	Overhead lighting		8 sets of 4 x 16w LED high-efficiency energy-saving lamps, galvanized sheet painted light box shell. The ceiling is installed at a 45 degree angle on both sides.
	Side lighting		None, optional configuration.
Filtration system	Air inlet filtration		G3 level, filtering effect>83%.
	Top filter		EU5 level efficient filtration, with a filtration effect greater than 98%,Ventilation cotton filtration.
	Bottom filtration		Multi layer glass fiber cotton with a filtration effect of over 70%.
	Box paint mist filtration		Activated carbon cotton filter.
Electric control system	Control panel		Intelligent electronic control system.（Knob)
	Function		Lighting/temperature time setting/painting/constant temperature painting/baking paint/emergency stop/fault alarm.
Total power		12.6kw
Voltage frequency		380V，50HZ，3PH（Optional）
