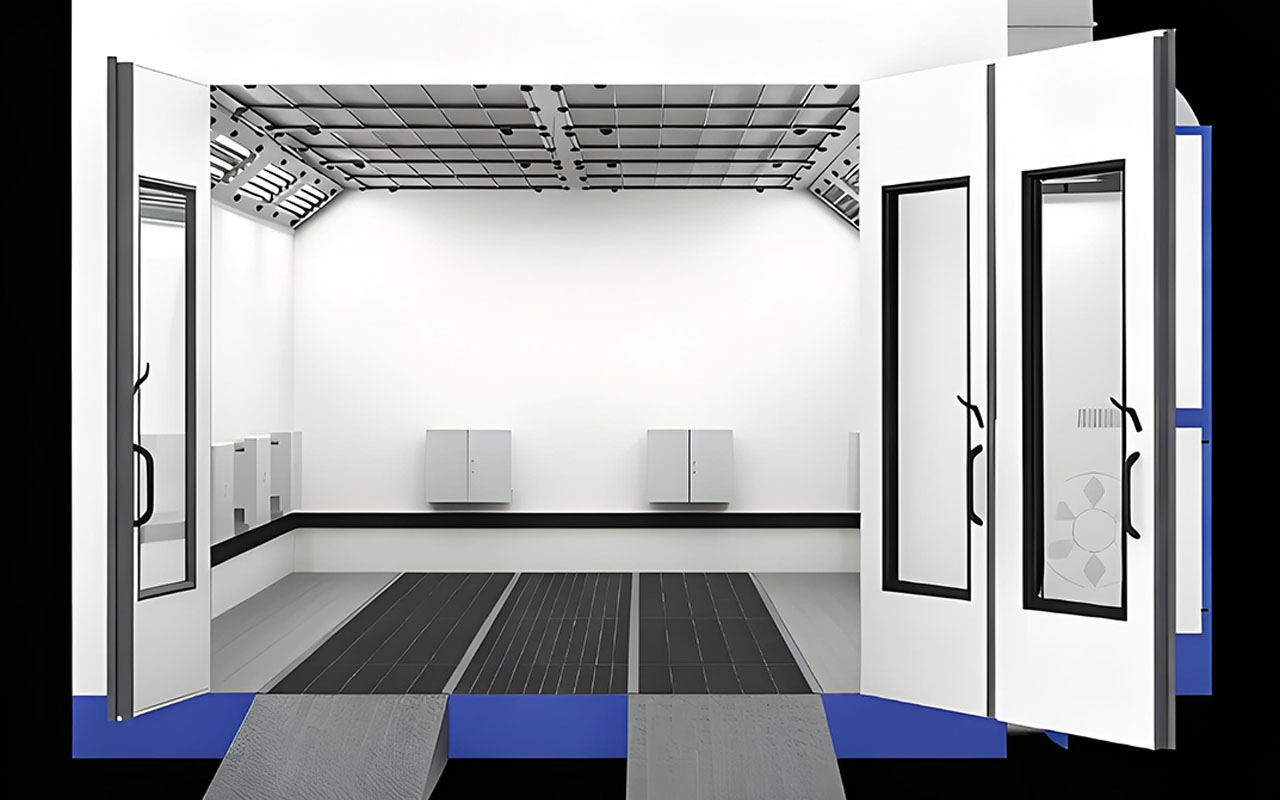

Environmentally Friendly Automotive Paint Booth Equipment

ST-LPC800

Price: USD500~2000

Heating method:Electric heating
Air change rate in the chamber:260
Rated power:24kW
Material:Rock Wool Composite Panel

Featuring a fully enclosed design and equipped with a high-efficiency filtration system, it effectively reduces dust pollution and ensures a clean painting environment. The built-in intelligent temperature control system precisely adjusts the baking temperature and time, shortening the work cycle and improving work efficiency.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Equipment Features

1. Precise Temperature Control:

Offers a wide adjustable temperature range: typically 20–25°C for spraying and 60–80°C or higher for curing. Temperature precision is within ±2°C, ensuring even paint drying.

2. Optimized Airflow Design:

Features downdraft airflow, where air enters from the top and moves downward at 0.2–0.6 m/s, directing paint particles toward the floor exhaust and reducing overspray and surface contamination.

Key Attributes

Specifications	Custom deposit
Model	ST-LPC-800
Overall Dimension	800051003600
Heating method	Electric heating
Air change rate in the chamber	260
Material	Rock Wool Composite Panel
Control Method	Semi-automatic Control
Rated power	24kW
Heating time	5-10
Operating temperature	60-80
Maximum operating temperature	80
Side door dimensions	650*2000mm
Fan air volume (m³/h)	3000m³/h
Full load chamber wind speed (m/s)	0.4m/s
Chamber inner dimensions	690039002650

No.	System	Description
1	Enclosure System	1. Enclosure made of rock wool fire-resistant panels, thickness 5cm, double-sided color steel plate thickness 0.326mm, white. 2. Main beam: 40401.2mm galvanized square tube welding. 3. Roof panel: 0.6mm galvanized sheet metal bending and assembly. 4. Entry/exit door: Manual triple-opening metal door, door opening size: W3m * H2.6m. 5. Enclosure cladding: 1.0mm galvanized sheet metal bending.
2	Platform System	1. Base: 1.2mm galvanized sheet metal bending and welding. 2. Internal two rows of anti-skid checkered plate, material: National standard 3mm checkered plate. 3. Internal three rows of galvanized grating, material: 3cm4mm flat steel welded and galvanized. 4. Secondary ground beam: 40601.8mm galvanized square tube welding. 5. Main ground beam: 4040*1.5mm galvanized square tube welding.
3	Air Supply Unit	1. Generator cabinet: 40401.2mm square tube welding, filled with 1.2mm galvanized sheet in the middle. 2. Supply fan: 2 units of 3kw YDW HVAC fans (Jiangsu Hengkang or Yancheng Kia), Fan air volume: 10000m³/h, Pressure: 710Pa. 3. Fan unit square tubes and galvanized sheets overall plastic coating (Color: 7035).
4	Lighting System	1. Light box: 0.8mm galvanized sheet metal bending, welding, and plastic coating (White). 2. Internal 4-tube LED lights.
5	Indoor HEPA Filtration	1. Connection beam: T1.2mm galvanized sheet welding and plastic coating (White). 2. Filter frame: 25251.0mm galvanized square tube welding (White). 3. Filter cotton: 600G 3D spray adhesive cotton.
6	Heating System	1. Internal 10 sets of infrared baking lamps, 3 tubes per set, tube power: 1kw. 2. Protective covers installed externally for the baking lamps; close covers during spraying, open covers during baking. 3. Baking lamps divided into 5 groups for control, control point located in the main control box.
7	Control System	1. Electrical components use Chint (Zheng Tai) brand. 2. Fans equipped with overload protection. 3. Dual protection for baking temperature and time.
8	Eco Exhaust & Fresh Air System	1. Generator cabinet: 40401.2mm square tube welding, filled with 1.2mm galvanized sheet in the middle. 2. Exhaust fan: 1 unit of 7.5kw YDW HVAC fan (Jiangsu Hengkang or Yancheng Kia), Fan air volume: 20000m³/h, Pressure: 810Pa. 3. Internal 2 layers of paint mist filter + 1 layer of honeycomb activated carbon. 4. Fan unit square tubes and galvanized sheets overall plastic coating (Color: 7035). 5. Air outlet duct: Standard configuration, total two straight sections, one 90° elbow.
