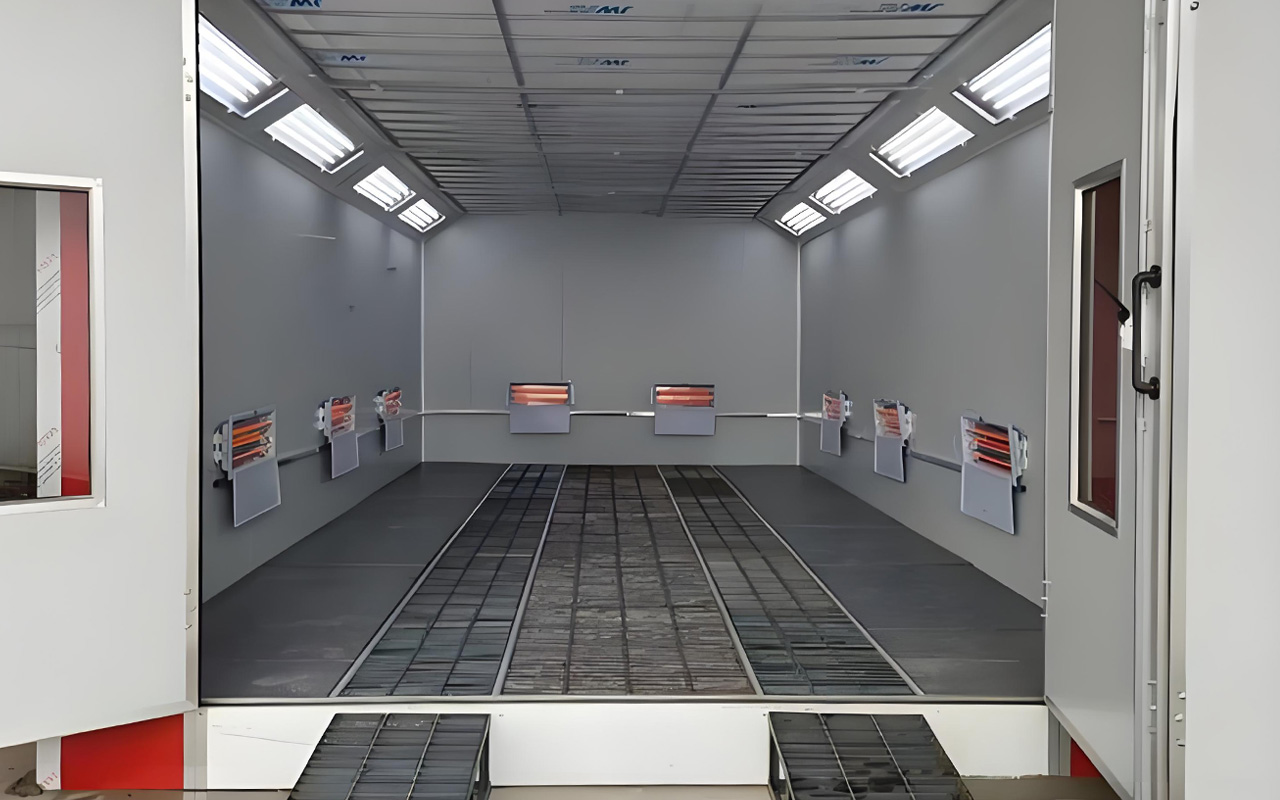

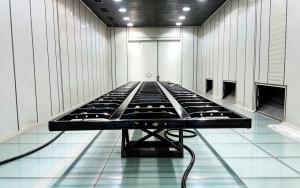

High-efficiency And Energy-saving Automotive Paint Booth

ST-LPC7040

Price: USD1500～5000

Heating System: Riello FS10: 100,000 kcal/hour
Ventilation System: The unit is installed on the side of the room, adopting an upward air supply and side suction method
Excellent Heat Retention: High-quality insulation materials are used to reduce heat loss and lower energy consumption
Intelligent Temperature Control: Equipped with an automatic temperature control system to precisely adjust the temperature and avoid energy waste

An automotive paint spray booth is a professional coating equipment that integrates painting, baking, and ventilation filtration. It is mainly used for surface spraying and paint film drying of automobiles and their parts. Through scientific airflow organization and a high-efficiency filtration system, the equipment provides a clean and stable working environment for painting operations, effectively reducing the impact of dust and impurities on the paint surface.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Equipment Features

1.Integrated Spray Painting and Baking Design: Integrates spray painting and baking functions into one unit, enabling rapid switching between spraying and drying, improving maintenance and production efficiency.

2.High-Efficiency Air Filtration System: Multi-stage filtration effectively removes dust and impurities from the air, ensuring a clean painting environment and improving paint quality.

3.Optimal Airflow Organization: Employing a top-feed/bottom-exhaust or side-feed/side-exhaust airflow structure ensures uniform airflow distribution and rapid paint mist removal, reducing paint surface defects.

4.Constant Temperature Baking System: Precise temperature control design ensures rapid heating and uniform temperature, guaranteeing full curing of the paint film, stable color, and resistance to blistering or cracking.

Key Attributes

Item	Specification

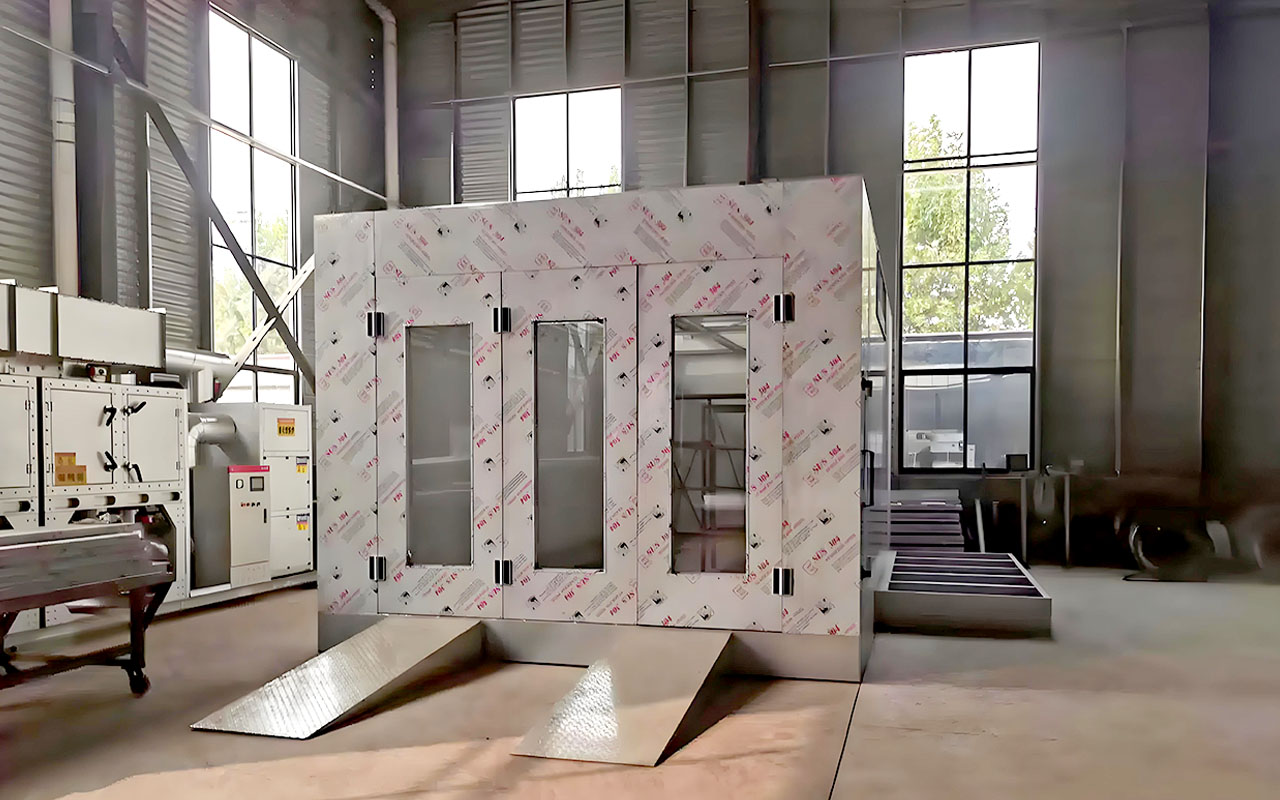

Overall Size	L7000 × W4000 × H3400 mm side compartment encompassed
Inside Dimension	L6900 × W3900 × H2600 mm
Color Scheme	Optional

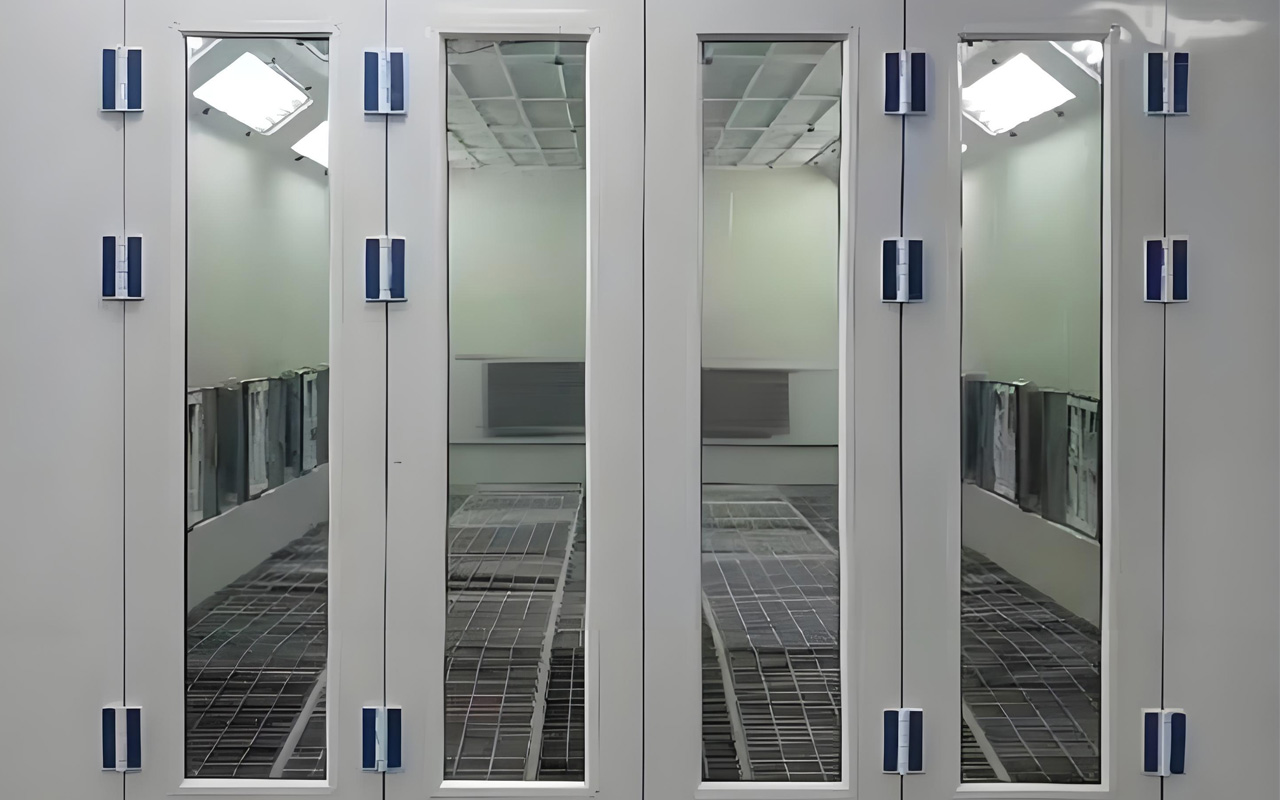

Gate Dimension	W3000 × H2600 mm
Operating Door Size	W750 × H1900 mm
Room System	The wall panels are made of 50mm interlocking flame-retardant rock wool boards and 0.42mm color steel panels; the roof is made of high-quality 0.8mm galvanized curved iron sheets; includes bottom rails but excludes trolleys.
Heating System	Riello FS10: 100,000 kcal/hour.
Lighting System	Explosion-proof LED energy-saving lights installed on the top, with explosion-proof side lights on both sides
Ventilation System	The unit is installed on the side of the room, adopting an upward air supply and side suction method.
Exhaust System	Utilizes upward air supply with side suction for extraction. Each system is equipped with a 2 × 3 kW centrifugal fan with a total air volume of 22,000 m³/h, and one 5.5 kW exhaust fan with an air volume of 16,000 m³/h. The system includes four rectangular ducts, one 90° elbow, and one 45° elbow.
Filtration System	Top purification layer: EU5-grade high-temperature filter. - Bottom layer: Multi-layer glass fiber cotton. - Air inlet: G3-grade filter cotton. - Activated carbon cotton for paint mist filtration.
Control System	Equipped with a knob-type intelligent electronic control system.
Auxiliary Materials	One set of auxiliary materials supplied and installed
Voltage & Frequency	380V / 50Hz / 3-phase (optional)
