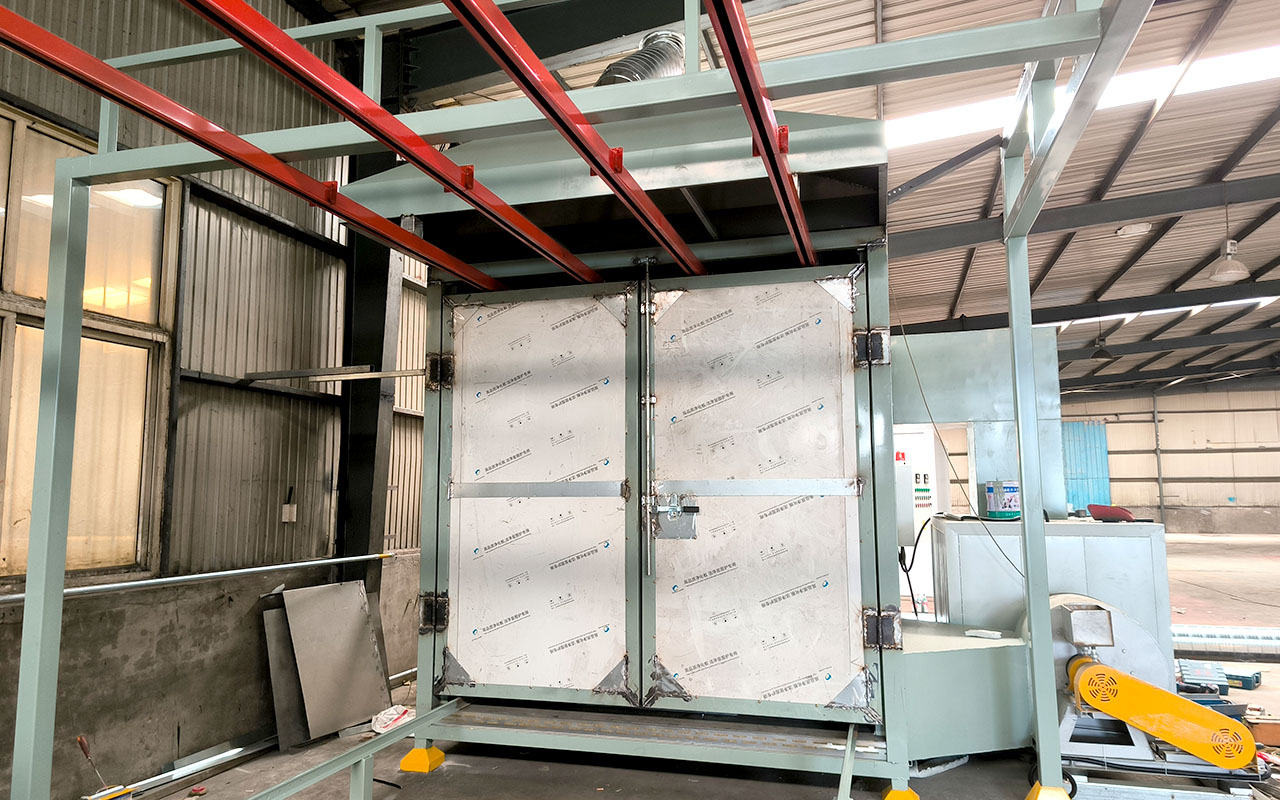

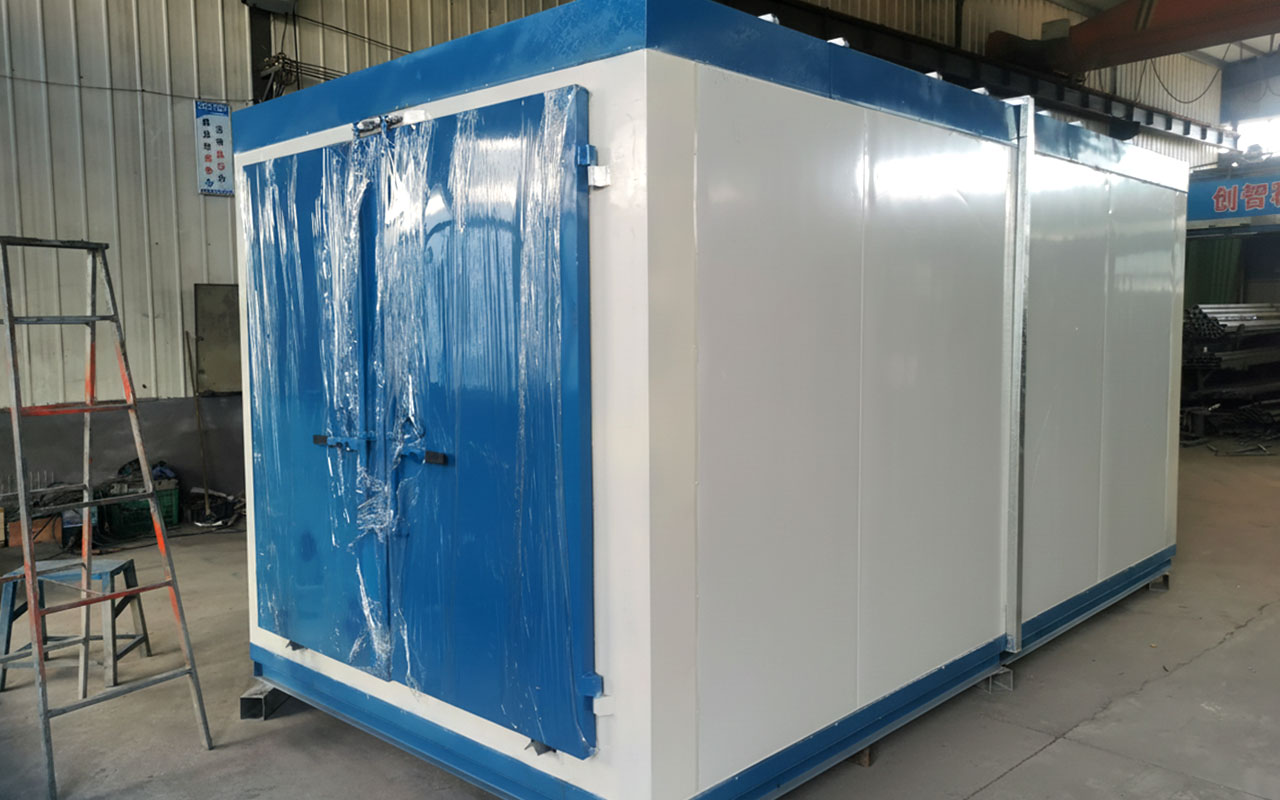

Manual powder coating line oven

ST-MPC-C1012

Price: USD5000~10000

External Equipment Dimensions: Length 1000mm * Width 1200mm* Height 1200mm
Internal Effective Dimensions: 800mm *800mm *800mm
Liner Material: SUS201 Stainless Steel
Outer Shell Material and Thickness: Plastic-coated steel plate, thickness 0.8mm

Electrical and Control System
1. Controller Type: Digital display type, with timer function
2. Temperature Control Instrument Brand: RKC
3. Heating Element Type and Material: U-shaped iron heating tube, replaceable
4. Total Current Load / Power Supply Size: 6KW, 220V
5. The electrical control box is an independent, separate design, facilitating future maintenance.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Manual powder coating line oven

Parameters

Item	Specification
External Equipment Dimensions (L×W×H)	1000 × 1200 × 1200 mm
Internal Effective Dimensions (L×W×H)	800 × 800 × 800 mm
Liner Material	SUS201 Stainless Steel
Outer Shell Material	Plastic-coated Steel Plate
Outer Shell Thickness	0.8 mm
Insulation Layer Material	Rock Wool
Insulation Layer Thickness	100 mm

Performance and Safety Protection

Item	Specification
Heating Time	Approximately 30 minutes from ambient temperature to 200 °C
Temperature Control Range	0–250 °C (maximum)
Temperature Uniformity Accuracy	±5 °C (based on actual measured data)
Over-temperature Protection Type	Manual reset with audible alarm
Air Circulation Mode	No internal forced-air circulation (natural convection)

Internal Structure and Accessories

Item	Specification
Bottom Plate	Equipped with a pull-out bottom plate
Hanging Rods	Equipped with hanging rods, suitable for suspending workpieces
Exhaust Vents	Equipped with adjustable exhaust vents on the top
Door Structure	Single-opening door with lock hook assembly and silicone seal
Documentation	Instruction manual included

Packaging and Shipping

Item	Specification
Dimensions After Wooden Case Packing (L×W×H)	1100 × 1300 × 1300 mm
Gross Weight	150 kg
Forklift Handling	Equipped with forklift pockets
Shipping Standard	Complete set shipped, includes instruction manual
