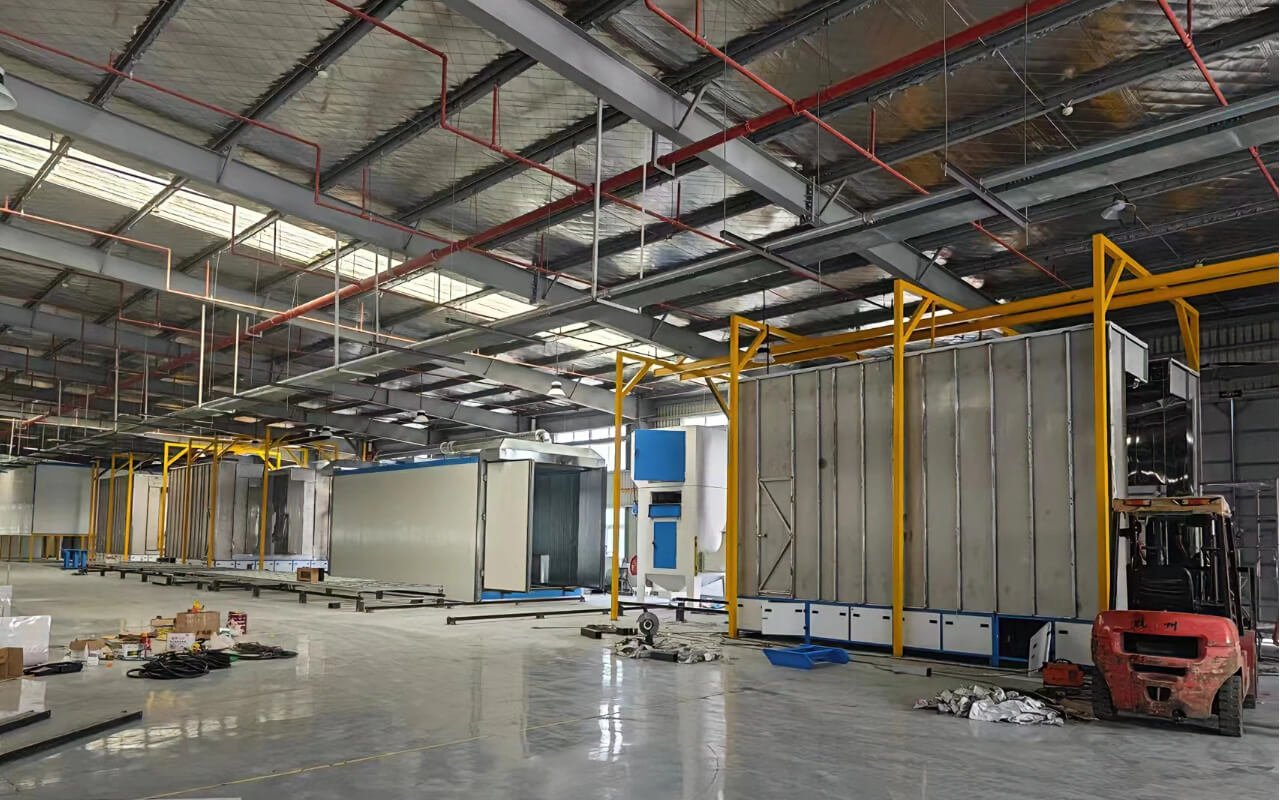

High-Temperature Curing Oven for Powder Coating Line

ST-MPC-C6628

Price: USD5000~10000

Precise Temperature Control: Utilizes high-precision temperature sensors and controllers to ensure accurate and stable temperature regulation.
Uniform Heating: Ensures even distribution of indoor temperature through an optimized air circulation system and heating element layout, preventing local overheating.
Efficient Insulation: High-quality insulation materials reduce heat loss, improve energy efficiency, and maintain a suitable external surface temperature.
Customized Design: Offers high-temperature room solutions in various sizes, configurations, and functions based on specific user requirements

Ovens and curing booths can be tailored to your specific requirements, such as temperature settings and air exchange rates. These efficient, well-insulated configurations can be adapted to suit both new and existing facility arrangements. Before proceeding with the design of a curing oven, it is essential to determine line speed, product opening dimensions, spacing between hangers, as well as the weight of both products and conveyor systems.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

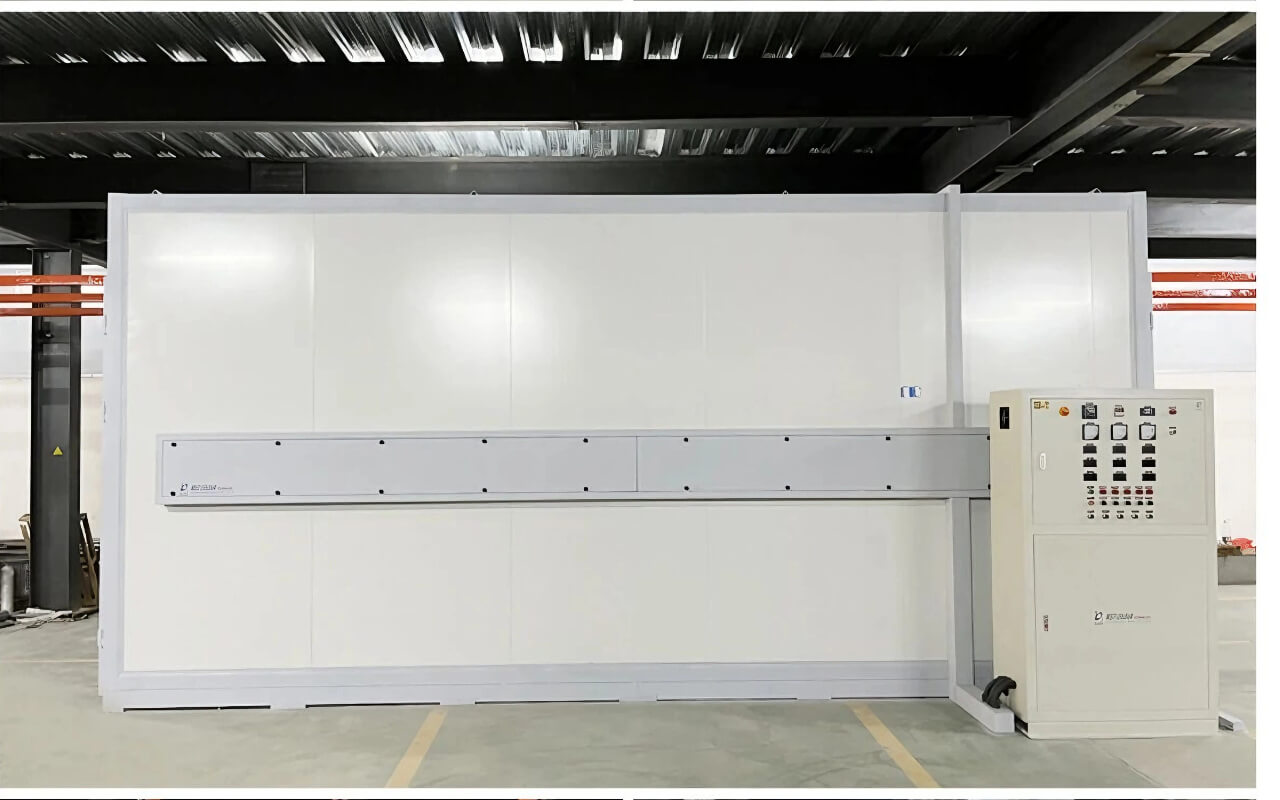

High-Temperature Curing Oven for Powder Coating

INDUSTRIAL CURING OVEN KEY COMPONENTS

An industrial curing oven consists of five primary systems: the oven enclosure, heater unit, supply air system, recirculated air system, and exhaust air system.

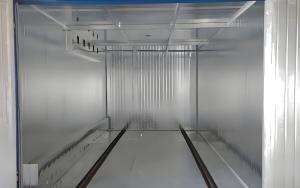

1. Oven Enclosure – serves as the curing chamber. It comprises a support framework, insulated panels, product entry points, and air seals. The enclosure is engineered to bear both structural loads and the weight of the product conveying system. ShengTai utilizes galvanized steel on interior and exterior surfaces to ensure robust support and rigidity.

2. Heater Unit – generates the thermal energy required for curing. This unit includes a burner, supply fan, and filtration system. In ShengTai ovens, the heated air makeup section is externally insulated and remains safe to the touch. Fresh air is drawn through base filters into the burner cabinet, where it is heated to the precise temperature needed for baking and curing. BEPL plug fans, selected by ShengTai for their high-temperature durability, ensure reliable heating and safe exhaust of hot air.

3. Supply Air System – delivers and distributes heated air throughout the oven. Supply ducts are positioned along oven walls and between alternate conveyors. Correct layout prevents cold spots and promotes uniform airflow and temperature.

4. Recirculated Air System – continuously reintroduces thermal energy into the curing chamber. This system requires careful design, as improper configuration may adversely affect curing performance.

Exhaust Air System – maintains a safe working environment by removing fumes produced during curing. A well-functioning system ventilates the oven before each startup and continuously extracts hazardous vapors throughout the process.

Electrostatic Powder Painting Booth

Name	Model	Specification	Quantity	Mark
External Dimensions of Curing Oven Length 6.6 m × Width 2.8 m × Height 3.5 m	Rock wool insulation thickness 100 mm	outer panel thickness 0.47 mm	1 set	white
		Inner panel thickness 0.47 mm	1 set	Galvanized
		Rock wool density 120 kg/m³	1 set	Fireproof rock wool
	Floor Insulation Structure	Insulation thickness 50 mm; frame made of 50×50 mm square tubes, 1.5 mm thickness	1 set	Galvanized
		Upper panel thickness 1.2 mm	1 set	Galvanized
		Bottom panel thickness 0.5 mm	1 set	Galvanized
		50 mm thick rock wool	1 set	Galvanized
	Overhead Conveyor Track	Single-point load capacity 100 kg	43 m	8 hanger wheels
	Burner	340,000 kcal	1 unit	Adjustable 30°C–220°C
	Control Cabinet	PLC Touchscreen	1 unit	Automatic temperature control
	Combustion Chamber	2 m (L) × 1.1 m (W) × 1.1 m (H)	1 unit	Inner plate SS 1.2 mm; outer plate 1.2 mm; framed structure
	Fan	5.5kW	1 unit	Inner plate SS 1.2 mm; outer plate 1.2 mm; framed structure
	Edge & Corner Trims	1.2 mm thickness	1 unit	Galvanized sheet bending
	Gasification Furnace		1 unit	Paired with 340,000 kcal burner
