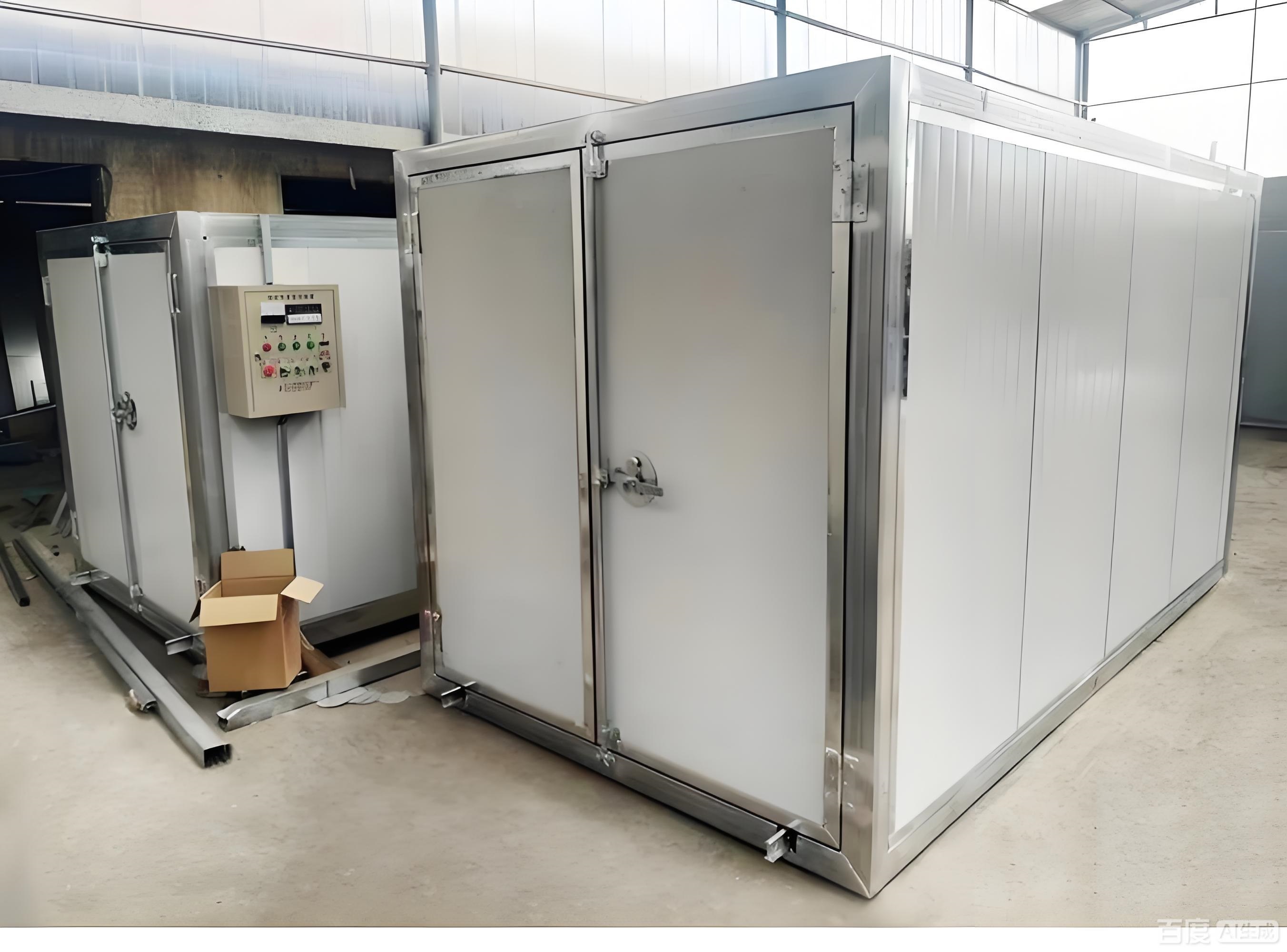

Manual Powder Curing Oven

ST-MPC-C73535

Price: USD5000~10000

Excellent Painting Results: Carbon fiber infrared electric heating tubes utilize infrared radiation for heating.
Rapid Heating and Intelligent Control: Features smart operation with simple controls for precise temperature adjustment.
Air Filtration: Equipped with high-efficiency air filtration devices to minimize the impact of dust and other impurities.
Fireproof Insulation: The exterior wall rock wool panels are made of 10mm fire-resistant rock wool insulation board.

Electric control cabinet is in both Chinese and English with grouped controlling. Electric equipment of Delixi brand with electricity-leaking protection.
Shipping with screws and accessories for installation. The whole installation video provided.
Common types include bottom-suction, side-suction and mobile types, and the size and power can be customized according to client’s requirements.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

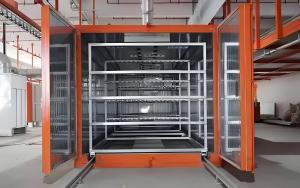

Manual Powder Curing Oven

ShengTai Painting Equipment offers a flexible infrared curing system designed to handle both liquid and powder coatings. This multi-purpose solution caters to diverse industrial needs and coating requirements. It ensures reliable, high-quality curing performance for all types of applications—whether using powder, liquid, or a combination of both—without sacrificing efficiency or results.

External dimensions	L7000 W3500 H3500 mm
Maximum temperature	210°C
Heating method	Diesel
Heating capacity	220,000 kcal gas-fired heater * 1 unit;
circulation fan	5.5 kW*1 unit
Electrical Control
Designed and installed according to national electrical standards
Conveying System
Overhead type	Model QXT-300, single-point load capacity: 200 kg，four-track system, approx. 130 meters in length
Ground type	No. 8 light rail, two tracks, approx. 65 meters in length
