Manual powder coating booth oven

ST-MPCL-4512

Price: USD20000~30000

Application: Suitable for all coating types and industry uses
Remote Access & Diagnostics: Control, oversee, and resolve issues from any location
Heater Modules with Easy Access: Hinged lamp layout and built-in supply air for quick maintenance
Recipe-Based Control: Store and retrieve customized curing profiles with individual heater zone configurations

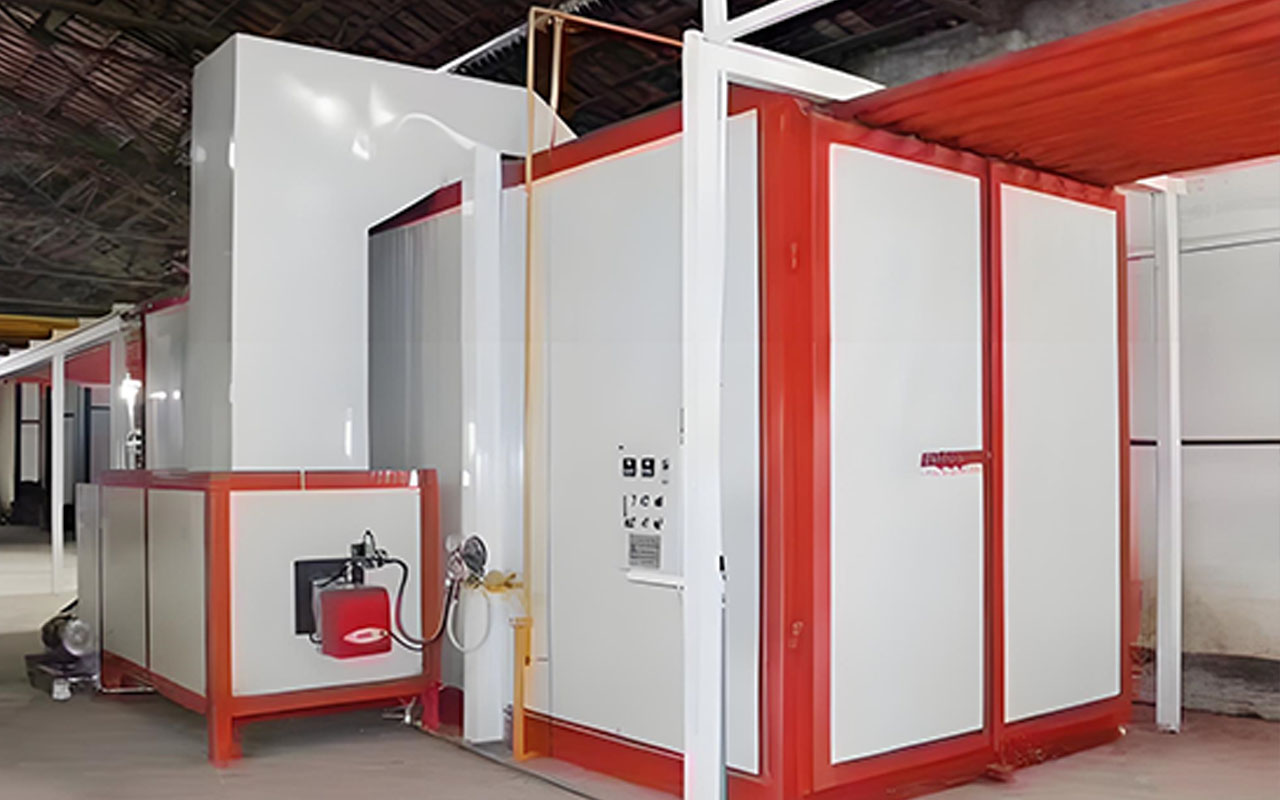

This manual powder coating oven, featuring an overhead conveyor system, is engineered for efficient continuous batch processing. The conveyor can be provided with the unit or custom-built by the customer. Utilizing electric heating, this oven is both user-friendly and environmentally conscious. Built on a decade of design and manufacturing expertise, ShengTai ovens deliver reliable, repeatable results while remaining cost-effective.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

Heavy Equipment

Protective Coating

Manual powder coating booth oven

Key Features: Powder coating ovens

Constructed with a 100mm rockwool layer for minimal heat loss, a galvanized inner wall for heat resistance, and a durable color steel exterior for long-term durability.

Forced Air Circulation

An energy-efficient fan continuously circulates hot air within the chamber, ensuring uniform temperature distribution and stability. This results in a consistent, high-quality finish with even gloss and color.

Precise Process Control

A straightforward PLC controller manages the heating process with high precision, allowing accurate setting of temperature, timing, and fan operation. It also incorporates multiple safety features, including alarm indicators and emergency stop buttons.

Efficient Heating Performance

Equipped with electric heating tubes, the oven reaches the required temperature range of 180–250°C within 15–30 minutes and supplies clean air. Units can also be customized for gas, diesel, or LPG heating.

I. Manual Powder Spraying Room+Powder Spraying Gun
External Dimensions	L4500 x W1000 x H2100mm
Internal Dimensions	L3700 x W1000 x H1700mm
Lighting System	24w LED explosion-proof lights,4 sets, 8 pieces of lights tubes.
Booth Body	1.2mm thick galvanized sheet
Powder Recovery System	Pulse airflow backflow cleaning system
Filter Cartridges	diameter 320 × 600 in each room, 12 pieces.
Ventilation System	2 sets of 4kW (4-72-4A) centrifugal fan for each booth
Exhaust Duct	0.8mm galvanized sheet, cross-section of 400 x 400 (mm), 4-meter long exhaust duct and 2 elbows;
Powder Spray Gun and Powder Bucket	Included.
II. High Temperature Oven
External Dimensions of the Furnace	L4000 x W2000 x H2800mm. 100mm thick rock wool insulation board, 0.526mm color steel plate, 1.2mm thick steel plate with edge wrapping, assembled structure.
Gate Size	Manual sliding door, W1800 x H2000 (mm)
Hot Air Stove (1 set)	1800 x 1300 x 1300 (mm), 100mm thick rock wool insulation board; Install one set of 75kW stainless steel electric heating rods inside the furnace; 1 plug-in high-temperature resistant fan (air volume: 7000m3/h, power 2.2kw)
Circulating Air Duct	Cross section 1000 x 250 (mm), 0.8mm galvanized steel plate and square pipe structure, 2 pieces of 3 meters of length .
III. Conveyors and Support Frame.
Activity Track	C-shaped structure, cross-section 80 x 80 (mm), 3.5mm thick steel plate, 4 sets of 4 meters of length
Weight Loading Capacity	200KG
Load Bearing Track	5 # angle iron, 3.8 meters long; 2 items.
Weight Loading Capacity	200KG
Load Bearing Track	5 # angle iron, 3.8 meters long; 2 items. weight loading capacity: 200KG.
Fixed Track	C-shaped structure, cross-section 80 x 80 (mm), 3.5mm thick steel plate, length 5 meters; 8 sets
Weight Loading Capacity	200KG.
Sliding Trolley	4-wheel structure
Maximum Single Load Capacity	100KG; 20 sets
Sliding Wheel	iron structure, load capacity 100KG; 8 sets.
Support Column	100 x 100 carbon steel square tube, 2800mm of height ; 8 sets.
Supporting Crossbeam	100 x 100 carbon steel square tubes, 1.3 meters /3.8 meters length.
Manual Push Rod	50 x 50 carbon steel square tubes, 1 set
IV. Electric control box: 2 sets
