No.

Product specifications

Quantity

Units

1

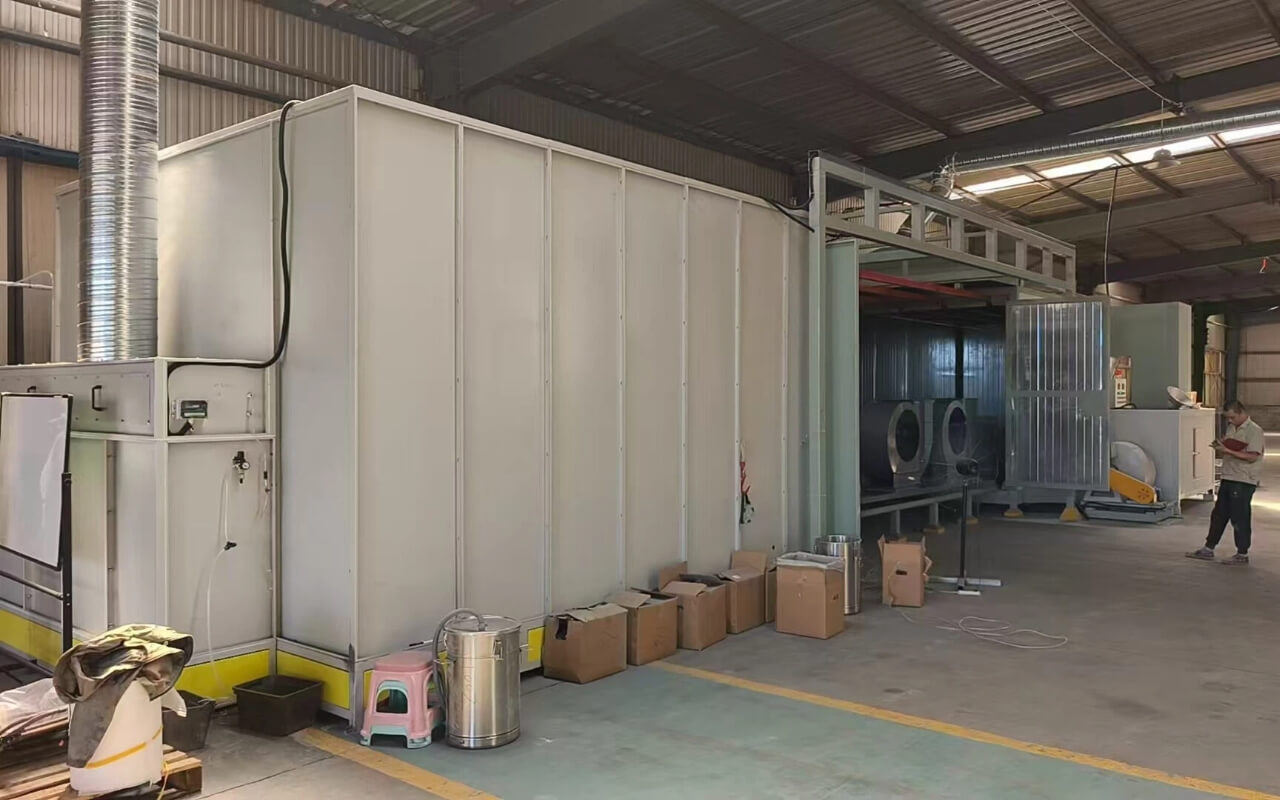

Curing oven body

L3200*W3200*H3200

1

set

1)

Oven shell material

Made of rock wool board  (δ100mm, bulk density 100kg)

1

set

2)

Rock wool insulation (outer   panel)

Adopting 0.5mm color-coated sheet

1

set

3)

Rock wool insulation (inner   panel)

Adopting 0.5mm galvanized sheet

1

set

4)

Oven floor plate

Made of rock wool board   (δ50mm) and section steel

1

batch

5)

Oven body structure

Fixed structure

1

piece

6)

Oven door frame

Adopting 100*100mm square  tube with 1.5mm thickness

1

piece

7)

External corner trim / Outer   corner wrap

Galvanized sheet with surface painting, material: SPG-1.2

1

set

8)

Internal corner trim / Inner   corner wrap

Galvanized sheet, material: SPG-1.0

1

set

9)

Auxiliary materials

50×50mm iron square tube, material: SS41-t1.5mm

1

set

2

Powder curing oven heating system

78kW electric heating system

1

set

1)

Heat exchanger

Stainless steel finned heating tube

1

batch

2)

High-temperature wire

1

batch

3)

Support / Bracket

1

batch

4)

Connectors and fasteners

1

batch

5)

Terminal blocks

1

batch

6)

Hot air circulation

0.75kW

1

7)

Temperature control

Normal temperature — 200℃

1

set

8)

Temperature controller   (Thermostat)

Temperature controlled by RKC-700 temperature controller

1

piece

9)

Temperature sensing element

K-type temperature sensor, temperature measurement accuracy: ±5%

1

set

3

Conveyor / Transport system

1

set

1)

Loading rack

Made of 80*80mm square tube,   equipped with steel universal casters

1

set

4

Electrical control system

1

set

1)

Enclosure

Made of SS41-t1.2 carbon steel plate with bending and welding process

1

piece

2)

Control system

PLC touch screen

1

batch

3)

Control electrical   components

All electrical components of CHINT brand

1

batch

4)

Power supply circuit

Adopting 4～16mm²power supply cables

1

batch

5)

Control circuit

Adopting 1.0～1.5mm² control wires

1

batch

6)

Overload protection

Overload control for each motor

1

batch

7)

Operation display

Running status display of the conveyor

1

batch
