Automatic Liquid Coating Line

ST-ALPL-1821

Price: USD50000~100000

Efficient spraying: high spraying speed enables large areas to be coated in a short time. Wide range of applications: can be used in a variety of industrial applications such as automotive manufacturi

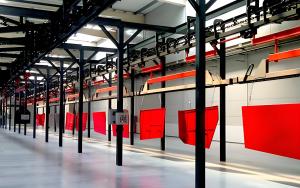

Creative Customization: By modifying spray settings and materials, the liquid application can be tailored to produce an extensive spectrum of colors and specialized finishes.
Adjustable Precision: The nozzle offers customizable angle and placement, providing the flexibility needed for various projects and ensuring consistent, complete coverage.
Broad Utility: It is suitable for diverse uses, from industrial sectors like automotive, furniture, and metal fabrication to architectural finishes, as well as creative fields including art and signag

Main Features of the Painting Production Line
1.High speed, uniform coating, and high efficiency, with low energy consumption and large output; productivity is 4–5 times that of manual labor.
2.Centralized control system, making operation and maintenance convenient.
3.A quick color-changing system can be designed according to customer requirements, greatly reducing gun cleaning time during color changes and improving equipment utilization.
4.Centralized control design ensures easy operation and maintenance.
5.The upper and lower conveyor rail system is designed to accommodate differences between long and short workpieces. An auxiliary automatic transverse unloading device is developed, featuring fully automatic process control, making unloading simple and efficient.
6.Based on many years of experience in painting process technology, the entire painting line is designed with a simple and smooth workflow. The operating procedures are straightforward, allowing operators to become proficient quickly.
7.Spray gun angles can be automatically adjusted according to the size and shape of the products.

Coating solutions for Industry

Automotive Industry

Consumer Electronics

Furniture & Wood Products

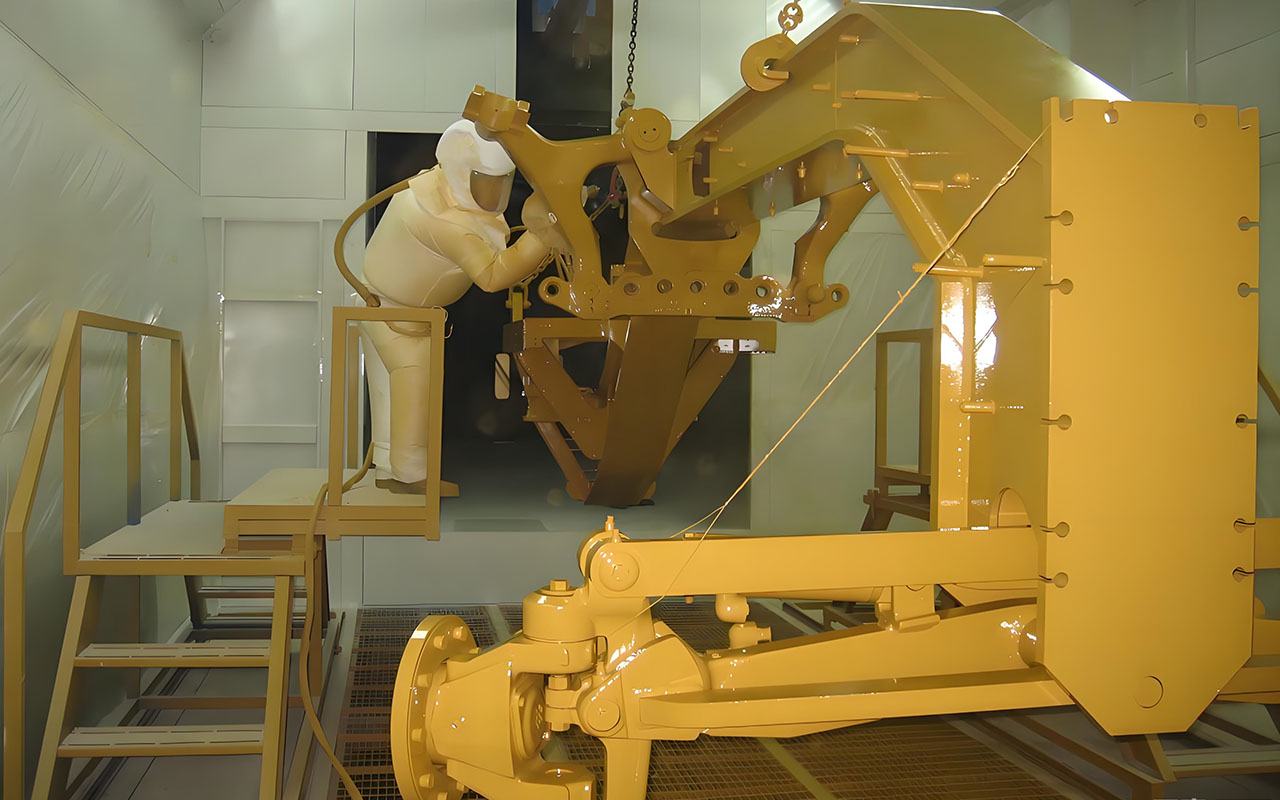

Heavy Equipment

Protective Coating

Product Description

The painting production line, also known as a coating line, is a specialized conveyor-based system used to apply protective or decorative coatings to metal and non-metal surfaces.

The painting line equipment is suitable for spray painting and powder coating of workpiece surfaces and is mainly used for batch coating operations. It forms a complete production line when integrated with pretreatment equipment, spray booths, drying ovens, and conveyor chains.

The painting production line effectively solves common problems associated with manual spraying operations, such as high labor intensity, low efficiency, large manpower requirements, unstable coating quality, poor uniformity, and excessive paint waste. Based on preset parameters, this automated painting line can perform large-area spraying automatically, significantly reducing labor requirements while achieving high spraying efficiency. The coating quality is stable with excellent uniformity.

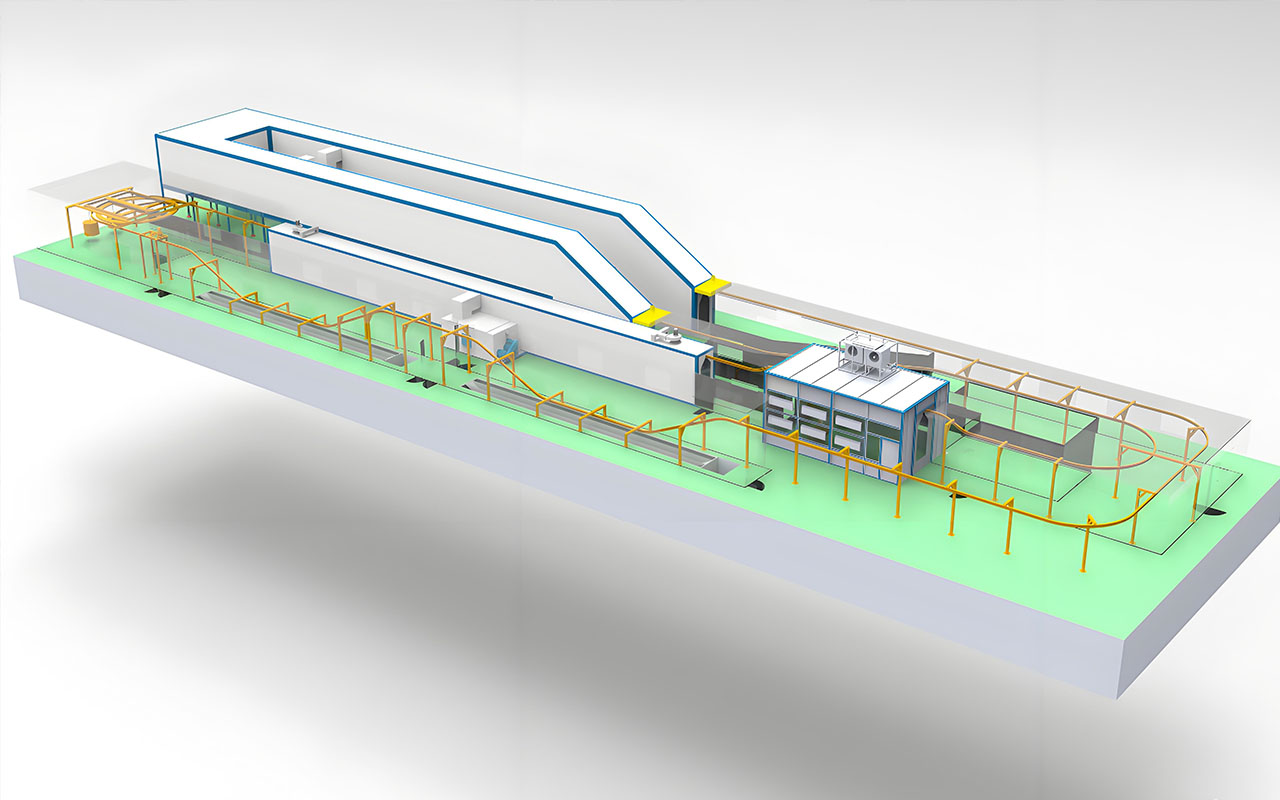

Liquid Coating Line Configuration

No	Name	Specification	Quantity
I	Curing Oven	Outer Dimensions L35000W2000H2700	1 set
1	Panel	10 cm thick rock wool panel, one side galvanized, one side white, sheet thickness 0.5 mm
2	Support Frame	100×100 square tube, 3.0 mm thick 100×100 square tube, 2.0 mm thick 100×50 square tube, 2.0 mm thick
3	Trough, Corner Caps, Internal Corners	1.2 mm galvanized sheet
4	Base Plate	200*200 mm, 5 mm thick carbon steel plate
II	Powder Curing Oven Heating System	Heat conversion furnace 500012001300 mm, furnace liner stainless steel 2 mm thick, filled with aluminum silicate wrapped rock wool	1 set
1	Burner	RS50 \| Riello (Domestic) RS50
2	Fan	7.5 kW built-in high-temperature fan
3	Air Inlet & Return Ducts	1.5 mm galvanized sheet
4	Control Cabinet (Non-explosion-proof)	Delixi Electric

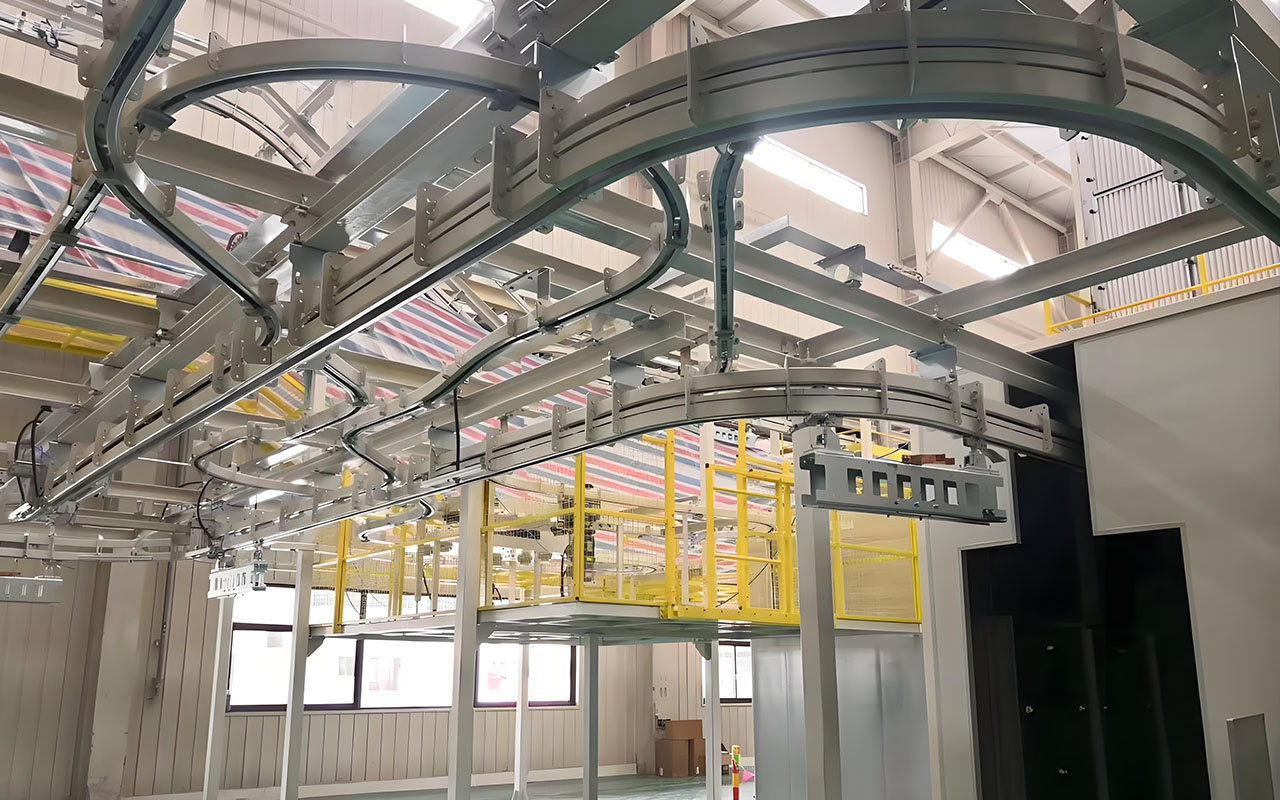

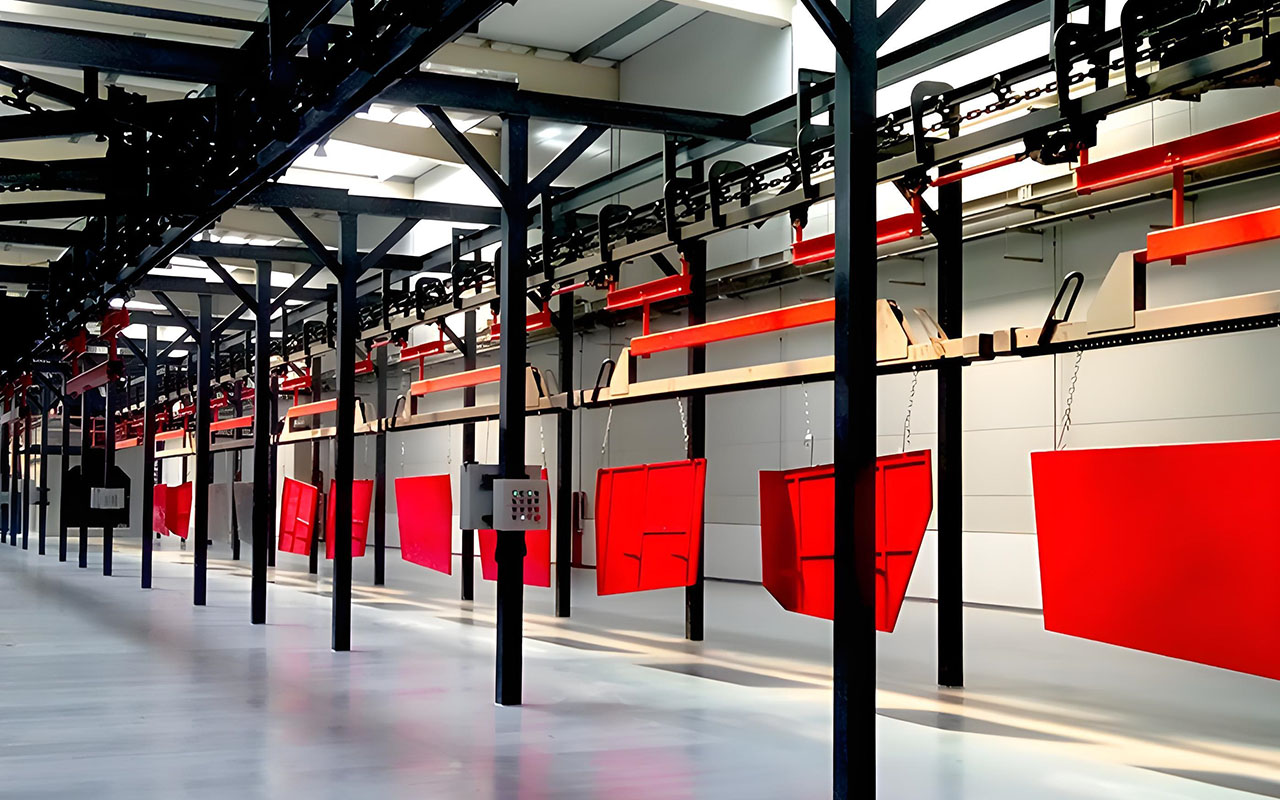

III	Overhead Conveyor Chain	Type 250, single-point load capacity 50 kg	1 set
1	Chain	Type 250 chain \| 150 m	150m
2	Straight Track	I-beam No. 12	130m
3	Drive Unit	4 KW motor with 2-35 reducer	1 unit
4	Tensioning Device	R3000×180°, includes 2 buckets	1 set
5	Horizontal Curved Track	R3000×180°	2 pieces
6	Horizontal Curved Track	R3000×90°	2 pieces
7	Horizontal Curved Track	R1000×30°	2 pieces
5	Incline/Decline Sections	R1500×30°, manganese steel	4 groups
6	Scissor Hangers	With pins and bolts, pitch 500 mm	350 sets
7	Automatic Lubricator		1 unit
8	Control Cabinet (Non-explosion-proof)	4 KW frequency conversion control cabinet	1 unit

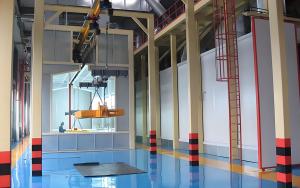

IV	Automatic Spray Booth	L6000×W1500×H3500 mm (side panel height 3000 mm)	1 set
1	Booth Material	Galvanized sheet δ1.5 mm, welded and powder coated	1 unit
2	Lighting Fixture	50 W (explosion-proof type)	2 sets
3	Paint Blow-off Device	Mushroom head blow-off	2 sets
4	Booth Recovery Structure	Bottom recovery	1 set
5	Booth Bottom	Galvanized sheet δ1.5 mm	1 set
6	Operating Platform	Platforms at both ends of the booth	2 sets
7	Automatic Spray Gun Ports (reserved)	4 groups on one side	2 groups
V	Paint Spray Cabinet	L2500mm×W1500×H2500mm	1 set
1	Exhaust Fan	5.5kW	2 units
2	Water Pump	Pipeline pump	2 units
3	Ducting	Round pipe, 1.0 mm thick	1 set
4	Electrical Control	Frequency conversion	1 set
VI	Paint Mist Recovery System	L3000×W1500×2800mm	1 set
1	Cyclone Scrubber Tower	Stainless steel, 1.5 mm thick	1 set
2	Activated Carbon Adsorption Box	2200×1500×1500 mm	2 units
3	Dry Filter	Non-woven filter bags	16 sets
4	Control Cabinet (Non-explosion-proof)	30 kW frequency conversion control cabinet	1 set
5	30 kW Fan	Exhaust fan	1 set
VII	Connecting Ductwork		1 group
1	Spray Booth to Paint Mist Recovery (Φ500 mm)	Elbow: 1, Tee: 1, Square-to-round transition: 1, Straight pipe: 6000 mm (1.0 mm cold rolled sheet)	1 group
2	Spray Booth to Paint Mist Recovery (Φ600 mm) Φ600mm	Elbow: 1, Square-to-round transitions: 2, Straight pipe: 2500 mm (1.2 mm cold rolled sheet)	1 set
VIII	Spraying Equipment
1	Reciprocator	Stroke 2 m, with 4 automatic spray guns	2 units
2	Manual Spray Gun	For manual touch-up	2 sets
VIV	Explosion-proof Equipment	with certificates	1 set
1	Flameless Venting Device	410×410 mm (with certificate)	2 sets
2	Single-direction Explosion Isolation Valve	Diameter 600 mm (with certificate)	1 set
